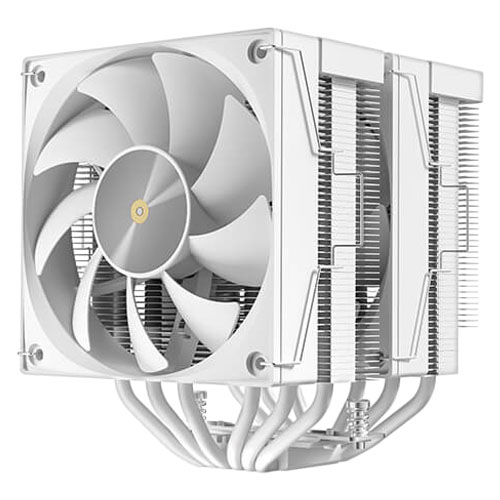

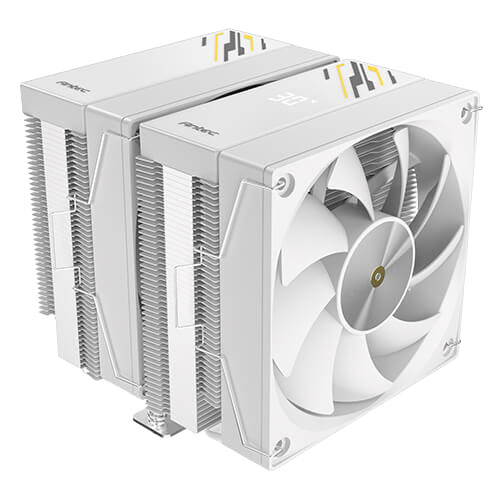

The Antec F620 Digital Pro is a dual tower CPU air cooler designed to deliver high performance cooling with convenient real-time temperature monitoring. Its aluminium heatsink features six direct contact 6mm copper heat pipes to transfer heat efficiently from the processor, while two 120mm hydraulic bearing PWM fans provide adjustable cooling performance. Each fan operates between 600 and 1,800 RPM, delivering up to 70 CFM of airflow, with a combined maximum airflow of 140 CFM. Rated for a thermal design power of up to 255W, the F620 Digital Pro is suited to performance focused desktop systems. A built-in digital display on the top cover shows CPU temperature in real time, with customisable screen content available through Antec's iFusion software. The fans use a daisy-chain connection to simplify cable management, while the stepped heatsink design provides 40mm of memory clearance by default, expandable to 55mm by raising the front fan. Measuring 120 x 136 x 157mm (DWH), the cooler supports Intel LGA 115X, 1200, 1366, 1700, 1851 and 20XX sockets, as well as AMD AM4 and AM5 platforms. Combining substantial air-cooling capacity with a practical digital display, the F620 Digital Pro is a versatile option for powerful gaming and productivity PCs.
Features
F620 Digital Pro
High Performance CPU Cooler
Dual-Tower Dual-Fan Cooling
Equipped with dual high-performance fans delivering up to 140 CFM of total airflow, ensuring rapid heat dissipation and outstanding cooling efficiency for high-performance CPUs.

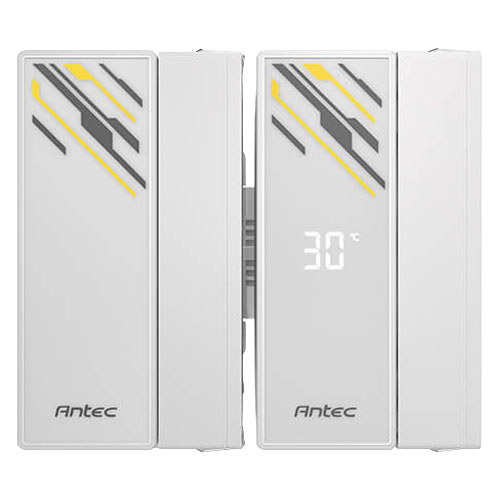

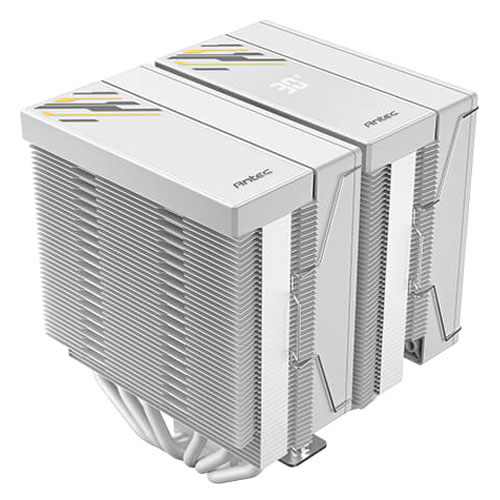

Top-Mounted Digital Display
Futuristic patterned top cover design with a built-in temperature display screen for real-time temperature monitoring.

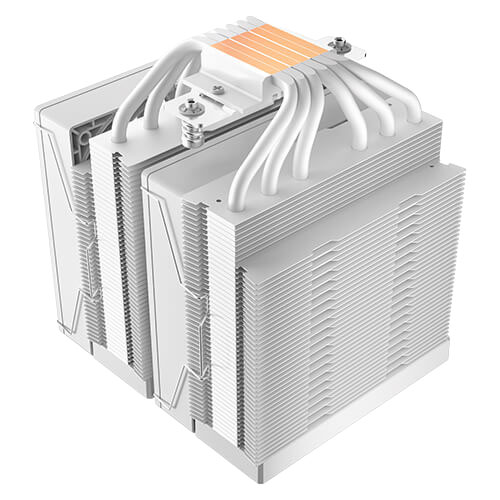

6 Copper Heat Pipes
The direct-touch copper heat pipes enhance heat transfer efficiency and provide strong cooling performance.

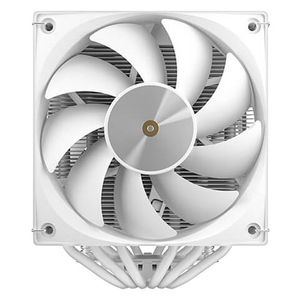

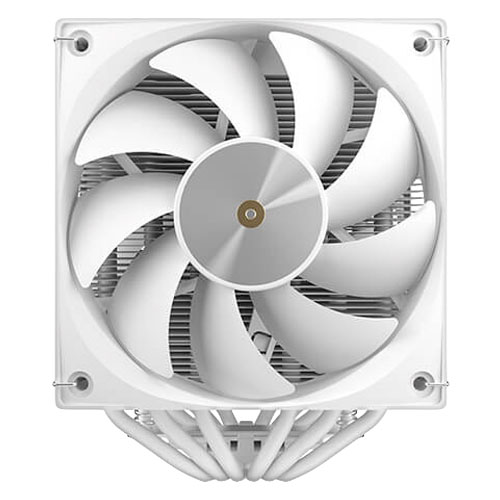

High-Quality PWM fans
Featuring a daisy-chain design for simplified cable management, the dual PWM fans deliver up to 70 CFM of airflow each. Combined with the dual-tower heatsink design, they provide powerful cooling performance with quiet operation.
RAM Clearance Design
Provides 40 mm RAM clearance by default and up to 55 mm with the notched fin design when the front fan is raised.

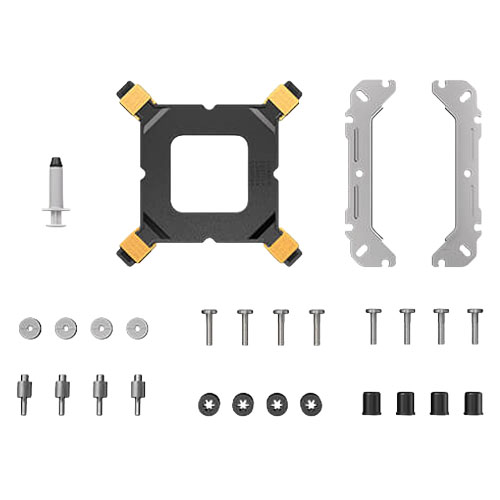

Universal CPU Socket Compatibility
Universal Retention Module compatible with both Intel and AMD CPU sockets.
iFusion Digital Display
Equipped with a built-in digital display, the cooler supports customisable screen content through the iFusion software. Monitor CPU temperature in real time and keep track of your system status at a glance, combining effective thermal management with a personalised visual experience.
Overall Dimension
Specifications
General Data
| Model Number |
CFA-F620DIGITALPRO-WH |
| Colour |
White |
| Product Dimension |
120 x 136 x 157mm (DWH) |
| Fan Dimensions |
120 x 120 x 25mm (DWH) |
| Type |
Hydraulic Bearing Fan |
| Speed |
600~1800 ± 10% RPM |
| Airflow |
24~70 ± 10% CFM |
| Noise |
14~27.6 ± 10% dB(A) |
| Air Pressure |
1.12~2.22mmH2O ± 10% |
| Connector |
4-Pin PWM |
| Lifespan |
40,000 hrs |
| Rated Voltage |
DC 12V |
| Rated Current |
0.19 ± 10% A |
| Heat Pipe Dimension |
∅6mm*6pcs |
| Heat Sink Material |
Aluminium + Copper Heat Pipe |
| Power Consumption |
4.56W |
| TDP |
255W |
| Max RAM Clearance |
≤ 40mm (If the RAM height >40mm, the front fan must be raised.) |
| Socket Compatibility |
Intel: LGA 115X / 1200 / 1366 / 1700 / 1851 / 20XX
AMD: AM4 / AM5 |
| Net Weight |
1047g |
| Warranty |
1 Year |
Backed by a 1 year Antec warranty.
