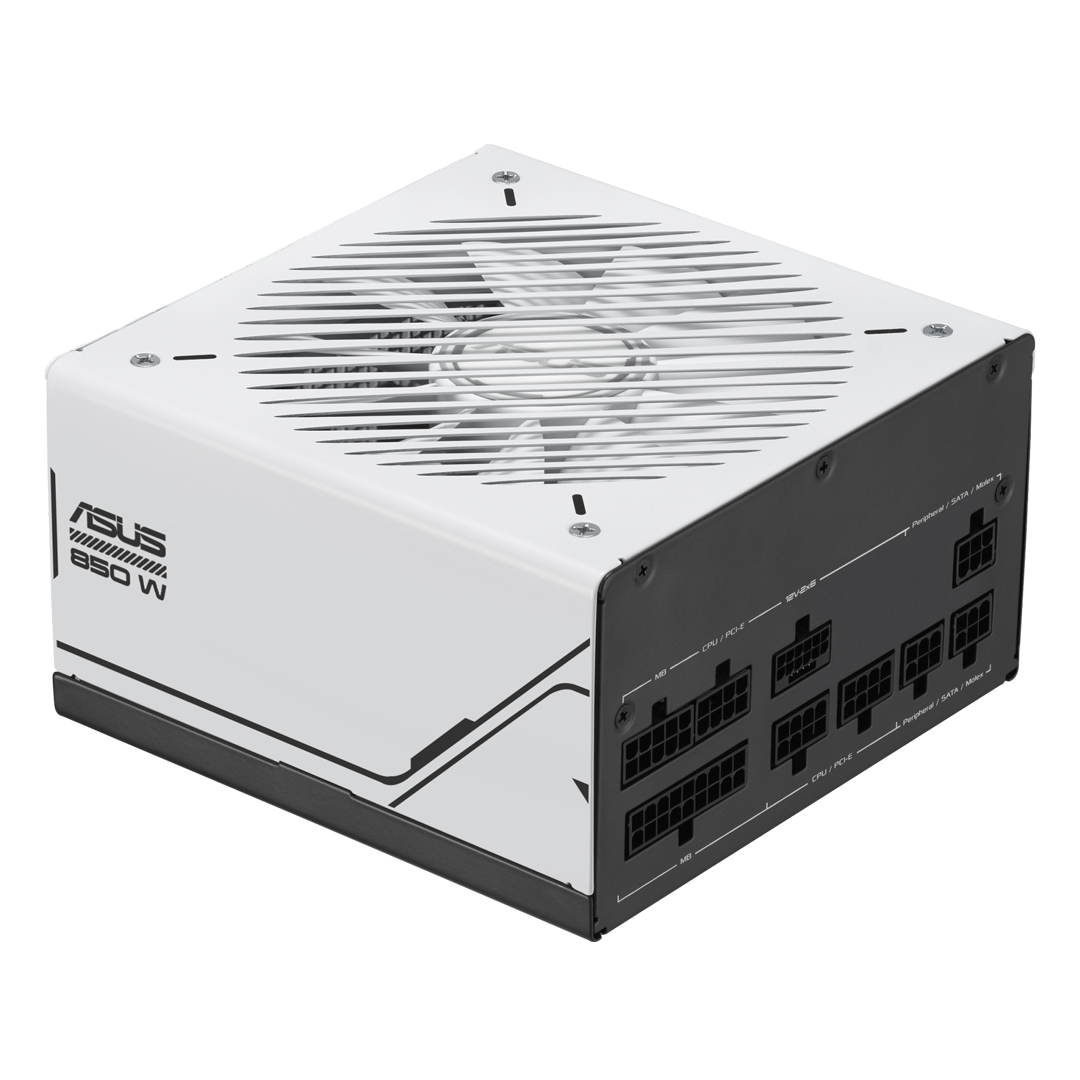

The ASUS Prime Gold ATX 3.1 850W Power Supply delivers efficient, reliable power with 80 PLUS Gold certification, dual ball fan bearings rated for up to 80,000 hours, and an 8-year warranty. With ATX 3.1 compatibility, a 16-pin PCIe Gen 5.1 graphics card cable, and a versatile black and white housing fitting either desired theme, the 850W power supply is suited to gaming rigs, workstations, and all-round PCs.
Features
Asus Prime 850W Gold PSU Brings Efficient and Durable Power Delivery to All-Round PCs, and Gaming Rigs
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
- ATX 3.1 compatible: ASUS Prime Gold is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards.
- 8-year warranty included.
Prime Performance
With 80+ Gold certification, dual ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
80 Plus Gold Certification
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.1 Compatible
The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Choose Your Style
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
Specifications
General Data
| Model Number |
PRIME-850G |
| Intel Form Factor |
ATX12V |
| PFC Type |
Active PFC |
| ATX Standard |
ATX 3.1 |
| 80 PLUS Efficiency |
80Plus Gold |
| Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials |
ROHS |
| AC Input Range |
100-240Vac |
| DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
| Maximum Load |
20A20A70.5A 0.3A 2.5A |
| Combined Load |
110W 110W 846W 3.6W 12.5W |
| Total Output |
850W |
| Cable Connectors |
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3 |
| What's Included |
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1 |
| Dimensions |
150 x 150 x 86 mm |
| Weight |
1.502 kg (single PSU) |
| AURA SYNC |
No |
| MTBF |
>120,000 hrs @ 25°C |
| 0dB Fan Button |
No, this product is without 0dB technology. |
Backed by a 8 year ASUS warranty.
