The ASRock Intel Arc A380 Challenger ITX 6GB OC is a compact graphics card designed for small form factor systems, combining Intel Arc graphics with 6GB of GDDR6 memory and a compact single-fan cooling design. Featuring a factory overclocked 2250MHz boost clock and 15.5Gbps memory speed, the card uses a PCI Express 4.0 x8 interface and supports DirectX 12 Ultimate, OpenGL 4.6, hardware ray tracing and Intel Xe Super Sampling (XeSS) technology. Its 6GB 96-bit memory configuration provides the bandwidth required for gaming, content creation and multimedia workloads, while the compact 191 x 124 x 39mm, 2 slot design makes it suitable for space-constrained builds. The Challenger ITX cooler incorporates a Striped Axial Fan designed to enhance airflow and cooling efficiency, with 0dB Silent Cooling allowing the fan to stop during low load operation for quieter performance. Display connectivity includes HDMI 2.0b and three DisplayPort 2.0 outputs with DSC, supporting up to four displays and resolutions up to 7680 x 4320. With AV1 hardware encoding and decoding, Intel Deep Link Technology support and a recommended 500W power supply, the ASRock Intel Arc A380 Challenger ITX 6GB OC delivers versatile graphics capabilities in a compact format.
Features
Intel Arc A380 Challenger ITX 6GB OC
A380 CLI 6GO
- Clock: GPU / Memory
- GPU Clock: 2250 MHz
- Memory Clock: 15.5 Gbps
- Intel® Arc™ A380 Graphics
- 6GB 96-bit GDDR6
- DirectX® 12 Ultimate
- PCI® Express4.0 Support
- 1 x 8-pin Power Connector

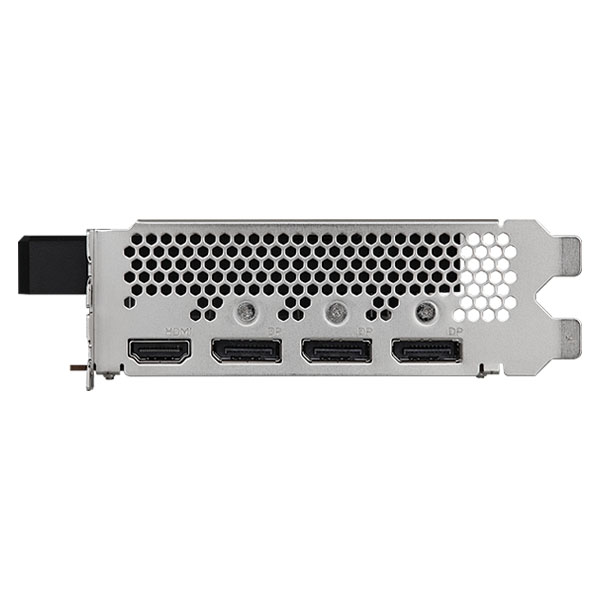

- 3 x DisplayPort™ 2.0 with DSC / 1 x HDMI™ 2.0b
- Small Form Factor Design
- Striped Axial Fan
- 0dB Silent Cooling
- Super Alloy Graphics Card
- 8K Resolution Support

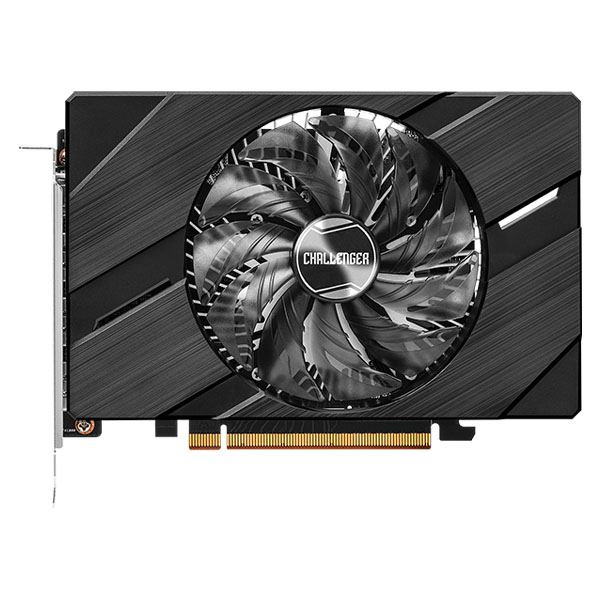

Single Fan Design
Optimised Cooling Efficiency
Single fan that provide strong cooling performance and make your gaming rig stay cool. It’s optimised for delivering excellent gaming experience with stylish and streamlined design.
Striped Axial Fan
Designed for Enhanced Airflow
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimise cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin for Cooling, Stop for Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
High-Quality Thermal Paste
Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximise heat transfer and thermal efficiency.
Precise Screw Torque
Optimised Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimise the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Super Alloy Graphics Card
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 100A Power Choke
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
Matte Black PCB
A new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
- High Density Design
- Traditional
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
Intel® Arc™ 3 Graphics - Boost your workflows
Enhance your creation and gaming with industry‑first AV1 hardware encode1 and AI‑enhanced XeSS upscaling.
Unleash your Creativity
Accelerate your productivity with the most comprehensive media capabilities (Based on the fact Intel® Arc graphics are the first in the market to be able to have AV1 encoding support (as of Q1 2022). Details at intel.com/performance index. Results may vary. © Intel® Corporation. Intel, the Intel® logo, and other Intel® marks are trademarks of Intel® Corporation or its subsidiaries. Other names and brands may be claimed as the property of others.) at your fingertips with industry‑first AV1 hardware encode and AI‑accelerated content creation.
Give Your Games a Boost
Take your gaming experience to the next level with Xe Super Sampling (XeSS), Intel’s AI‑enhanced upscaling technology, for more performance and fluid gaming on popular titles. Support for DirectX12 Ultimate takes your gaming to a new level of realism with the latest graphics technologies including ray tracing, variable rate shading, mesh shading, and sampler feedback - the fundamentals for next‑gen gaming.
Elevate Your Gaming Experience
Refine your gaming experience with Intel® Arc™ Control in an intuitive and modern layout. Get seamless driver updates and optimise many of your favourite games.
Maximise Your Intel® Platform
Enhance your creation, gaming and streaming experiences with Intel® Deep Link Technology features by pairing Intel® Core™ processors with Intel® Arc™ graphics.
* This product is still in production, ASRock will provide technical and security-related support throughout the product support period.
Backed by a 3 year ASRock warranty.
