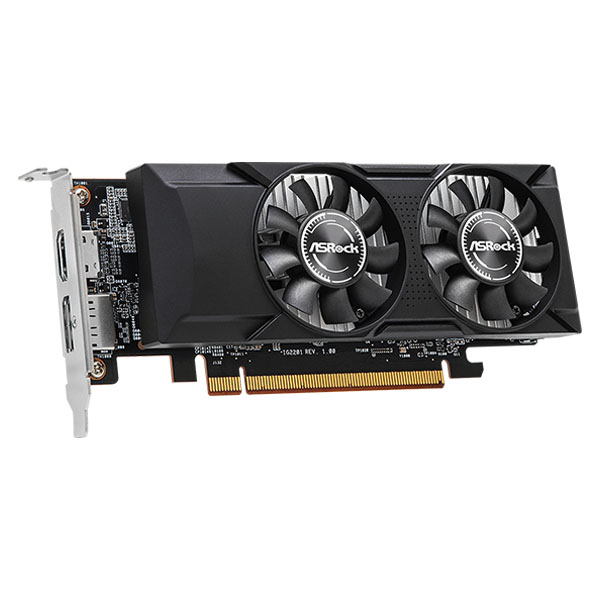

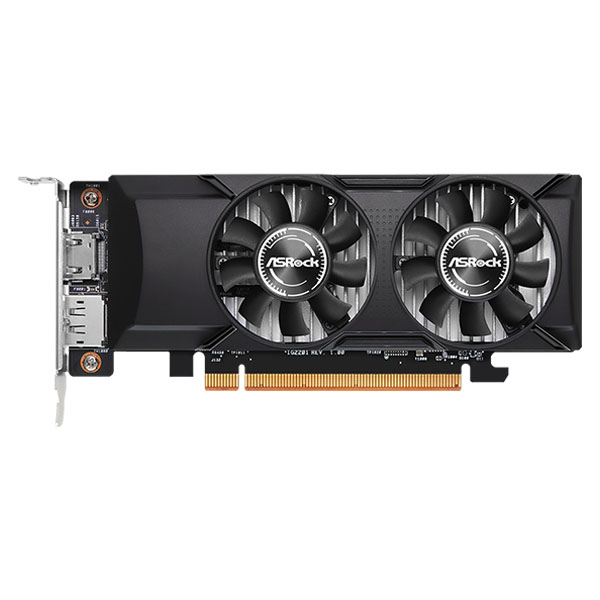

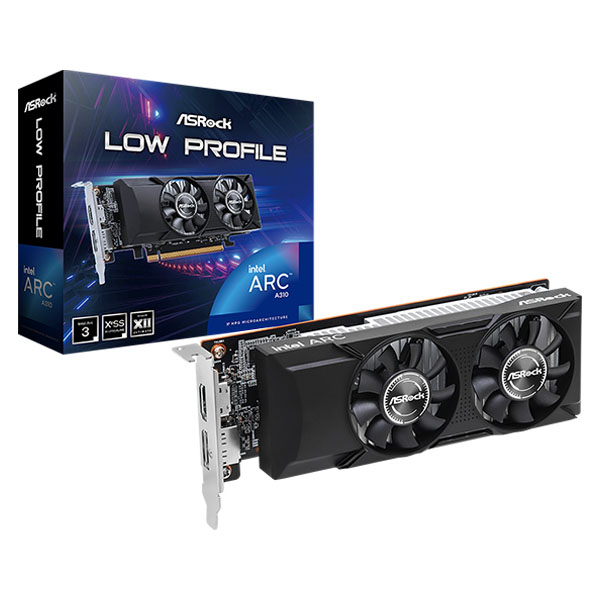

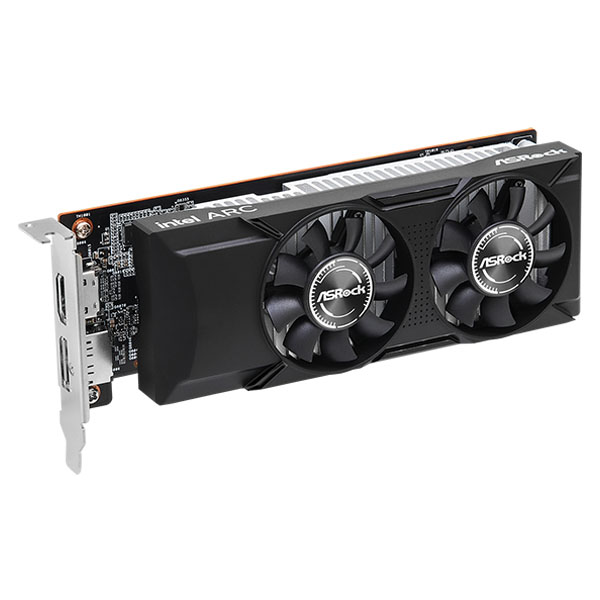

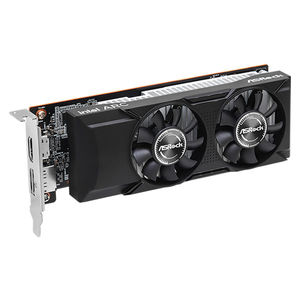

ASRock Intel Arc A310 Low Profile GDDR6 4GB

The ASRock Intel Arc A310 Low Profile 4GB is a compact graphics card designed for slim and small form factor PCs, combining Intel Arc graphics with 4GB of 64-bit GDDR6 memory and a low profile 169 x 69 x 39mm, 2 slot design. Featuring a 2000MHz GPU clock and 15.5Gbps memory speed, the card supports PCI Express 4.0 x8, DirectX 12 Ultimate, OpenGL 4.6 and up to 7680 x 4320 digital resolution, with 1x HDMI 2.0b and 1x DisplayPort 2.0 with DSC for display connectivity. Its dual fan cooler uses 0dB Silent Cooling technology, allowing the fans to stop under light workloads for quiet operation, while high quality thermal paste and precise cooler mounting pressure help optimise heat transfer. The Intel Arc A310 also provides hardware support for AV1 encoding, ray tracing and Intel Xe Super Sampling (XeSS), while Intel Deep Link Technology can enhance compatible gaming, creation and streaming workloads when paired with supported Intel Core processors. With support for up to two displays, a recommended 450W power supply and a supplied full height bracket, the ASRock Intel Arc A310 Low Profile 4GB is well suited to compact systems requiring capable graphics and media features in a space efficient format.

Features

---

Intel Arc A310 Low Profile 4GB

A310 LP 4G

• Clock: GPU / Memory
• GPU Clock: 2000 MHz
• Memory Clock: 15.5 Gbps
• Intel® Arc™ A310 Graphics
• 4GB 64-bit GDDR6
• DirectX® 12 Ultimate
• PCI® Express4.0 Support

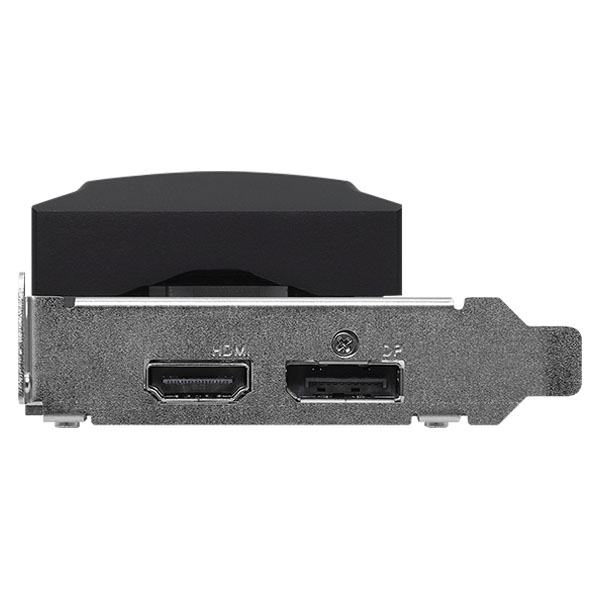

• 1 x DisplayPort™ 2.0 with DSC / 1 x HDMI™ 2.0b
• Low Profile Design
• Dual Fan Design
• 0dB Silent Cooling
• Super Alloy Graphics Card
• 8K Resolution Support

Low Profile Design

The 169 x 69 x 39 mm graphics card can fit into any slim or small form factor.

0dB Silent Cooling

Spin for Cooling, Stop for Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

High-Quality Thermal Paste

Perfect Thermal Teamwork

Eliminate the gaps in the contact area to maximise heat transfer and thermal efficiency.

Precise Screw Torque

Optimised Mounting Pressure

ASRock adopts precise screw torque when assembling its graphics cards to optimise the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Super Alloy Graphics Card

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 100A Power Choke

Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

Matte Black PCB

A new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

• High Density Design
• Traditional

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

Intel® Arc™ 3 Graphics - Boost your Workflows

Enhance your creation and gaming with industry‑first AV1 hardware encode (Based on the fact Intel^® Arc graphics are the first in the market to be able to have AV1 encoding support (as of Q1 2022). Details at intel.com/performanceindex. Results may vary. © Intel^® Corporation. Intel, the Intel^® logo, and other Intel^® marks are trademarks of Intel^® Corporation or its subsidiaries. Other names and brands may be claimed as the property of others.) and AI‑enhanced XeSS upscaling.

Unleash your Creativity

Accelerate your productivity with the most comprehensive media capabilities (Based on the fact Intel® Arc graphics are the first in the market to be able to have AV1 encoding support (as of Q1 2022). Details at intel.com/performance index. Results may vary. © Intel® Corporation. Intel, the Intel® logo, and other Intel® marks are trademarks of Intel® Corporation or its subsidiaries. Other names and brands may be claimed as the property of others.) at your fingertips with industry‑first AV1 hardware encode and AI‑accelerated content creation.

Give Your Games a Boost

Take your gaming experience to the next level with Xe Super Sampling (XeSS), Intel’s AI‑enhanced upscaling technology, for more performance and fluid gaming on popular titles. Support for DirectX12 Ultimate takes your gaming to a new level of realism with the latest graphics technologies including ray tracing, variable rate shading, mesh shading, and sampler feedback - the fundamentals for next‑gen gaming.

Elevate Your Gaming Experience

Refine your gaming experience with Intel® Arc™ Control in an intuitive and modern layout. Get seamless driver updates and optimise many of your favourite games.

Maximise Your Intel® Platform

Enhance your creation, gaming and streaming experiences with Intel® Deep Link Technology features by pairing Intel® Core™ processors with Intel® Arc™ graphics.
