EK Pro CPU WB STR CPU Block Nickel + Acetal

The EK Pro CPU WB STR CPU Block Nickel + Acetal water block features a nickel plated copper cold plate with micro fin grooves designed to cover the entire integrated heat spreader of compatible AMD EPYC and Ryzen Threadripper processors for effective cooling. With a durable CNC-machined POM Acetal top, three G1/4 inch ports, and a pre-assembled mounting mechanism, the water block supports a range of AMD sTRX4, TR4, SP3, sTR5, and SP6 platforms for desktop PCs, workstations, and server systems.

Features

---

EK-Pro CPU WB sTR - Nickel + Acetal

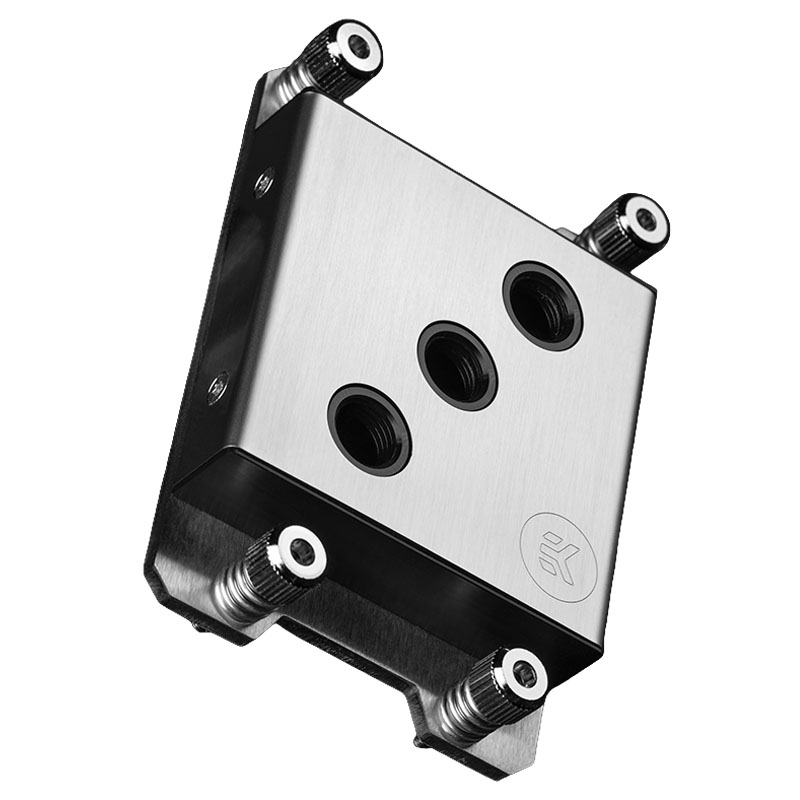

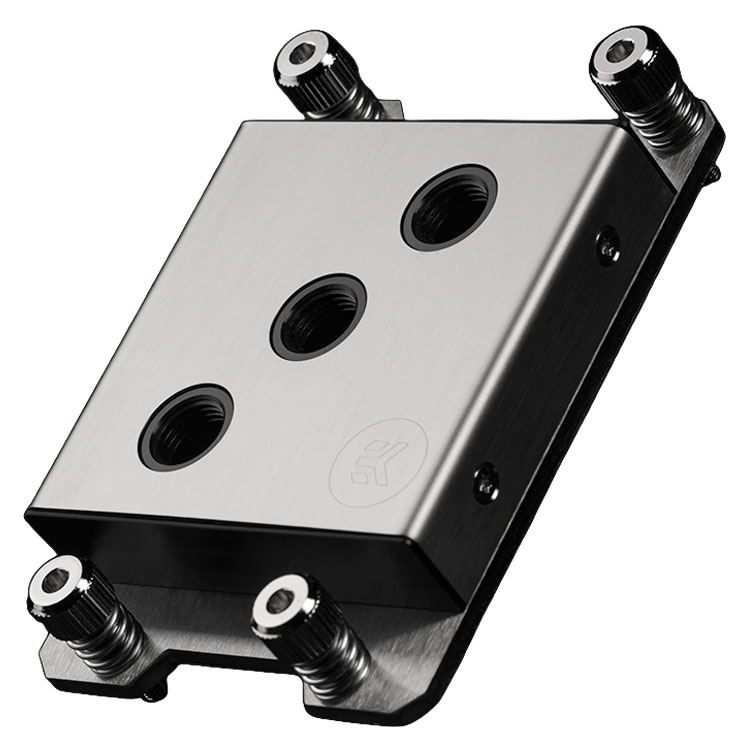

The EK-Pro CPU WB sTR - Nickel + Acetal is a dedicated server-grade water block that is tailor-made for AMD® EPYC™ and AMD® Ryzen™ Threadripper™ processors. It features three standard G1/4" threaded ports on the top and is suitable for desktop PCs, workstations, and taller server racks alike.

The primary goal in designing the new EK-Pro CPU WB sTR - Nickel + Acetal water block was to cover the entire integrated heat spreader (IHS) of HEDT AMD® EPYC™ and AMD® Ryzen Threadripper processors, thereby improving cooling performance. A dense micro-fin structure with 91 wide grooves fully covers the CPU dies located below the IHS, ensuring more effective cooling.

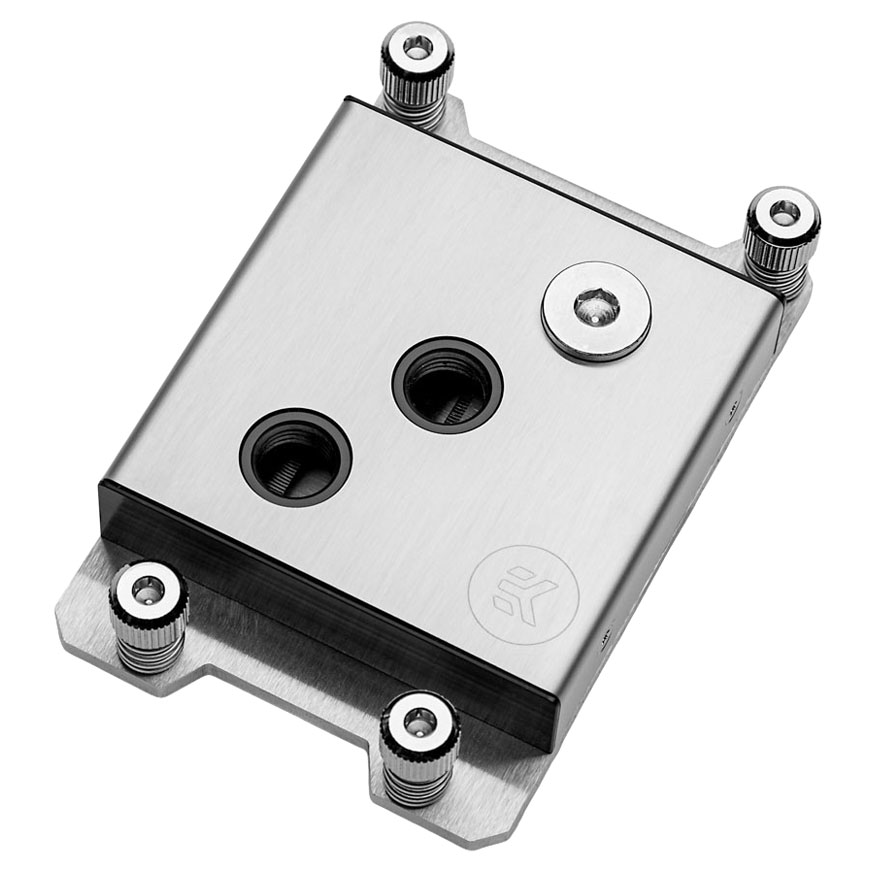

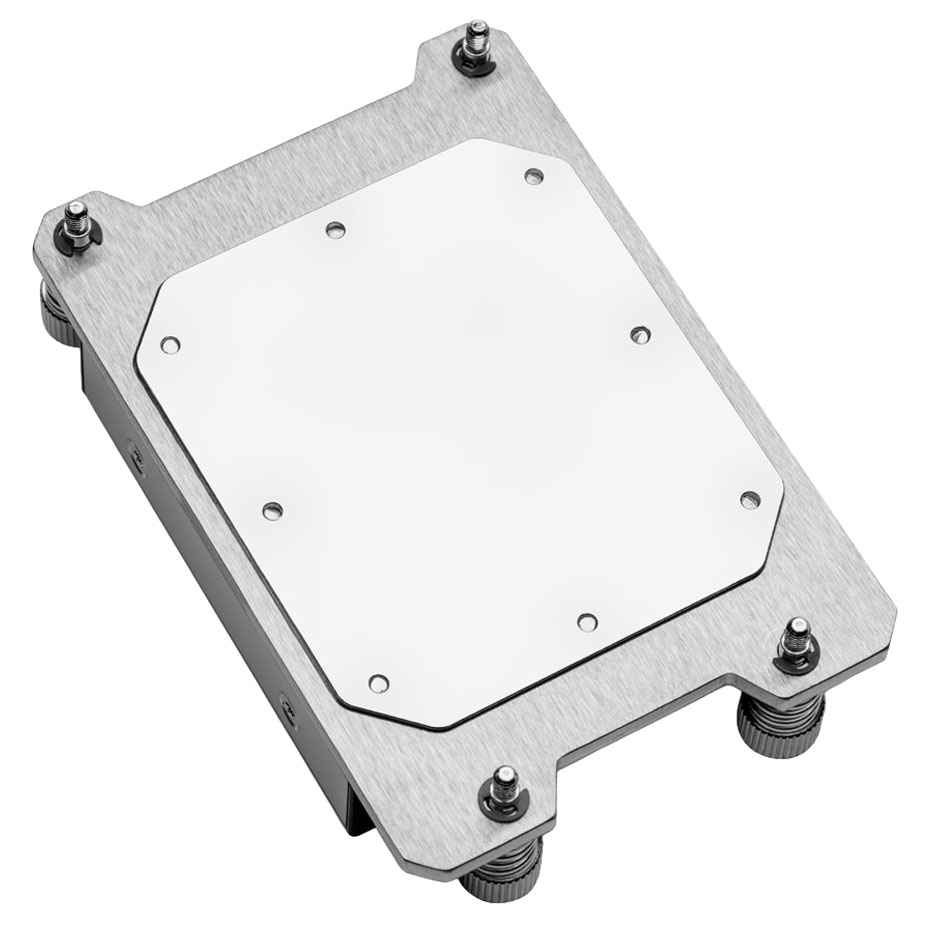

The top is crafted from CNC-machined durable POM Acetal, and the hold-down bracket is made of laser-cut stainless steel. Each EK-Pro CPU WB sTR water block includes a precisely machined copper base (sometimes referred to as a 'cold plate') made from the purest copper available on the market, treated with nickel electroplating.

The EK-Pro CPU WB sTR - Nickel + Acetal comes with a pre-assembled, error-preventing mounting mechanism that is directly installed onto the SocketTR4 mounting holes. This results in a perfect installation and optimal performance every time. Additionally, this mounting solution makes the water block compatible out of the box with AMD's server-type Socket SP3 motherboards, eliminating the need to remove the motherboard from the case and ensuring a hassle-free CPU installation.

It’s recommended that users refer to the EK-Pro CPU WB sTR - Nickel + Acetal water block installation manual for the recommended method of applying thermal grease to achieve the best results.

Please Note:

• This product should NOT be installed with any aluminium liquid cooling parts.
• The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.
