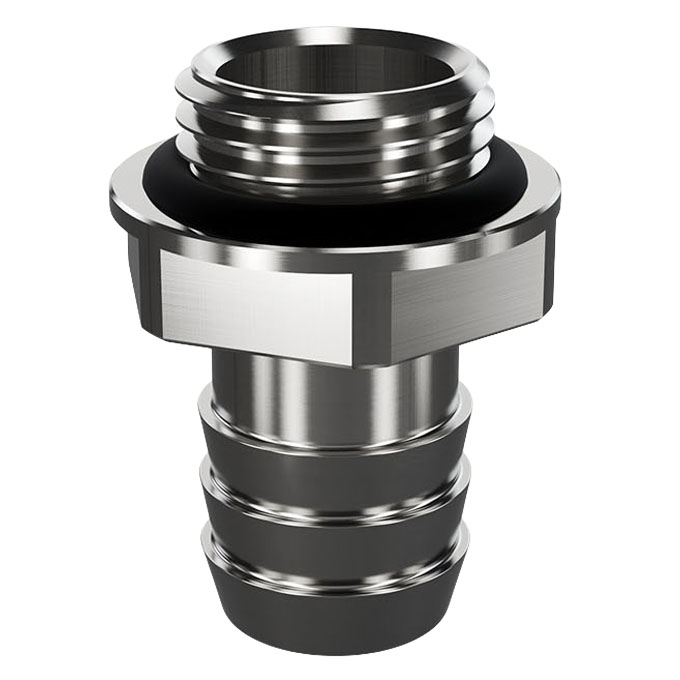

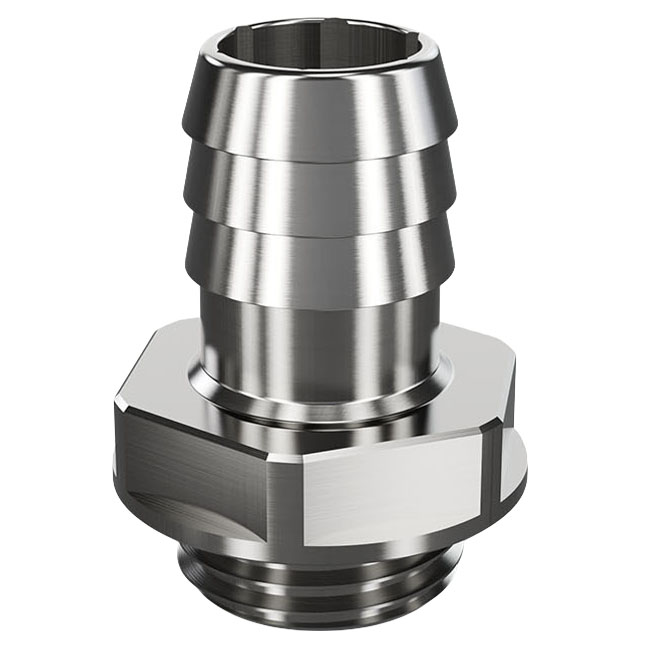

The EK-Pro G1/4 inch Barb Fitting 10mm features nickel plated, CNC-machined brass construction and quality O-rings for reliable connections in custom liquid cooling loops. Designed for flexible tubing with a 10mm inner diameter, the high-flow fitting is compatible with PVC, EPDM, Norprene and silicone tubing.
Features
EK-Pro G1/4" Barb Fitting - 10mm
The EK-Pro G1/4" Barb Fitting - 10mm is a soft-tube barb fitting designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone, or any other type of compatible flexible tube. It pairs ideally with the EK-Loop ZMT Soft Tube 10/16mm 1m – Black.
This product is a high-flow barb fitting and is suggested to be used with hose clamps or similar substitutes for the safest operation.
The barb is made from nickel-plated CNC-machined brass with quality O-rings.
These fittings can be either tightened by hand, by using a 13mm spanner key tool (not included) or 8mm Allen key (not included).
Please Note:
- This fitting is to be used only with correctly sized tubing.
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent water block damage.
- Use appropriate hose clamp or substitute for securing tubing to the barb.
- This product should NOT be installed with any aluminium liquid cooling parts.
Specifications
General Data
| Model Number |
3831129902374 |
| Material / Design / Colour Option |
Nickel |
| Threads |
G1/4 |
| Made In |
Slovenia - Europe |
Technical Data
| Thread |
G1/4" BSP |
| Supported Tube |
10mm inner diameter |
| Outer Diameter of the Tube |
Unlimited |
| Compatible Tubing |
PVC, EPDM, Norprene, silicone, and most types of flexible tubes |
Backed by a 2 year EK Waterblocks warranty.
