The EK Pro Manifold 2CPU 6GPU Acetal is a purpose made coolant delivery system designed to efficiently distribute fluid across multiple water blocks in highperformance workstations. Built with a full acetal body and a universal mounting plate, this manifold supports up to two CPU and six GPU water blocks in parallel or semi-parallel configurations.
Features
EK-Pro Manifold 2CPU 6GPU - Acetal

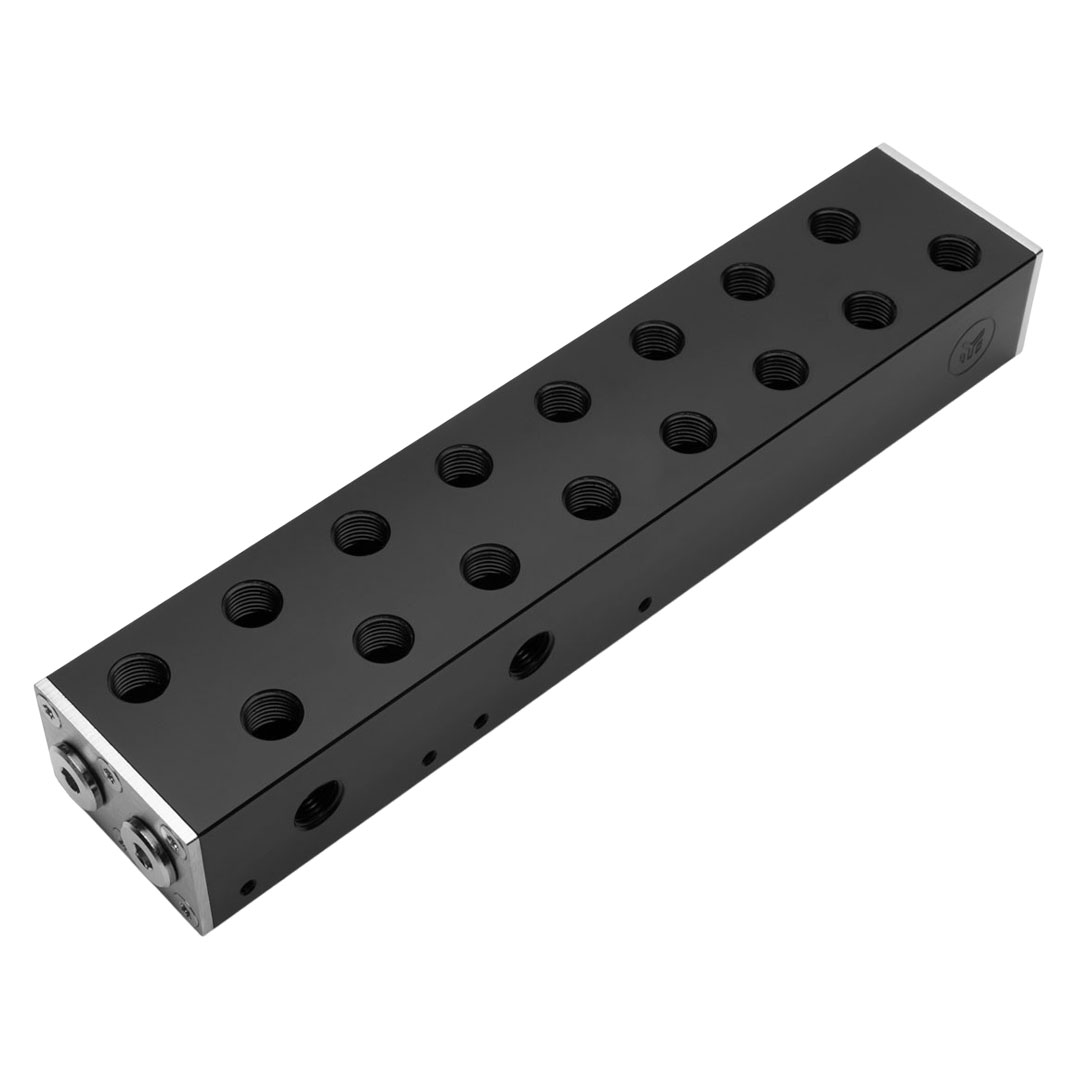

The EK-Pro Manifold is a purpose-made coolant delivery system for multiple water blocks in workstation systems. It offers perfect coolant distribution by using multiple industry-standard G1/4" In and Out ports. The EK-Pro Manifold 2CPU 6GPU can support two CPU and six GPU water blocks in parallel or semi-parallel setups.
For best results, EK recommends the use of EK-Pro GPU Quick Disconnect and EK-Pro CPU Quick Disconnect Kits (sold separately) in combination with the EK-Pro Manifold. The manifold system, in combination with the QDC kits, enables the users to easily add or remove water blocks to the cooling loop without the need to drain the entire loop. This avoids precious downtime for workstations and other professionally used computer setups.
It features a full acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, out of the box, it is set up to be used in a semi-parallel setup. Please follow the user manual for detailed information on connectivity options.

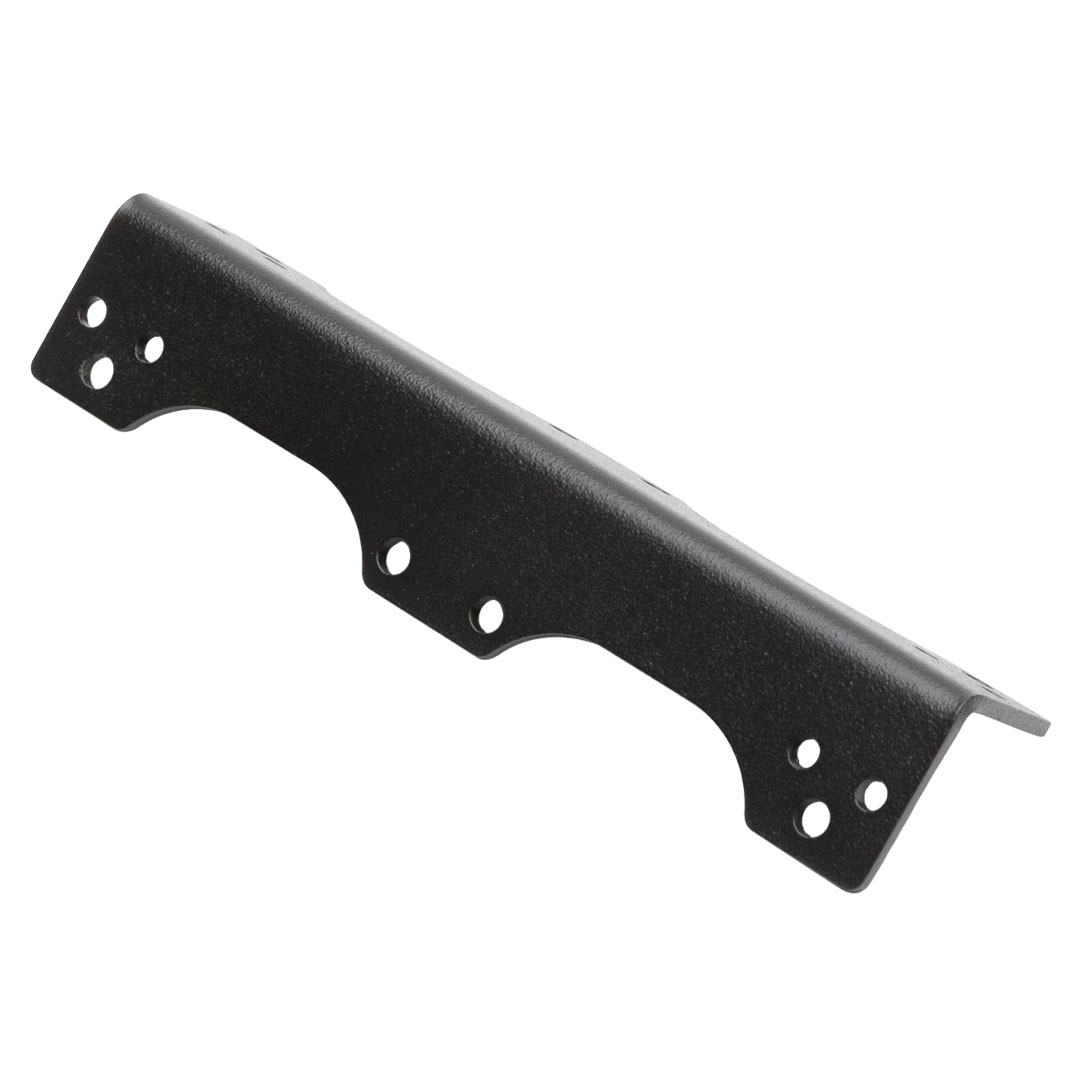

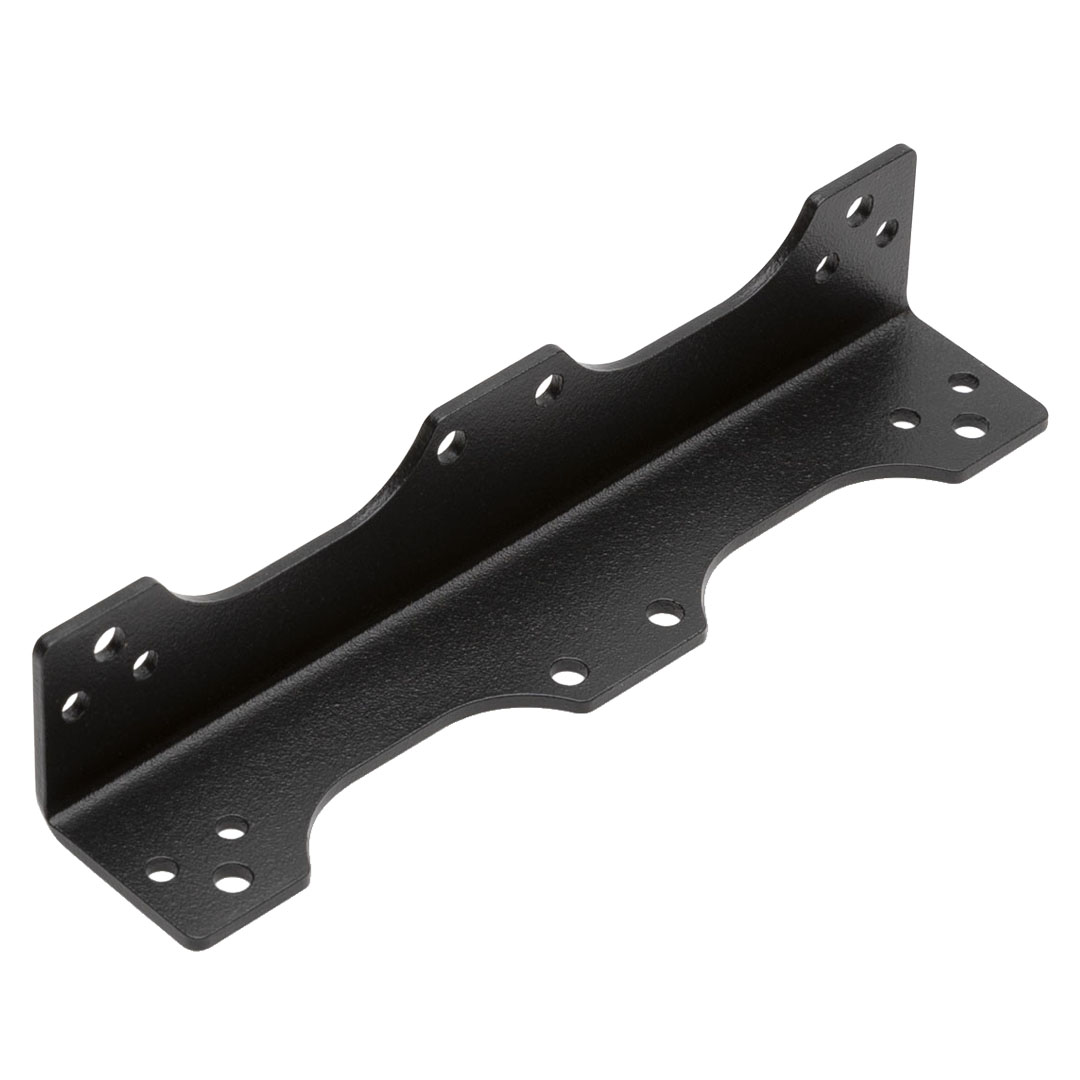

The EK-Pro Manifold is delivered with a universal mounting system that can be used in various scenarios. The steel mounting plate is equipped with 120 and 140mm fan mounting patterns, which can be found in all computer cases.
Please Note
- The manifold does not replace the role of the reservoir. A standalone reservoir is still recommended to be used.
- Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.
Specifications
General Data
| Model Number |
3831109817261 |
| Material / Design / Colour Option |
Acetal |
| Threads |
G1/4 |
| Materials |
POM, stainless steel, nickel-plated brass |
| Ports |
16 x G1/4” – supports 2 x CPU and 6 x GPU water blocks |
| Mounting Method |
Manifold mounting plate |
| Working Pressure |
2500 Pa |
| Maximal Working Pressure |
30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa |
| Operating Temperature Range |
5 – 60 °C |
| Made In |
Slovenia - EU |
| What's Included |
EK-Pro Manifold unit
G1/4 Plugs (7pcs)
Allen key 6mm (1pc)
Allen key 2,5mm (1pc)
Manifold mounting (1pc)
Screws M4 x 6mm DIN7984 (4pcs) |
Dimensions
| Dimensions (L x H x W) |
266 x 57 x 36 mm (without the mounting system) |
| Mass (kg) |
0.759 |
Backed by a 2 year EK Waterblocks warranty.
