EK Pro Pump Reservoir Manifold X3 D5 Pump Acetal

The EK Pro Pump Reservoir Manifold X3 D5 Acetal combines a PWM controlled D5 pump, 120ml reservoir and manifold in a single unit, with eight G1/4 ports to support a CPU water block, GPU water block and radiator. The black Acetal construction, flexible mounting options and included quick disconnect fitting simplify custom liquid cooling loop installation and maintenance.

Features

---

EK-Pro Pump Reservoir Manifold X3 D5 - Acetal

EK-Pro Pump Reservoir Manifold X3 D5 - Acetal is a 3-in-1 product that acts as a pump, reservoir, and manifold. The X3 in the name designates the number of components it can directly connect as a manifold, and D5 indicates a single D5 pump pushing the liquid around the loop.

It can act as a regular pump-reservoir combo, be used like a manifold, or, practically, as a distribution plate, even though its aesthetics vastly differ from most distro plates.

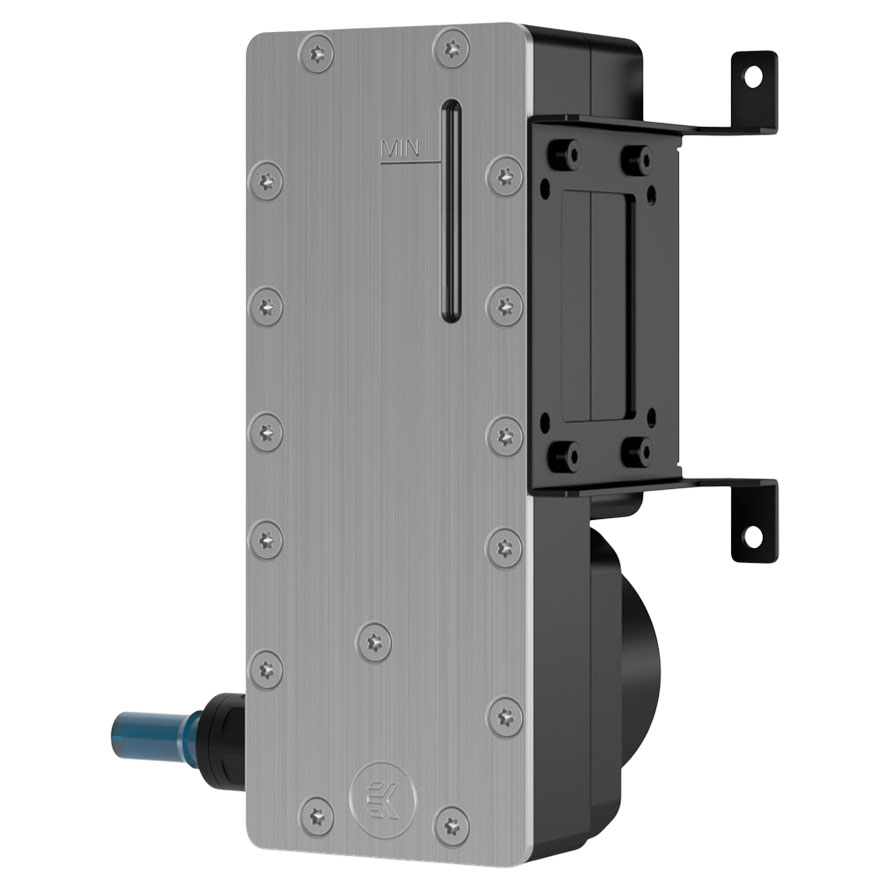

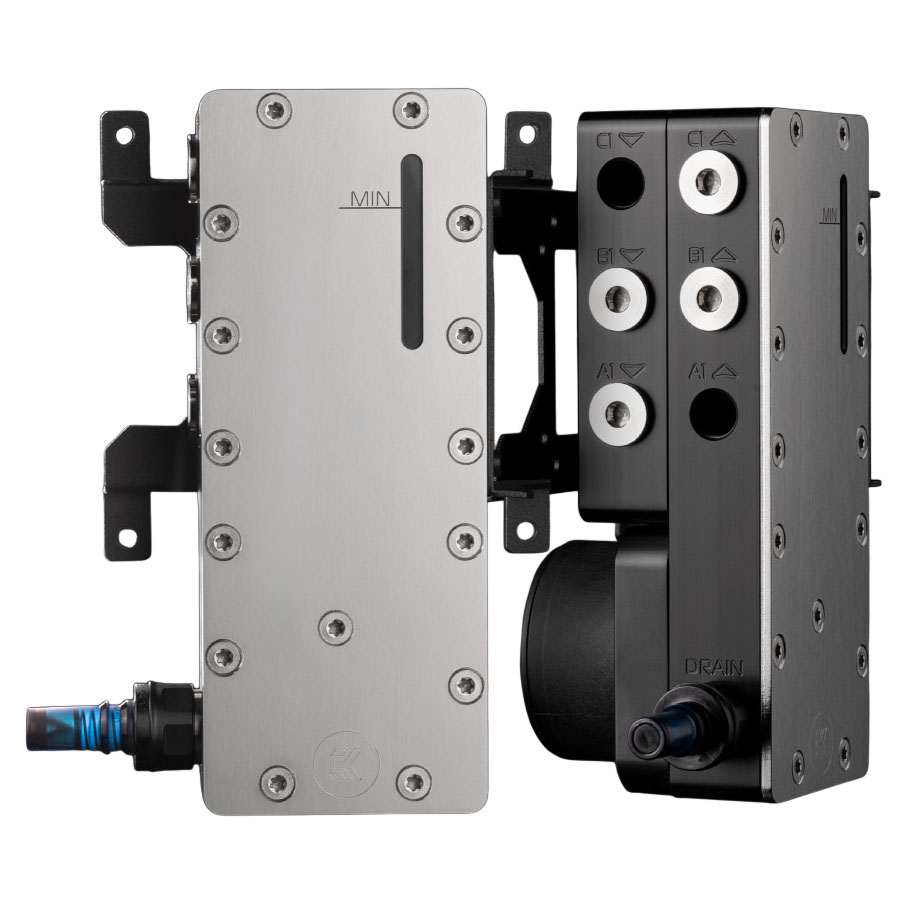

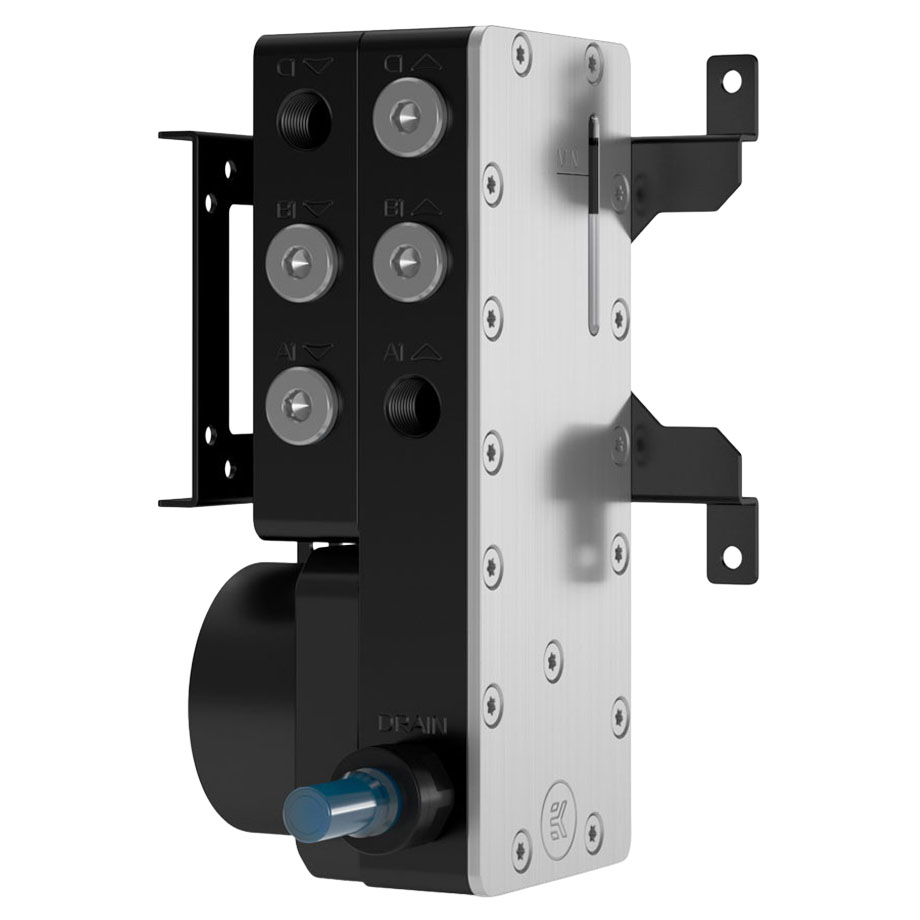

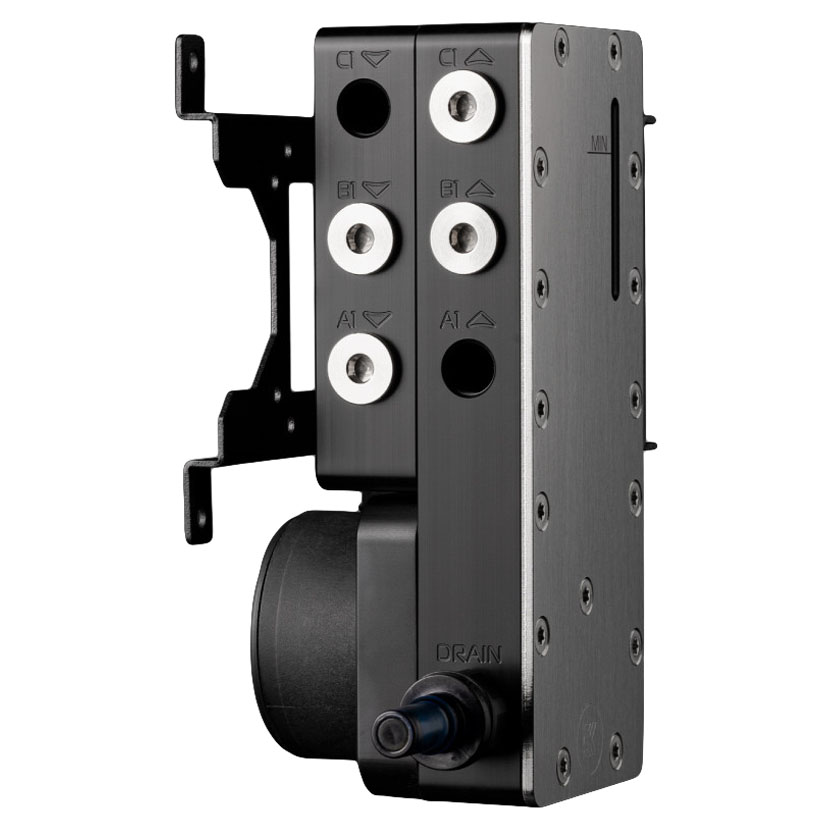

This combo unit can be mounted to the case in many different ways. EK-Pro Pump Reservoir Manifold X3 D5 has M4 screw threads on the side opposite to ports and on the backside, allowing for plenty of mounting options, multiplied by the bracket with 120mm fan mounting hole spacing (105mm). Eight (8) G1/4″ ports are available, of which two act as dedicated fill and drain ports.

A Genuine D5 Pump

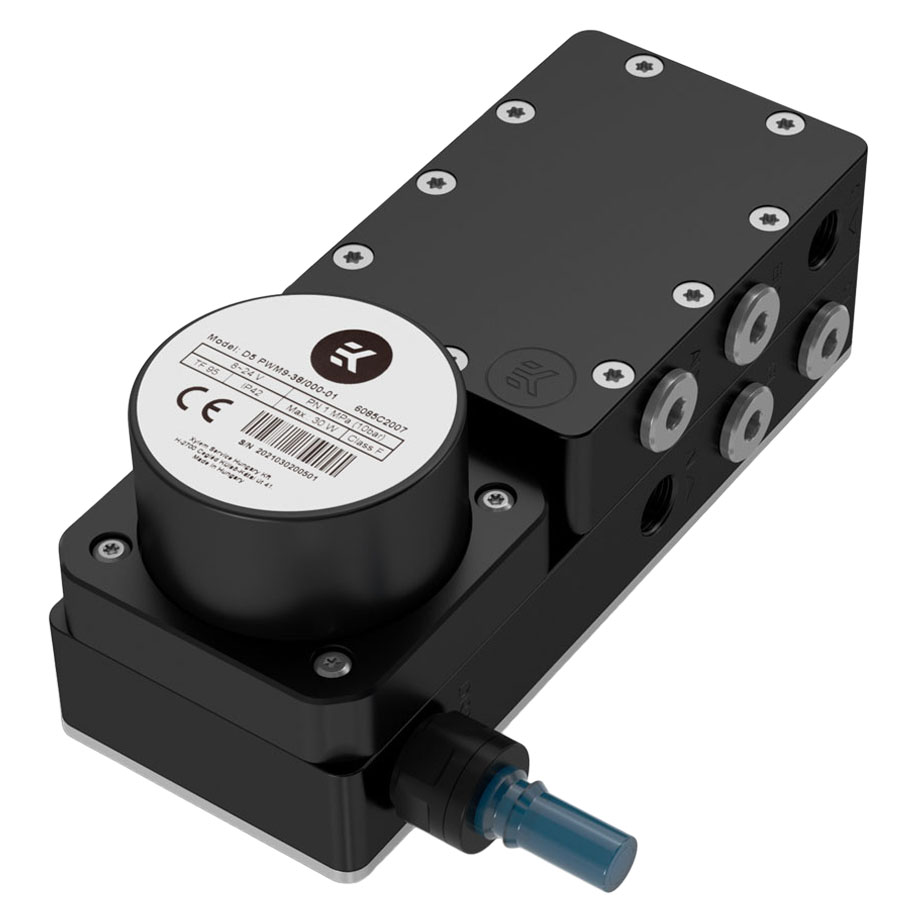

This combo unit comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant and comes with a SATA power connector, following the latest PC industry trend to decrease the use of 4-pin Molex cables.

Drain Port with QDC

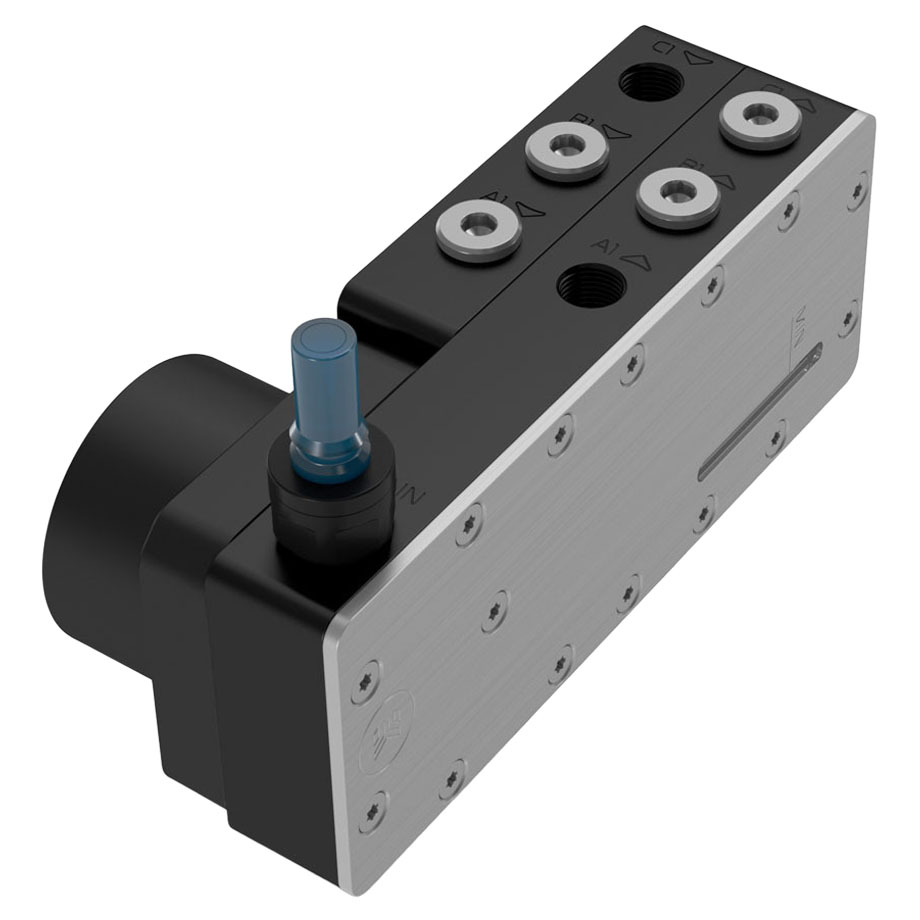

EK-Pro Pump Reservoir Manifold X3 D5 – Acetal comes with a drain port and a Quick Disconnect Coupling/Fitting and tubing for the user to be able to drain their system directly out of the case without the need for any other tools. You simply slide on the part of the QDC with the tubing onto the other half of the QDC installed on the combo unit and effortlessly drain the reservoir. Using the QDC is entirely optional but brings many QoL benefits.

Build Materials

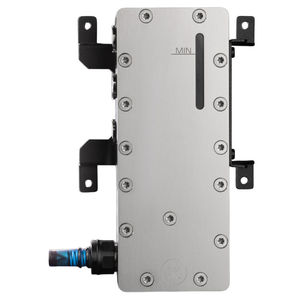

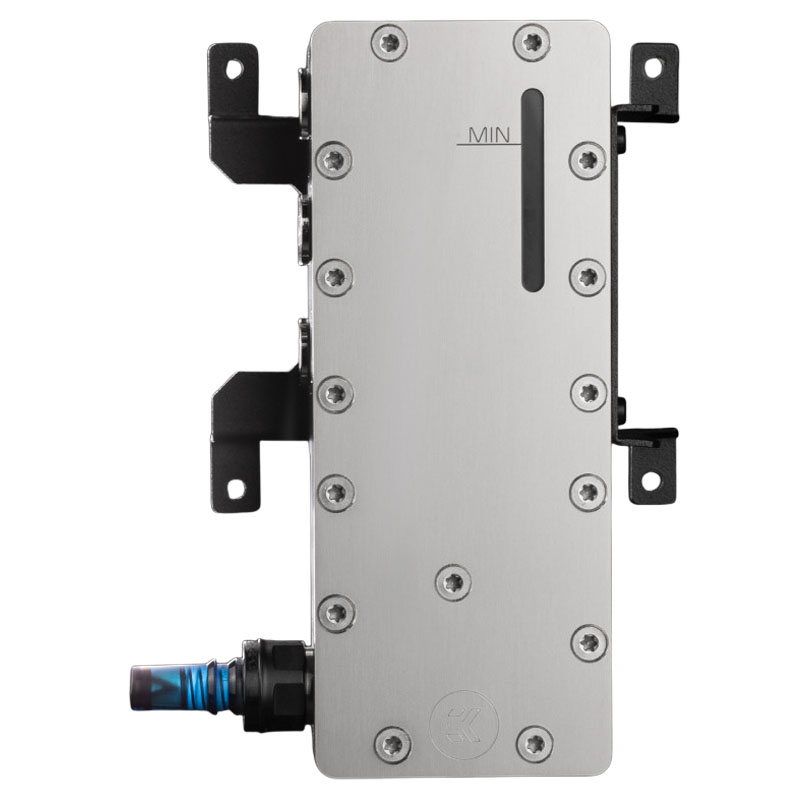

Most of this combo unit is made of durable Black POM acetal, with the addition of a stainless steel plate that goes over the front of the combo and has a sliver opened for the see-through acrylic window.

The pump is held by an acetal holder. Coolant is sealed by high-quality O-rings.

Please Note:

• The D5 pump is water lubricated, and it must not be run dry; otherwise, permanent bearing damage can occur.
• The aluminium oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
