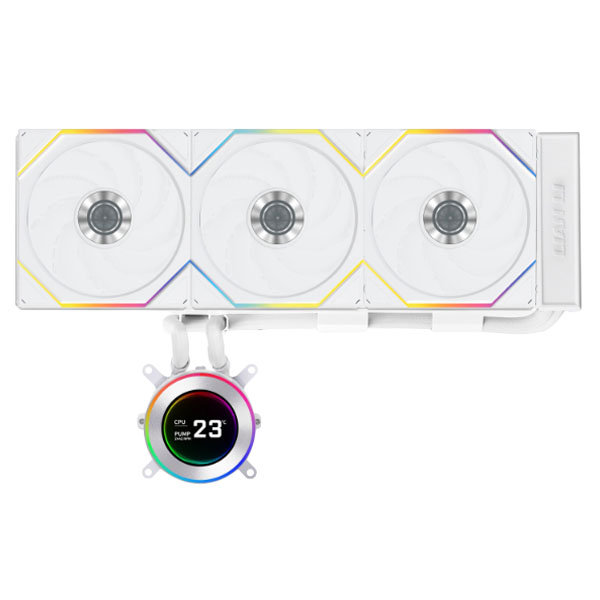

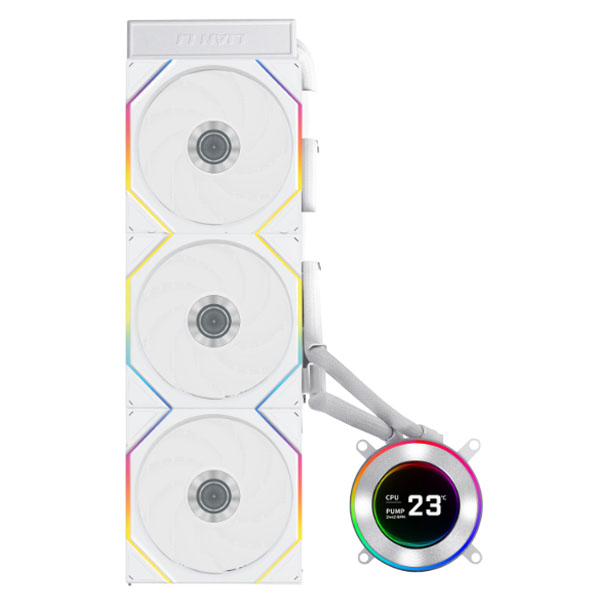

The Lian Li HydroShift II LCD-C 360TL is a 360mm all-in-one liquid CPU cooler designed to deliver high performance cooling with a streamlined appearance and integrated display. The GHS2LCD36TFB features a 2.1 inch IPS LCD with a 480 x 480 resolution, 500-nit brightness and 60Hz refresh rate, providing smooth visual content and support for system monitoring and custom media. Its side-mounted tubing and concealed wiring create a clean, near tubeless appearance, while adjustable tubing routing and included support brackets help maintain an organised internal layout. The compact 400 x 122 x 24mm aluminium alloy radiator improves compatibility with a wide range of PC cases, while the pump operates at 2000-2500 RPM with a rated noise level of 28 dBA. This 360TL configuration includes three Uni Fan TL Flex fans with Fluid Dynamic Bearings, 0-2600 RPM speed control, up to 90.1 CFM airflow, 3.97 mmH2O static pressure and a maximum noise level of 33 dBA. Control options include offline operation, wireless control using the L-Wireless Controller, and advanced USB-connected functionality through L-Connect 3, allowing customisation of the LCD and compatible lighting. With 450/475mm tubing and support for Intel LGA1700 and LGA1851 and AMD AM4 and AM5 platforms, the HydroShift II LCD-C 360TL combines flexible installation, customisable visual features and capable liquid cooling for high performance gaming and enthusiast PC builds.
VIDEO
Features
HydroShift II LCD-C
Side-mounted tubing and concealed wiring for a minimal, tubeless appearance.
Features a 2.1” IPS LCD with 480x480 resolution, 500-nit brightness, and 60Hz refresh rate.
Offers Offline, Wireless, and Advanced USB-connected control modes.
Three configurations: with TL FLEX, CL Wireless, or fanless for full DIY flexibility.
Precision tubing alignment with adjustable routing for cleaner builds.
Slimmed-down 360mm radiator (400x122x24mm) for enhanced case compatibility.
Pre-installed UNI FANs and support for L-Connect 3 software customisation.
Includes redesigned mounting bracket and 6-year warranty.
Boldly Unique, Brilliantly Upgraded
Better Performance
2.1" IPS 60Hz LCD screen
Three control modes
Enhanced Compatibility
Available in three versions
Side-mounted water tubes
Hidden cable design
6-year warranty
Three Versions / Two Colours
HydroShift II LCD-C is designed for ultimate convenience, with radiators pre-installed with UNI FANs. Users can select from two fan configurations or opt for a fanless version for a fully customisable DIY experience.
Hydroshift II LCD-C 360TL
Equipped with UNI FAN TL FLEX, this version offers a perfect blend of striking aesthetics and high-performance cooling.
Note: Only the TL version comes with the L-Wireless Controller included.
Note: For users who purchased the 360TL fan version, a SATA 12V adaptor cable can be requested free of charge via the LIAN LI warranty claim page, if additional LIAN LI fans are being added to the system.
Hydroshift II LCD-C 360CL
Equipped with UNI FAN CL Wireless, this version delivers powerful airflow alongside vibrant, synchronised RGB lighting for a visually stunning build.
Hydroshift II LCD-C 360N
Provides full DIY flexibility, giving users the freedom to choose and install their preferred fans.
Note: Fans are required for operation.
Seamless Interaction, Complete Control
Experience vibrant visuals on the 2.1″ IPS LCD, featuring a sharp 480x480 resolution and 500-nit brightness for clear display even in well-lit environments. A 60Hz refresh rate ensures smooth, fluid animations.
2.1" LCD screen
480x480 resolution
500-nit brightness
IPS panel
SRGB 24-bit true colour
60Hz refresh rate
Minimalist Aesthetics, Maximum Freedom
The innovative side-mounted tubing design routes the tubes along the edge of the radiator, significantly reducing visual clutter. Pump and USB cables are seamlessly hidden in the tubes’ woven sleeve that integrates into the radiator’s side for a “nearly cable-free and tubeless” look.
Additionally, the USB power and data cables are integrated directly into the cooling tubes, leaving the cap completely wire-free, making your computer’s interior more organised.
Pre-installed with three tube support brackets, the water cooling tubes are neatly concealed, while the exposed sections appear more organised, further enhancing the overall tidiness of the case interior.
Precision Fit, Effortless Alignment
HydroShift II LCD-C is engineered with both aesthetics and flexibility in mind. Its innovative adjustable tubing design allows for precise alignment directly to the CPU, optimising cable routing and creating a cleaner internal layout. The result is a sleek, streamlined build that adds refined character to any PC.
Note: Users can fine-tune the rightmost tube bracket at the 140mm position on the radiator mount.
Reduced Dimensions Without Performance Compromise
The radiator has been compactly redesigned to just 400 x 122 x 24mm: 3mm thinner, 3mm shorter, and 2.5mm narrower than the previous generation. This reduced footprint improves compatibility with mainstream PC cases, making installation easier while maintaining excellent thermal performance.
Redesigned Mounting Bracket
The newly developed mounting system is designed for easier, more intuitive installation. Engineered for simplicity, the new mounting bracket streamlines the setup process with improved structure and logic.
Installation Steps
For full details, please refer to the user manual.
Install the CPU first.
Mount the water block bracket, ensuring the notch is aligned to the right.
Use the included screwdriver to secure the bracket screws. Again, ensure the notch is on the right.
Attach the pump head from right to left and tighten the screws to secure it.
Universal Compatibility, Hassle-Free Setup
HydroShift II LCD-C is designed for easy installation and supports all major CPU sockets, ensuring a smoother, worry-free building experience.
INTEL LGA 1851 LGA 1700 - compatible platforms
AMD AM4 AM5 - compatible platforms
Three Modes, Different Experiences
Offline Mode (No USB Connection Required)
Easily control the pump cap by rotating the transparent outer ring. A built-in sensor tracks real-time coolant temperature and pump speed, while turning the ring clockwise switches screen themes and counterclockwise adjusts lighting effects—offering seamless customisation without the need for a USB connection.
(Note: Only the CL wireless fan version supports synchronised lighting between the pump and fans.)
Wireless Mode (No USB Connection)
With the L-Wireless Controller, users can wirelessly switch between screen content and select different hardware sensors to monitor. It also enables easy adjustment and synchronisation of lighting effects across all LIAN LI wireless products.
Wireless Mode Advanced (With USB Connection)
By adding a USB connection, users can enjoy the best of both worlds: wireless lighting control and full LCD customisation. Lighting effects remain wirelessly synced with all LIAN LI wireless products, while the LCD gains full customisation capabilities, including video and photo uploads as well as modular assets and theme selection.
Click the “Screen Advanced Mode” button in the wireless tool to enter advanced mode.
Once in advanced mode, the user can directly customise the pump lighting effects and theme from the wireless tool interface.
Streaming Mode (USB Connected)
Unlock full customisation capabilities with USB connection. Like the “Wireless Mode Advanced”, the LCD gains full customisation capabilities, including video and photo uploads as well as modular assets and theme selection.
Users can choose to remove the USB 2.0 cable and operate in Offline or Wireless Mode only.
The cover, which is located on the right side of the radiator, can be removed to access cable connectors.
PWM Power Cable
It is recommended to connect the power cable to a SATA power adaptor to ensure stable and sufficient power delivery. If you do not have a SATA power adaptor available, please contact us to request one.
Note: This AIO does not support motherboard (MB) sync.
USB 2.0 Cable
Used for transferring media in streaming mode and advanced wireless mode, such as JPG and MP4 files.
Note: To remove the USB 2.0 connector, please first detach the radiator cover, then press the USB 2.0 connector clip before unplugging.
Flexible Layout, Upgraded Compatibility
The top mounting position needs support for both 360mm and 280mm sized radiators, the HydroShift II fits standard 360 AIO spacing of 400mm for radiator length, and 280mm AIO support gives 140mm width for the tubing installation. Depending on the case’s top clearance, users may opt to remove the vertical tubing support bracket. It is recommended for setups with radiator + fan thickness over 55mm.
Since different cases may present varying installation scenarios, users can adjust or remove the support bracket as needed to suit their specific setup. Please refer to the user manual for detailed guidance.
Scenario 1: Sufficient clearance between the radiator and motherboard (e.g., O11 Vision Compact)
The user can use thumb screws to slightly adjust the bracket position around the 140mm mounting area on the radiator bracket.
Scenario 2: Limited clearance between the radiator bracket and motherboard (e.g., LANCOOL 216)
The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket. (Note: Tubing clips are not usable in this layout.)
Scenario 3: Tight clearance between the radiator bracket and motherboard (e.g., LANCOOL 207)
The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket.
(Note: Tubing clips are not usable in this layout.)
Mounting Cover Caps
Conceal screws and brackets for a unified, clean aesthetic.
Cable Management Clips
Keep coolant tubing organised for a neater and more streamlined build.
Industrial-Grade Corrugated Tubing
Flexible and durable for easy routing across different cases. Designed to bend freely to either side for optimised cable paths and convenience.
Backed by a 6 year Lian Li warranty.
