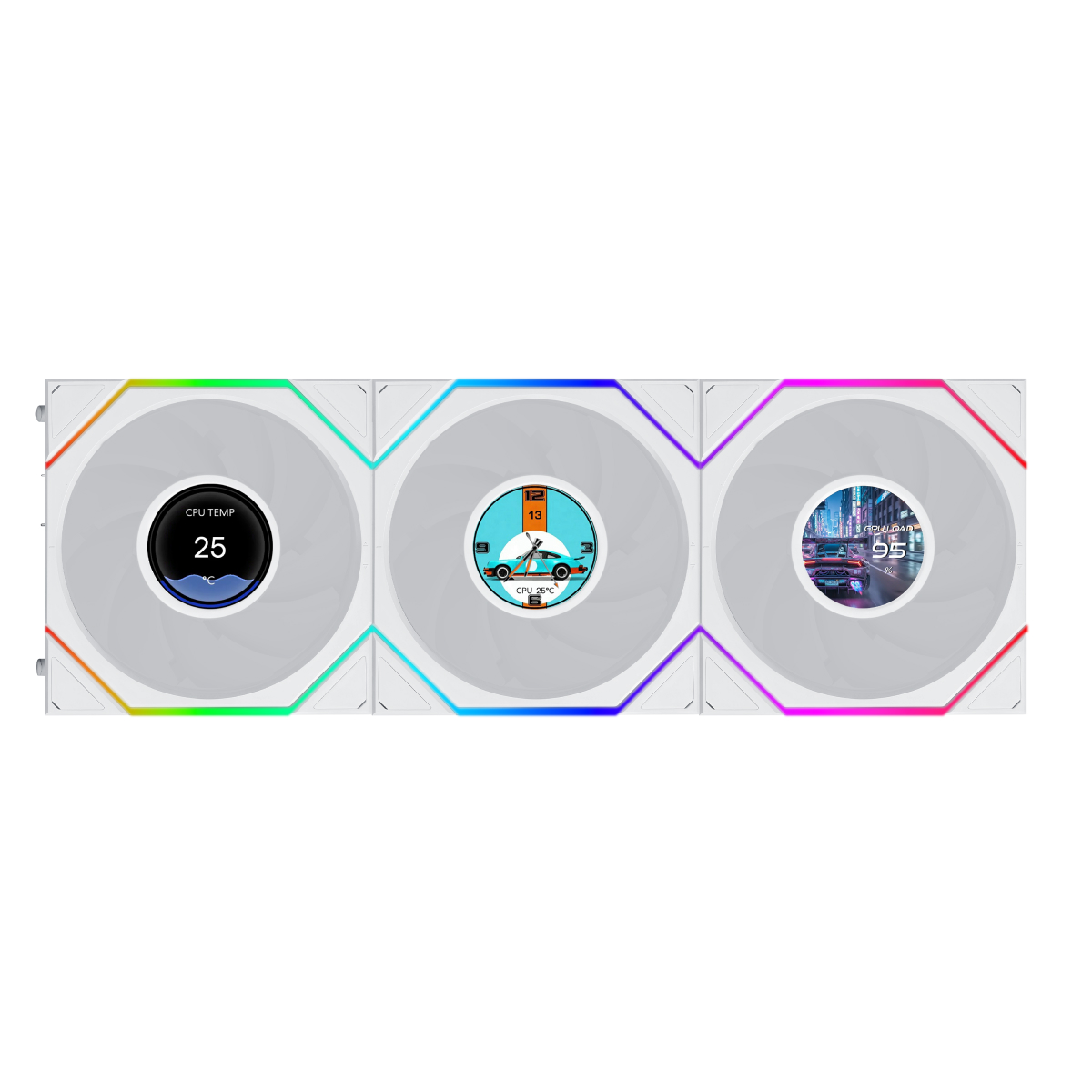

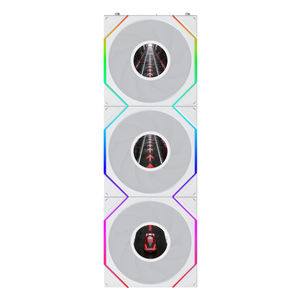

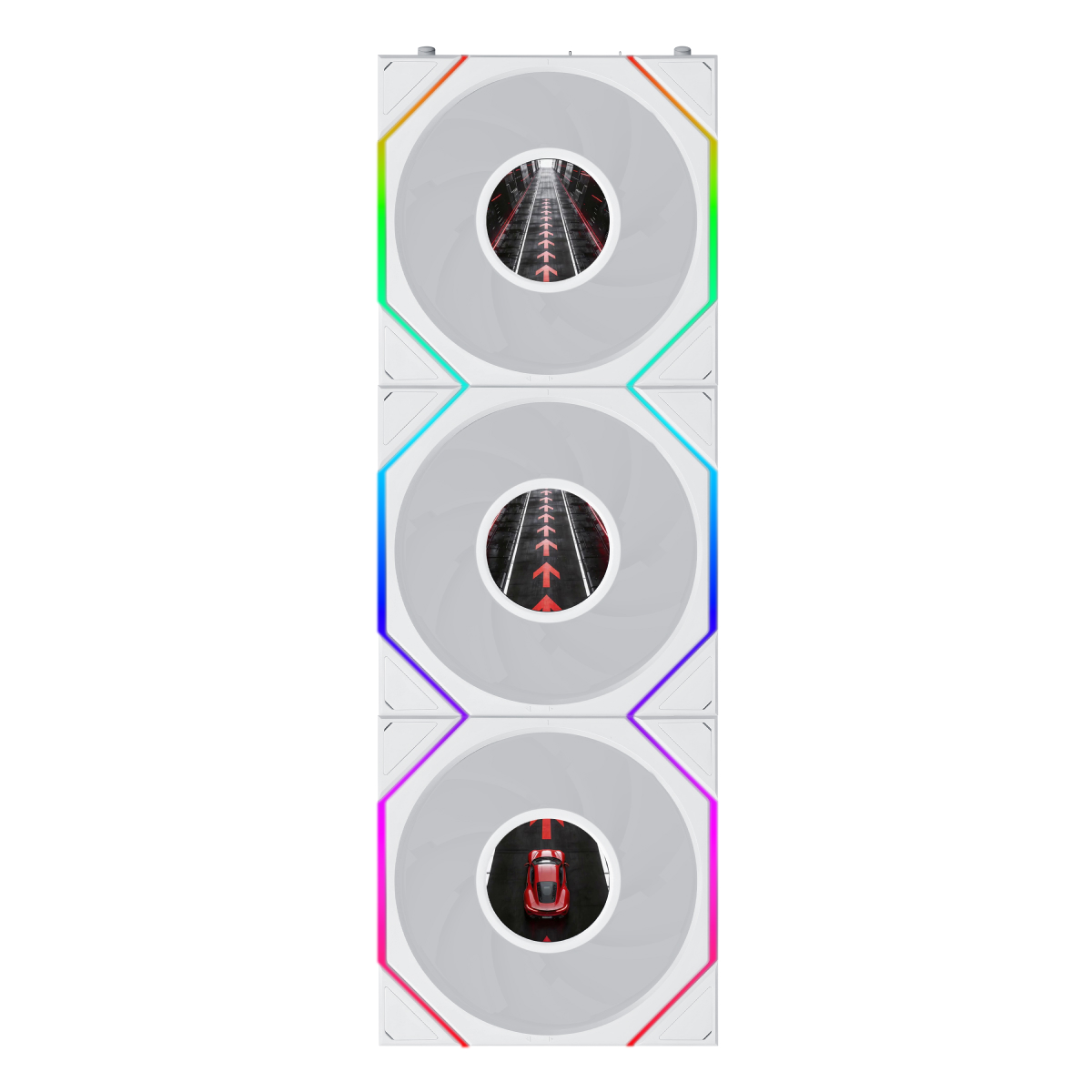

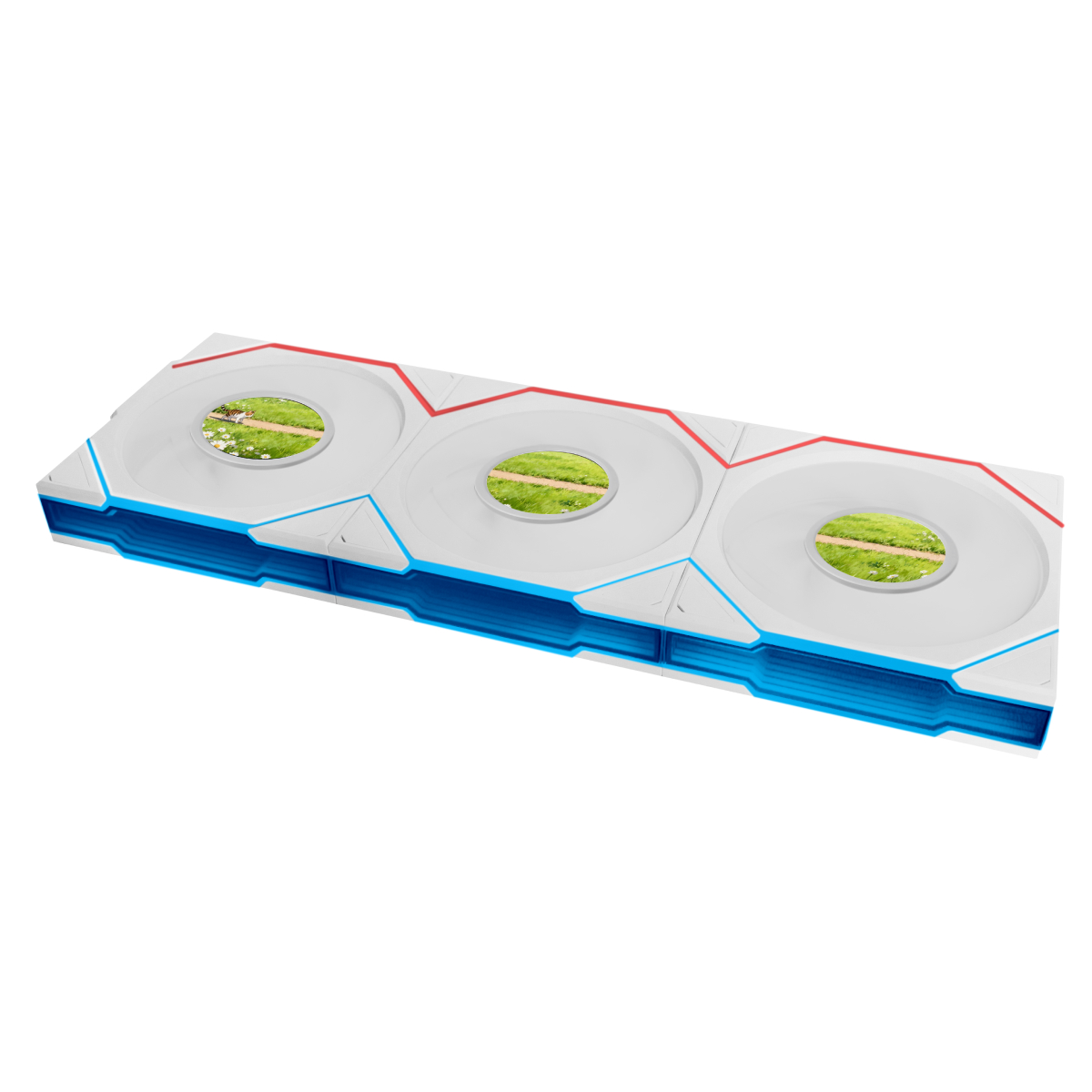

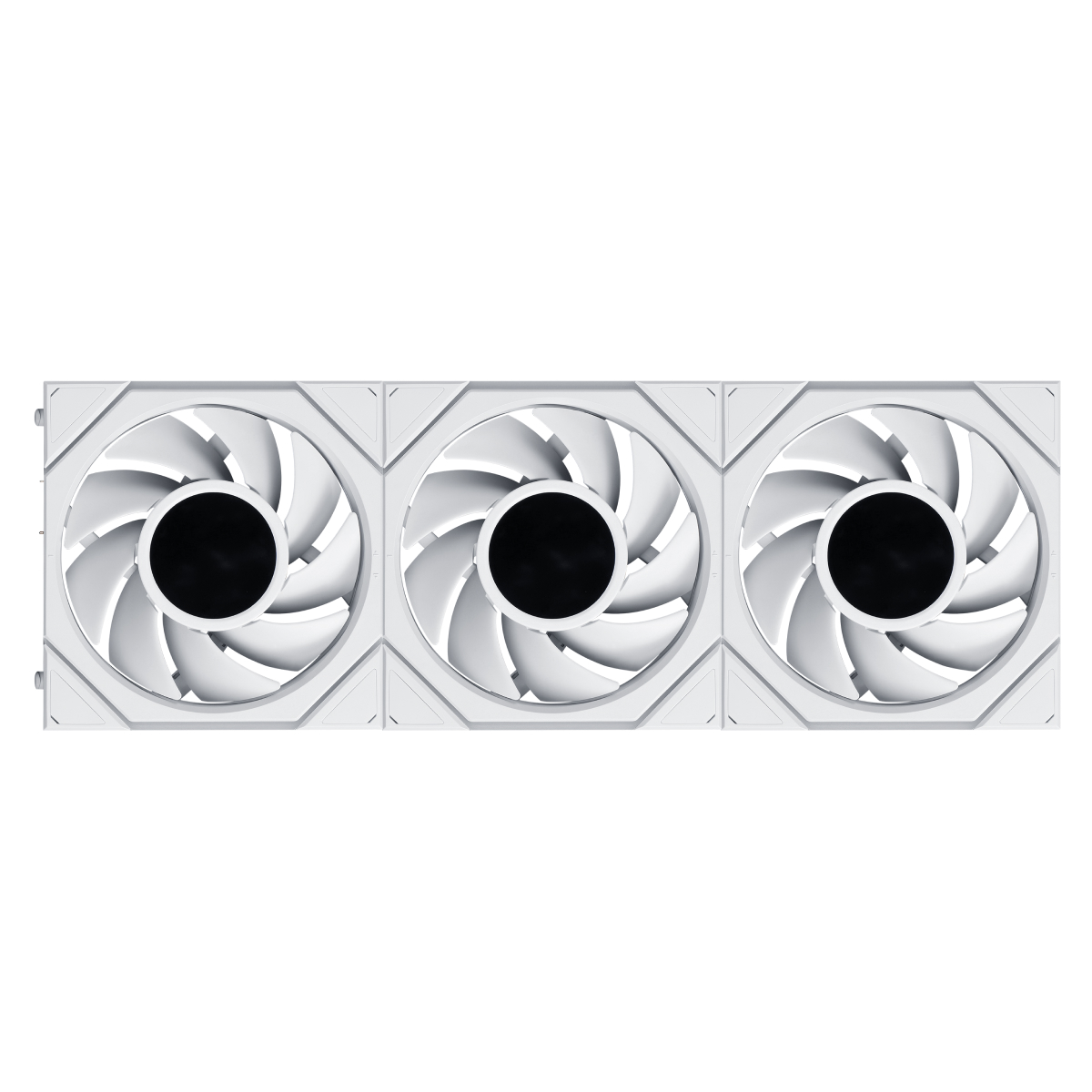

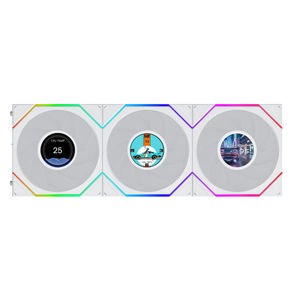

The Lian Li UNI FAN TL LCD FLEX 120 Reverse Triple Pack is a three fan cooling solution designed to combine customisable LCD displays, efficient airflow and integrated ARGB lighting for showcase gaming PCs and enthusiast builds. Each 120mm reverse blade fan features a 1.8 inch IPS LCD with a 400 x 400 resolution and 60Hz refresh rate, supporting custom videos, GIFs, images and system monitoring dashboards through L-Connect 3 software. The reverse blade design allows the fans to provide intake airflow while keeping the LCD displays visible from inside the case, making them ideal for visually focused builds. Each fan operates at speeds of up to 1900 RPM, delivering airflow of up to 63 CFM and static pressure of 2.83 mmH2O, with a maximum noise level of 29 dBA. Fluid dynamic bearings support smooth operation, while the integrated 26 LED ARGB lighting system adds customisable illumination with compatible 5V 3-pin ARGB motherboard synchronisation. The modular interlocking design and included LCD FLEX Receiver help simplify connections and cable management, while the adjustable frame orientation provides greater flexibility when positioning the fans. Measuring 120 x 124 x 28mm per fan, this triple pack includes three reverse blade LCD fans, an LCD FLEX Receiver, a 9-pin USB cable, a 5V 3-pin ARGB cable and a 1-to-3 PWM-to-SATA cable. The L-Wireless Controller is not included, but can be purchased separately for wireless control options. Combining personalised display content, flexible installation and effective cooling, the UNI FAN TL LCD FLEX 120 Reverse Triple Pack is an ideal choice for creating a coordinated, high-performance PC interior.
VIDEO
Features
Uni Fan TL Flex
120 mm modular LCD reverse fans.
1.8” LCD display with 400 x 400 resolution, 60Hz refresh rate, and MP4 / GIF / JPG / PNG support.
Infinity-mirror ARGB lighting with a cleaner, unified visual design.
Supports L-Connect 3, motherboard ARGB sync, and PWM fan control.
Multiple control modes for wireless themes, USB LCD customisation, or motherboard control.
Daisy-chain design and FLEX receivers simplify cable routing and expansion.
FDB bearing and 0.6 mm blade clearance deliver strong, stable cooling performance.
Next-Gen Connections, Endless Flexibility - ARGB
3 Control Modes
1.8”LCD Display
L-Wireless Sync
Infinity Mirror
Dual Lighting Effects
FDB Bearing
Daisy-Chain Design
Support MB Control
Multiple Options, Complete Flexibility
Expanded LCD, Enhanced Visuals
Featuring an upgraded 1.8”LCD with a slimmer bezel, 400 x 400 resolution, a 60Hz refresh rate, and support for MP4, GIF, JPG, and PNG, it delivers crispier visuals and greater creative freedom for personalised displays.
1.8” LCD Display
Slimmer Bezel
Full Blade Coverage
60Hz Refresh Rate
400 x 400 Resolution
Infinite Glow, Unified Design
UNI FAN TL LCD FLEX feature refined lighting with a seamless infinity mirror design. The ARGB light strip extends around the mounting screws for a cleaner, more unified look.
Engineered Without Compromise
Designed for enthusiasts who demand maximum cooling, TL FLEX pairs premium LCP fan blades with an ultra-tight 0.6 mm blade clearance and precision FDB bearings to deliver exceptional airflow, static pressure, and stability—all certified by PPLP Lab A-Class Performance.
Enhanced Bearing Design
A newly engineered oil retention groove (shown in red) around the fan bearing helps keep lubricant precisely where it’s needed, ensuring consistent lubrication for reduced friction, quieter operation, and long-term bearing reliability.
Uni Fan Tl / Tl LCD Flex Pairing Guide
Match the correct receiver to the correct fan model.
Pair each receiver with its matching fan: TL FLEX = No LCD Marker , TL LCD FLEX = LCD Marker.
Ensure the Receiver is Firmly Installed
When attaching the FLEX receiver to the TL fan, make sure it is pushed in completely and securely locked into place. An improper contact may cause poor connection and prevent the fan from functioning properly.
Flexible Control, Your Way
Using the included FLEX receivers, the UNI FAN FLEX Series supports both L-Connect 3 and motherboard control, giving you the flexibility to choose the control mode that best fits your setup.
Control More, Cable Less
Connect both the 4-Pin PWM and 5V 3-Pin ARGB cables to your motherboard, then pair with the L-Wireless Controller for flexible fan speed and lighting control. Built-in LCD themes and motherboard ARGB synchronisation create a cleaner build with seamless personalisation.
Note: When attaching the FLEX receiver to the TL fan, make sure it is pushed in completely and securely locked into place. An improper contact may cause poor connection and prevent the fan from functioning properly.
Note: The L-Wireless Controller is optional for L-Connect 3 software control, but required for Wireless Mode. LCD Triple Packs do not include an L-Wireless Controller.
Transform your LCD with 29 built-in wireless themes, featuring 6 stylish clock displays and 13 real-time system monitoring layouts. Personalise data sources, colours, and sensor readings to create a display that truly reflects your style.
Tailor your LCD dashboard in L-Connect 3 with preset sensor display layouts, showcasing key system data with clarity and style.
Connect the 5V 3-Pin ARGB cable to unify fan lighting with your motherboard RGB ecosystem, bringing a cohesive visual style while preserving flexible fan speed control.
Advanced LCD Personalisation
Create a fully personalised LCD experience with custom images, GIFs, videos, and built-in preset themes through USB 2.0 and L-Wireless control.
Note: The L-Wireless Controller is optional for L-Connect 3 software control, but required for Wireless Mode. LCD Triple Packs do not include an L-Wireless Controller.
Create your own monitoring dashboard on the LCD screen with custom backgrounds, live system data, and flexible layouts that perfectly match your build style.
Turn your LCD into a personalised showcase with custom PNGs, GIFs, transparent overlays, and animated visual effects.
Seamless LCD Showcase
Create a seamless LCD showcase with built-in USB mode themes designed for dual- and triple-fan setups in both vertical and horizontal layouts.
Personalise each theme with your preferred data sources, sensor colours, and background styles through L-Connect 3 to match your build.
Built for Motherboard Sync
Control fan speed and lighting through the motherboard BIOS or motherboard software without a wireless controller. For LCD fans, first connect via USB to L-Connect 3 to set the default offline theme. Once saved, the content remains active, allowing users to switch to the 5V 3-Pin ARGB cable for independent lighting control without keeping the software connected in real time.
Note: The L-Wireless Receiver has a single connection port. Use either the 5V 3-Pin ARGB cable or the USB 2.0 cable.
(MB Software Controls Lighting & Fan Speed)
Note: Wireless Mode offers 29 built-in LCD preset themes with dedicated Fan RPM display for real-time fan monitoring.
Longer redesigned cables make routing cleaner and cable management easier.
TL FLEX LCD Receiver - 550+200mm
FLEX Receiver 5V 3-Pin ARGB Cable - 650mm
FLEX Receiver USB 2.0 (9-Pin) Cable - 650mm
One Controller, Complete Control
Driven by 2.4GHz wireless technology, one L-Wireless Controller unifies up to 10 groups of compatible LIAN LI devices through a compact rear I/O USB receiver and dedicated PWM receivers, creating a cleaner, more streamlined wireless ecosystem.
Wireless Series
Strimmer Series
Hydroshift Ii Series
Flex Series
Note: Each controller supports up to 10 channels and is compatible with all UNI FAN Wireless Series products, including TL FLEX, SL-INF FLEX, STRIMER WIRELESS, and UNI FAN SL Wireless V2. Support for additional products will be added in future updates.
Exclusive Software, Complete Customisation
With L-Connect 3, lighting effects and fan curves are fully within your control. Built-in presets and customisable profiles let you fine-tune every detail and create a system that reflects your style.
Custom Device Naming
Customise fan names and drag to rearrange their order, making it easy to build smooth, personalised lighting flows that match your setup.
Visual Identification, Easy Pairing
Pair fans in seconds through L-Connect 3. Quickly locate each fan with Device Finder, or bind all detected devices at once for a faster, smoother setup.
Backed by a 3 year Lian Li warranty.
