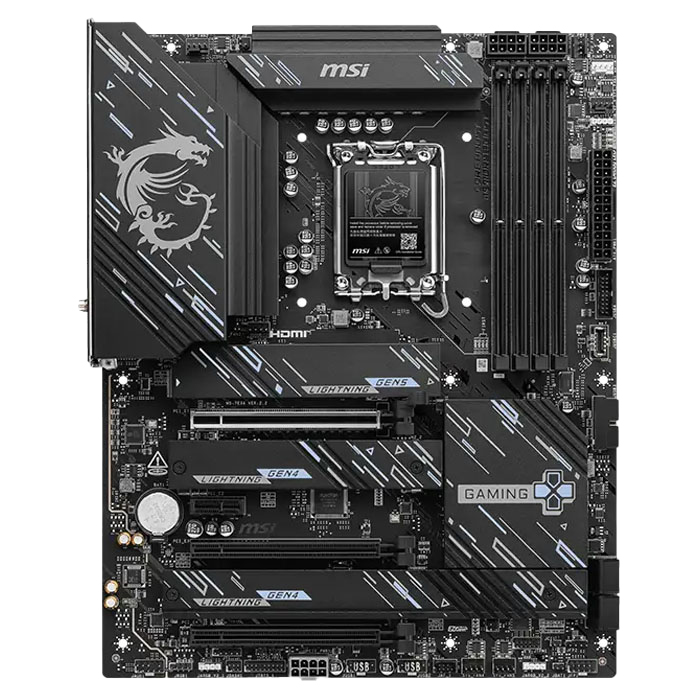

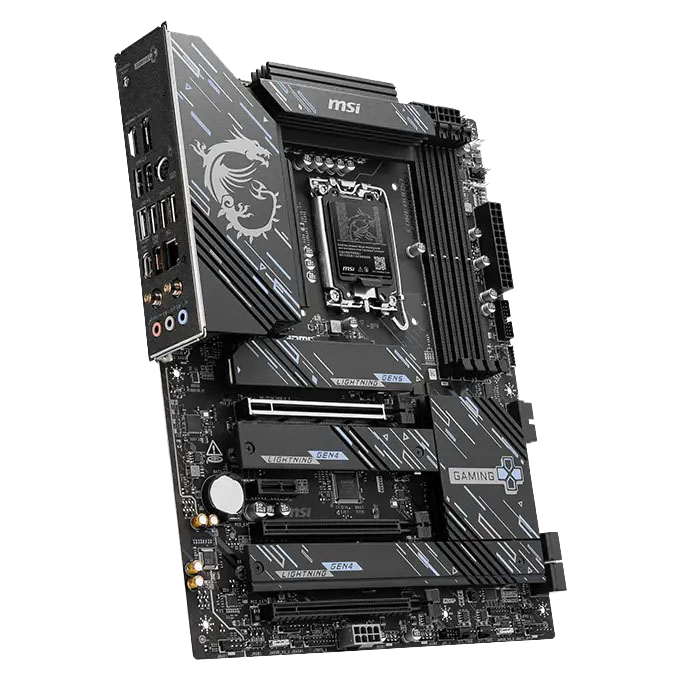

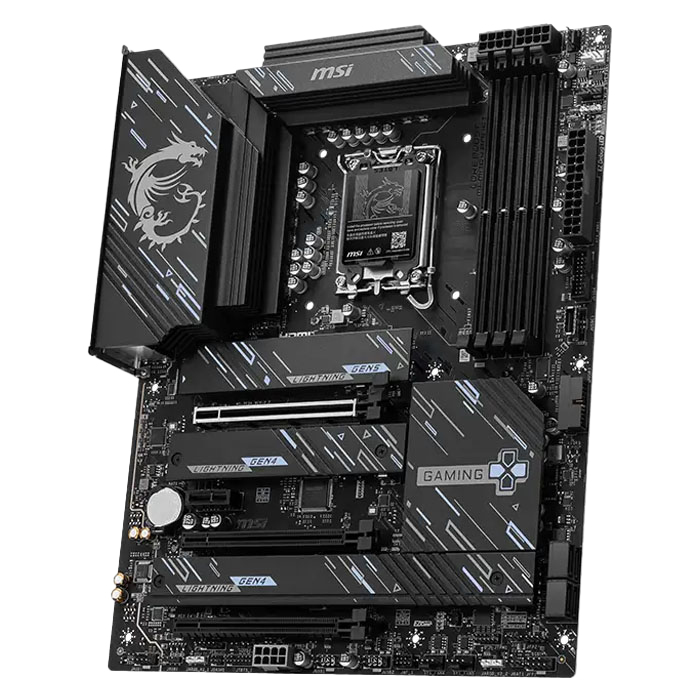

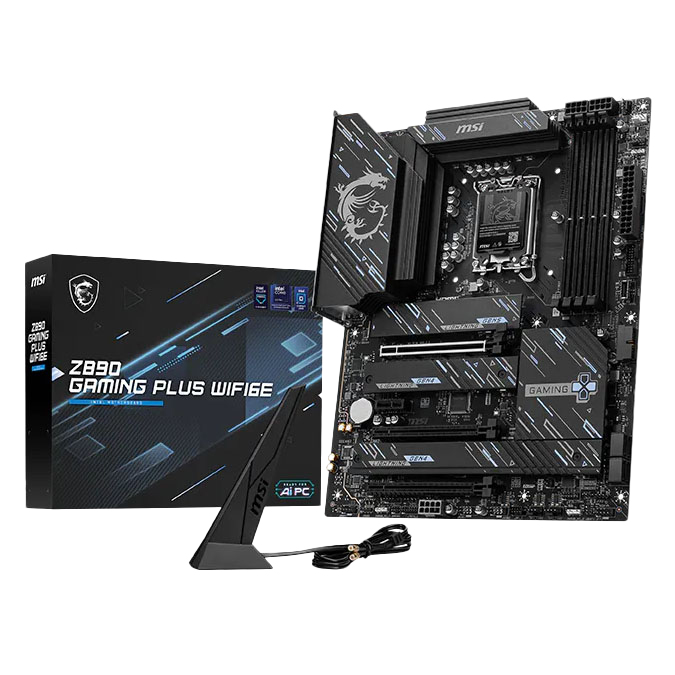

The MSI Z890 Gaming Plus WIFI6E is an ATX gaming motherboard built for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, combining a robust 14+1+1+1 Duet Rail Power System with 55A DrMOS, DDR5 support up to 9200+ MT/s overclocked and high-speed PCIe 5.0 connectivity. Four DDR5 UDIMM slots support up to 256GB of memory with Intel XMP 3.0, while the expansion layout includes a PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots and a PCIe 3.0 x1 slot. Storage is handled by four M.2 slots, including one PCIe 5.0 x4 slot capable of up to 128Gbps and three PCIe 4.0 x4 slots delivering up to 64Gbps, alongside four SATA 6Gbps ports and support for RAID configurations. For networking, Intel Killer 5G LAN is paired with Wi-Fi 6E supporting the 2.4GHz, 5GHz and 6GHz bands at up to 2.4Gbps, while Bluetooth 5.3 provides additional wireless connectivity. The board also features a comprehensive USB selection including a front USB 20Gbps Type-C connection and rear USB 10Gbps Type-A and Type-C ports, while HDMI 2.1 and DisplayPort 1.4 support up to 4K 60Hz when using compatible processor graphics. Extended heatsinks, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II help manage thermals, while EZ PCIe Clip II, EZ Conn and the pre-installed I/O shield simplify installation and maintenance. Audio Boost provides 7.1-channel high-definition audio, completing a feature-rich platform for high-performance gaming and enthusiast PC builds.
Warning: This product contains a button battery
VIDEO
Features
Z890 Gaming Plus WIFI6E
Z890 GAMING PLUS WIFI6E is designed with durable components to provide great gaming experience. Designed with Wi-Fi 6E and 5G LAN, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket.
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC).
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna.
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.
High-Speed Connectivity: Intel® Killer™ 5G LAN, Wi-Fi 6E Solution & USB 10Gbps Type-C port - a solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Exclusive Features
Pre-installed I/O Shield
EZ M.2 Shield Frozr II
Steel Armour
PCle Supplemental Power
14+1+1+1 Duet Rail Power System with 55A DrMOS
EZ PCle Clip II
EZ Conn Design
Connectivity - High-Speed Transmission
Flash BIOS Button
5G LAN
Wi-Fi 6E
1x PCle 5.0 M.2 Slot
Memory Boost
Lightning Gen 5
3x PCle 4.0 M.2 Slots
Premium Thermal Solution
Extended Heatsink
6-Layer Server Grade PCB with 2oz Thickened Copper
Pump Fan Support
Heatsink with 7W/mK Thermal Pad
Ready for Ai PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, MSI also introduce AI to MSI Centre and BIOS, making everything more effortless than before.
Al Engine
Provides several categories for you to sync the applications you want to perform and automatically optimising them to create a comfortable environment.
AI LAN Manager
Optimises networking performance and minimises latency, providing a seamless online experience.
Frozr Al Cooling
Automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
Is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
EZ DIY
One-Finger
Carefully developed by MSI, allows SSD installation and removal without the need for screws, greatly enhancing convenience.
EZ M.2 Installation
MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock . it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.
EZ M.2 Clip II Remover
Introducing MSI's EZ M.2 CLIP II Remover, a handy tool designed to simply switching or repositioning the EZ M.2 CLIP II on your motherboard. This tool allows users to effortlessly detach the EZ M.2 CLIP II from the motherboard and reattach it to any desired M.2 slot. It is included in the accessory kit that comes with MSI motherboards.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
Normal Design
EZ PCIE Clip II
EZ Button
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.
One Hand

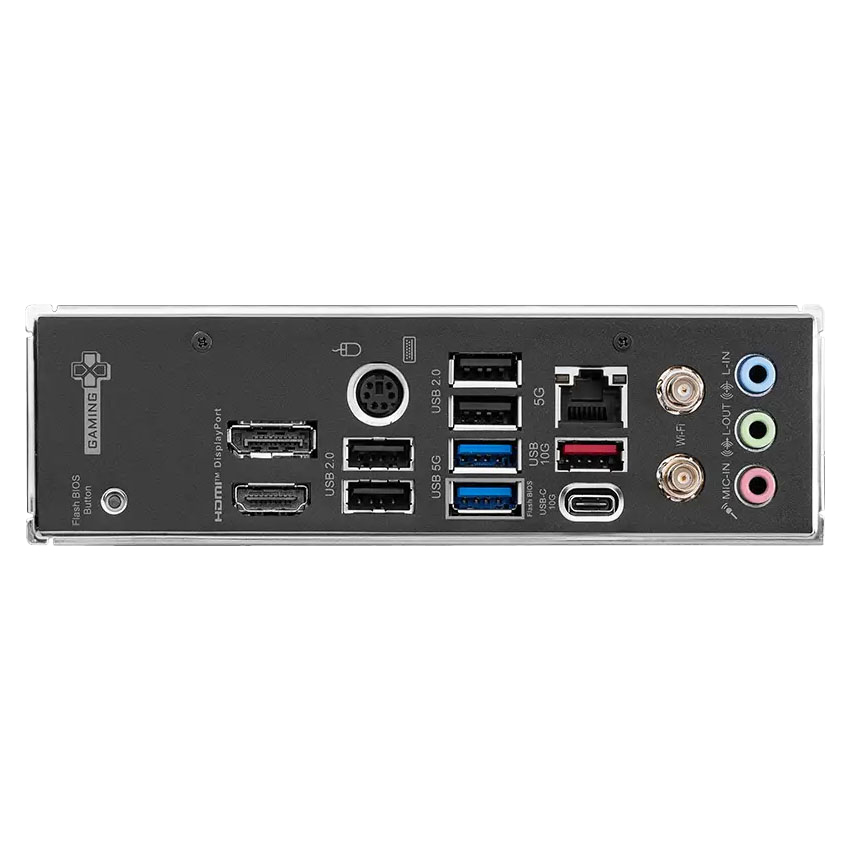

Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ Mounting
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Avoid Collision Notification
Keep Out Zone
Double ESD Protection
One Step
EZ Antenna
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
EZ Conn-Design
The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimising the entire building process.
Driver Utility Installer
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically. *MSI Driver Utility Installer will be ready in Windows 11 build 22H2.
One Glance
EZ Debug
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
EZ Identify
Header with Different Colour
To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white and PCIe 8-pin header in grey, enabling users to manage cables more efficiently.
Identify M.2 Signal Source
The motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them.
Identify USB Speed
Change the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2x2) for better understanding.
One Click
EZ Overclocking
While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.
CPU - Creation Boost
One-click CPU overclock automatically optimises your CPU performance, instantly tuning it to the best possible level.
NPU - AI Boost
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. *Enabled with compatible processors.
Memory - XMP
Choose from preset XMP profiles to automatically overclock compatible DDR memory for optimal performance.
EZ Optimisation
A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimisations. The MSI Centre offers a clean, minimal interface to customise and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.
AI Boost
MSI AI Boost offers three-stage NPU overclocking, allowing users to adjust NPU performance based on their specific needs. This easy-to-use feature makes NPU overclocking both convenient and accessible, enabling users to boost NPU power effortlessly. Tested by MSI OC LAB, AI Boost can achieve up to a 27% performance increase, significantly improving AI computing tasks.
Ultra Performance
Power Solution
Power Design - 14+1+1+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI Gaming series motherboard is ready to sustain heavy gaming loadings.
14 Phases Vcore Power 55a Drmos
1 Phase Sa Power
1 Phase Gt Power
1 Phase Vnnnaon Power
CPU Power
Core Boost
Digital Power
PCB Design - Optimised PCB Solution
The PCB design has been optimised for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
6 PCB layers
Server-grade PCB material
2oz Thickened Copper
EZ OC Tuning
Performance Preset
The MSI Performance Preset simplifies power limit management through intuitive profiles based on your CPU and motherboard configuration.
*Please note that available presets may vary depending on CPU and motherboard configurations, and some presets may operate with identical power limit settings. The image shown is for illustrative purposes only.
Warning: Selecting "MSI Performance Settings" "MSI Extreme Settings" or "MSI Unlimited Settings" profiles may reduce system stability and may Void the product warranty. Please change at your own risk. Press any key to cancel countdown or the windows will close with default settings in 8 sec.
CPU Lite Load Control
CPU Lite Load Control is a feature that allows for easy adjustment of the AC/DC load line settings. It is primarily used to fine-tune the CPU's operating voltage to optimise power consumption and thermal performance. The system can maintain stable performance while improving energy efficiency, reducing overall power consumption and temperature. This feature is ideal for users who want more precise control over system power management.
BCLK Control
MSI motherboards allow users to fine-tune their overclocking by offering the flexibility to synchronise CPU BCLK and SOC BCLK or adjust them separately. This versatile approach gives users the freedom to choose between unified control or individual overclocking of the CPU and SOC, based on their performance needs.
More for Performance
1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.
Memory
DDR5 Memory Support with High Performance
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, Z890 GAMING PLUS WIFI6E is ready to deliver the world class memory performance.
XMP Support
Memory Boost
SMT Process
Memory Extension Mode
Memory Extension Mode provides optimised memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximise memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.
Performance Mode, Benchmark Mode, Memtest Mode and High Efficiency Mode provide users with the flexibility to swiftly identify the ideal configuration tailored to their requirements and memory overclocking capabilities.
Protection
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Transient Voltage
Clamped Transient
Transient Current
Protected Load
Solid PIN Design
The 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.
Advantages of Solid PIN Power Connector
Improved stability : Larger contact area enhances stability during power delivery.
Low impedance : Solid pins offer low impedance, enabling efficient power flow.
Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
Suitable for high-current applications.
Stainless Steel IO
An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.
Over Current Protection
MSI motherboards prioritise safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defence mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritise durability and stability.
The Grounding Structure of Power Phases
The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
FROZR Design
FROZR Guard
Cooling Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
FROZR Sync
System Cooling - DIY 2.0 - Integrating with the System Environment
Connect and synchronise with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler - 3a Power Deliver / Supports Auto-detect
For System Fan - Supports Auto-detect
Exclusive Ez Conn. - Jaf_1 - 3a Power Deliver(Fan) / Supports Dedicate Msi Pc Components.
Combo Fan
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive grey colour ensuring easy identification.
FROZR Control
Cooling Wizard
Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customisable options, and intuitive temperature monitoring for optimal operation with one click.
Multiple Profiles
Save up to 5 profiles for multiple occasions.
Smart Fan & Manual Fan
Smart Fan - Allow users to change the temperature curve with the 4 dots provided
Manual Fan - Allow users to manually change the temperature at a set percentage
User Scenario
Follow MSI Centre Mode - Adjust fan settings according to the mode selected in User Scenario.
BIOS Mode - Adjust Fan settings in BIOS
Customise by User - Customise fan settings by the users.
FROZR AI Cooling
Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.
Auto Detect Fan
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
MSI
Smooth fan speeds
Smooth sound levels
Others
Spiking fan speeds
Annoying sound levels
Trilink
Networking
Flawless Connection - High-Bandwidth and Low-Latency Network
MSI's premium network solution provides incredible data transfer speed for demanding users.
5G LAN
Wi-Fi 6E
EZ Antenna with Magnetic Stand
Intel Killer Performance Suite
Equipped with Intel Killer LAN, you can use the Intel Killer Performance Suite. It not only prioritises frequently used applications but also provides recommendations to optimise network quality.
Application priority auto-detection
Autonomous bandwidth analysis and management
AI Overclocking recommends CPU overclock settings based on characterisation (Applicable only to K-skus)
Storage
Fast and Future-Ready Storage
MSI GAMING PLUS series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
1x lightening Gen5 m2 - 128 Gbps
3x lightening Gen4 m2 - 64 Gbps
Expansion
Lightning Gen 5 PCI-E with Steel Armour II
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 Slot
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
Reinforced, Heavy Soldered Connections
MSI PCI Express Steel Armour slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armour shields the point of contact from electromagnetic interference.
PCIe Supplemental Power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.
2.5x Power Excursion
ATX 3.1 ready
PCIe 5.1 ready
Ready for AI PC
Front USB Type-C
MSI GAMING motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Experience
Audio Boost
High Definition Audio Processor
High Quality Audio Capacitors
High Quality Audio Jacks
Isolated Audio Signal
De-pop Protection
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Mystic Light - Glow Your PC
Splash on some colour and vibrant RGB lighting effects using Mystic Light utility of MSI Centre, which has million colours and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
Wave
Steady
Flame
Breathing
CPU Temperature
Colour Ring
Lightning
Recreation
Meteor
Default
Synchronised
Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
A-Rainbow V2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
*Gen2 device only supports 7 RGB themes
RGB
Supports 12V RGB devices.
Ambient Link
Synchronise lighting theme with compatible lighting devices.
BIOS - Click BIOS X
MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.
BIOS Key Features
Game Boost
Easily boost your CPU performance with the press of a single button for instant overclocking.
Al Boost
Easily enhance your NPU performance with a click, unlocking the full potential of Al processing.
XMP
Easily apply optimised memory overclocking profiles through a simple one-click activation.
Hardware Monitor
Instantly access real-time critical hardware information, including temperature, memory capacity, clock speed, and voltage.
M-Flash
Easily flash or update the BIOS in just a few minutes directly from the CMOS Setup Utility.
U-Key
Enables secure system access by requiring a specific USB drive for booting, adding an extra layer of security to your PC.
Profile
Save and switch between multiple custom system configurations, allowing for quick adjustments tailored to different tasks or performance needs.
Favourites
Bookmark frequently accessed settings, providing quick and easy access to essential configurations without the need to navigate through the entire menu.
Search
Quickly locate specific settings or options by typing keywords, streamlining navigation and making system adjustments more efficient.
Software
MSI Centre
MSI brand new MSI Centre unifies a suite of MSI software utilities into a single centralised application. Take control of advanced motherboards features and unleash endless possibilities.
AI Engine
MSI Al Engine eliminates the need to tweak settings manually and saving you time and effort.
Mystic Light
Create your own colourful masterpiece with ease. Splash any colour you want with just a few clicks!
True Colour
Optimised monitor's brightness and colour in several modes for different situation, you can also customise by yourself.
User Scenario
One click for setting your computer, even customise own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
Cooling Wizard
Cooling Wizard is a comprehensive tool for managing fan settings across MSI products, offering one-click optimisation.
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
AIDA64
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Norton 360
Multiple layers of protection for your devices, online privacy features including their Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360.
Up to 50 GB PC cloud backup
Real time Threat protection and Smart Firewall
Password manager
PC Safe Cam
Back Panel Ports
DisplayPort
Keyboard / Mouse
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps Type A ports
USB 10 Gbps Type C ports
USB 10 Gbps Type A ports
Audio Connectors
Backed by a 3 year MSI warranty.
