Fractal Design Summit Blackout TG Light Tint Mid Tower Case

FD-C-SUM1A-05 | Fractal Design
$279
In stock
Buy now, pay later!

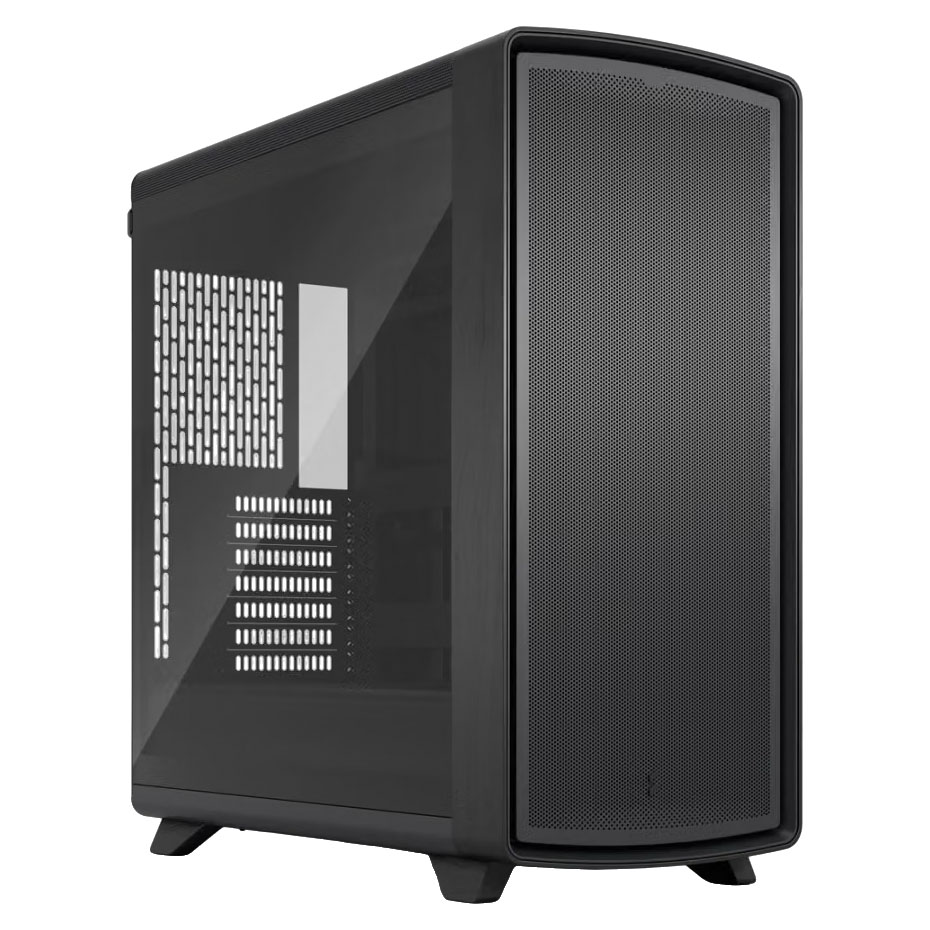

The Fractal Design Summit Blackout TG Light Tint is a mid tower PC case that combines Scandinavian inspired design with modern gaming hardware support and efficient cooling options. Its distinctive black finish, perforated steel mesh front and light tinted tempered glass side panel create a refined look while allowing your components to remain visible. Supporting Mini-ITX, Micro-ATX, ATX and E-ATX motherboards, the Summit accommodates graphics cards up to 425mm long, with an included adjustable support bracket to help stabilise larger cards. Three pre-installed 140mm Momentum fans deliver airflow through the ventilated front panel, while support for radiators up to 360mm at both the front and top provides flexibility for liquid cooling configurations. The case also supports reverse-connector motherboards for cleaner builds, with integrated cable-routing features, hook-and-loop straps and 34mm of cable management space to keep wiring organised. Tool-less access to key panels and removable mounting brackets simplify installation and maintenance, while front I/O includes a 20Gbps USB-C port, two 5Gbps USB-A ports and a combined headphone and microphone jack. With space for multiple storage drives and a layout designed for contemporary gaming components, the Summit Blackout TG Light Tint case is a versatile foundation for a clean, high performance PC build.



Features


Cases - Summit

Reimagine Performance

Summit unites Scandinavian design with gaming performance. With FSC-certified curved wood detailing, matching solid wood feet, and a perforated mesh front, it delivers airflow performance with a distinctive, furniture-inspired expression.

Scandinavian Design

Bring a furniture-inspired expression to your station with multi-layered FSC-certified oak or walnut and matching case feet in solid wood.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 1

Crafted for Gaming

Install modern gaming components with space for graphics cards up to 425 mm in length supported by an included adjustable bracket.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 2

Cool Operation

Keep your system running smoothly with a perforated mesh front and space for up to 360 mm radiators in the front and top.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 3

Powerful Fans Included

Access powerful out-of-the-box cooling with three pre-installed Momentum 14 fans featuring swept LCP blades and true FDB bearings.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 4

Intuitive Building

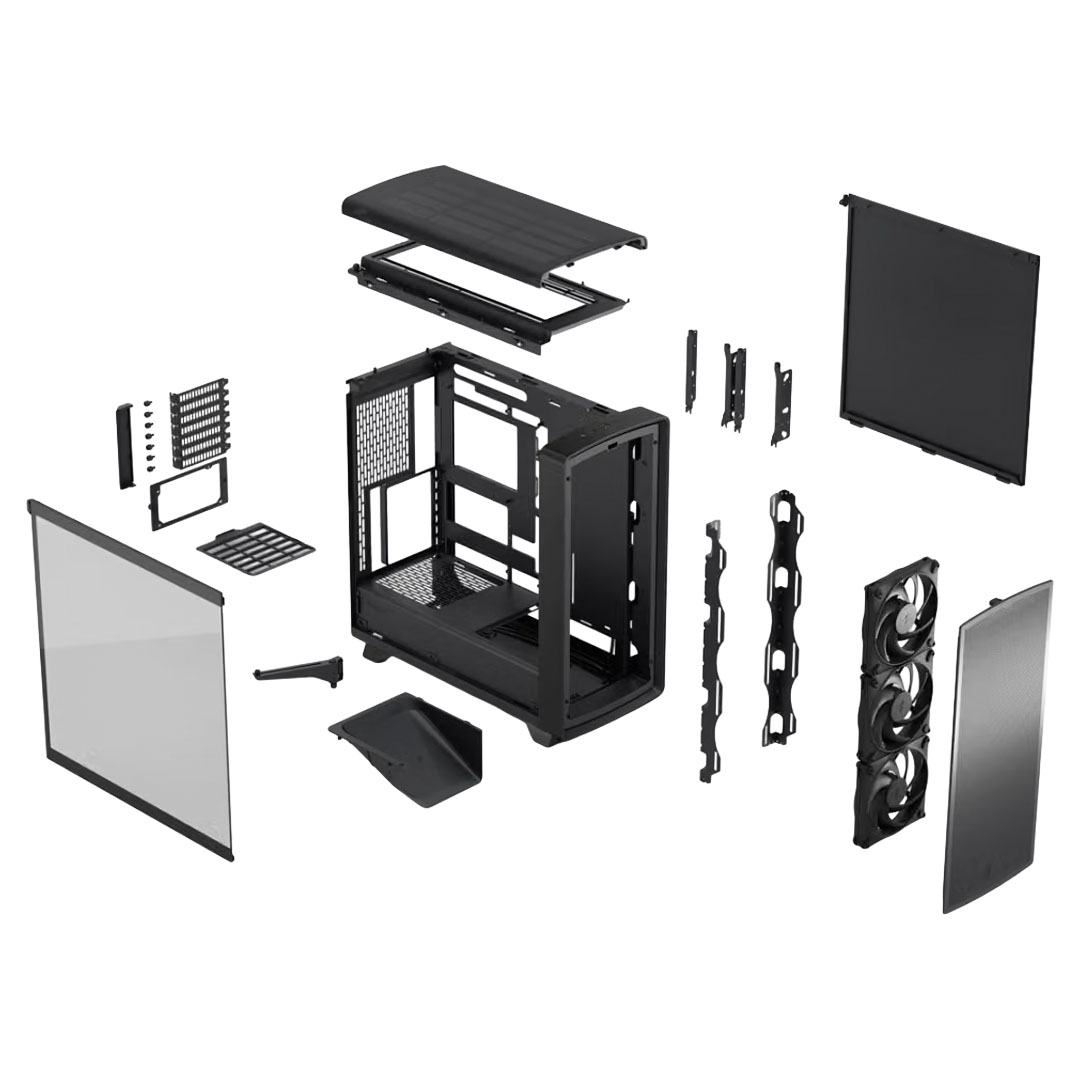

Enjoy a smooth building experience with tool-less access, including a push-to-release front, and removable top and front brackets.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 5

Integrated I/O

Connect your devices effortlessly with an I/O featuring a 20 Gbps USB Type-C port, two USB Type-A ports, and a combined audio jack.

Fractal Design Summit Blackout TG Light Tint FD-C-SUM1A-05 Feature 6

Clean Finish

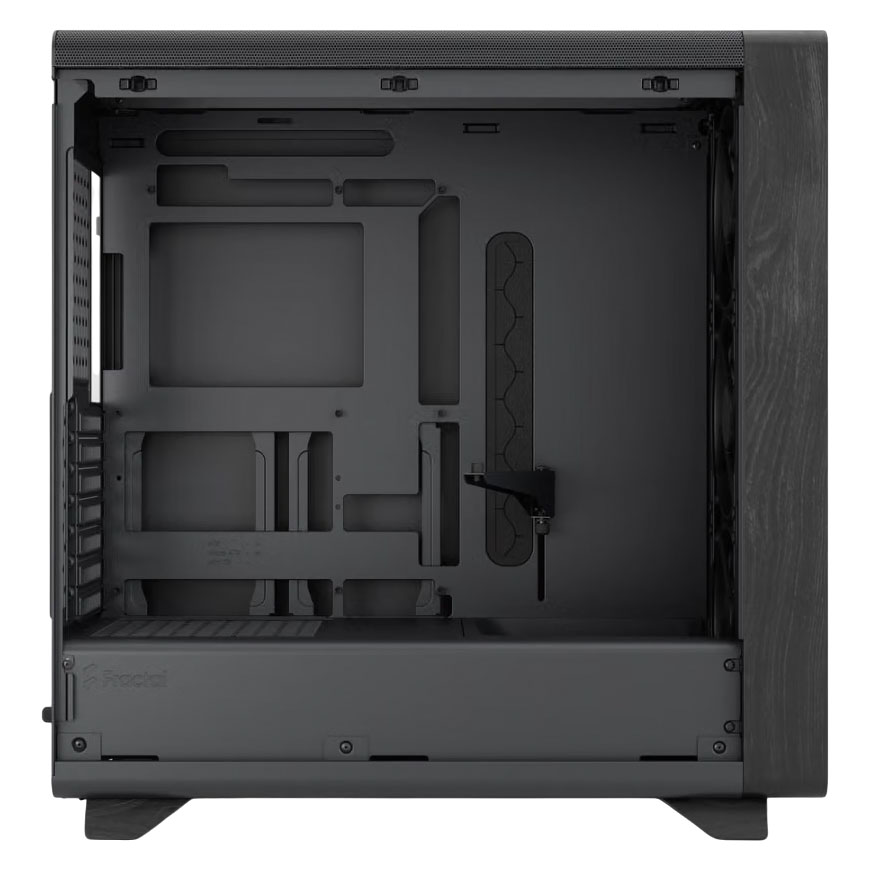

Achieve a neat and tidy build with a clean interior layout, integrated routing features, and support for reverse connector motherboards.

Specifications


General Data

Model Number FD-C-SUM1A-05
Colour Black

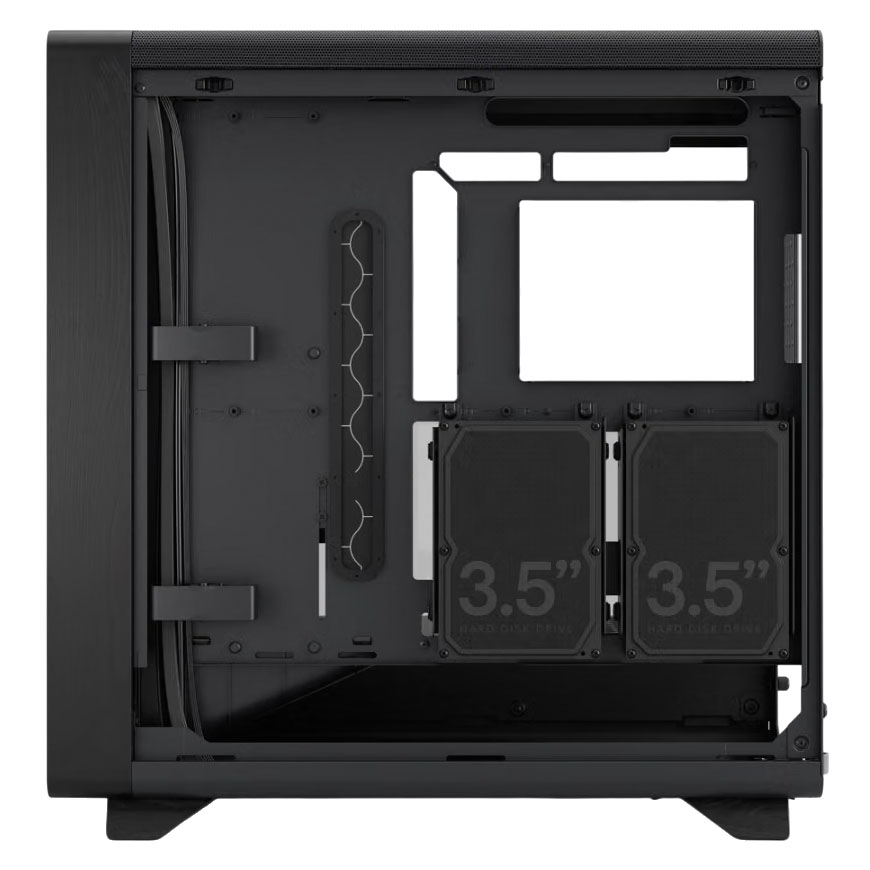

Dedicated 2.5" Drive Mounts 2
Combined 3.5"/2.5" Drive Mounts 2
Expansion Slots 7

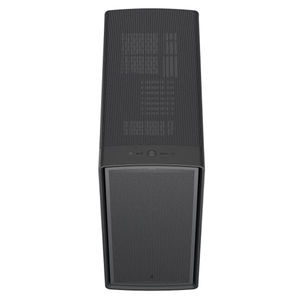

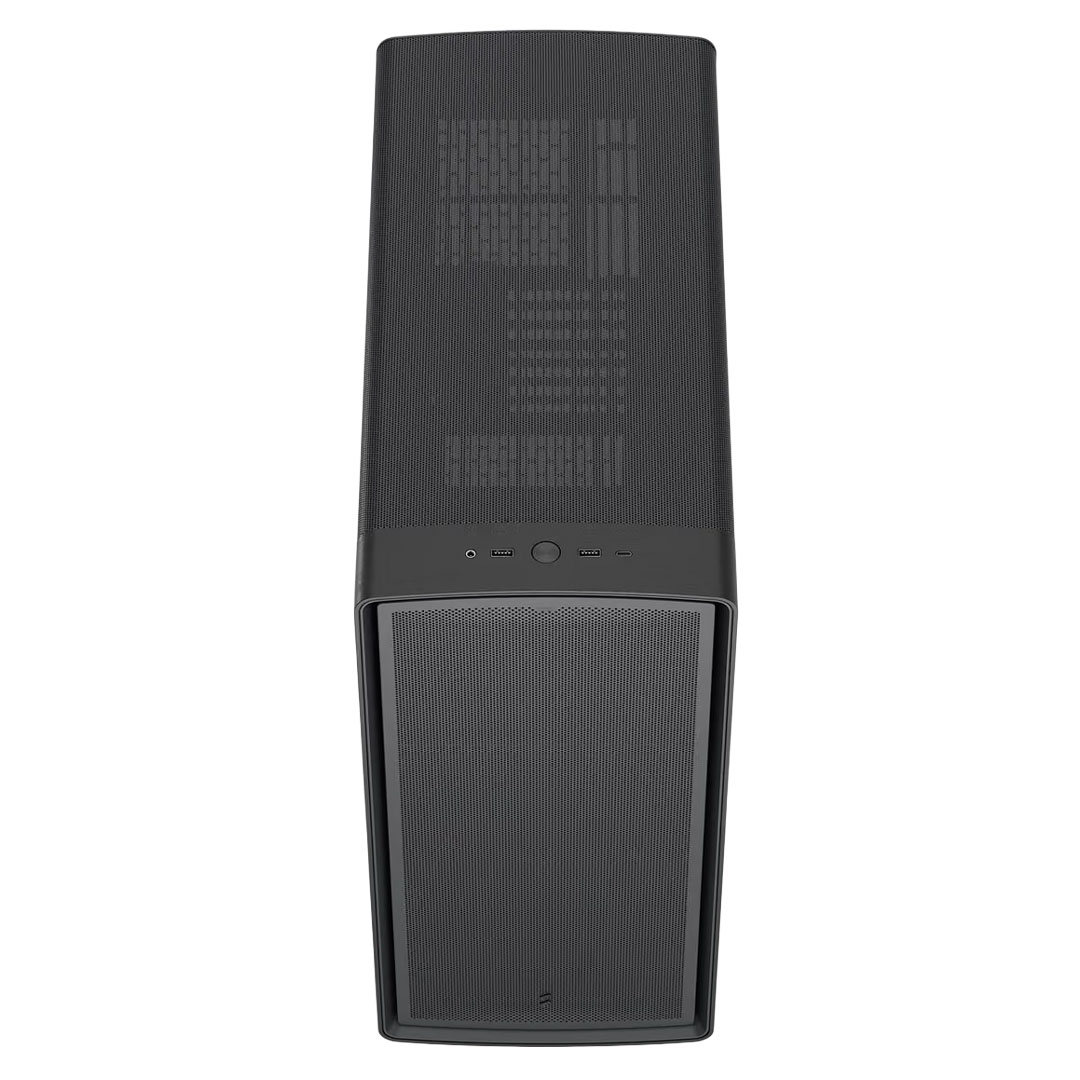

Front Interface 2x USB Type-A 5Gbps, 1x USB Type-C 20Gbps, 1x Audio/Microphone Combo Jack, 1x Power Button
Tool-Less Access Front panel, top panel, PCIe cover, both side panels, bottom filter, top bracket, PSU bracket
Captive Thumbscrews PSU bracket, top radiator bracket

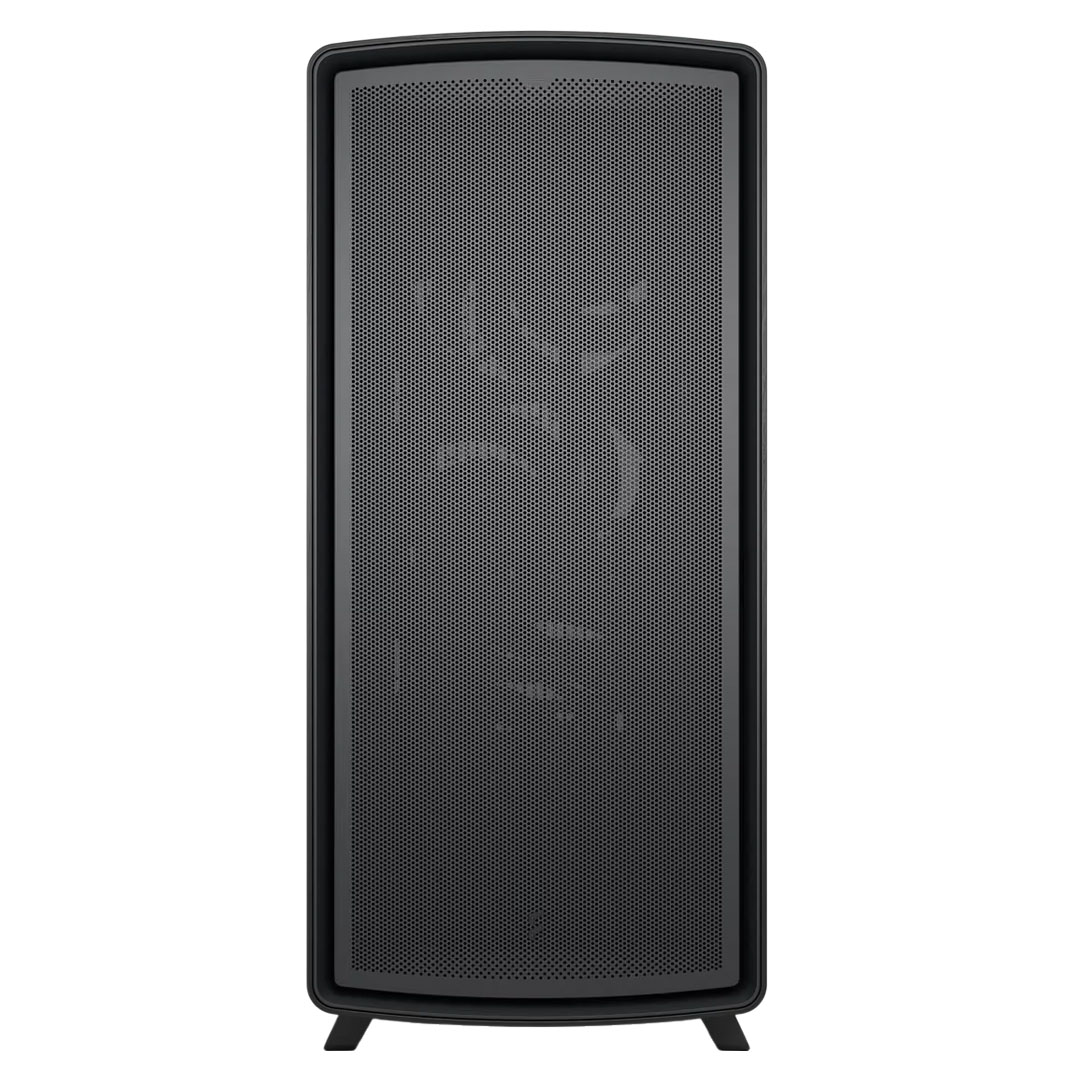

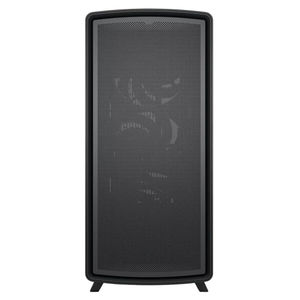

Front Panel Ventilated steel mesh

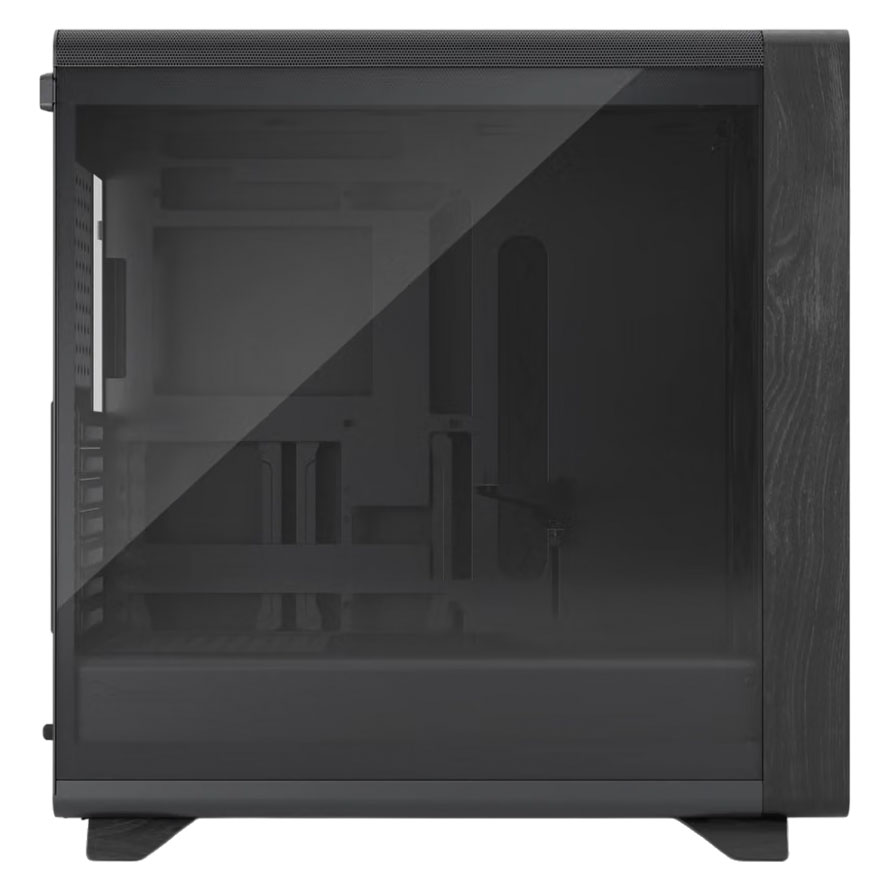

Left Side Panel Tempered glass
Right Side Panel Industrial steel
Dust Filters PSU Dust Filter
Cable Grommets Yes
Hook-and-Loop Straps Yes
Cable Routing Space 34 mm
Ambient Lighting No
Adjust Pro Hub Included No
Warranty Period 2 years
Package Content 1 x Computer case, 1 x Accessory box, 1 x User manual

Fans

Front Fan Mounts 3 x 120 mm or 3 x 140 mm
Top Fan Mounts 3 x 120 mm or 2 x 140 mm
Rear Fan Mounts 1 x 120 mm
Fans Included 3x Momentum 14 (front)

Compatibility

Motherboard Compatibility Mini ITX, Micro ATX, ATX, E-ATX (E-ATX up to 277 mm)
RC Motherboard Compatibility Reverse Micro ATX, Reverse ATX
Reverse Connector Motherboard Support Yes
PSU Compatibility ATX
PSU Max Length 253 mm
GPU Max Length 425 mm (425 mm with front fan mounted or 393 mm with 30 mm-thick front radiator)
CPU Cooler Max Height 173 mm
Top Radiator Compatibility 120, 240, 280, 360
Front Radiator Compatibility 120, 240, 280, 360
Rear Radiator Compatibility 120

Logistics

Product Dimensions (L x W x H) 495 x 229 x 515 mm
Volume (L) 55.43 L
Net Weight 10.0 kg
Accessories Included 11 x Motherboard screws (6-32), 4 x PSU screws (6-32), 1 x Motherboard replacement standoff, 8 x HDD screws, 8 x HDD rubber grommets, 16 x M3 SSD screws, 1 x PWM extension cable, 4 x Cable ties, 1 x Stud-catcher replacement, 1 x Hook-and-loop strap
Backed by a 2 year Fractal Design warranty.
