The Fractal Design Radius 360 RGB White is an all-in-one liquid CPU cooler designed to provide efficient thermal management with a clean white finish and customisable RGB lighting. Its 360mm radiator is paired with three pre-installed Dynamic 3 RGB fans, combining airflow with lighting effects to complement a coordinated PC build. A copper cold plate and ceramic bearing PWM pump support heat transfer from the processor, while the rotatable pump cap allows flexible orientation during installation. Integrated cable routing, daisy-chained fans and flexible 400mm EPDM tubing help simplify installation and maintain a tidy interior, with articulating 90 degree elbow fittings providing additional flexibility when routing the cooler. Pre-applied thermal paste further streamlines setup. Compatible with Intel LGA 115x, LGA 1200, LGA 1700 and LGA 1851 sockets, as well as AMD AM4 and AM5 platforms, the Radius 360 RGB White suits a wide range of desktop gaming and workstation systems. Combining liquid cooling, RGB illumination and a coordinated white design, it offers a practical cooling solution for performance focused builds.
Features
Water Cooling - Radius 360
Radius combines powerful all-in-one CPU cooling with a clean, considered design. With pre-mounted Dynamic 3 fans, tube-integrated cabling, easy installation, and fully integrated Adjust Pro control in RGB versions, it delivers responsive cooling for modern gaming systems.
Responsive Cooling
Keep your system running smoothly with a copper cold plate and ceramic-bearing PWM pump designed for efficient cooling.
Clean Finish
Create a tidier build with tube-integrated cabling, daisy-chained fans, and a rotatable pump cap for flexible orientation.
Dynamic 3 Fans
Balance performance and acoustics with Dynamic 3 fans featuring a swept blade design for strong airflow with reduced noise.
Designed for Gaming
Built for modern gaming systems with powerful CPU cooling and support for current Intel and AMD sockets.
Easy Installation
Enjoy a smooth setup with pre-applied thermal paste, flexible EPDM tubing, and articulating elbow fittings for easier routing.
Lasting Performance
Rely on a durable all-in-one water cooling solution backed by a five-year warranty for peace of mind.
RGB Version - Integrated Adjust Pro
Customise advanced lighting effects, fan speeds, and the pump flow rate effortlessly through the web-based Adjust Pro app.
Specifications
General Data
| Model Number |
FD-W-RA1-3603 |
| Colour |
White |
| Size |
360 mm |
| RGB |
Yes |
| Intel Supported Sockets |
LGA 115X/17XX, LGA 1200/18XX |
| AMD Supported Sockets |
AM4 / AM5 |
| Cold Plate Material |
Copper |
| Thermal Paste |
Pre-applied |
| Tubing Length |
400 mm |
| Tubing Material |
EPDM |
| Block Side Fittings |
Articulating 90-degree Elbow |
| Radiator Side Fittings |
Barbed fitting |
| Power Cable Length (mm) |
450 mm |
| PWM Cable Length |
300 mm |
| Internal Header Cable Length (mm) |
600 mm |
| Adjust Pro Compatible |
Yes |
| Warranty Period |
5 years |
Fan Specifications
| Fans Included |
3x Dynamic 3 - 12 |
| Screw Threads |
6-32 |
Pump Specifications
| Bearing |
Ceramic |
| Rotational Speed |
3400 ±10% RPM |
| Pump Control |
Yes |
| Acoustical Noise |
17.6 dBA |
| Max Pressure |
2.1 H2O |
| Input Voltage |
12 |
| Input Current |
0.2 A (Value is ± 20%) |
| MTTF |
40000 h (Value is measured @ 40 ) |
Radiator Specifications
| Radiator Housing Material |
Aluminium |
| Radiator Fin Material |
Aluminium |
Logistics
| What's Included |

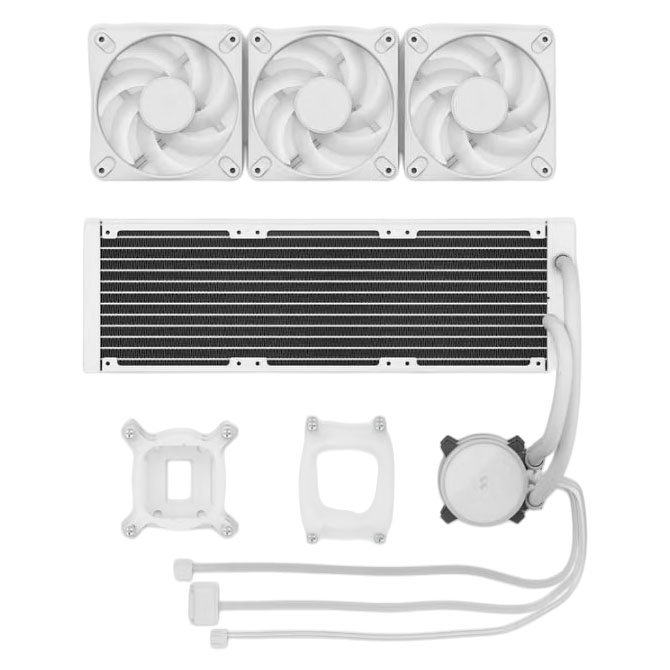

1 x Water Cooling unit, 1 x Accessory box, 1 x User manual |
| Accessories Included |
Intel mounting brackets, Intel backplate, 12 x case screws |
Dimensions
| Product Dimensions (L x W x H) |
394 x 120 x 55 mm |
| Net Weight |
1.7 kg |
Backed by a 5 year Fractal Design warranty.
