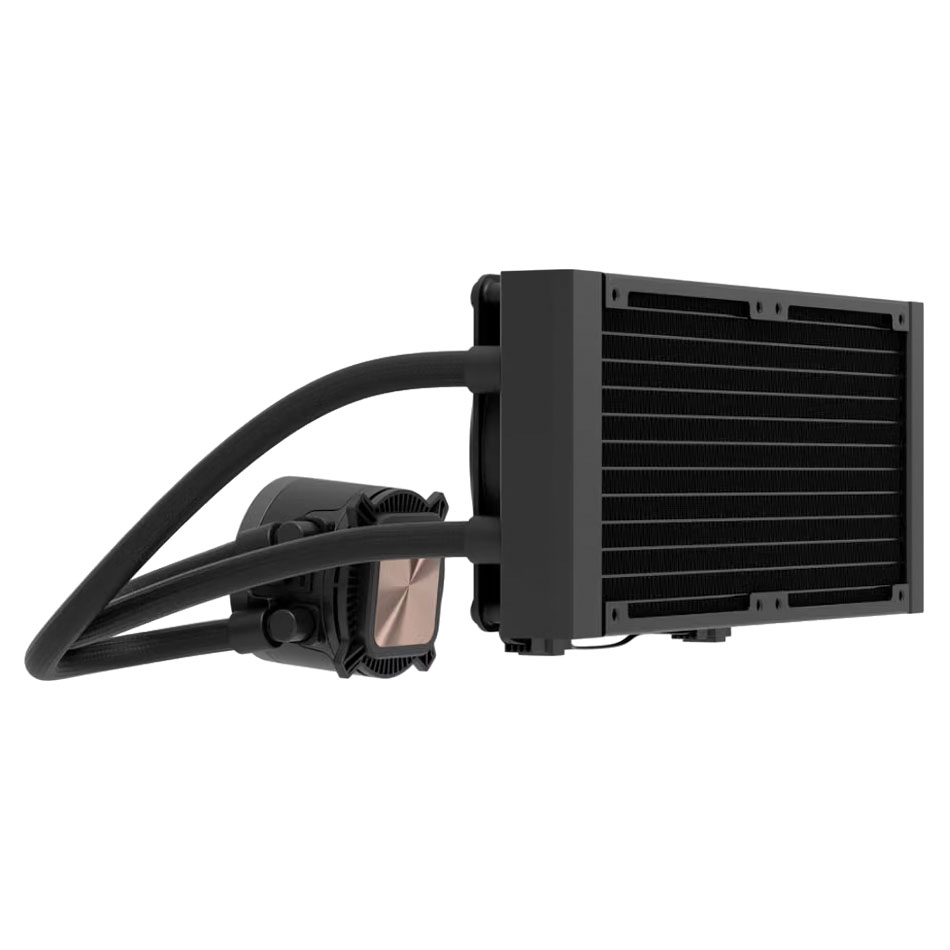

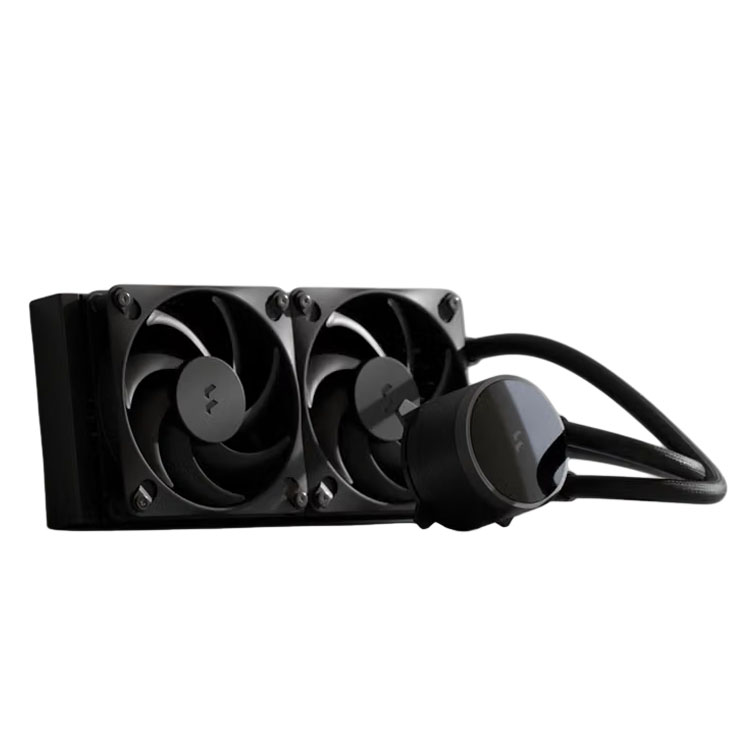

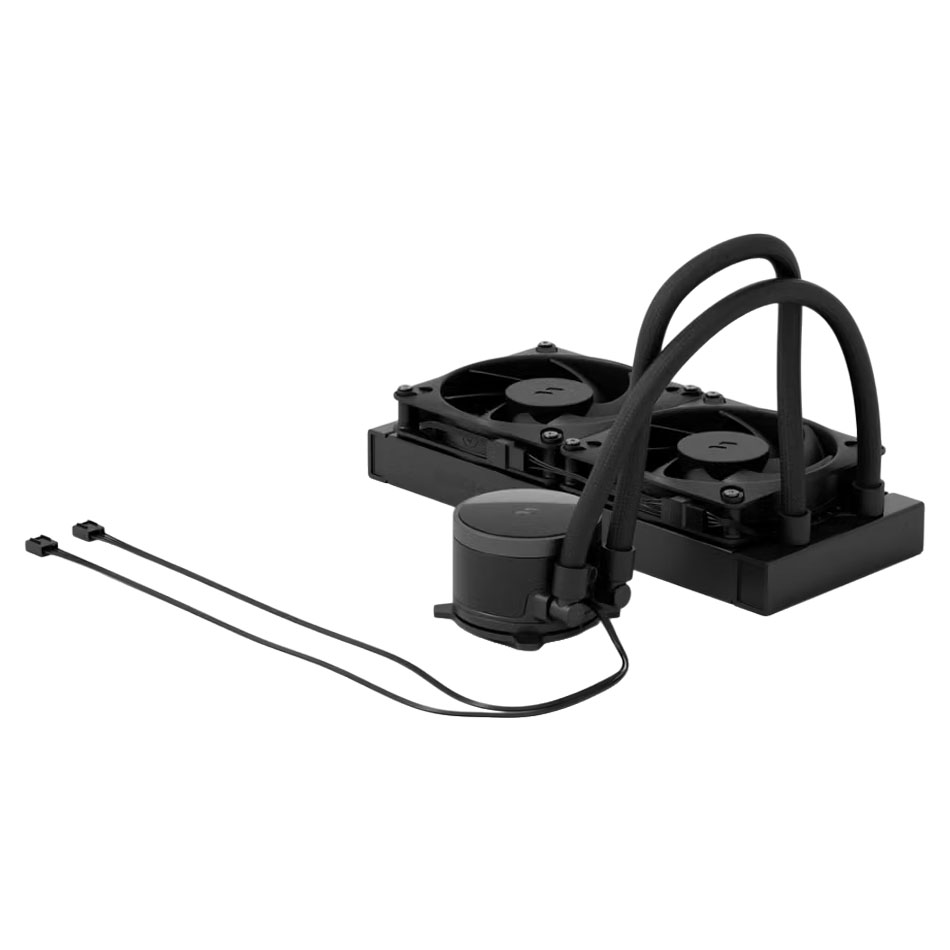

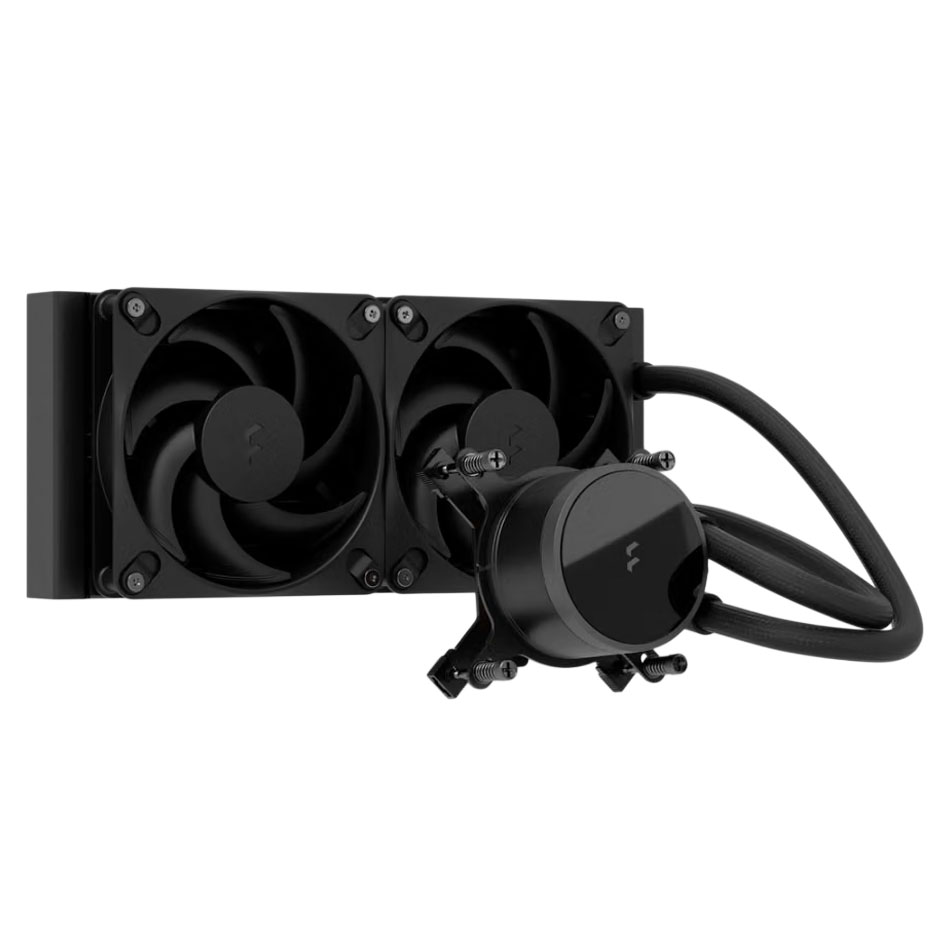

The Fractal Design Radius 240mm AIO CPU Cooler features a copper cold plate, ceramic bearing pump and two Dynamic 3 fans to provide efficient, quiet cooling for modern gaming systems. Pre-applied thermal paste, flexible tubing and articulating fittings simplify installation, while the rotatable pump cap creates a clean, tidy finish.
Features
Water Cooling Radius 240
Radius combines powerful all-in-one CPU cooling with a clean, considered design. With pre-mounted Dynamic 3 fans, tube-integrated cabling, easy installation, and fully integrated Adjust Pro control in RGB versions, it delivers responsive cooling for modern gaming systems.
Responsive Cooling
Keep your system running smoothly with a copper cold plate and ceramic-bearing PWM pump designed for efficient cooling.
Clean Finish
Create a tidier build with tube-integrated cabling, daisy-chained fans, and a rotatable pump cap for flexible orientation.
Dynamic 3 Fans
Balance performance and acoustics with Dynamic 3 fans featuring a swept blade design for strong airflow with reduced noise.
Designed for Gaming
Built for modern gaming systems with powerful CPU cooling and support for current Intel and AMD sockets.
Easy Installation
Enjoy a smooth setup with pre-applied thermal paste, flexible EPDM tubing, and articulating elbow fittings for easier routing.
Lasting Performance
Rely on a durable all-in-one water cooling solution backed by a five-year warranty for peace of mind.
RGB Version - Integrated Adjust Pro
Customise advanced lighting effects, fan speeds, and the pump flow rate effortlessly through the web-based Adjust Pro app.
Note: Feature images are used for illustrative purposes only, please refer to title, specifications and product images for correct model upon purchase.
Specifications
General Data
| Model Number |
FD-W-RA1-2401 |
| Colour |
Black |
| Size |
240 mm |
| RGB |
No |
| Intel Supported Sockets |
LGA 115X/17XX, LGA 1200/18XX |
| AMD Supported Sockets |
AM4 / AM5 |
| Cold Plate Material |
Copper |
| Thermal Paste |
Pre-applied |
| Tubing Length |
400 mm |
| Tubing Material |
EPDM |
| Block Side Fittings |
Articulating 90-degree Elbow |
| Radiator Side Fittings |
Barbed fitting |
| PWM Cable Length |
300 mm |
| Adjust Pro Compatible |
No |
Fan Specifications
| Fans Included |
2x Dynamic 3 - 12 |
| Screw Threads |
6-32 |
Pump Specifications
| Bearing |
Ceramic |
| Rotational Speed |
3400 ±10% RPM |
| Pump Control |
Yes |
| Acoustical Noise |
17.6 dBA |
| Max Pressure |
2.1 H2O |
| Input Voltage |
12 |
| Input Current |
0.2 A (Value is ± 20%) |
| MTTF |
40000 h (Value is measured @ 40 ) |
Radiator Specifications
| Radiator Housing Material |
Aluminium |
| Radiator Fin Material |
Aluminium |
Logistics

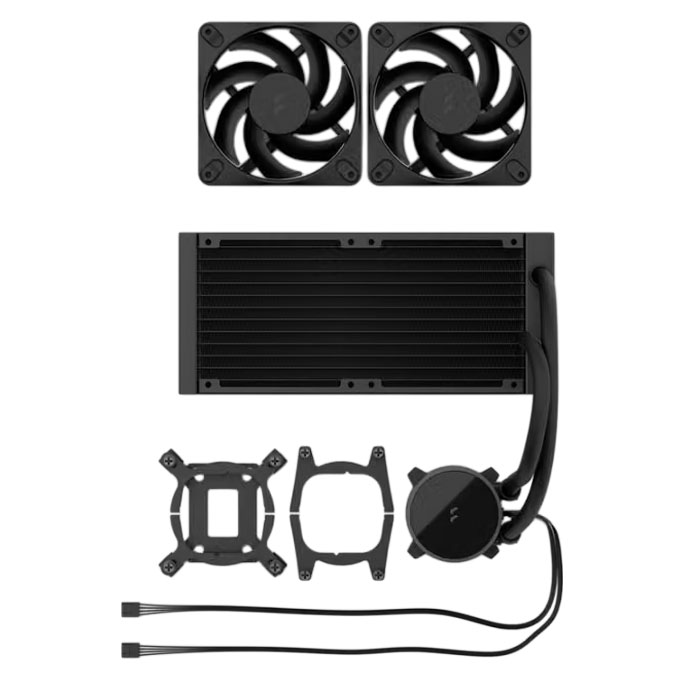

| What's Included |
1 x Water Cooling unit, 1 x Accessory box, 1 x User manual |
| Accessory Box Content |
Intel mounting brackets, Intel backplate, 8 x case screws |
Dimensions
| Product Dimensions (L x W x H) |
277 x 120 x 55 mm |
| Net Weight |
1.4 kg |
Backed by a 5 year Fractal Design warranty.
