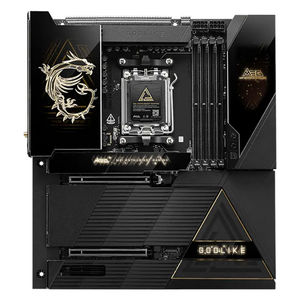

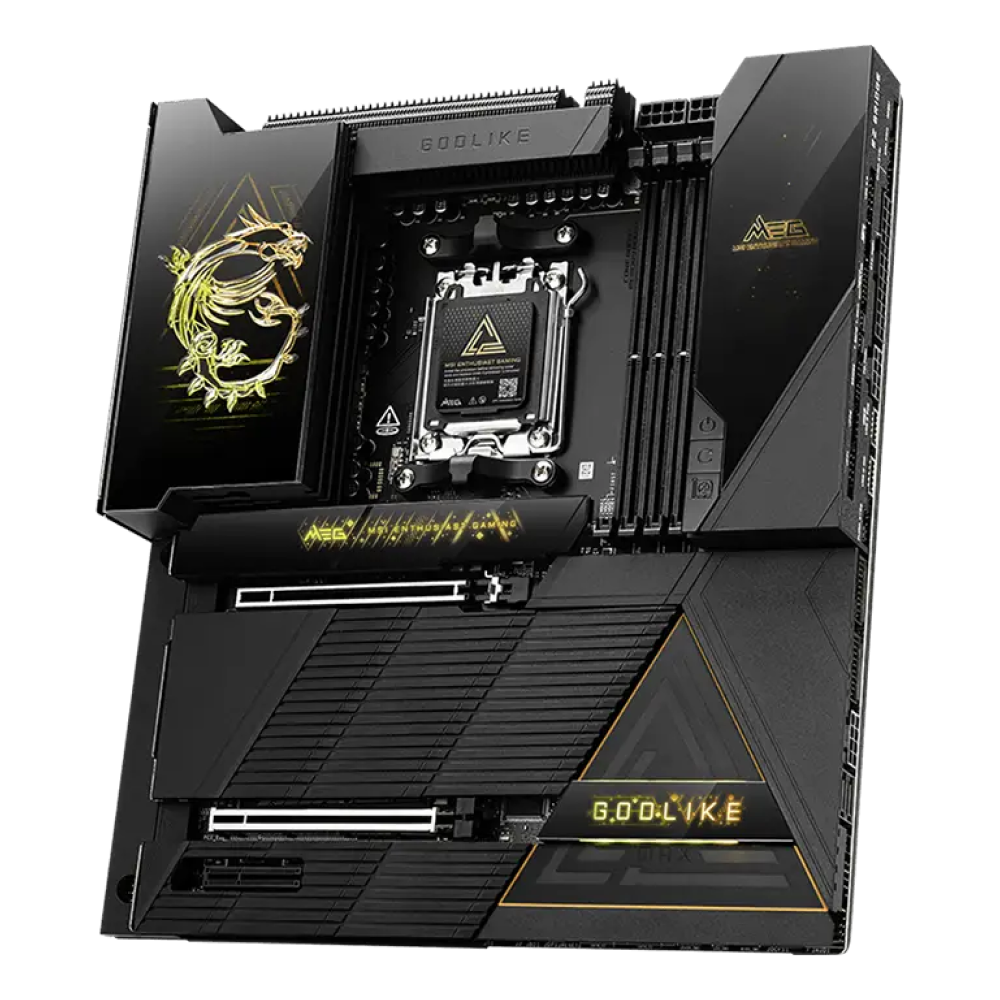

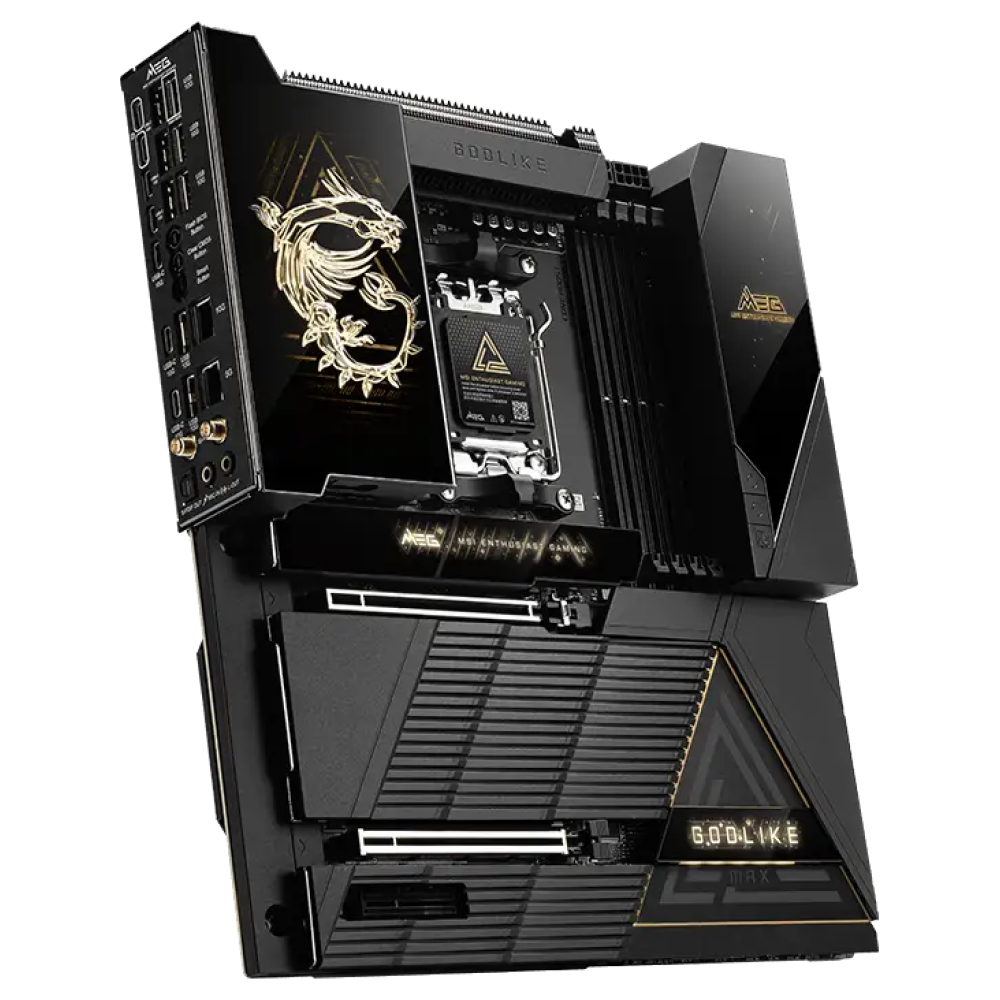

MSI MEG X870E Godlike Max Motherboard

MEG-X870E-GODLIKE-MAX | MSI
$2549
Check back later!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
Command maximum power and exceptional connectivity with the MSI MEG X870E Godlike Max Motherboard, a flagship E-ATX platform engineered for high-performance AMD Ryzen 9000, 8000, and 7000 series desktop processors. Built upon the advanced AMD X870E chipset via the AM5 socket, this enthusiast-grade motherboard is equipped with a robust 24+2+1 Duet Rail Power System and 110A Smart Power Stages to deliver flawless, ultra-stable overclocking potential. It supports up to 256GB of dual-channel DDR5 memory, capable of achieving blistering speeds in excess of 9200 MT/s, ensuring your system smoothly handles heavy multitasking, complex 3D rendering, and demanding AAA gaming. For expansive storage capabilities, the board features multiple onboard PCIe 5.0 M.2 slots and includes the innovative M.2 XPANDER-Z SLIDER Gen5 expansion card, making high-speed SSD upgrades completely effortless. Thermal management is highly efficient, integrating a direct-touch cross heat-pipe, wavy fin array, and double-sided magnetic M.2 Shield Frozr II heatsinks to maintain low temperatures under extreme workloads. A standout feature is the integrated 3.99-inch full-colour Dynamic Dashboard III LCD screen, which allows for real-time hardware monitoring, troubleshooting, and personalised visual graphics directly on the board. Complete with dual 40Gbps USB4 Type-C ports, cutting-edge Wi-Fi 7 wireless capabilities, and a dual-network configuration featuring both 10G and 5G LAN, this comprehensive MSI motherboard provides extreme PC builders and professional creators with a premium, future-ready foundation.

Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.


Features

MEG X870E GODLIKE MAX

Beyond the Norm Meet Godlike

Built for maximum performance and compatibility on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE MAX equips OC Engine, 64MB BIOS ROM, true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE MAX.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 9200+MT/s (OC)
  • Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalised display options, enhancing the overall user experience.
  • M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
  • Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: 64MB BIOS ROM, EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Dynamic Dashboard III

A 3.99-inch full-colour LCD offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalisation options, significantly enhancing the overall user experience.

  • Power On / Off
  • Loading
  • Music Player
  • Hardware Monitor
  • Hardware Information
  • Debug Function
  • Flash BIOS Status
  • Customisation
  • System Clock

EZ Link

The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.

Simplify Cable Management

  • EZ Bridge
  • EZ Control HUB
  • 7x System Fan Headers
  • 2x ARGB Headers
  • 1x RGB Header
  • 1x WaterFlow Header

Magnetic Design

*EZ BRIDGE does not support hot-swapping. Do not unplug the connection while it is powered on.

Ultra Performance

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 1

Extreme Memory Performance

Combining a dedicated SMT welding process and MSI's Memory Boost technology, MEG X870E GODLIKE MAX even surpassing 9200 MT/s!

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 2

Ultimate Power Solution

24+2+1 Duet Rail Power System and 110A Smart Power Stage design are ready to push CPU performance to its limits.

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 3

Digital PWM IC

Enables faster and distortion-free current delivery, ensuring efficient and reliable performance under demanding conditions.

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 4

Dual Solid Pin Connectors

Delivers stable and sufficient power, even for overclocked multi-core CPUs, ensuring peak performance under heavy loads.

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 5

Core Boost & OC Engine

Premium layout and dedicated clock generator create the perfect condition for CPU overclocking.

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 6

2oz Copper Server Grade PCB

10-layer optimised PCB design ensures higher bandwidth and faster transfer speeds, enhancing reliable circuit transmission for superior performance.

Ultra Engine

Multiple exclusive CPU and memory overclocking features in the brand-new Click BIOS X allow users to easily fine-tune performance, pushing system to its limits with precision and ease.

MSI MEG X870E Godlike Max DDR5 Motherboard Feature 7

Frozr Design

  • Frozr Control
  • Aluminium Cover
  • Wavy Fin Design
  • Direct Touch Cross Heat-pipe
  • Aluminium Cover
  • Wavy Fin Design
  • Direct Touch Cross Heat-pipe
  • 9W/MK Thermal Pad
  • Double-Sided M.2 Shield Frozr
  • Metal Backplate
  • Combo Fan Header

Lightning Gen 5 Solution

Dual SMT PCIe 5.0 Slots with Steel Armour II

Onboard 5x M.2 Slots with Lightning Gen 5 Solution

M.2 XPANDER-Z SLIDER GEN5

In addition to the 5 built-in M.2 slots, the MEG X870E GODLIKE MAX also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options.

  • One Slot thickness - 1 slot design
  • 2x Lightning Gen 5 M.2 Slots
  • EZ Slide Design
  • 70mm Double-ball Bearing FAN
  • LED Indication

Ultra Connect

Full-Speed Wi-Fi 7 Solution

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Data Transfer Rate

  • WiFi 7 - 5.8 Gbps
  • WiFi 6 - 2.4 Gbps

Channel Size

  • WiFi 7 - 320 MHz
  • WiFi 6 - 160 MHz

USB4 40Gbps Type-C

Featuring dual built-in USB 4 ports, it offer a lightning-fast 40Gbps transmission speed with 4K@120Hz display support.

10G+5G LAN

Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN provide the next level network speed, secure networking with the fastest data throughput to deliver the utmost online experience.

Ultimate Features

  • Click BIOS X
  • 64MB BIOS ROM
  • EZ PCIe Release
  • EZ Magnetic M.2 Shield Frozr II
  • Super Charger + 60W
  • EZ Conn-Design: ARGB, Fan, USB
  • EZ Antenna
  • Metal Backplate
  • Supplemental PCIe Power: 2.5X Power Excursion, ATX 3.1 Ready, PCIe 5.1 Ready
  • EZ M.2 Clip II
  • Steel Armour II
  • EZ Button

Performance & Thermal

Optimal Efficiency

  • Wavy Fin Design
  • Direct Touch Cross Heat-pipe
  • 9W/mK MOSFET Thermal Pads
  • Aluminium Cover
  • Double-sided M.2 Shield Frozr
  • 24 + 2 + 1 Phases Design
  • OC Engine
  • 10-Layer Server Grade with 2oz Copper PCB
  • Metal Backplate
  • PCIe Supplemental Power
  • Enlarged PCH Heatsink

Connectivity

High-Speed Transmission

  • USB 40G Type-C
  • 10G Super LAN
  • 5G LAN
  • Full-Speed Wi-Fi 7
  • Septuple M.2 Slots with Gen 5 Solution
  • Latest DDR5 Memory
  • Front USB 20G Type-C with 60W PD
  • Lightning Gen 5 PCIe Slots
  • M.2 XPANDER-Z SLIDER GEN5

EZ DIY

Effortless Assembly

  • Pre-Installed I/O Shield
  • EZ Buttons
  • EZ Antenna
  • EZ Magnetic M.2 Shield Frozr II
  • EZ M.2 Clip II
  • EZ M.2 Shield Frozr II
  • EZ Digi-Debug LED
  • Dynamic Dashboard III
  • EZ Link
  • EZ Conn-Design
  • 64MB BIOS ROM
  • EZ PCIe Release
  • Steel Armour II

Specifications

Model Number MEG-X870E-GODLIKE-MAX
Chipset AMD X870E
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8400+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
*CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
**Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
Supports up to PCIe 4.0 x4
* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details.*
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_1:
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
* Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.
** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
**RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.
LAN 1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED Feature 1x Dynamic Dashboard III
1x EZ Digi-Debug LED
1x EZ LED Control switch

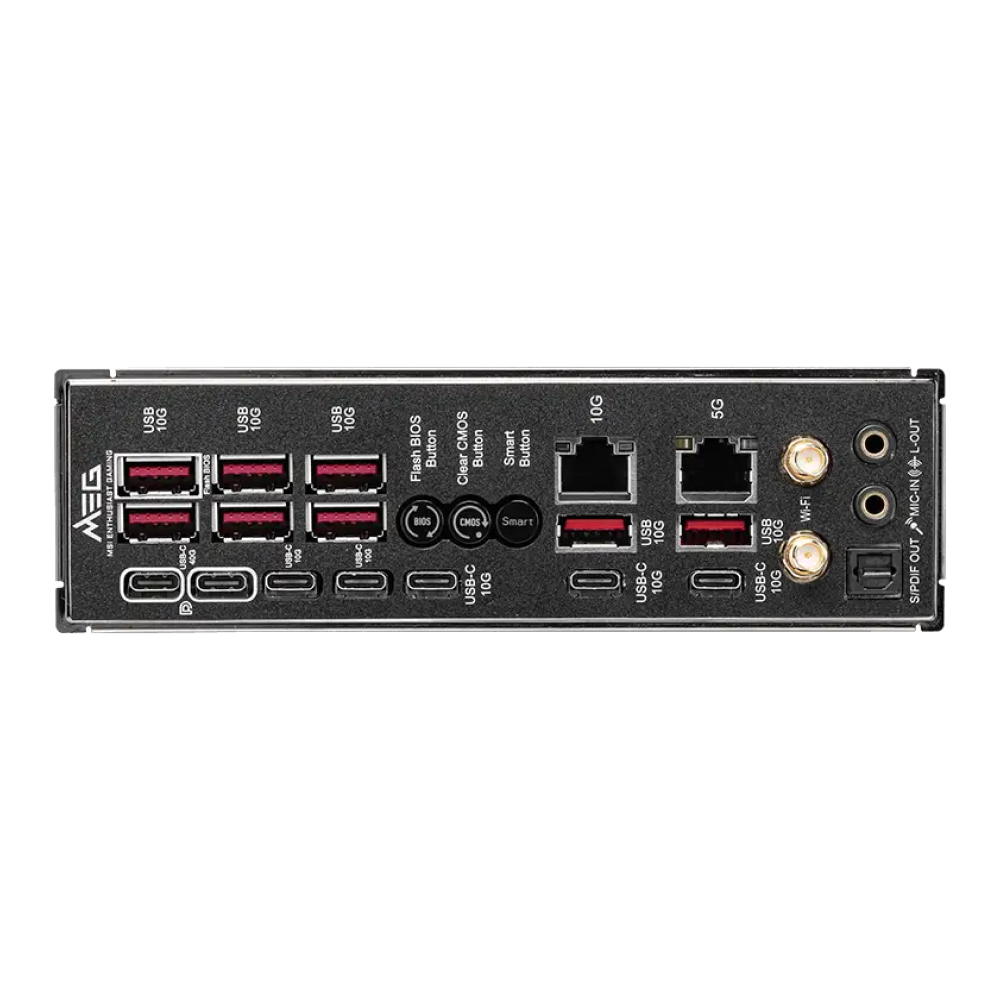

Back Panel Ports USB 10Gbps (Type-A)
Flash BIOS Button
Clear CMOS Button
Smart Button
10G LAN
5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
USB 40Gbps (Type-C)
USB 10Gbps (Type-C)
USB 10Gbps (Type-A)
Optical S/PDIF-Out
Operating System Support for Windows® 11 64-bit

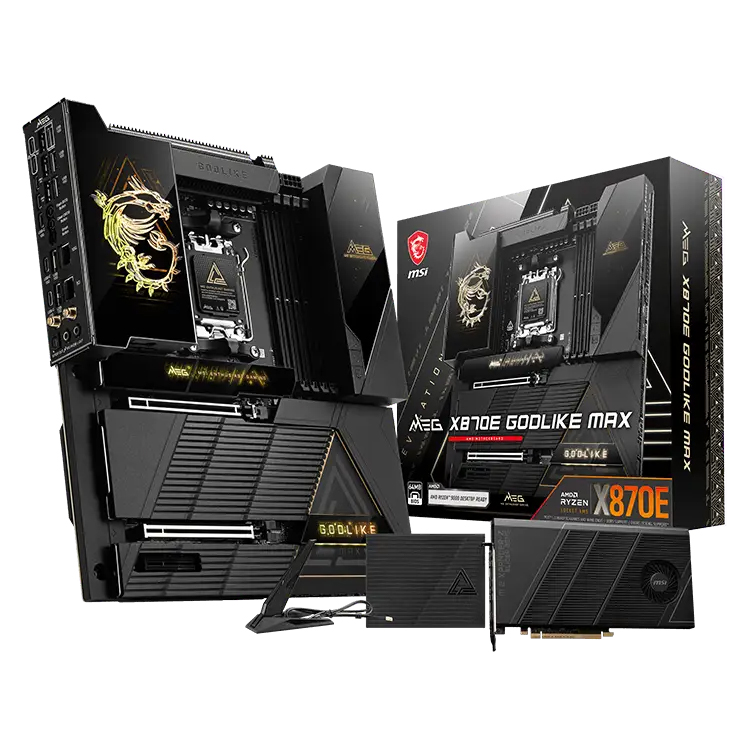

Box Content M.2 XPANDER-Z SLIDER GENS
EZ Control Hub
EZ Wi-Fi Antenna
USB Drive
1 to 3 ARGB Gen 2 Extension Cable
ARGB Extension Cable
1 to 3 EZ Conn-Cable (V2)
EZ Link Cable
EZ Control Hub SATA Power Cable
M.2 Xpander Card FAN Control Cable
EZ Front Panel Cable
4 x SATA Cables
2 x Thermistor Cables
M.2 Xpander Card Thermal pads
EZ M.2 Clips II Remover
EZ Control Hub Screw Sets
Cable Sticker
Quick Installation Guide
European Union Regulatory Notice
PCB Info E-ATX
277mmx304.8mm
Backed by a 3 year MSI warranty.
