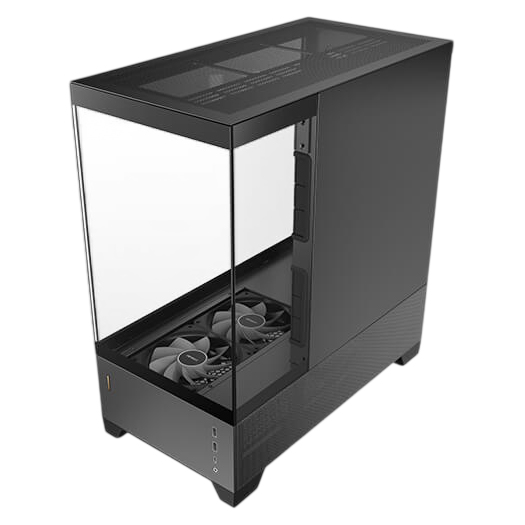

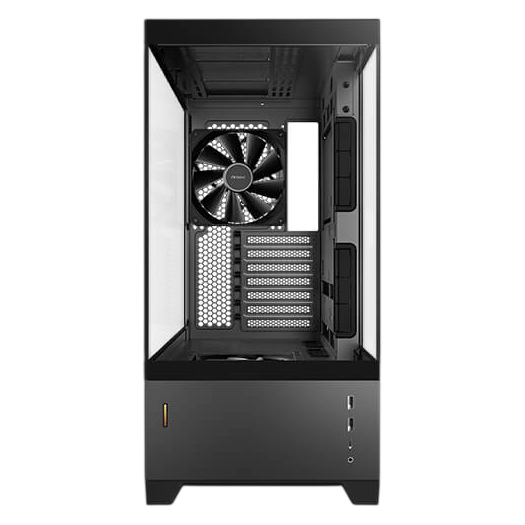

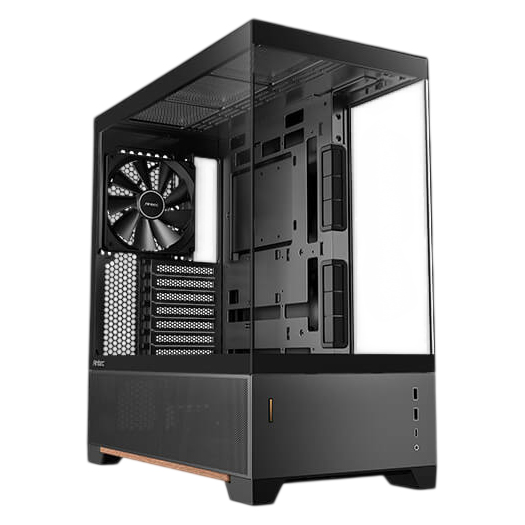

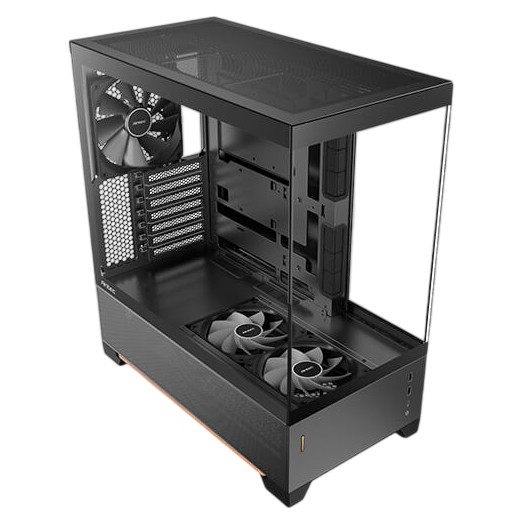

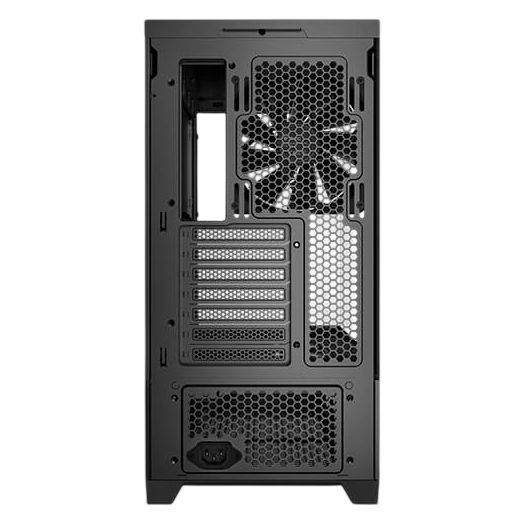

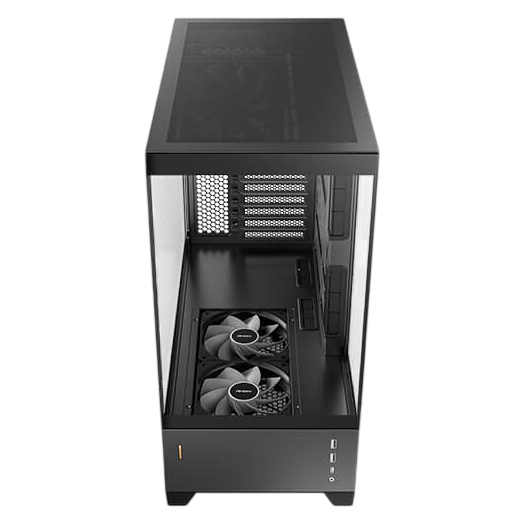

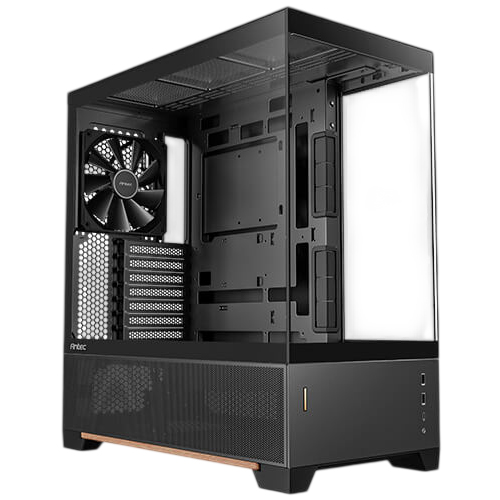

The Antec Constellation C6 Wood Mid Tower case is an elegant ATX chassis that seamlessly blends natural aesthetics with high performance cooling potential. Defined by its sophisticated front wood panel accent and a panoramic 4mm tempered glass side panel, this sleek black case provides a beautiful, unobstructed view of your internal hardware. Designed for optimal thermal management out of the box, it comes equipped with three pre-installed PWM fans, with two 120mm reverse-blade fans mounted directly on the power supply shroud to actively draw in cool air, alongside a single 140mm exhaust fan at the rear. The spacious interior comfortably accommodates standard ATX, Micro-ATX, and ITX motherboards as well as back-connect motherboards, offering generous clearances for massive graphics cards up to 450mm in length and tall CPU coolers up to 180mm. Builders can easily expand their cooling capacity with support for an additional 360mm liquid cooling radiator mounted at the top. Complete with a bottom dust filter, seven expansion slots, and a high-speed top I/O panel featuring a 10 Gbps USB 3.2 Gen 2 Type-C port, the Antec Constellation C6 Wood provides PC enthusiasts with a stylish, builder-friendly foundation for their next premium build.
Features
C6 Wood Black Constellation Series
See-Through Glass Panel
Featuring a see-through tempered glass design that showcases your build while offering a panoramic view.
Wood Accent Dust Filter
Featuring walnut wood accents that bring a sense of elegance and premium build quality to the overall design.
Pre-Installed 2x120mm PWM Reverse Fans & 1x140mm PWM Fan
- 1 X P14 140mm PWM fan
- 2X P12 120mm Reverse PWM fans
- Reverse Fan
Vertical Cooling
Supports up to 6 fans, with large area of vents around lower chamber, allowing for bottom-to-top vertical airflow.
Multi-Directional Air Intake and Massive Airflow
Fine mesh top panel combined with extensive ventilation on the left, right, and bottom ensures powerful and consistent airflow.
Advanced Dust Protection
Pull-out bottom dust filter for enhanced dust protection, featuring premium wooden accent trim for a refined aesthetic.
Supports RTX 5090
The floating graphics card design prevents interference with side-mounted hardware.
Bottom Air Intake Optimisation
Recessed dual fan mounts on the PSU shroud enhance bottom intake airflow.
Radiator Support
Supports installation of 360mm radiator on the top.
I/O Panel
- Power
- USB 3.0 x 2
- Type-C 10Gbps x 1
- Headphone/Mic Combo Jack
Tool Free Panel Design
- The lower right and lower left feature detachable mesh panels secured by hooks.
- Side panels mount on studs with rear clip handles for quick, tool-free removal.
- The top panel is secured by studs for quick, tool-free installation.
Supports Back-Connect Motherboards
Rear cable connections keep the front clean and create a smoother airflow path.
Supported Models
- ASUS TUF B760M-BTF WIFI D4,
- ASUS TX GAMING B760-BTF WIFI,
- ASUS DIY-APE B760 REVOLUTION,
- MSI B760M PROJECT ZERO,
- MSI B650M PROJECT ZERO,
- Colourful CVN B760M FROZEN WIFI V20, and more to come.
Side-Mounted PSU Chamber & 13A Extension Cable
Equipped with a 13A high-spec extension cable for stable power delivery and high-wattage PSU support.
Power Extension Cable Setup
Dual-orientation PSU installation with a 90° rotatable PSU module.
- Power connector on the right, cable routed left
- Power connector on the left, cable routed left
- Power connector on the left, cable routed right
- Power connector on the left, cable routed up
Easy Cable Management
Up to 30 mm routing space behind the motherboard, with 4 rubber grommets, 3 plastic cable clips, and 2 Velcro straps for a clean, organised build.
Individual PCIe Slot Covers
Comes with 7 PCIe slot covers.
Cooling Compatibility
Simultaneously supports 6 x 120mm fans.
Extensive Interior
- Motherboard support: ATX, Micro-ATX, ITX
- CPU cooler max height: ≤ 180mm
- GPU max length: ≤ 450 mm
- 3.5":1
- 2.5": 1
- Power Supply max length: Standard mounting (excluding cables) ≤ 150mm; Side mounting (excluding cables) ≤ 160mm
Backed by a 2 year Antec warranty.
