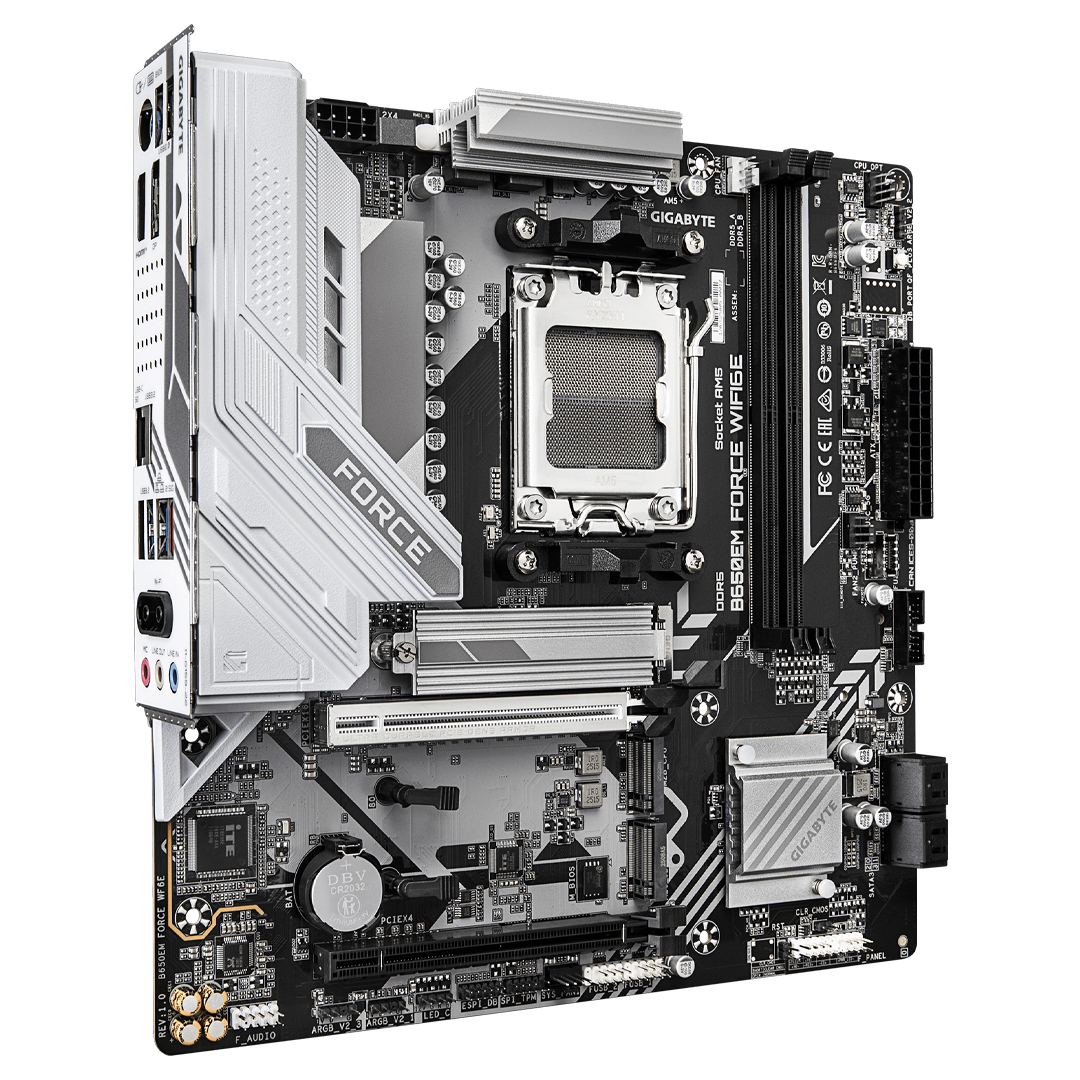

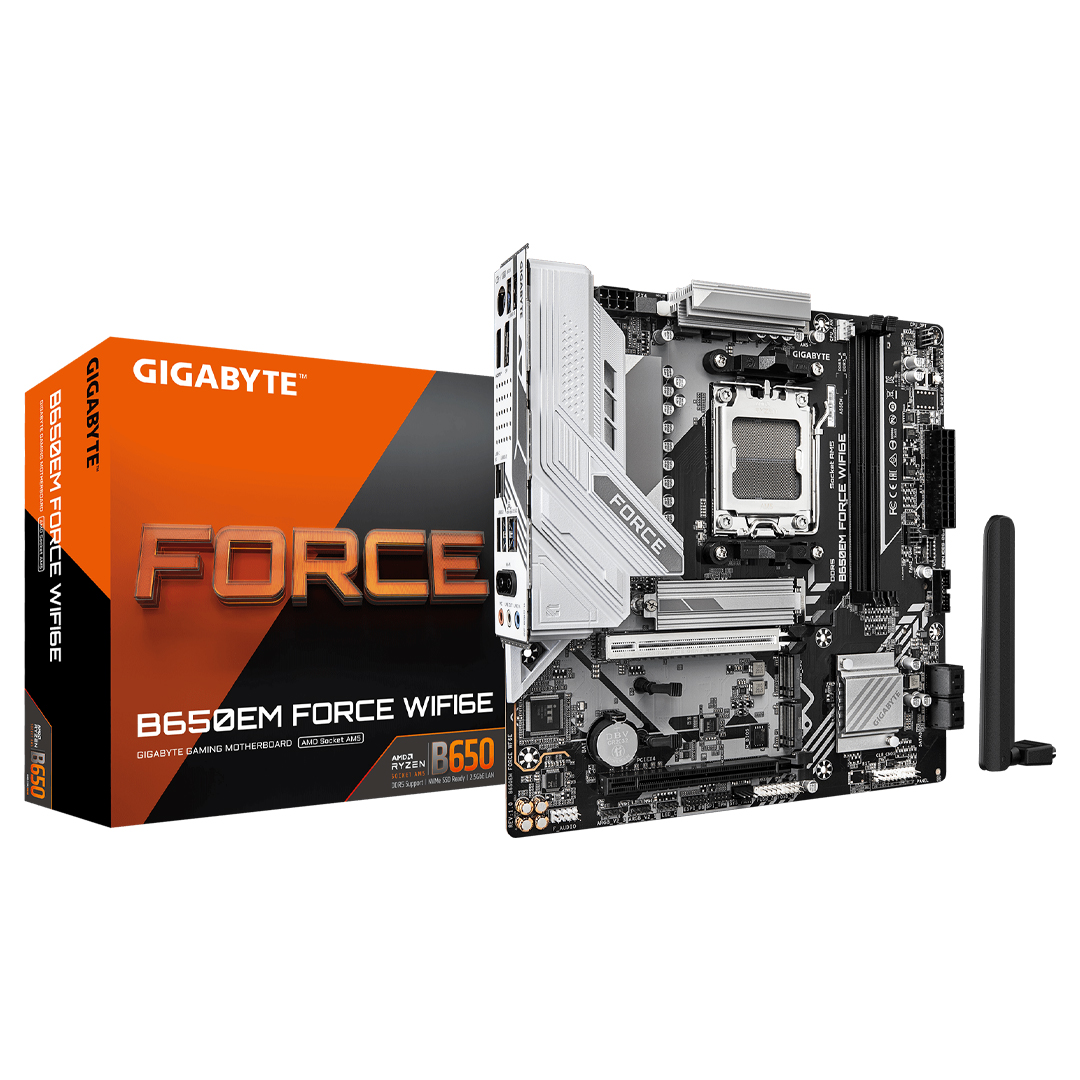

The Gigabyte B650EM Force WiFi6E Motherboard features the AMD B650 chipset on the AM5 socket, with support for AMD Ryzen 7000, 8000 and 9000 Series processors, dual channel DDR5 memory with AMD EXPO support, and a PCIe 5.0 x16 slot alongside three M.2 slots. The micro-ATX motherboard also includes WiFi 6E, 2.5GbE LAN, HDMI and DisplayPort connectivity, Smart Fan 6 cooling control, and high quality audio capacitors.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
B650EM Force WiFi6E
- AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance: 8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 2xSMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: PCIe 5.0 x4 M.2 Connector
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity: HDMI, DisplayPort
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

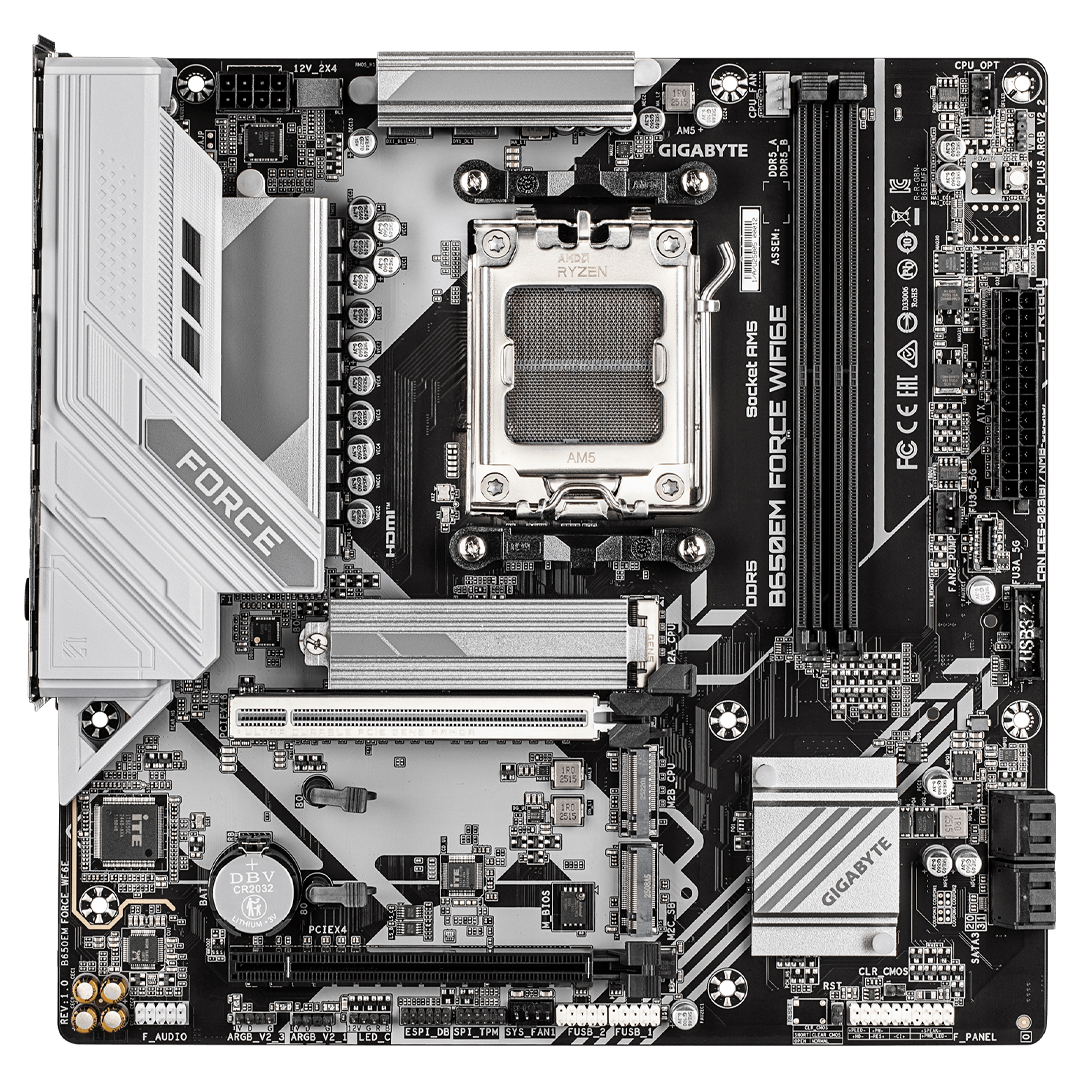

Overview

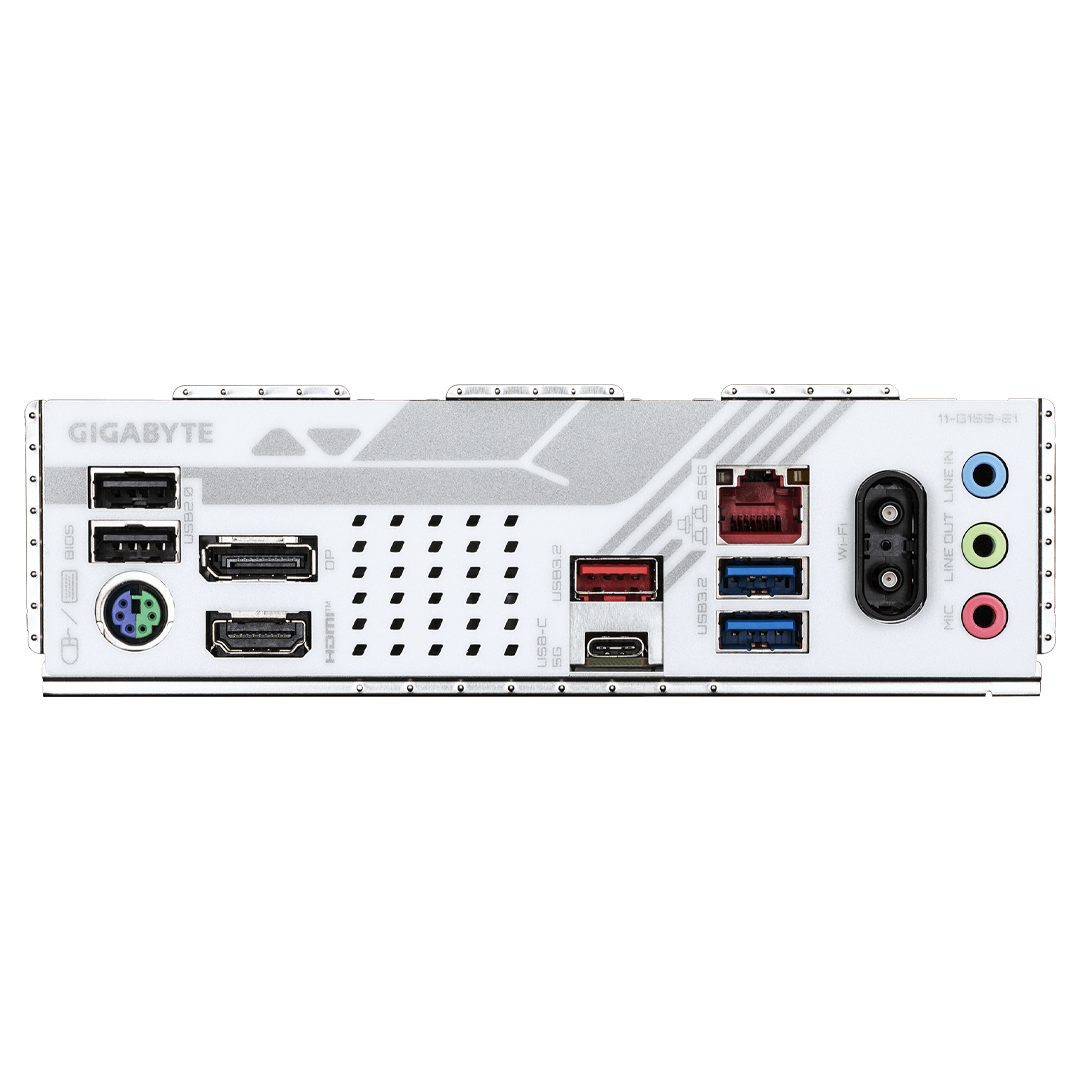

- Solid Pin CPU Power Connector
- 2x USB 2.0
- DisplayPort
- HDMI
- 1xUSB 3.2 Gen 2
- 1xUSB 3.2 Gen 1 Type-C
- 2.5 GbE LAN
- 2xUSB 3.2 Gen1
- 802.11ax Wi-Fi 6E
- WIFI EZ-Plug
- 1xPCIe 5.0 x16 slot
- Hi-Fi Audio
8-Ch HD Audio
Audio Noise Guard
High-End Audio Capacitor
- 8+2+2 Digital VRM Design
- Socket AM5 Supports AMD Ryzen™ Series Processors
- Dual Channel SMD DDR5 Memory
- Smart Fan 6
4xPWM/DC Fan Headers
Dual Fan Curve Mode
- PCIe EZ-Latch
- 4xSATA 6Gb/s
- 1xPCIe 4.0 x16 slot (runx4)
- RGB FUSION
3xAddressable LED Header
1xRGB LED Header
Express to PCIE5 Performance
The new GIGABYTE motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
- PCIE GEN5 - 32GT/s Speed per lane (2X Speed Boost)
- PCIE GEN4 - 16GT/s Speed per lane
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
- 8+2+2 Phases digital PWM + DrMOS
- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
* Photo for reference only.
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 9600 and Beyond*
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
* Memory overlocking and XMP profile support may vary depending on hardware configuration.
* Please see the complete validated memory support list.
Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Unlock DDR5 Voltage
GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
- Supports all PMIC vendors for maximum compatibility
* Memory overclocking capability will vary based on users' hardware configuration.
Maximum Compatibility for Memory O.C
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
AMD EXPO™ and Intel® XMP 3.0 User Profile
Easily create overclocked memory performance by defining and creating your own SPD profile into Native and XMP 3.0 memory modules, or applying the pre-tuned profiles to XMP 3.0 User Profile.
Performance Simulation
Based on user input clock and timing parameters
User-Defined Profile Can Be
- Saved and cleared
- Loaded either locally or from/to an external storage device
- Carried to next computer
- Share your memory parameters online
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Fully Covered MOSFET Heatsink
- 3X Massive cooling surface Advanced heat dissipation
Fully Covered MOSFET Heatsink
3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-Piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi
The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.
* Photo for reference only.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, EZ to install.
Smart Fan 6
Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
- Precision Control: Multiple temperature/fan speed control points for precise fan curve.
- Dual Curve Mode: Slope/Stair dual mode for different user scenario.
- Fan Stop: Fan can stop completely below users' specified temperature point.
Smart Fan 6 BIOS UI
- Enhance Fan Curve UI: Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
- Slope/Stair Dual Graph Mode: Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
- Manual Input: For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
- EZ Tuning: Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
- Fan Curve Profile: Save your customised fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card.
- STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard.
- STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
- STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularised control components only for installed hardware
- Auto update function to keep system up to date and support future products
This Changes Everything
From this new platform, you can see the future.
Easy Overclocking, Game On
Get into the game faster with AMD EXPO™ technology.
Backed by a 3 year Gigabyte warranty.
