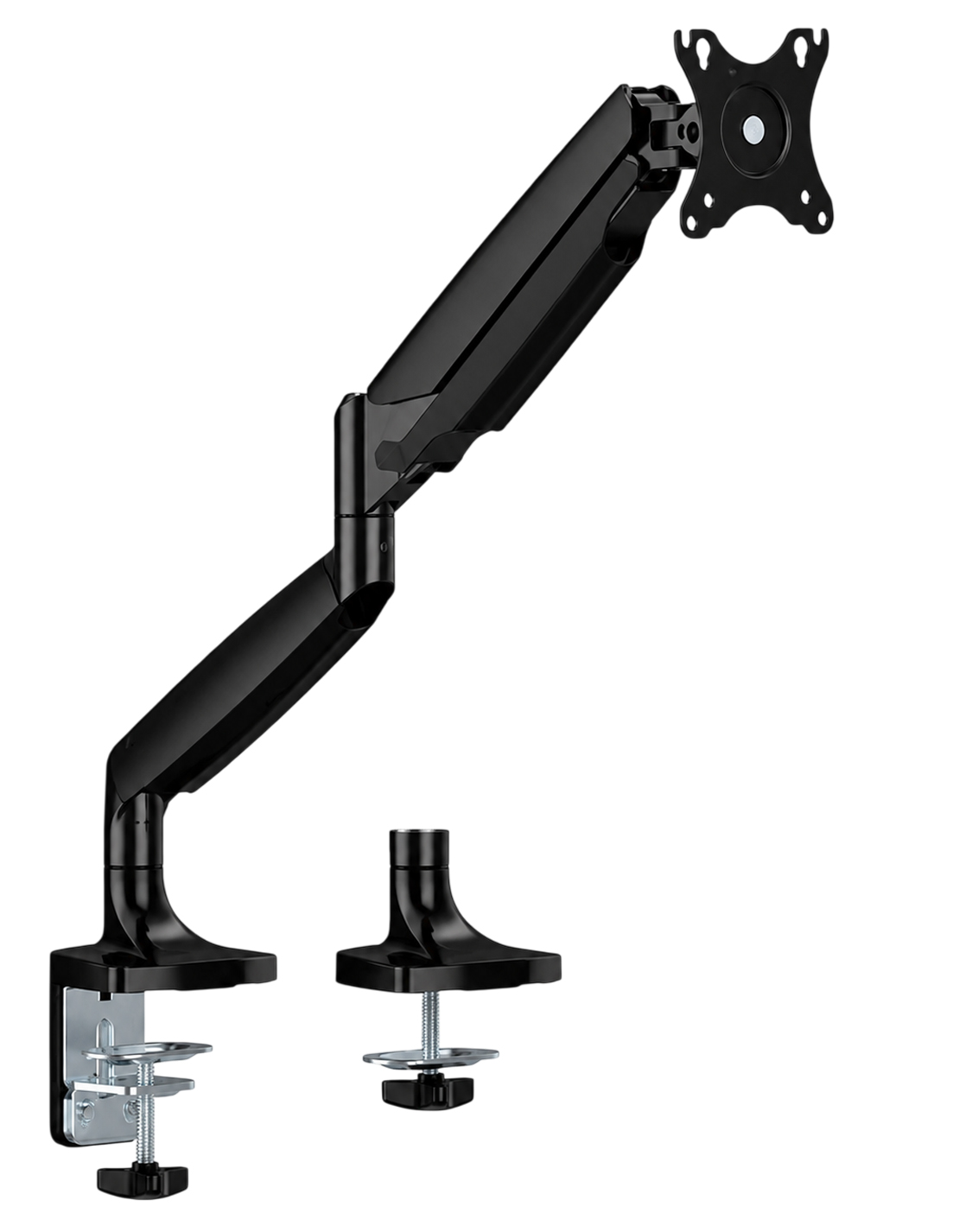

The Brateck LDT82-C012 Single Screen Heavy Duty Gas Spring Monitor Arm supports a single 17 to 45inch curved or flat monitor weighing up to 16kg, with a built-in spring tension mechanism for smooth and secure positioning. Supporting 75x75 and 100x100 VESA mounting, the arm provides +-90deg tilt and swivel, +-180deg screen rotation and 536mm full extension range, with clamp or grommet installation, a 180deg rotation stop and integrated cable management for a clean, organised workspace.
Features
Brateck LDT82-C012 Single Screen Heavy-Duty Gas Spring Monitor Arm, Matte Black
For Most 17"~45" Monitors
- Keyhole Pattern: allows for easy installation
- Built-in Spring Tension Mechanism: for perfect weight adjustments
- 180° Rotation Stop: prevents monitor arm from swinging into screens or walls
- Cable Management: keeps everything organised
Rotation Stop
Prevents the arm from hitting adjacent partitions or walls
Specifications
| Model Number |
LDT82-C012-BK |
| Product Category |
Gas Spring Monitor Arm |
| Rank |
Standard |
| Material |
Steel, Aluminium, Plastic |
| Surface Finish |
Powder Coating |
| Colour |
Matte Black |
| Dimensions |
128x587x663mm (5"x23.1"x26.1") |
| Fit Screen Size |
17"-45" |
| Fit Curved Monitor |
Yes |
| Screen Quantity |
1 |
| Weight Capacity (per screen) |
1~16kg (2.2lbs~35.2lbs) |
| Weight Capacity for Curved Screen (per screen) |
1~13kg (2.2lbs~28.6lbs) |
| VESA Compatible |
75x75,100x100 |
| Tilt Range |
+90°~-90° |
| Swivel Range |
+90°~-90° |
| Screen Rotation |
+180°~-180° |
| Arm Full Extension |
536mm (20.7") |
| Installation |
Clamp, Grommet |
| Suggested Desktop Thickness |
Clamp:10~80mm Grommet:10~40mm (Clamp:0.39"~3.1" Grommet:0.39"~1.6") |
| Quick Release VESA Plate |
No |
| USB Port |
No |
| Multi-Media Port |
No |
| Cable Management |
Yes |
| Accessory Kit Package |
Normal/Ziplock Polybag, Compartment Polybag |
Backed by a 1 year Brateck warranty.
