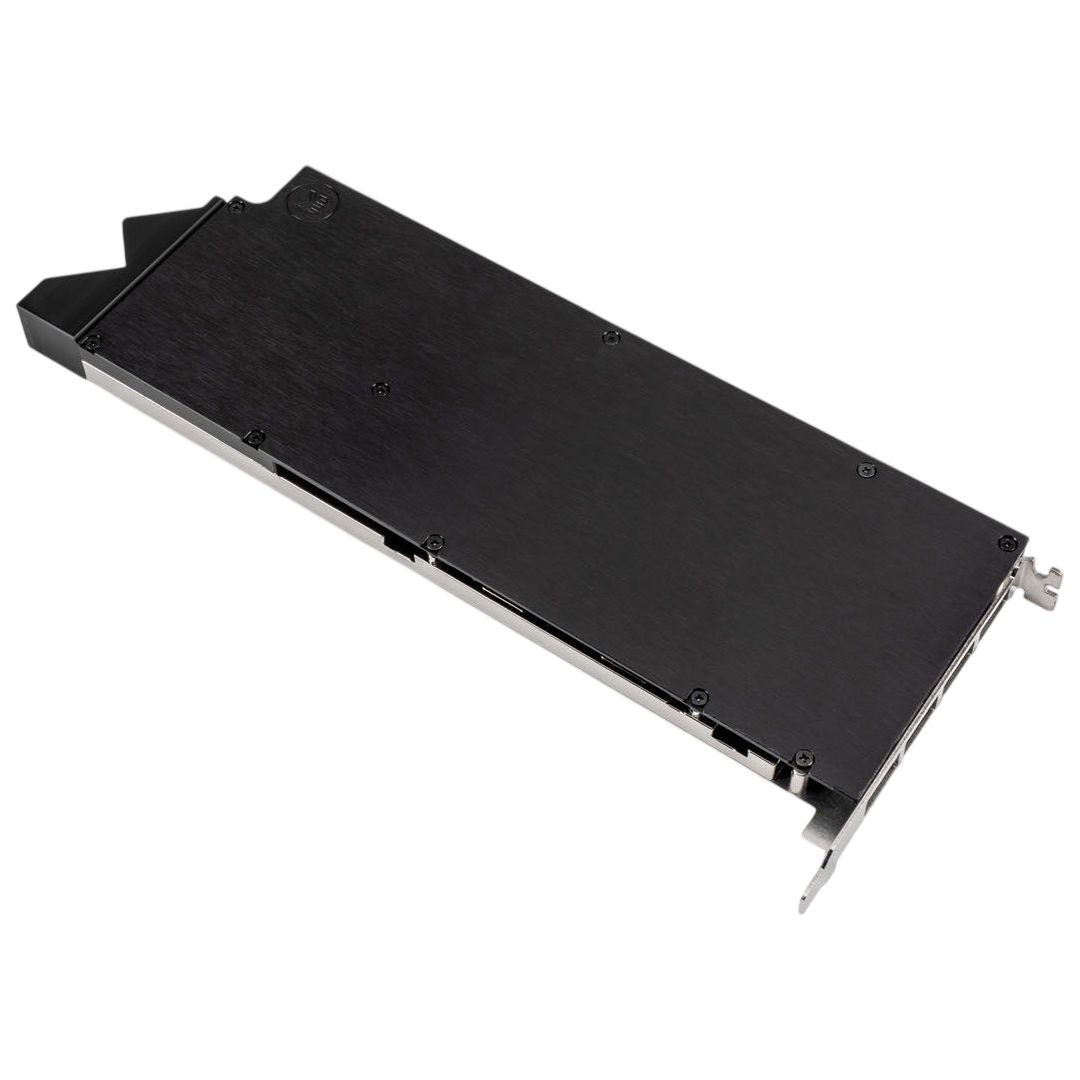

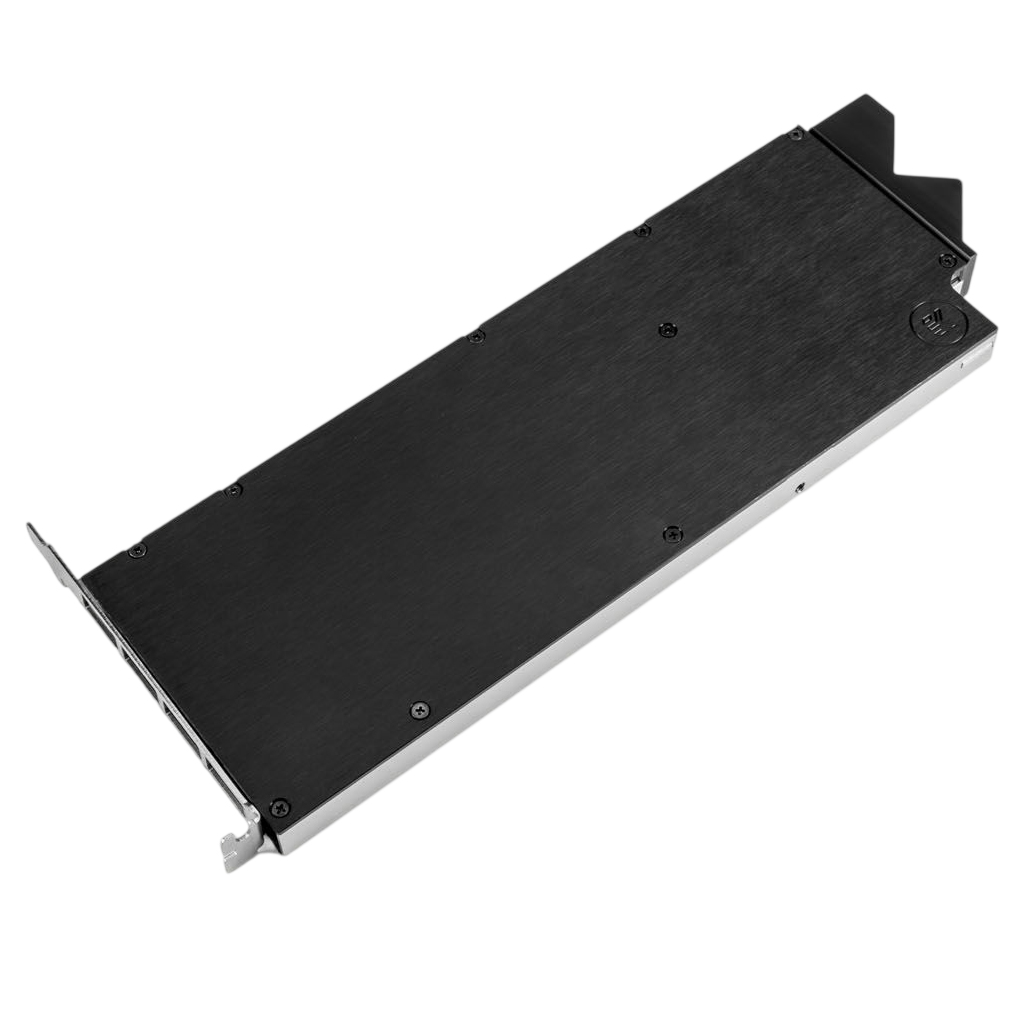

LM TEK EK-Pro Waterblock Kit for RTX Pro 6000 GPU

Maximise the computational density and thermal efficiency of your enterprise AI infrastructure with the LM TEK EK-Pro Waterblock Kit, a high-performance liquid cooling solution explicitly engineered for NVIDIA RTX PRO 6000 Blackwell Server Edition and MAX-Q Workstation Edition GPUs. Designed to replace bulky air coolers, this premium full cover water block features a true single-slot form factor measuring 306 x 127 x 22 mm, allowing administrators to confidently deploy high density multi-GPU configurations, such as eight accelerators within a standard 4U server rack. It boasts a precision CNC-machined nickel-plated electrolytic copper base and a robust laser cut stainless steel top plate to actively channel coolant over the critical GPU core, VRAM, and VRM components. At its heart, the advanced Open Split-Flow cooling engine guarantees incredibly low hydraulic flow restriction, delivering exceptional heat dissipation even when paired with lower speed pumps in complex, multi-card loops. To further improve system stability and structural rigidity during transport, the kit includes a custom single-slot I/O bracket and a CNC-machined aluminium hybrid backplate that provides essential cooling for backside memory areas. Complete with a rear POM-crafted terminal block featuring standard dual G1/4-inch ports for seamless integration with quick-disconnect fittings and server manifolds, this enterprise-grade EK-Pro water block provides data centres and professional workstations with the mission-critical cooling required for sustained 24-hour operations.

Features

---

EK-Pro GPU WB RTX PRO 6000 Blackwell Nickel + Inox

The EK-Pro GPU WB RTX PRO 6000 Blackwell Nickel + Inox is a water block for the NVIDIA RTX™ PRO 6000 Blackwell Server Edition. It occupies a single PCIe slot width and is designed for compact workstation and server chassis where adjacent slot clearance is a constraint.

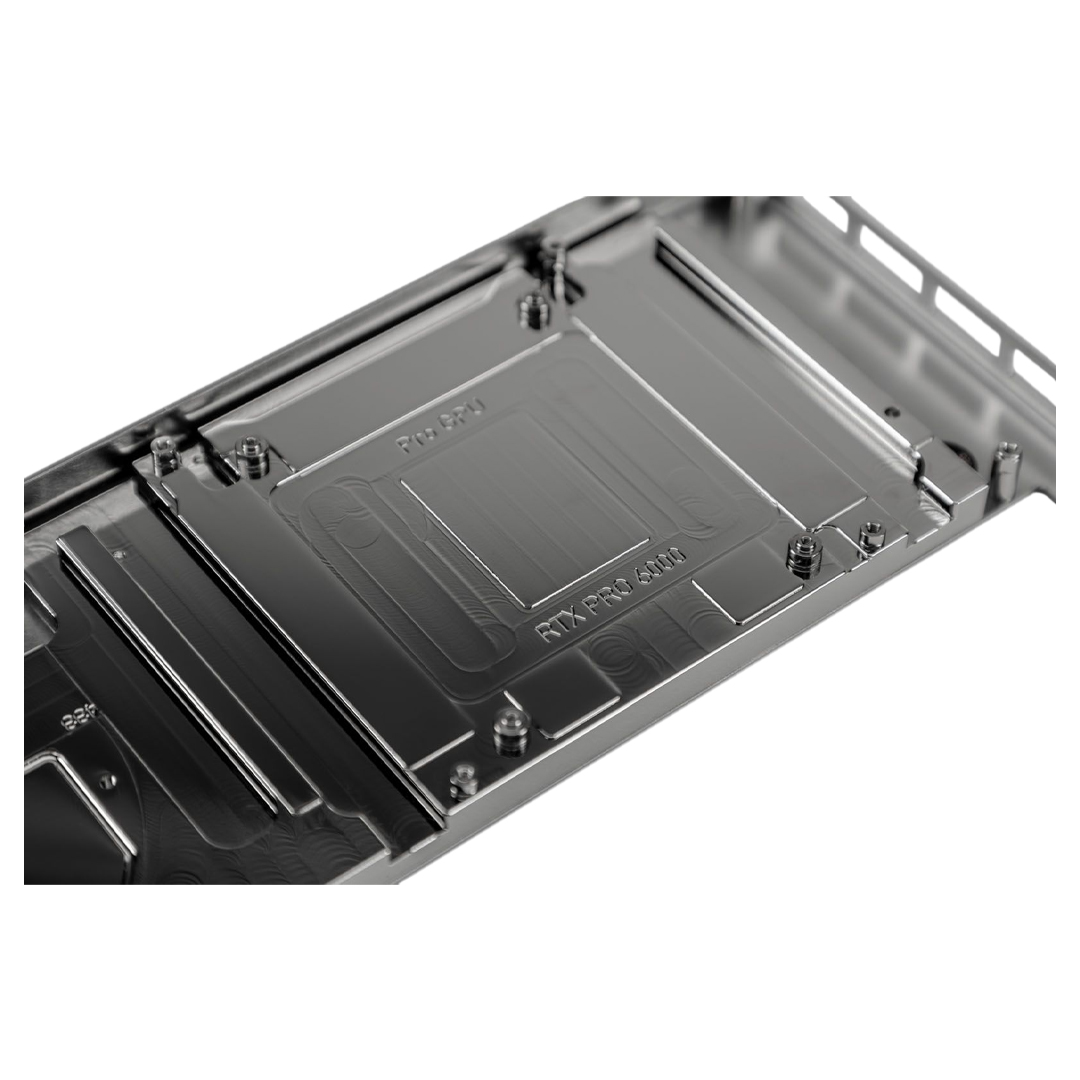

The block efficiently cools the GPU die, VRAM, and VRM with low hydraulic flow restriction, maintaining compatibility with weaker water pump setups. Construction uses a nickel-plated copper base and stainless-steel top with a POM Acetal terminal block carrying two G1/4″ ports.

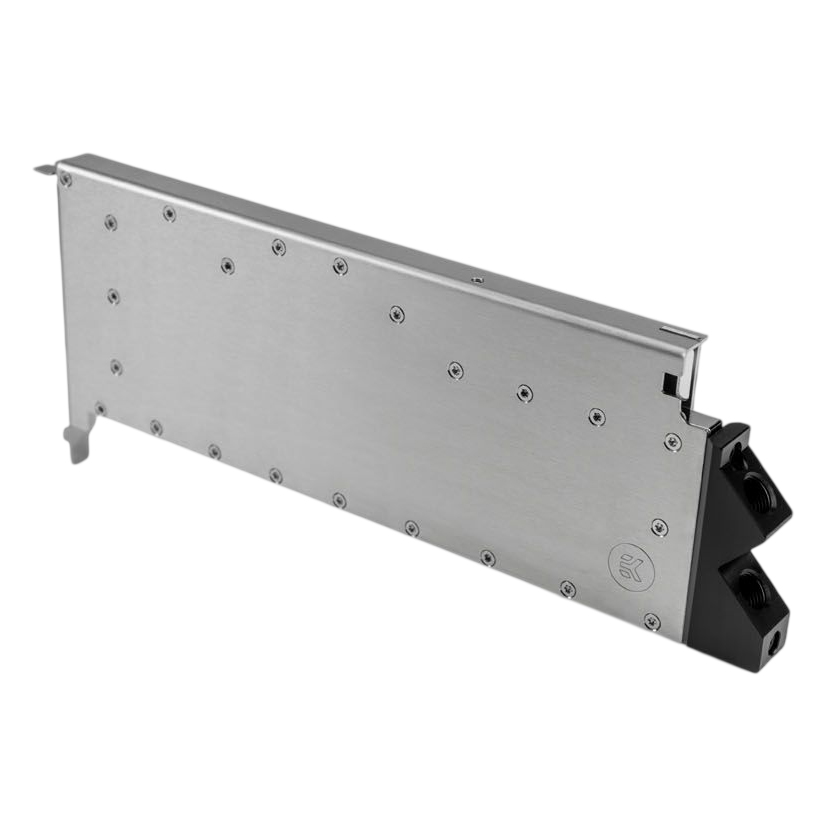

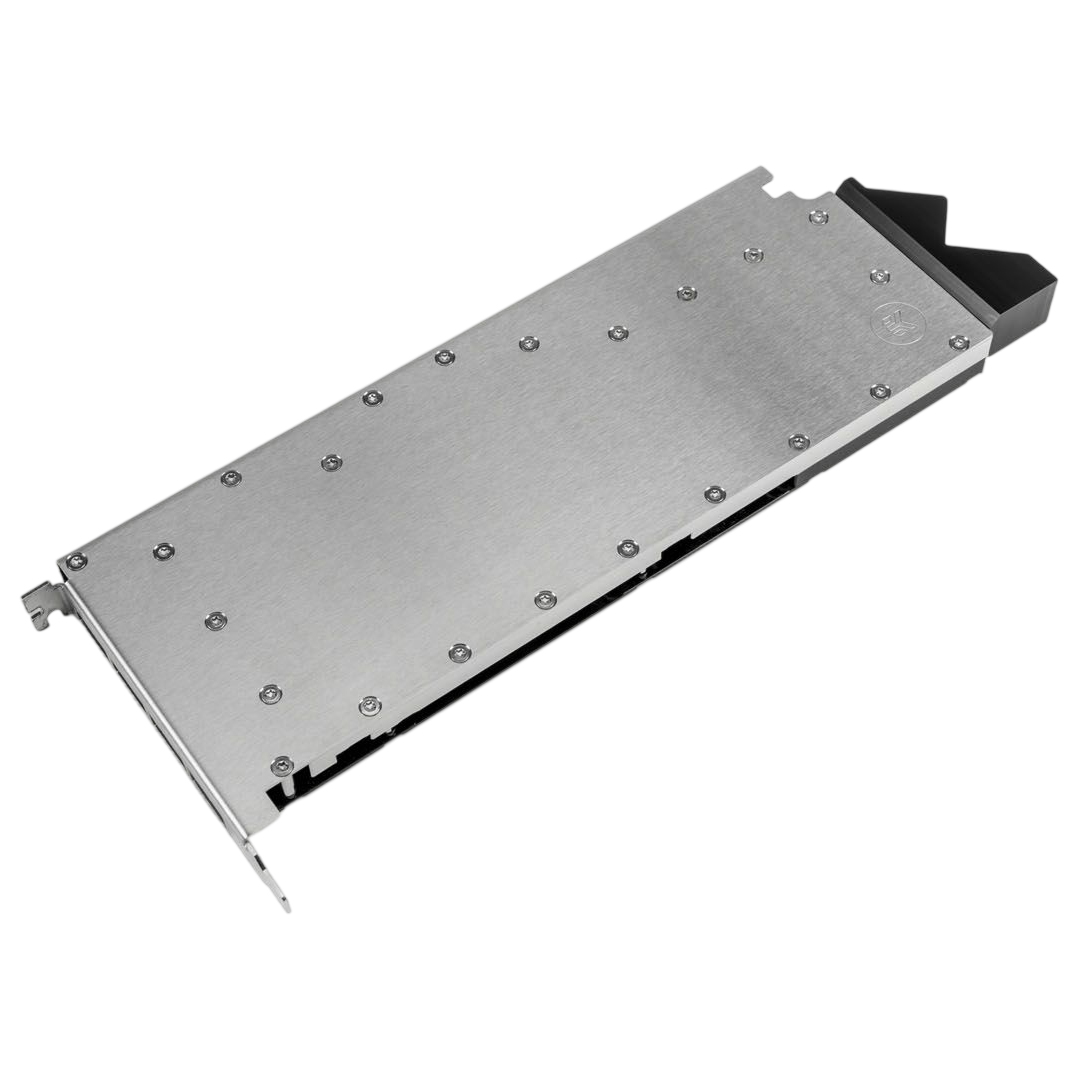

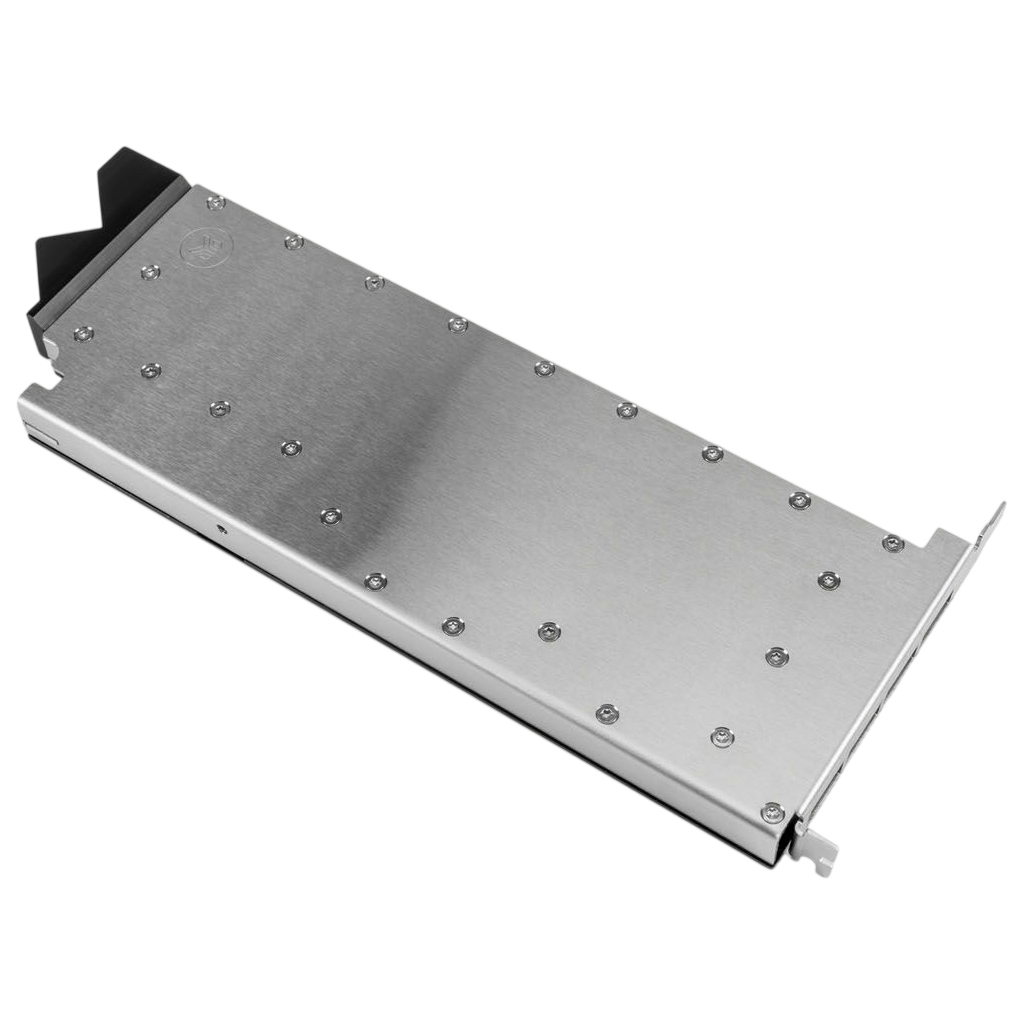

The retention backplate adds PCB rigidity and provides passive cooling to the VRM area. EPDM O-ring sealing is used throughout.

Key Engineering - Three Design Decisions Worth Calling Out

Single-Slot Server Edition Profile

The block is machined to a 20 mm depth and single PCIe slot width, making it correct for Blackwell server edition cards deployed in chassis where two-slot clearance is not available. Full-cover contact across GPU die, VRAM, and VRM is maintained within the reduced form factor.

G1/4″ Terminal Block

Two G1/4″ ports on the POM terminal block provide direct integration with EK-Pro Quick Disconnect kits and the full manifold range. EPDM O-ring sealing and pre-installed brass standoffs are included. A retention backplate is pre-fitted.

Pressure Envelope

Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are consistent across the GPU water-block family.

Technical Drawing

Top & Side View, in Millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.

These drawings represent copyrighted material of EK® and they are meant only for your personal use, with regards to use of your own EK® products. Every other use in contrary with previously stated personal and non commercial use will be deemed as intellectual property rights infringement. All the measurements on the technical drawing are displayed in Millimetres [mm].

Compatibility

NVIDIA RTX™ PRO 6000 Blackwell Server Edition n NVIDIA RTX™ PRO 6000 Blackwell Max-Q Workstation Edition
