The Simplecom CH547 USB-C 7-in-1 Multiport Adapter USB Hub features two USB-A ports, a USB-C data port, HDMI output supporting up to 4K@30Hz, SD and MicroSD card readers, and up to 100W USB-C PD charging. With a durable aluminium housing, compact design, and built-in USB-C cable, the adaptor provides convenient connectivity for laptops and other compatible devices.
Features
Simplecom CH547 USB-C 7-in-1 Multiport Adaptor USB Hub HDMI Card Reader PD

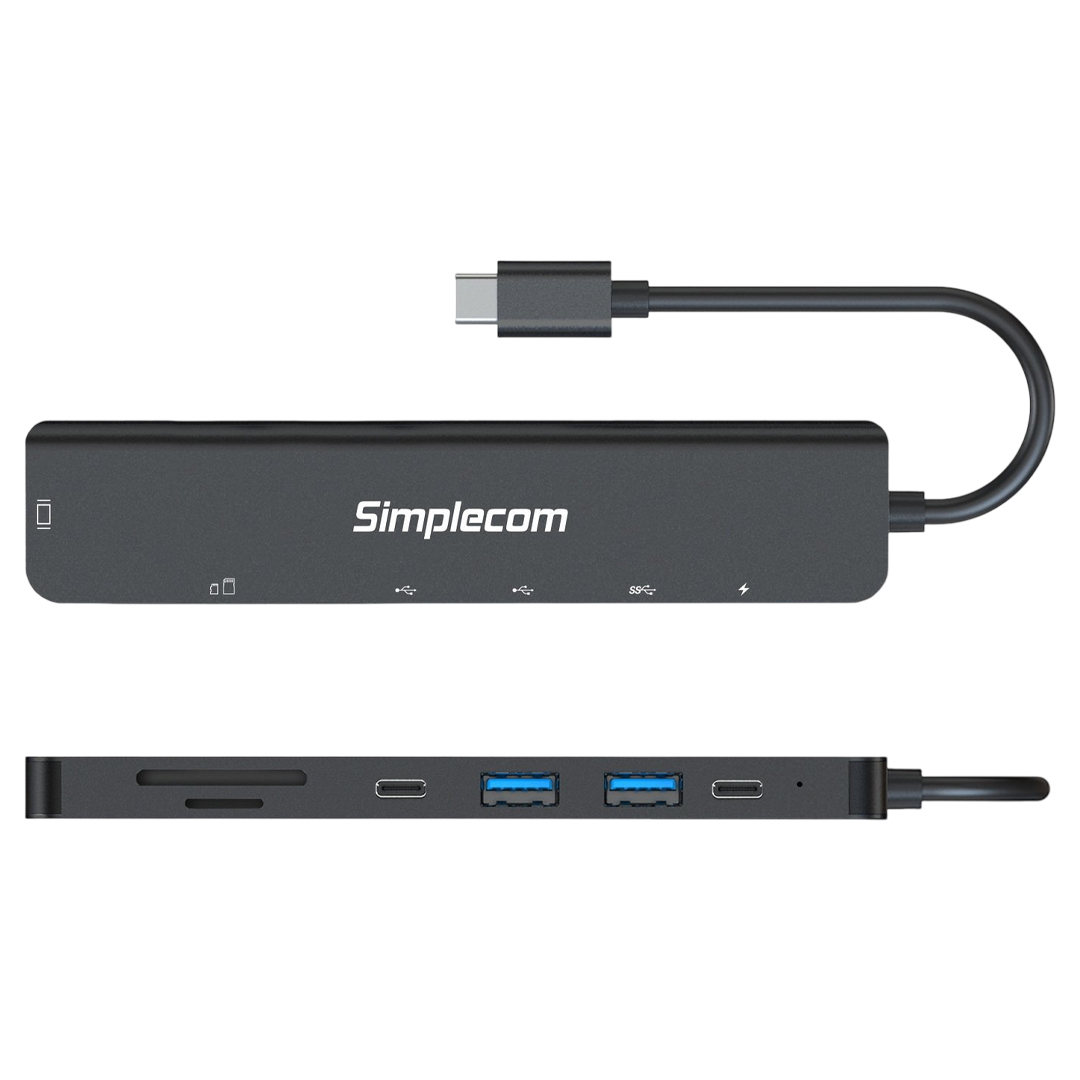

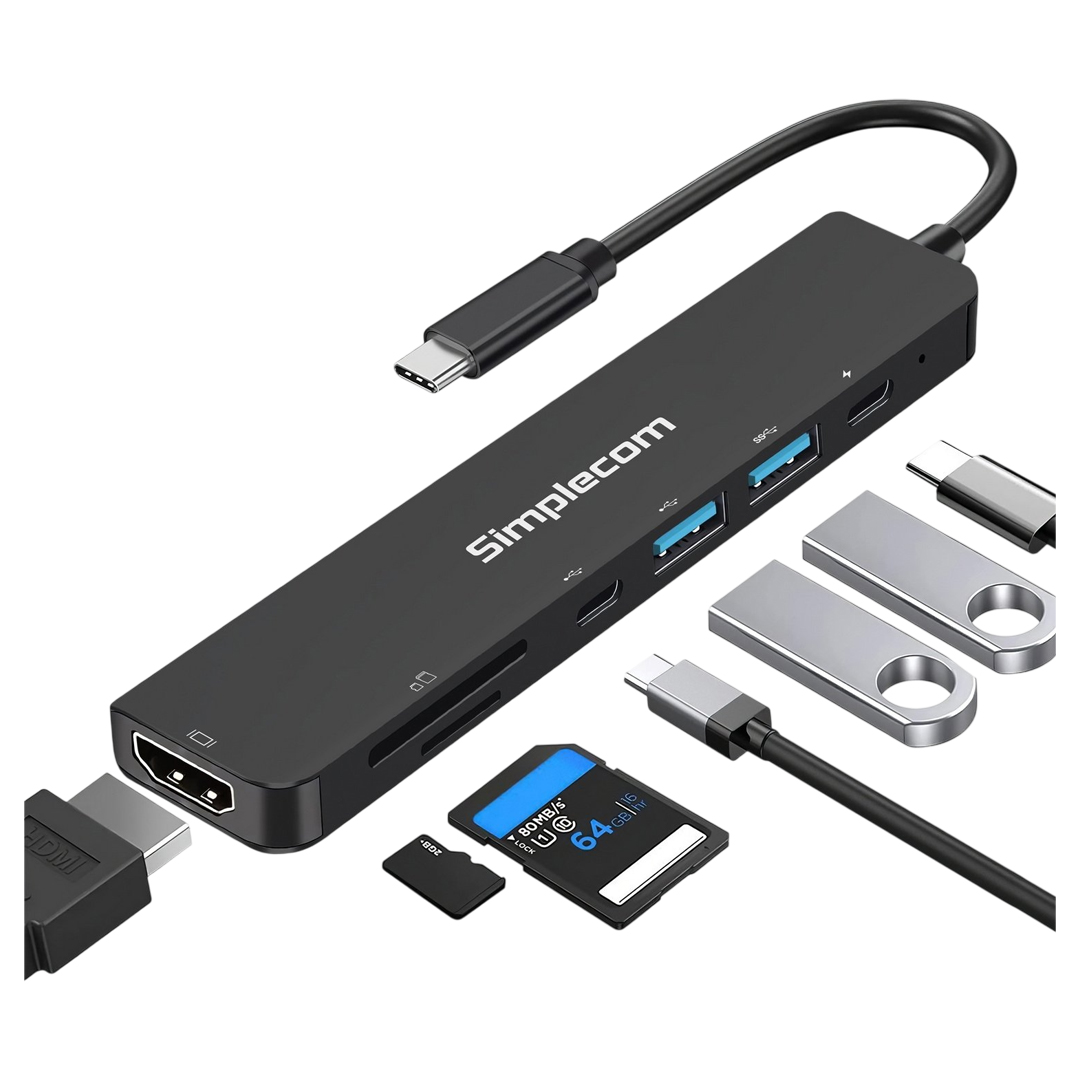

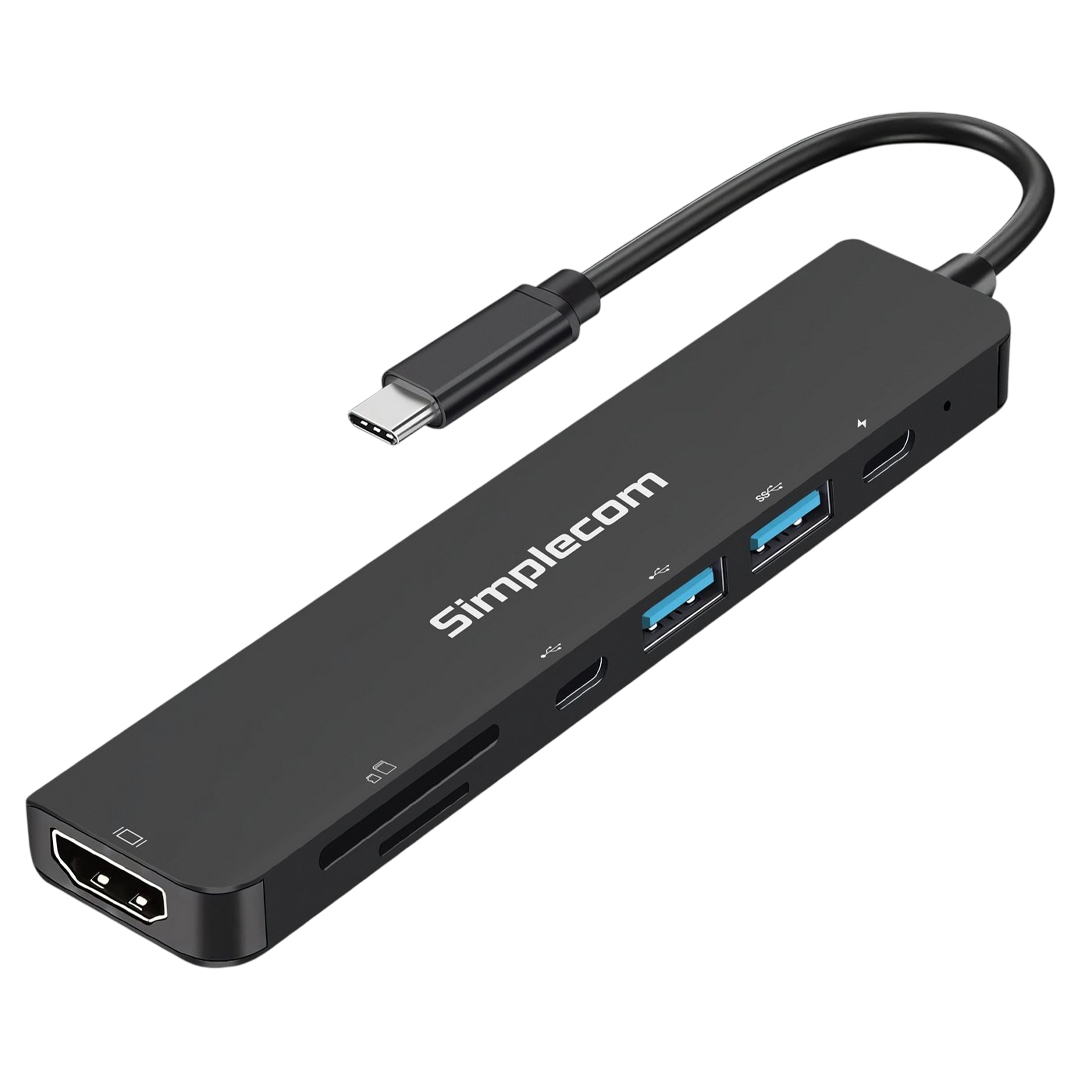

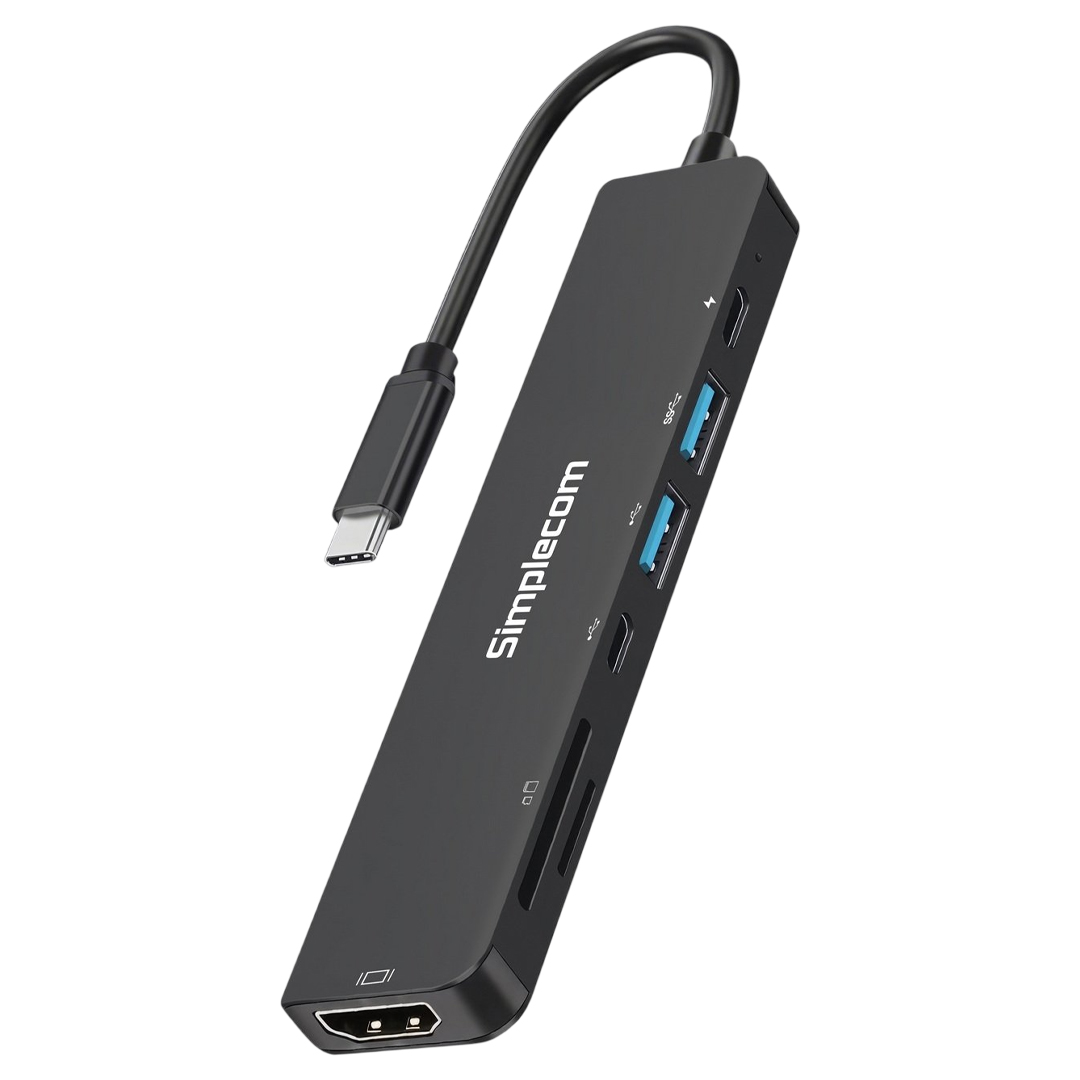

CH547 is a 7-in-1 portable USB-C multiport adaptor for modern laptops with multifunctional USB-C port, you can get the most out of your laptop through a single USB-C interface. It turns a single USB-C port into 7 ports, including two USB-A and one USB-C date ports, SD and MicroSD card reader, HDMI video output, USB-C PD charging.
If you need to connect with various devices to your laptop at same time, CH547 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.
The adaptor comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst its compact design makes it perfect for travelling.
- Convenience of expanding your laptop with this 7-Port USB-C hub
- Two USB-A and one USB-C data ports, HDMI output, Card Reader and USB-C PD
- Up to 5Gbps data transfer rate on USB-A port following USB 3.2 Gen 1
- HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
- 2-Slot Card reader for SD and microSD Card
- USB-C PD port for charging the laptop with up to 100W of power
- Durable & stylish aluminium alloy housing
- Lightweight, easy to carry along when travelling
- Built-in flexible USB-C Cable
- Plug & play, no driver software required
Specifications
| Model Number |
CH547 |
| USB Hub |
2x USB-A Female (1x SuperSpeed 5Gbps, 1x High Speed 480Mbps), 1x USB-C Female (High Speed 480Mbps) |
| HDMI Output |
Support up to 3840x2160 at 30 Hz (4K@30Hz) |
| Card Reader |
SD and MicroSD (High Speed 480Mbps) |
| PD Charging |
USB-C Female (for PD charging only), up to 100W |
| Operation Temperature |
0 - 45°C |
| Dimensions |
131 x 28 x 10 (mm) |
| Housing Material |
Aluminium |
| Cable Length |
10cm |
| System Requirements |
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, macOS 10.7 or above, ChromeOS, Android |
Backed by a 1 year Simplecom warranty.
