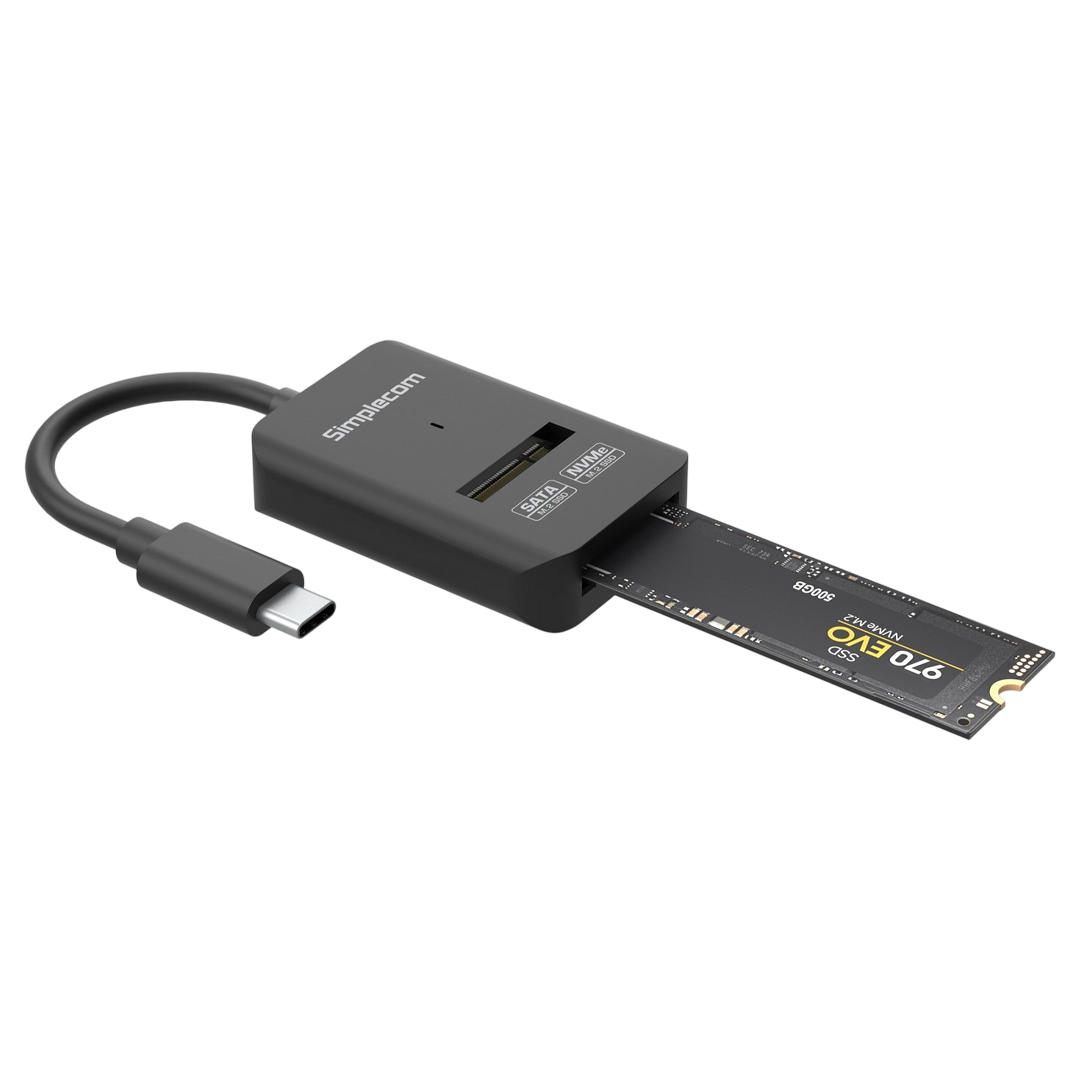

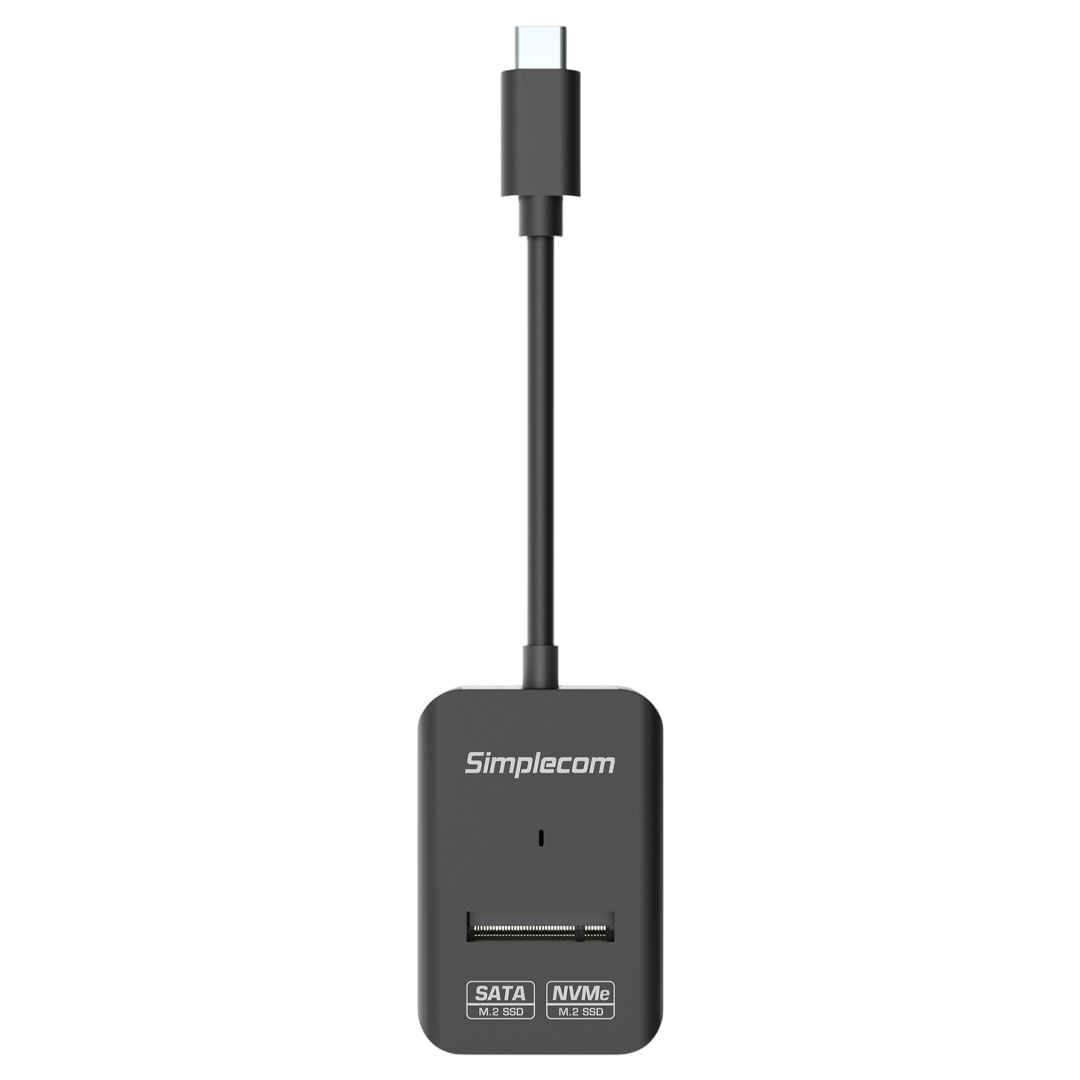

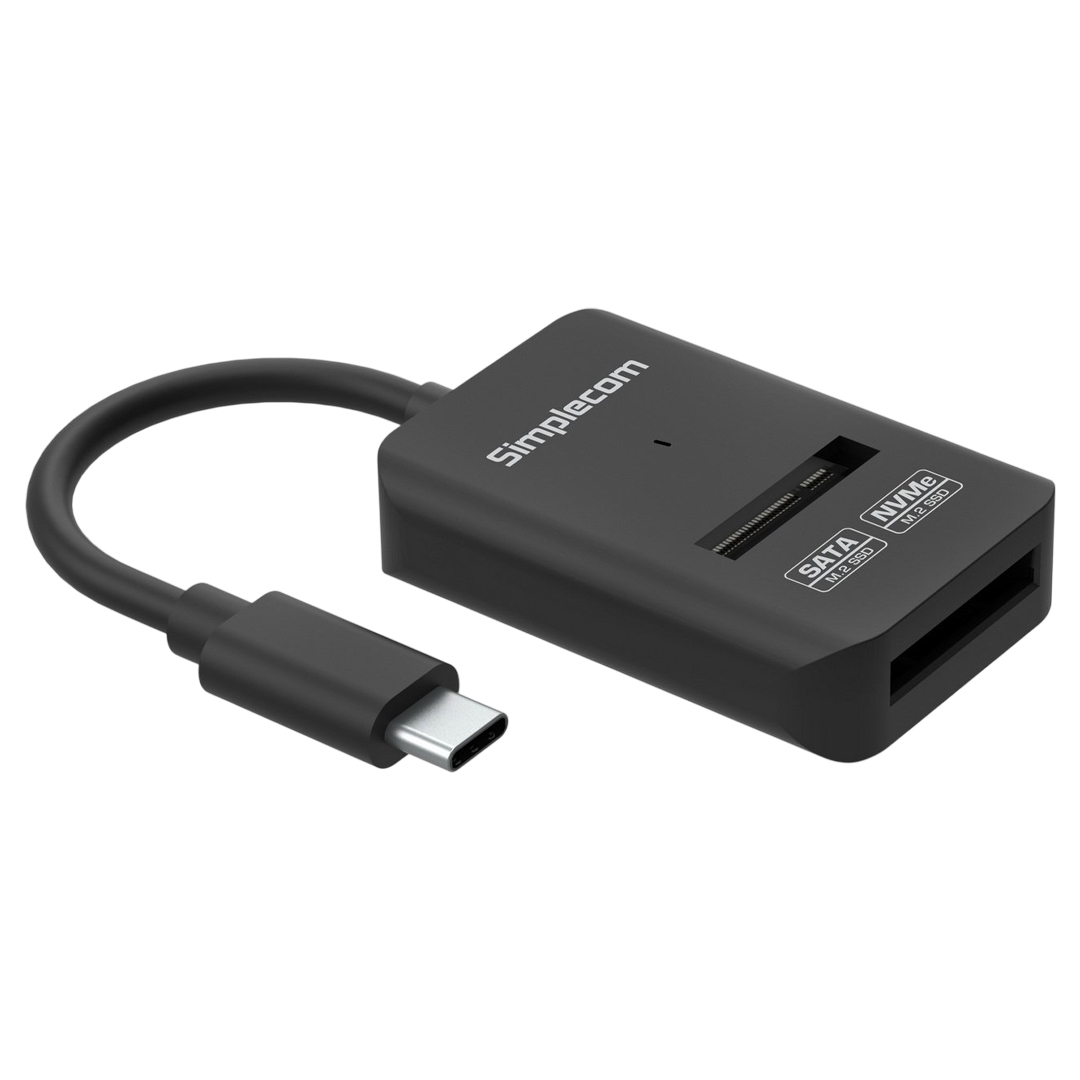

Simplecom SA506 NVMe / SATA M.2 SSD to USB-C Adapter Converter

The Simplecom SA506 NVMe / SATA M.2 SSD to USB-C Adapter Converter provides USB-C connectivity for compatible SSDs, with transfer speeds up to 10Gbps, along with plug-and-play operation and a cable adapter for convenient access during data migration, drive cloning, backups, and SSD swapping. The adaptor supports M Key NVMe, B+M Key NVMe, and B+M Key SATA M.2 SSDs, but does not support B Key SATA M.2 SSDs.

Features

---

Simplecom SA506 NVMe / SATA Dual Protocol M.2 SSD to USB-C Adaptor Converter USB 3.2 Gen 2 10Gbps

SA506 is a M.2 SSD to USB-C adaptor that supports both NVMe and SATA protocol based M.2 SSDs. No need to worry about which type of M.2 SSD you have, this adaptor converts both SATA and NVMe M.2 SSD to USB-C for easy access on your computer.

This adaptor is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It’s an ideal solution for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adaptor makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.

• Dual Protocol support for both NVMe and SATA M.2 SSD

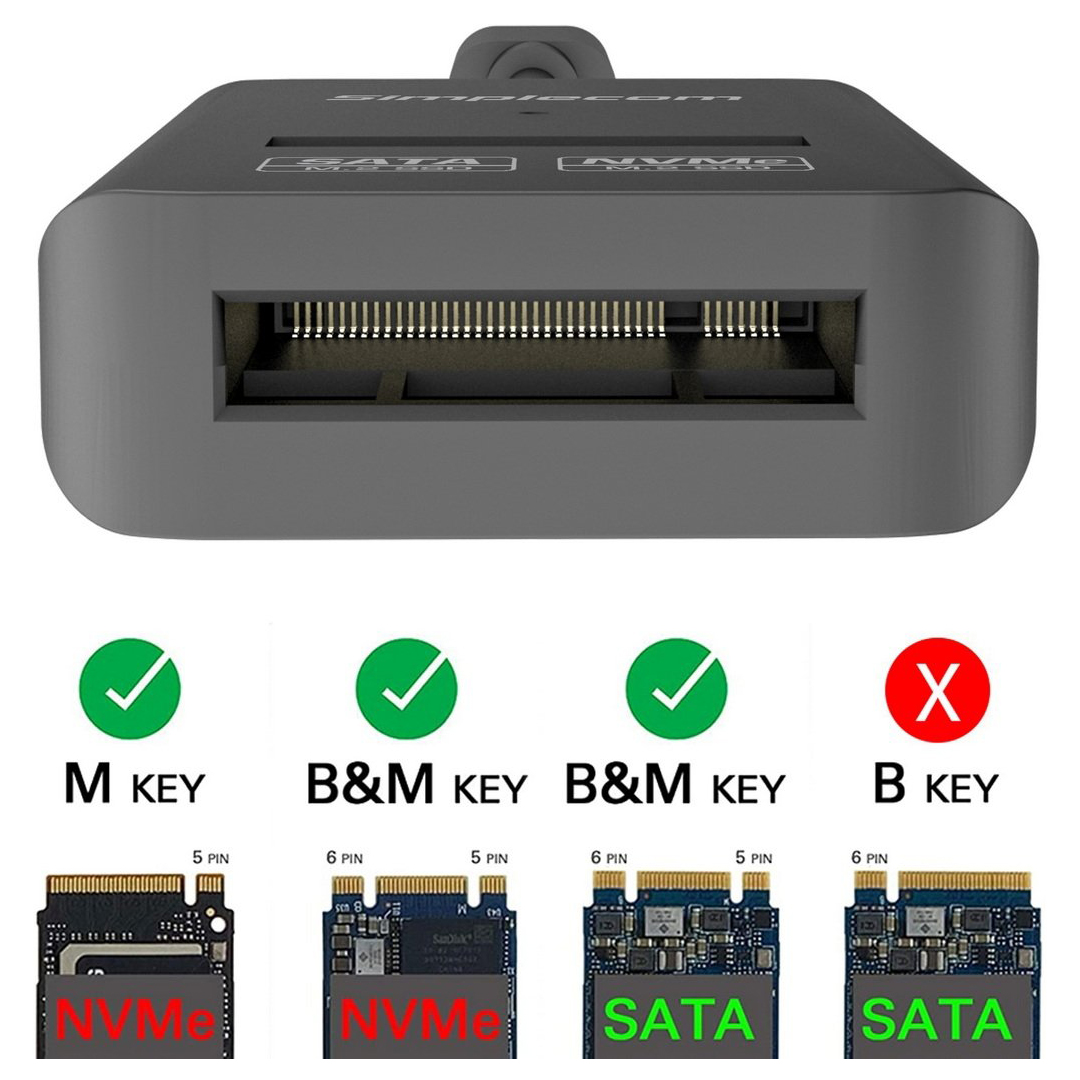

• Convert M.2 SSD (M Key or B+M Key) to USB-C
• USB 3.2 Gen 2 interface up to 10Gbps transfer rate
• Cable style adaptor for easy swap and access of multiple M.2 SSDs
• Supports UASP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• LED indicator for power and activity status

Important Note

• SA506 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
