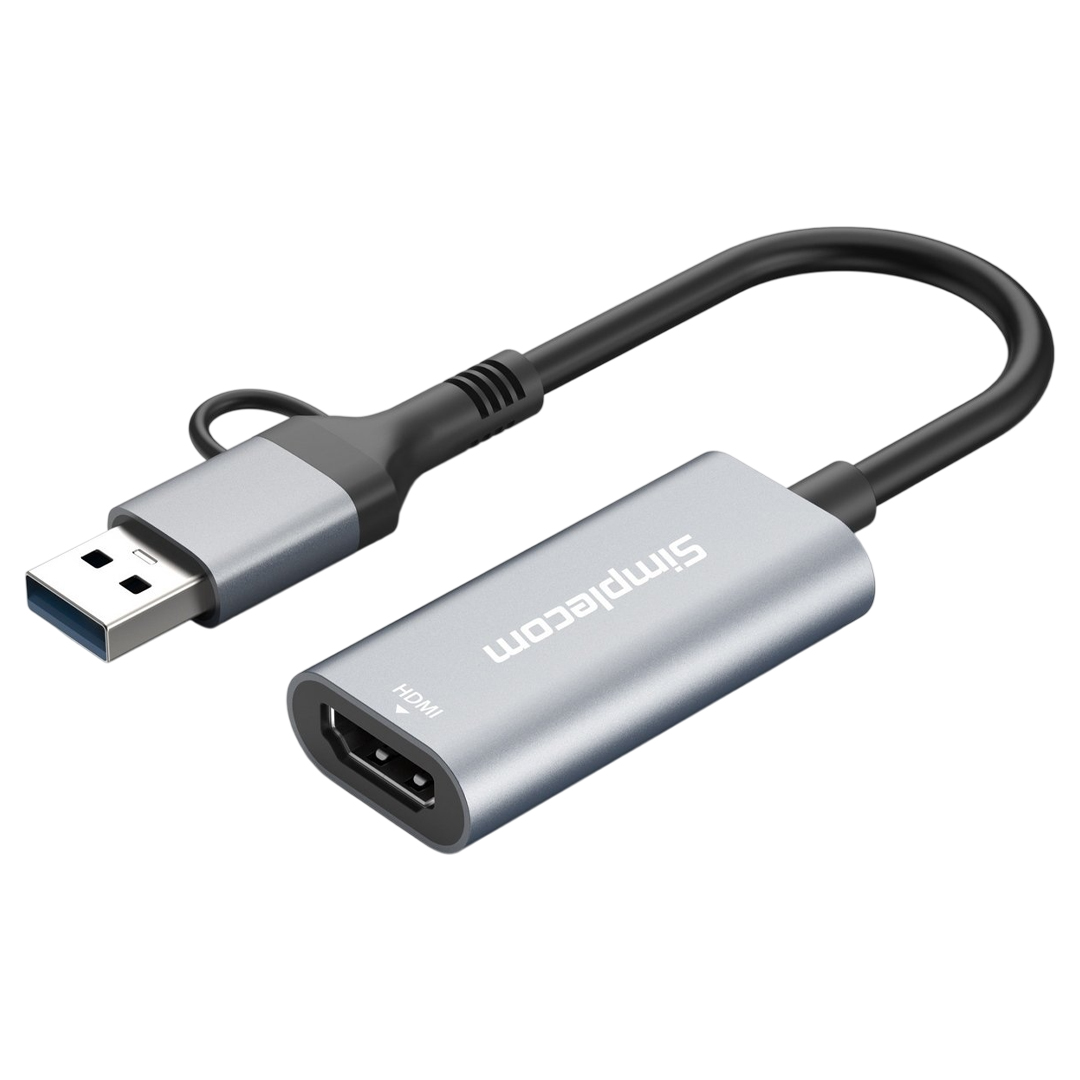

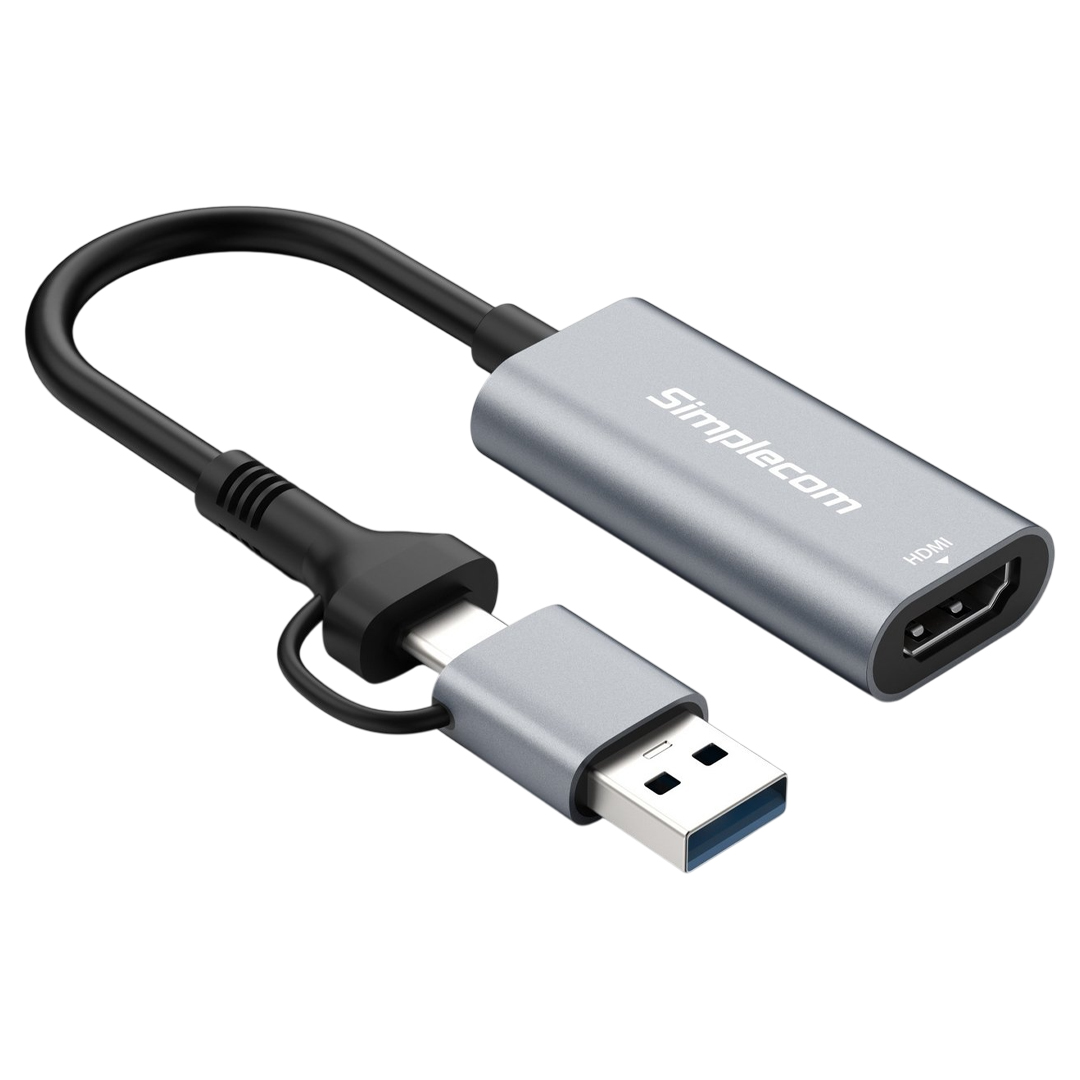

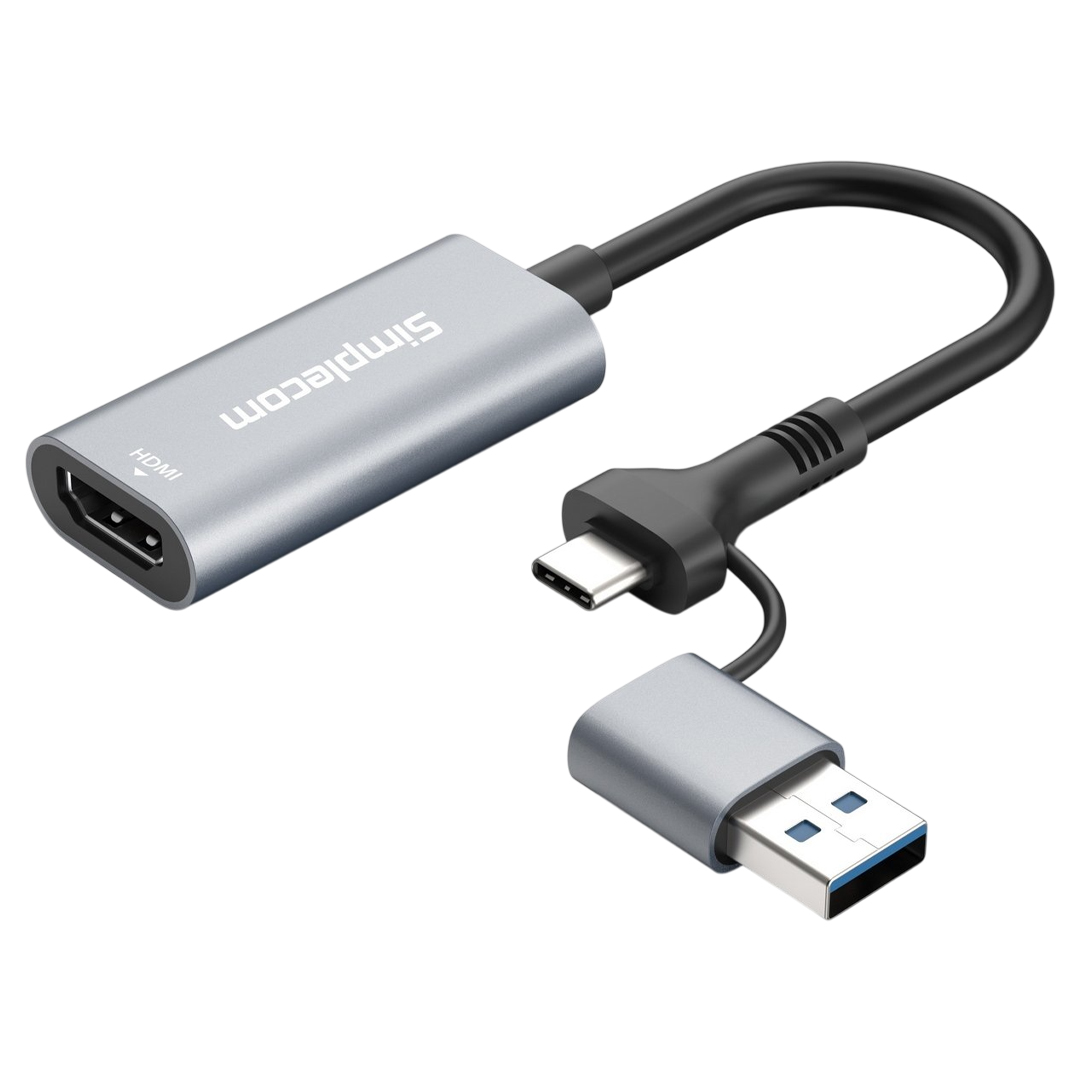

The Simplecom DA306C USB 3.0 and USB-C to HDMI Video Card Adaptor supports Full HD 1080p output through HDMI, with USB-A and USB-C connectivity for adding an extra display to compatible Windows PCs. With support for mirror and extended display modes, USB-powered operation, and a compact aluminium housing, the adaptor provides a convenient solution for adding an extra display to a desktop setup.
Features
Simplecom DA306C USB 3.0 and USB-C to HDMI Video Card Adaptor Full HD 1080p
DA306C is a USB to HDMI external video adaptor with USB-C and USB-A hybrid connector. It turns a USB port into an HDMI output with resolution up to Full HD 1080p. Compatible with latest Windows System, it offers a convenient solution for connecting HDMI displays to PCs requiring additional displays, especially when other video ports are occupied.
This USB to HDMI adaptor supports mirror or extended mode. You can expand a secondary screen with this USB adaptor, making it an easy and convenient way to add multi-monitor capability to your PC. It can increase productivity by adding an extended screen to your computer, and effectively extending the desktop space, ideal for spreadsheets, word processors and makes multi-tasking easier.
Ultra compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell also helps dissipate heat when the internal chip is in operation.
- USB-C and USB-A hybrid connector, for laptop or desktop PC
- Support resolution up to Full HD 1080p (1920x1080)
- Compact and portable design, easy to carry
- Simple installation, built-in USB drive for installation of driver
- USB powered, no external power required
- Durable & stylish aluminium alloy housing
- HDMI port supports both video and audio
- Support Extended or Mirror display mode
- Compatible with Windows 10 and above
Important Notes
- This is a dedicated USB graphic adaptor that does not rely on computer's internal graphic processor, DP Alt mode is Not required when using USB-C port
- While plug this adaptor to your computer first time, you'll see there is a new USB drive under My Computer or This PC, then double clicks setup file inside USB Drive to install the driver. You can also download driver from our website.
- The USB to HDMI adaptor works on Windows 10 and above version only, Windows 7/8 and older Windows systems are not supported, macOS is not supported
Specifications
| Model Number |
DA306C |
| Input |
USB-A/USB-C (SuperSpeed 5Gbps) |
| Output |
HDMI 1.4 |
| Audio |
UAC (USB Audio Class) 48KHz stereo |
| Resolution |
up to 1080p (1920x1080) |
| Housing Material |
Aluminium |
| Operation Temperature |
0 - 45°C |
| Cable Length |
8cm |
| Dimension |
51 x 24 x 11 (mm) |
| Weight |
24g |
| System Requirement |
Available USB 5Gbps USB-C port or USB-A port (USB 3.0 port)
Windows 10 and above operating system |
Backed by a 1 year Simplecom warranty.
