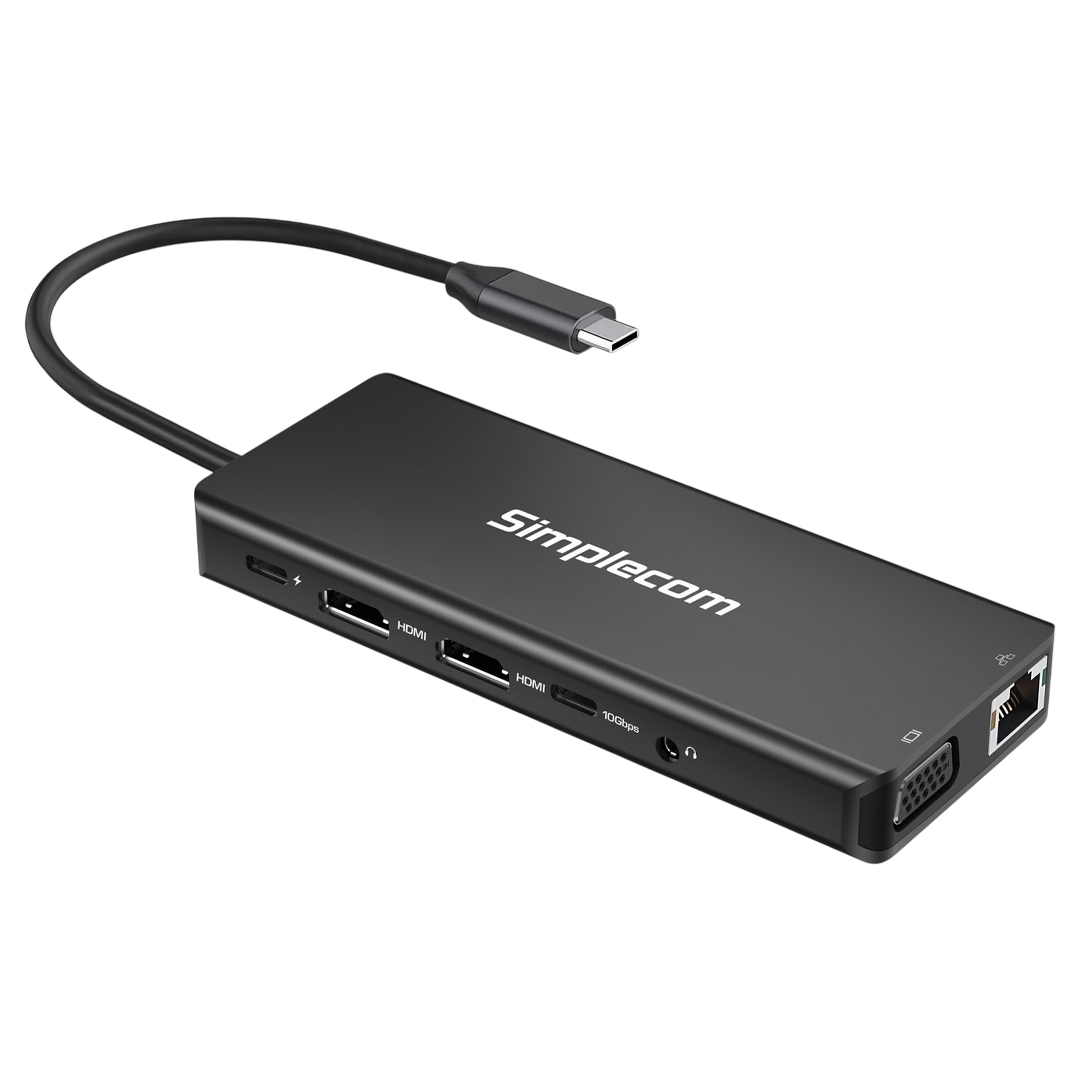

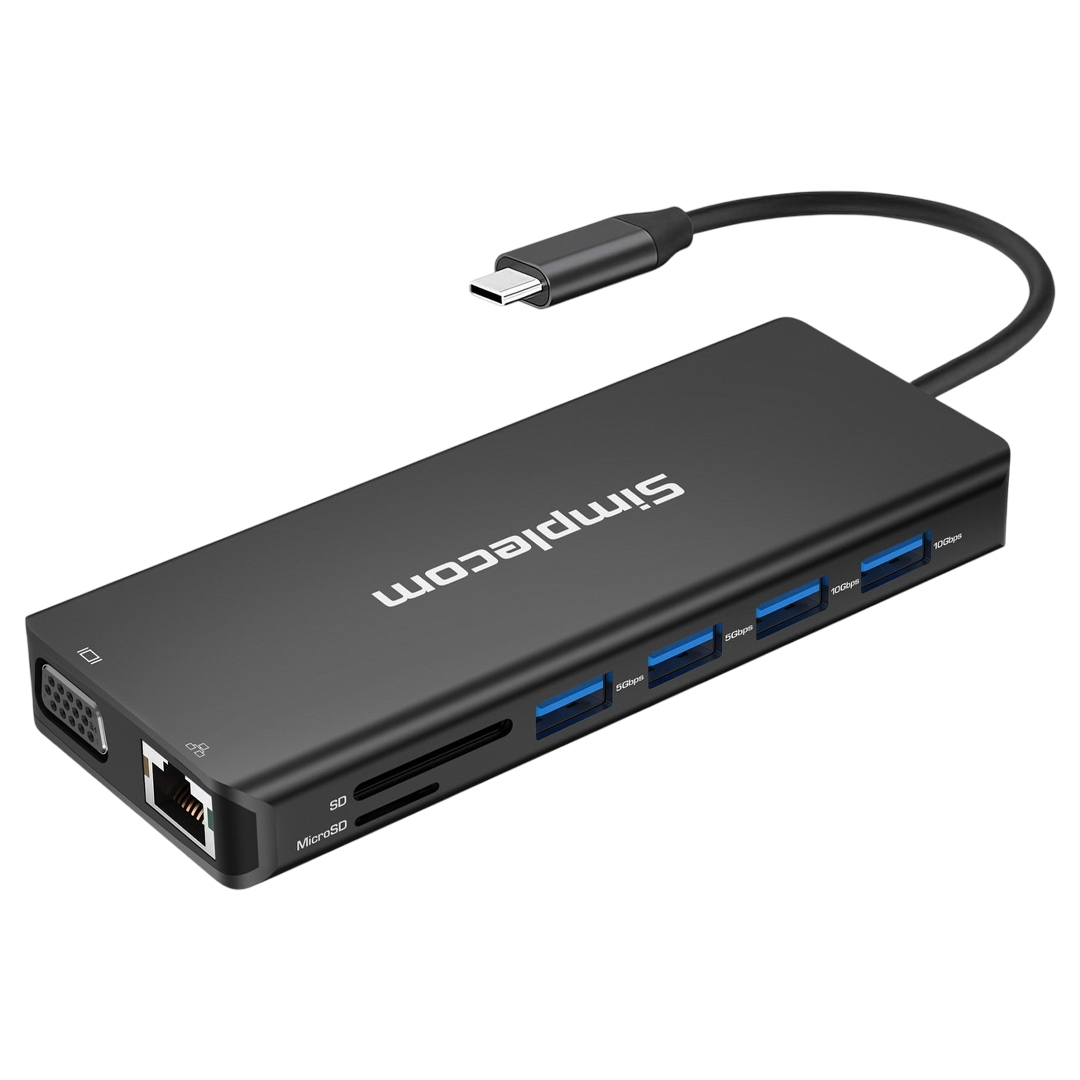

The Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station expands a compatible device with dual HDMI, VGA, five USB data ports, Gigabit Ethernet, SD and microSD card readers, 3.5mm audio, and up to 100W USB-C PD charging. The CHN613 supports triple display output with up to two extended screens on Windows, while USB 3.2 Gen 2 ports provide data transfer speeds up to 10Gbps for a versatile desktop setup.
Features
Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps

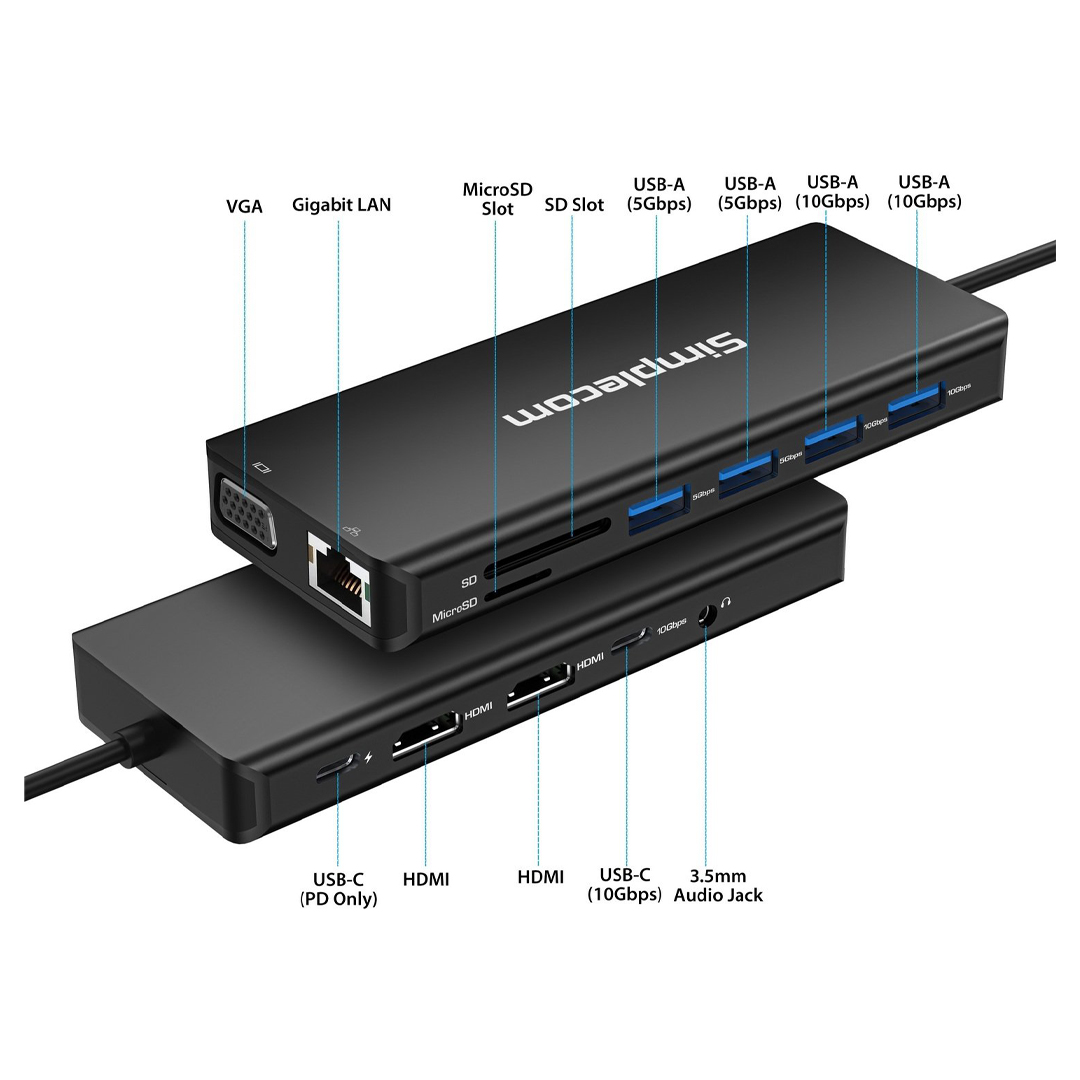

CHN613 is a comprehensive 13-port multifunctional USB-C docking station that allows you to expand the connectivity of your laptop through a single USB-C connection. It turns a single USB-C port into 13 ports, including four USB-A and one USB-C data ports, two card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging.
If you need to connect with various devices to your laptop simultaneously, CHN613 is an ideal connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.
- 13-in-1 USB-C multiport adaptor for comprehensive expansion to your laptop
- USB ports support up to 10Gbps transfer rate following USB 3.2 Gen 2 standard
- Dual HDMI plus VGA, triple video outputs with MST Support
- Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
- Support Mirror or Extended mode (maximum 2 extended mode displays)
- Gigabit Ethernet support connection speeds of up to 1000Mbps
- 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
- USB-C PD port for charging the laptop with up to 100W of power
- 3.5mm audio jack for easy connection of headphones or speakers
- Durable & stylish aluminium alloy housing
- Lightweight, easy to carry along when travelling
- Plug & play, no driver software required
13-in-1 Powerful USB-C Docking Station

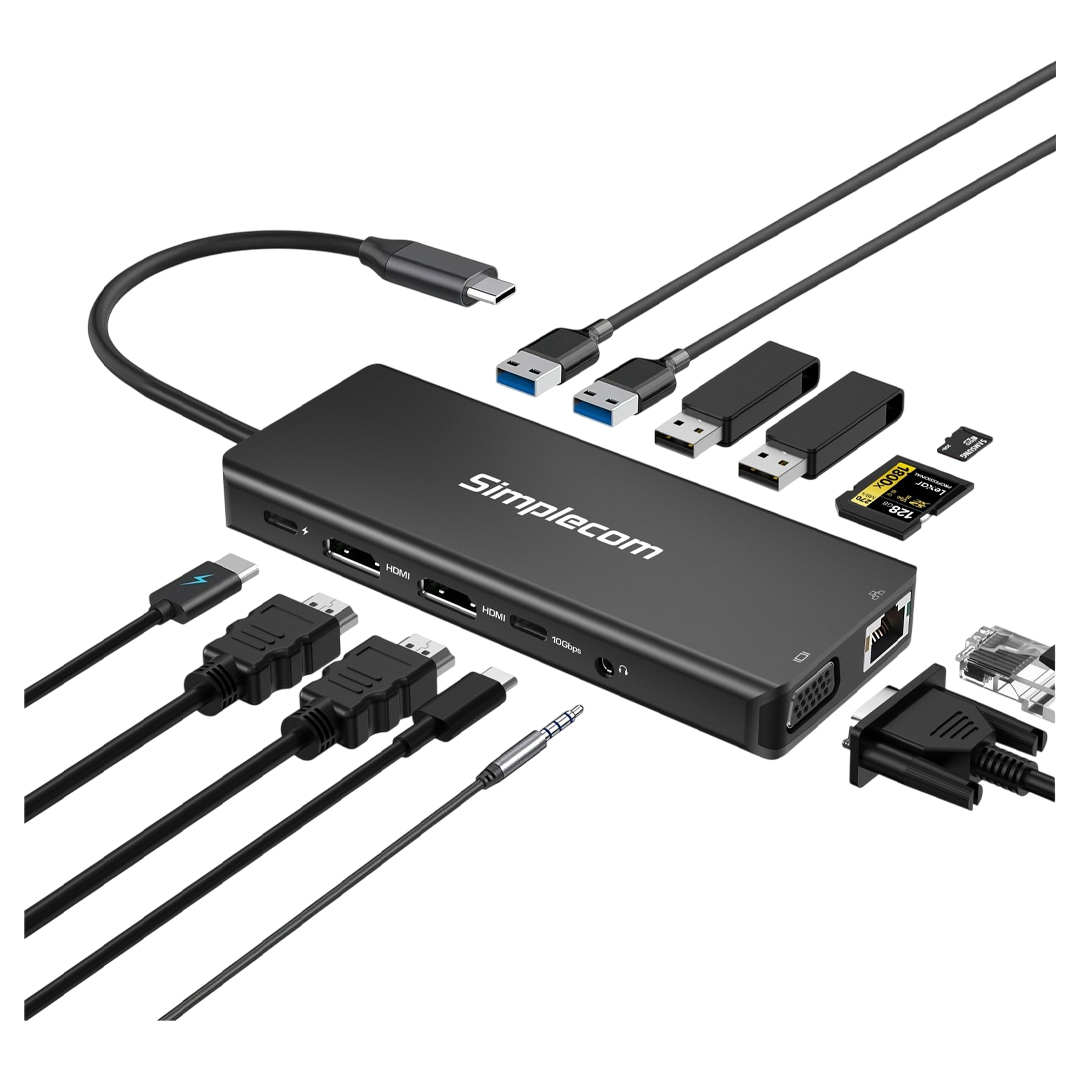

A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 5 port USB hub with data transfer rate up to 10Gbps.
Triple Video Outputs with MST Support
This multiport adaptor offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor. (Please note MST is for Windows system only, MacOS doesn't support MST)
USB 3.2 Gen 2 Ports with 10Gbps Data Rate
Two USB-A and one USB-C data ports are compliant with USB 3.2 Gen 2 standard, supports maximum data transfer speed up to 10Gbps, which allows you to connect and utilise high speed USB SSD devices. With total 5 USB data ports, you can connect a variety of USB peripherals, such as, mouse, keyboard, printer, USB pen drive and more.
SuperSpeed USB Card Reader
Featuring integrated SD and MicroSD card slots, which offers a convenient and speedy solution for reading both types of memory cards. It also allows access to both SD and MicroSD cards simultaneous. SuperSpeed interface allows fast data transfer up to 5Gbps, ideal for transferring large raw or HD media files.
100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports up to 100W Power Delivery charging.
Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.
Stylish and Durable Aluminium Alloy Casing
This USB-C multiport adaptor comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.
Important Notes
- Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- Screen resolution will be limited to 1080p when two HDMI monitors are connected
- Screen resolution will be limited to 1080p when VGA port is connected
- The USB-C PD port is for PD Charging only, not for data transfer, please use another USB-C port for data transfer
- Please connect power delivery adaptor when power is not enough
Backed by a 1 year Simplecom warranty.
