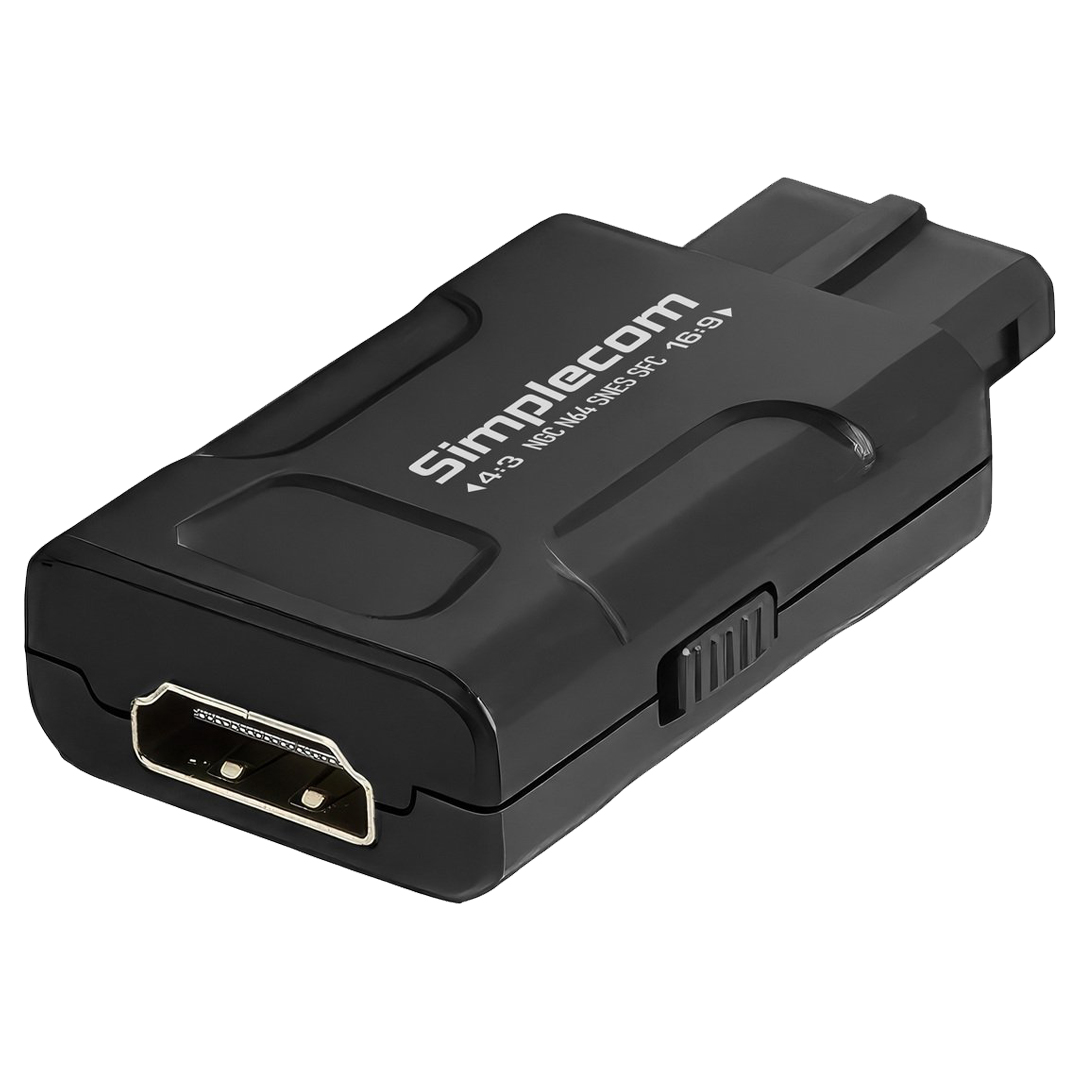

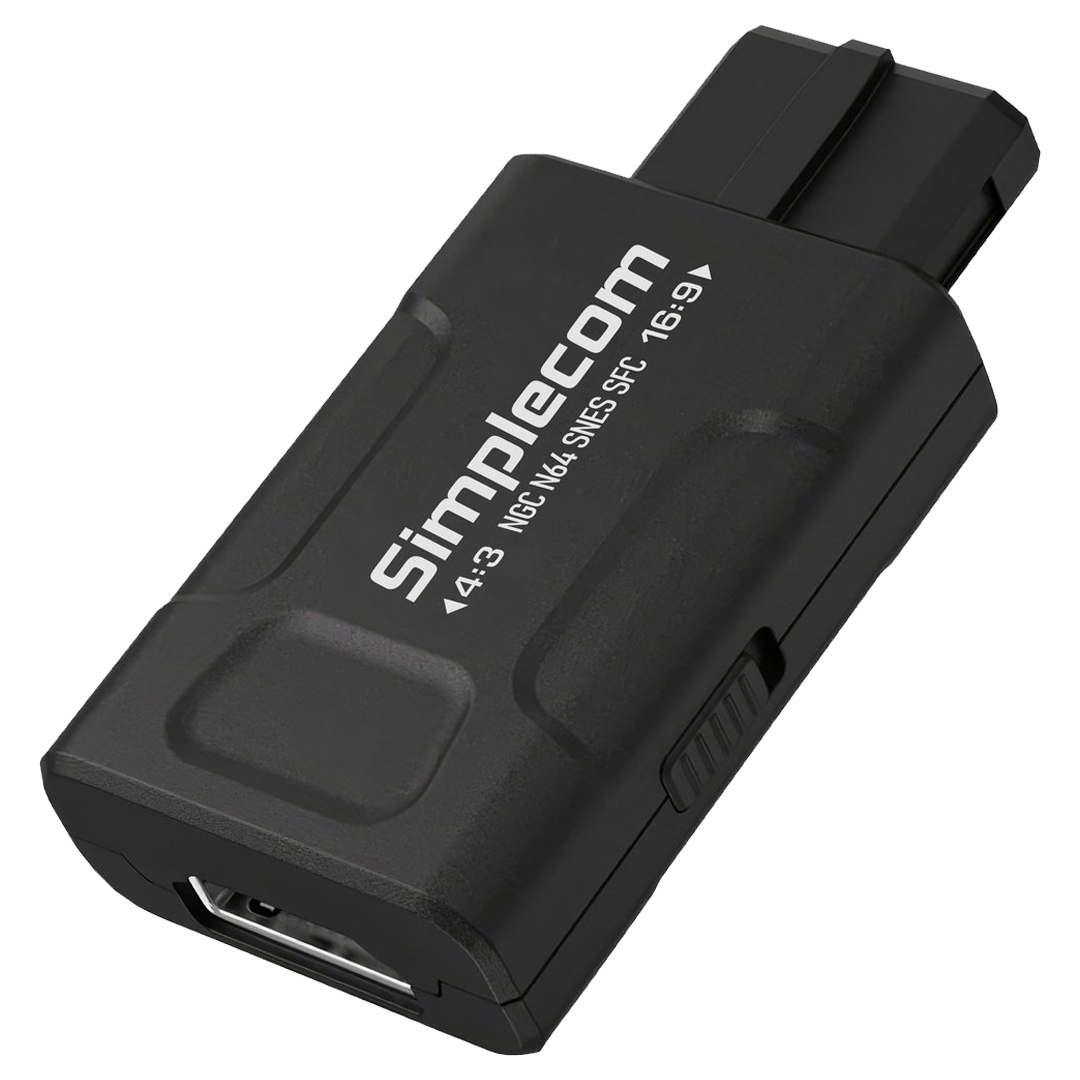

Simplecom CM461v2 HDMI Adapter Composite AV and S-Video to HDMI Converter V2

The Simplecom CM461v2 HDMI Adaptor converts Composite AV and S-Video signals from N64, GameCube, Super NES and SFC consoles to digital HDMI output at 720p or 1080p. Supporting PAL and NTSC consoles with automatic S-Video detection and selectable 4:3 or 16:9 aspect ratios, the CM461v2 provides plug-and-play connectivity for displaying classic games on modern displays.

Features

---

Simplecom CM461v2 HDMI Adaptor Composite AV and S-Video to HDMI Converter for Nintendo NGC N64 SNES SFC

Bring your classic consoles back to life with this high-quality HDMI converter. Designed for classic systems including N64, GameCube, Super NES, and SFC, it effortlessly converts analogue signals into digital HDMI output.

The converter supports both Composite AV and S-Video signals, automatically switching to S-Video for improved picture quality whenever available. It’s compatible with both NTSC and PAL consoles for a hassle-free setup.

With a built-in switch to toggle between 4:3 and 16:9 aspect ratios, you can enjoy games in their original format or in full-screen mode. Compact, lightweight, and completely plug-and-play with no external power required, this converter is easy to set up and use, perfect for reliving your favourite retro titles on modern displays.

• Compatible with N64, GameCube, Super NES, and SFC consoles
• Converts and upscales console analogue signal to digital HDMI output
• Supports Composite AV and S-Video signals from the console
• Automatically switches to S-Video mode for enhanced quality when available
• Supports both NTSC and PAL consoles
• Delivers both video and audio through a single HDMI cable

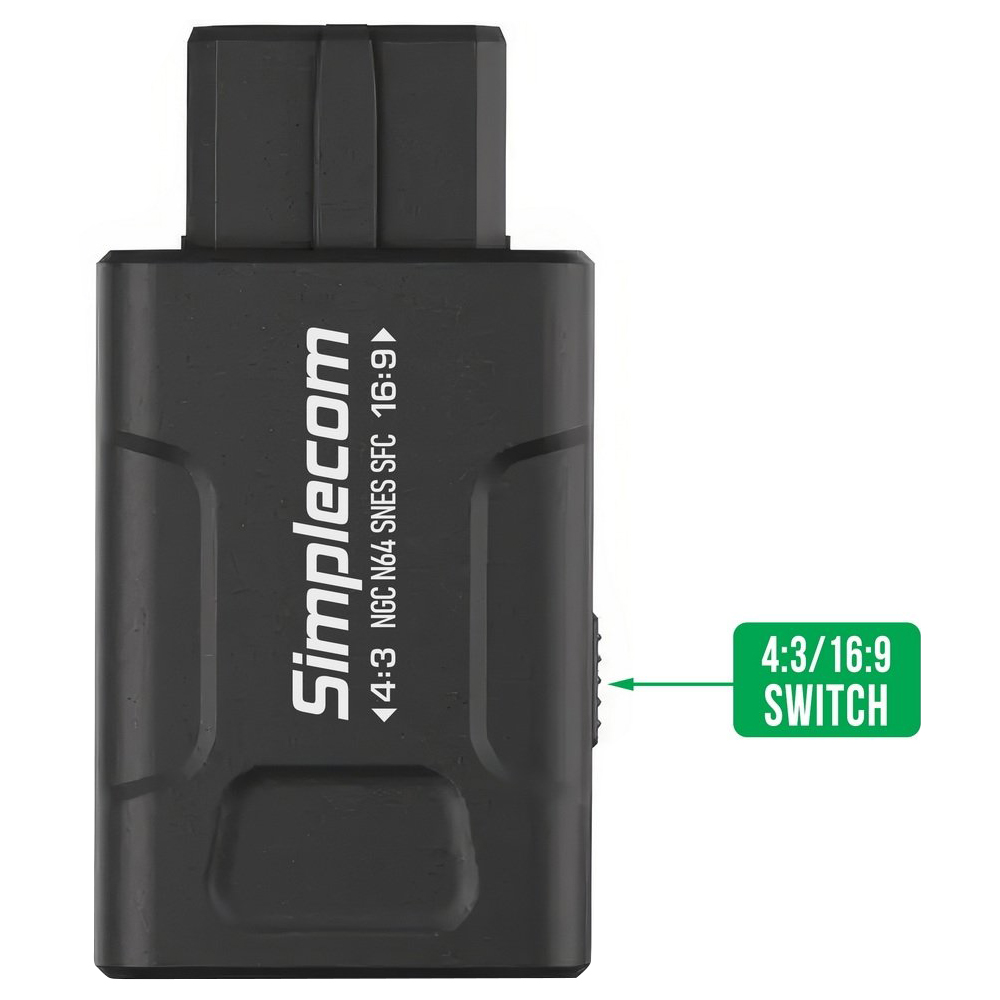

• Easily select between 4:3 and 16:9 aspect ratios with a switch
• Plug and play, no external power required
• Compact and lightweight design, easy to set up

Important Notes

• The adaptor is powered directly by the console, no external power supply is required.
• This HDMI adaptor supports only analogue video signals (AV, S-Video). RGB signals are not supported.
• Not all consoles support S-Video signal. If S-Video signal is not detected, the adaptor will default to AV signal.
• Supported Console with S-Video output
  N64: All NTSC consoles and most PAL consoles support S-Video output
  GameCube: All NTSC consoles support S-Video output; PAL consoles do not support S-Video
  SNES / SFC: All NTSC and PAL consoles support S-Video output, except the cost-reduced smaller size models (SNS-101 and SHVC-101)
