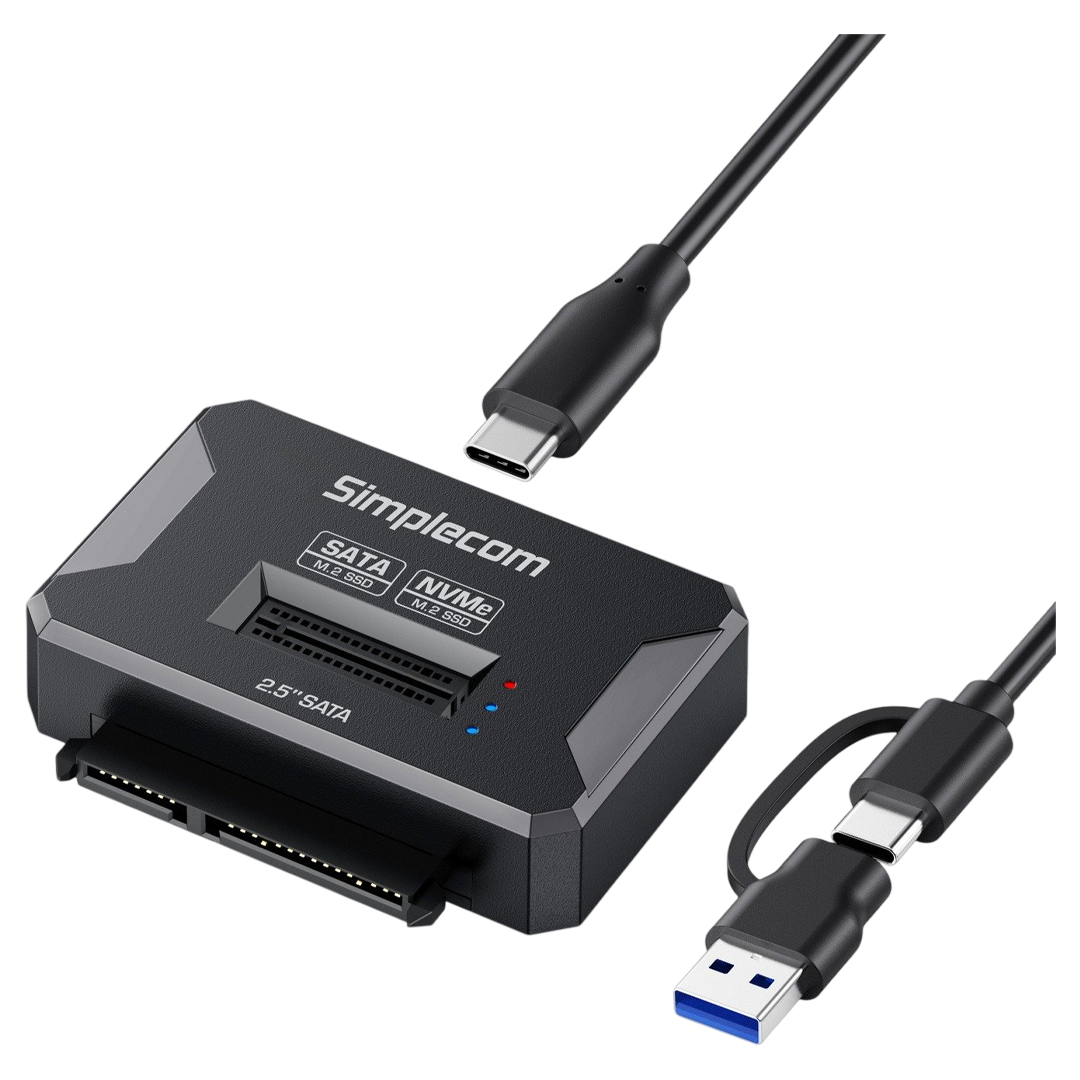

Simplecom SA516 NVMe/SATA M.2 SSD and SATA to USB Adapter

The Simplecom SA516 NVMe/SATA M.2 SSD and SATA to USB Adapter provides a compact dual-slot solution for accessing M.2 NVMe, M.2 SATA and 2.5" SATA drives through USB-C. Supporting transfer rates up to 10Gbps with NVMe M.2 drives or SATA M.2 and 2.5 inch SATA drives up to 6Gbps, UASP, TRIM and plug-and-play operation, the adaptor provides convenient storage access for data transfer, backups and system upgrades.

Note: SSD's not included, show for illustrative purposes only (sold separately).

Features

---

Simplecom SA516 NVMe/SATA Dual Protocol M.2 SSD and 2.5" SATA to USB Adaptor 10Gbps

The SA516 is a dual-slot storage adaptor designed to support both M.2 SSDs and 2.5" SATA drives in one compact solution. With its dual-slot design, users can easily access and manage different types of storage devices, making it ideal for data transfer, backup, and system upgrades.

The M.2 slot supports both NVMe and SATA protocols and is compliant with the USB 3.2 Gen 2 standard. The SA516 delivers high-speed data transfer of up to 10Gbps when used with NVMe M.2 SSDs, ensuring fast and efficient performance. It also supports SATA-based M.2 and 2.5" SATA drives, offering broad compatibility with a wide range of storage devices.

Powered directly via USB, the SA516 requires no external power supply. The included USB-C to USB-C and USB-A combo cable ensures convenient connectivity across various devices. Designed for ease of use, it features plug-and-play functionality with no driver installation required, making it suitable for both home and professional users.

• Dual slots support both M.2 SSDs and 2.5" SATA drives
• M.2 slot supports both NVMe and SATA protocols

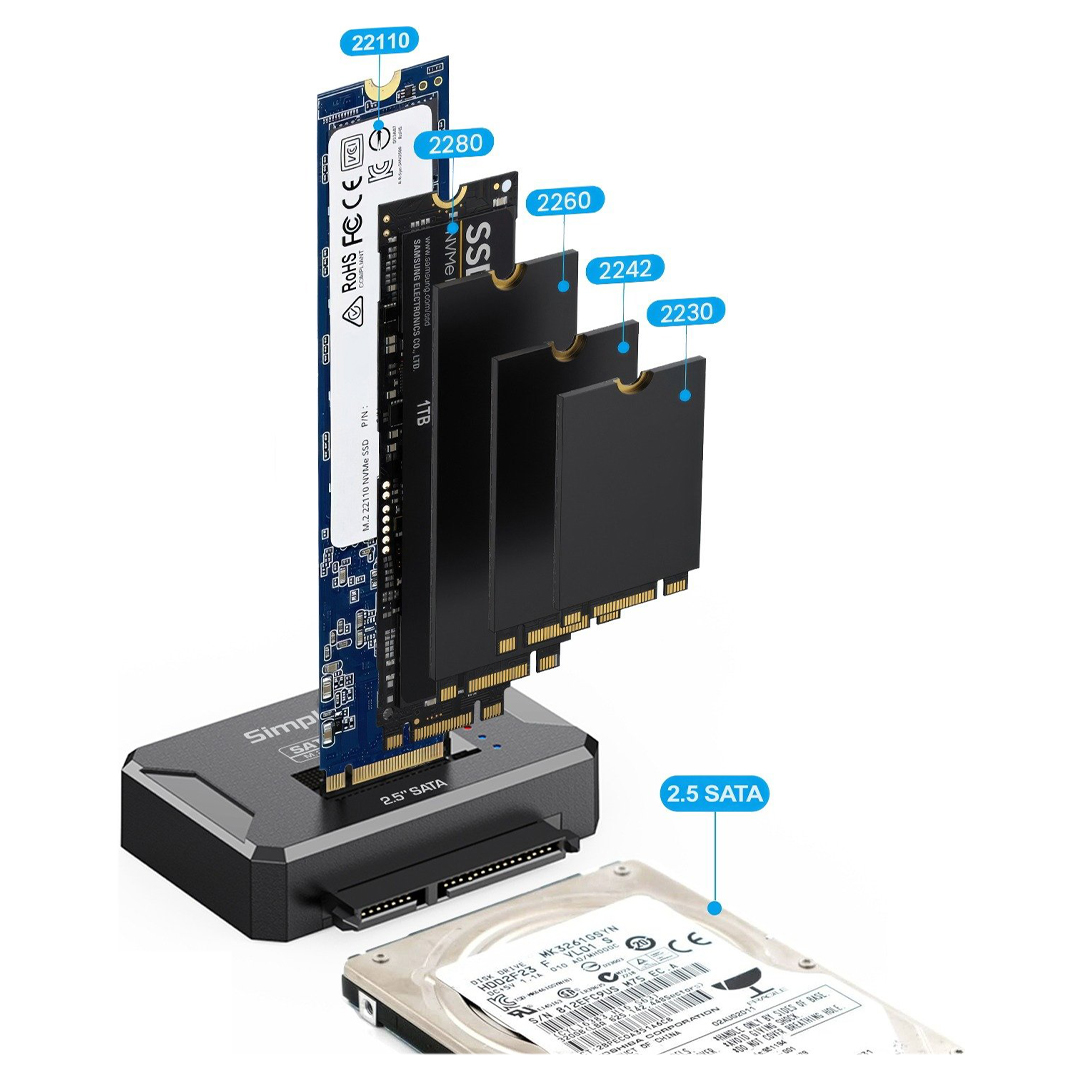

• Compatible with M Key or B+M Key M.2 SSDs
• Compatible with 2.5" SATA HDDs and SSDs
• USB-C interface compliant with USB 3.2 Gen 2 standard
• Supports data transfer rates up to 10Gbps

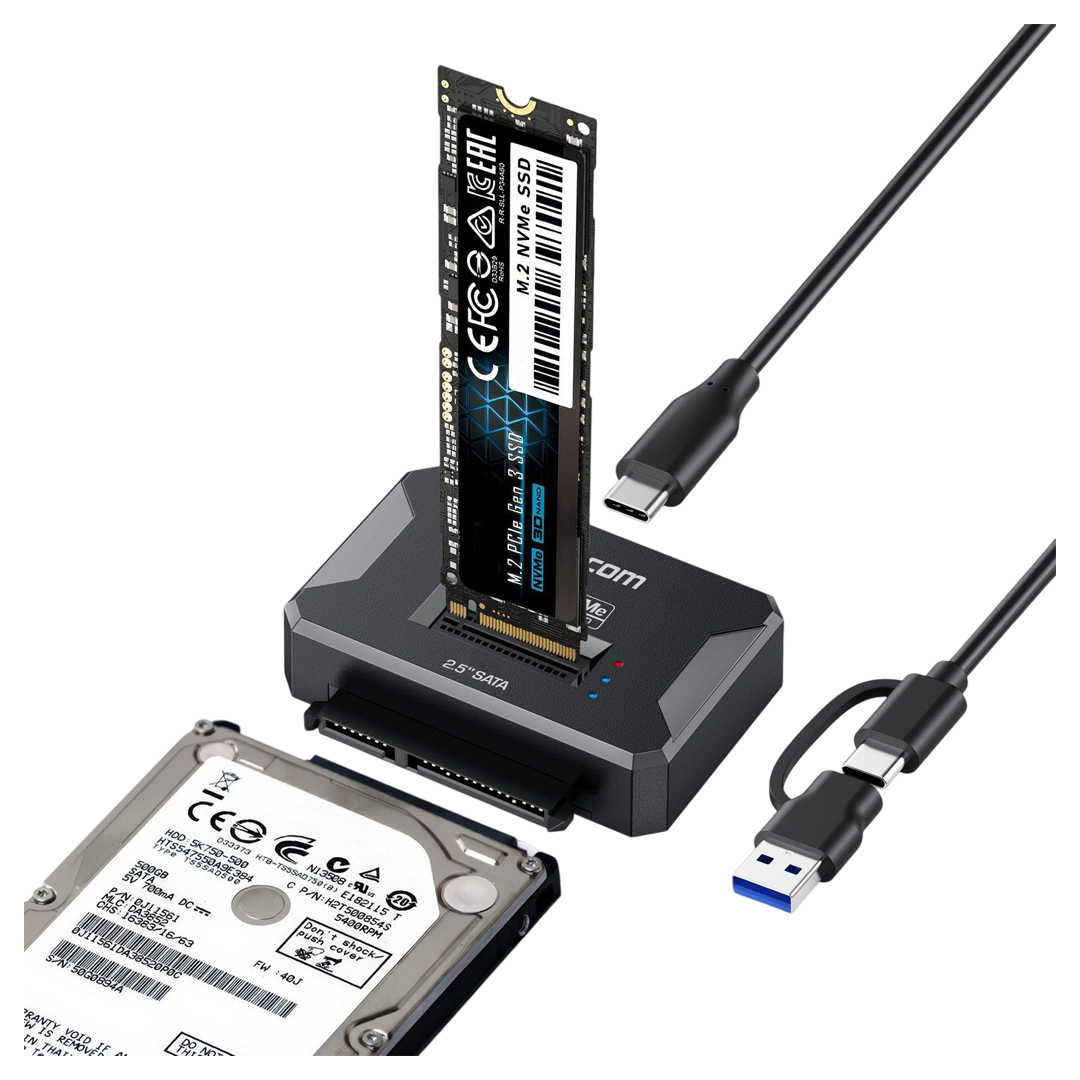

• USB-C and USB-A combo cable, convenient for use on different devices
• Supports UASP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• USB powered, no external power required

Important Notes

• M.2 and SATA ports cannot be used simultaneously. Please connect either an M.2 or 2.5" SATA drive at a time.
• SATA port supports 2.5" SATA drives only; 3.5" SATA hard drives are not supported.
• This adaptor does not support hot-swapping. Please unplug the USB cable before plugging or unplugging the SSD.
• SA516 supports both NVMe and SATA-based M.2 SSDs (M Key or B+M Key). When using a SATA M.2 SSD, bandwidth is limited to 6Gbps, which is the maximum transfer rate of the SATA interface.
