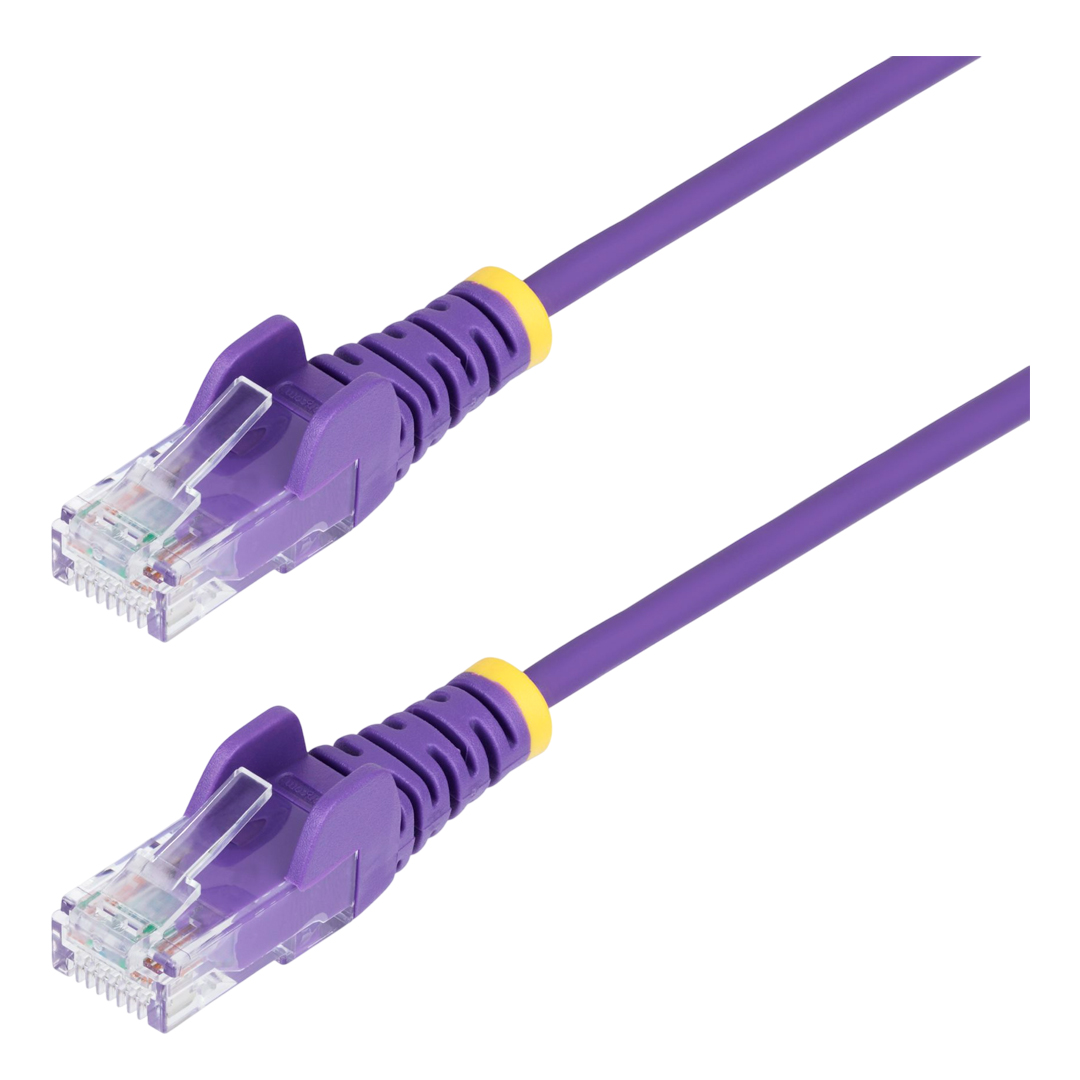

The StarTech Slim CAT6 LSZH 1m Purple Ethernet Cable delivers reliable 10Gbps network connectivity and up to 100W PoE++ with a flexible 28AWG UTP design, gold plated RJ45 connectors and LSZH jacket. At 36 percent slimmer than standard CAT6 cables, the cable provides easier routing and more space for improved airflow in high-density installations while the snagless connectors help protect against damage during installation.
Features
1m Purple Slim CAT6 Ethernet Cable, Snagless, 100W PoE, UTP, LSZH, 28AWG Pure Bare Copper Wire, Slim RJ45 Network Patch Cord w/Strain Reliefs, Individually Tested
Route Slim Cat6 cables through high density installations for optimal flexibility and airflow.
This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
- Streamline Cabling in Tight Spaces: Slim Cat6 Cables are 36% thinner than standard CAT6 network cables, offering greater flexibility and easier routing in dense IT setups
- Built for Performance: Supports 10Gbps speeds and 100W PoE++ (IEEE 802.3bt Type 4) with 28AWG pure bare copper wire and 50-micron gold-plated contacts for reliable signal integrity; Flexible Low-Smoke Zero Halogen (LSZH) jacket withstands tight bends
- Tested for Reliable Uptime: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance up to 250MHz; Individually Tested for minimal Near-End Crosstalk (NEXT) and Return Loss (RL)
- Enhance Access and Airflow: Slim Cat6 cables improve access for troubleshooting and airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras; LSZH jacket is safe for confined spaces and emits low-toxicity fumes if combusted
- The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, StarTech network cables are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Improved Airflow
The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.
This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction
The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimise wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilises 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability
Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.
Slim CAT6 Ethernet Cable
High-performance patch cord, easy to move, route and manage.
- 28AWG, 36% slimmer than standard CAT6 cables
- Creates more space for improved airflow and cooling in high-density applications
- Compatible with 10GBaseT 10Gbps/5Gbps/2.5Gbps/1Gbps
- Fluke Tested to ensure minimal Near-End Crosstalk (NEXT) and Return Loss (RL)
- Low Smoke Zero Halogen (LSZH) fire rating
- Complies with ANSI/TIA 568 C.2 Category 6
Durable Connector with Flexible Strain Relief
- Snagless design protects against snags and damage, ideal for pulling cables
- Flexible LSZH jacket emits low smoke and fumes in case of fire
- Shielded 50-micron gold plated connectors to minimise wear and signal loss
Quality Cable Construction with 100% Copper
Designed for Safety
PoE++ Type 4 facilitates reliable throughput and power to low-latency and critical PoE devices up to 100m.
PoE++ 802.3bt Type 4
- Up to 100W
- PoE Switches
- Access Points
- IP Cameras
Wide Selection of Lengths and Colors
Color-coded clarity for high-density installations.
Hard-to-Find Made Easy
- Designed & Built for IT Pros
- Rigorous Testing & Certifications
- Free 24/5 Multi-Lingual Assistance: Experienced Technical Advisors - North American Based
- IT Connectivity from Legacy to Latest
- Trusted by IT Professionals Since 1985
Specifications
General Data
| Model Number |
N6PAT100CMPLS |
| Power Delivery |
100W |
| Connector(s) |
Connector 1: 1x RJ-45
Connector 2: 1x RJ-45 |
| What's Included |
1 - Slim Cat6 Ethernet Cable - LSZH |
Physical & Environmental
| Color |
Purple |
| Wire Gauge |
28 AWG |
| Conductor Type |
Stranded Copper |
| Cable Length |
3.3 ft [1 m] |
| Cable OD |
0.1 in [3.6 mm] |
| Product Length |
3.3 ft [1.0 m] |
| Product Width |
0.4 in [11.0 mm] |
| Product Height |
0.5 in [13.0 mm] |
| Weight of Product |
0.9 oz [26.0 g] |
| Operating Temperature |
10°C ~ 60°C (50°F to 140°F) |
| Storage Temperature |
-20°C ~ 60°C (-4°F to 140°F) |
| Humidity |
10% ~ 80% |
Performance
| Maximum Data Transfer Rate |
10 Gbps |
| Cable Rating |
CAT6 - 250 MHz |
Hardware
| Number of Conductors |
4 Pair UTP |
| Connector Plating |
Gold |
| Cable Jacket Material |
Low Smoke Zero Halogen |
| Fire Rating |
LSZH Rated (Low Smoke Zero Halogen) |
| Cable Type |
Snagless |
| Wiring Standard |
TIA/EIA-568-B.1-2001 T568B |
Backed by a 1 year StarTech warranty.
