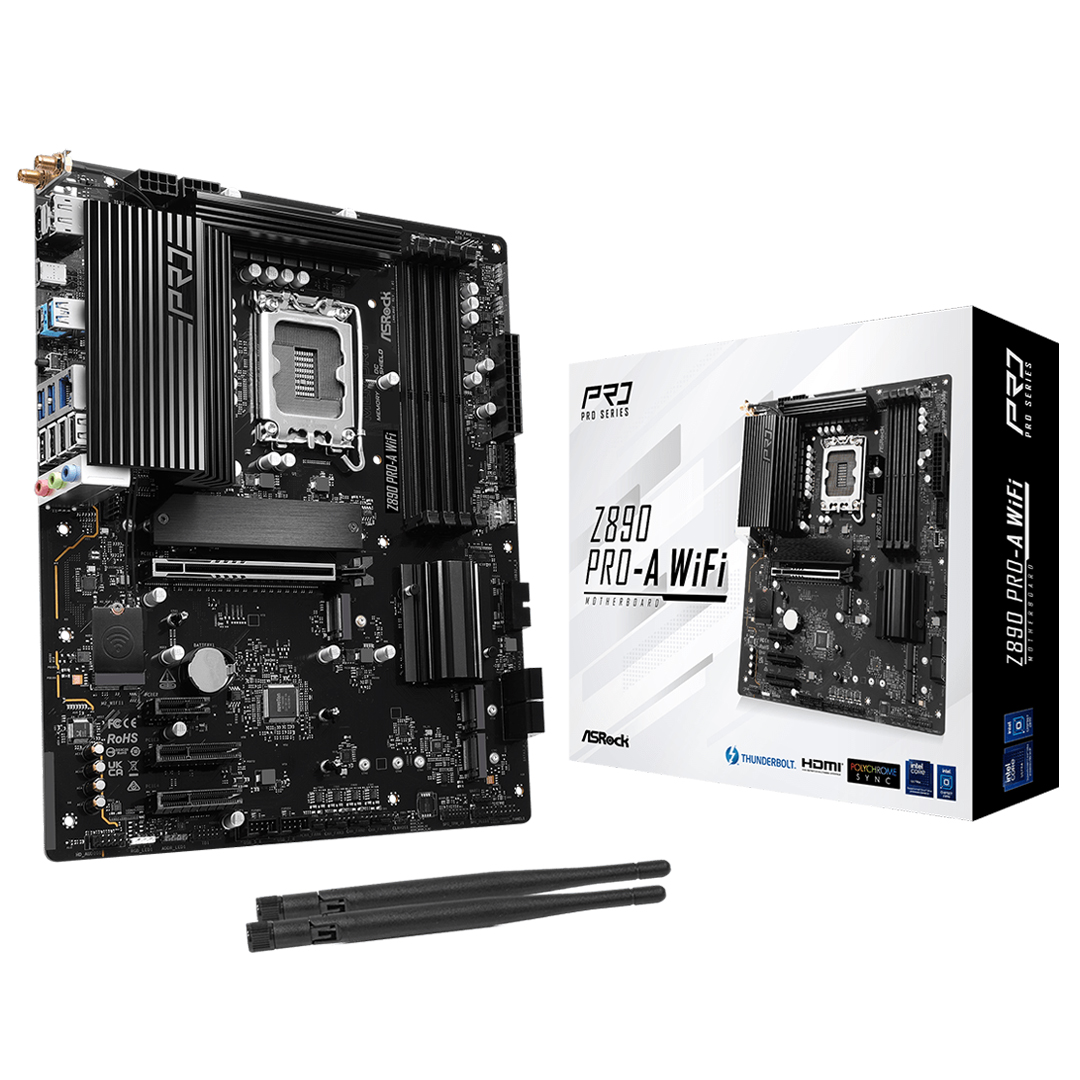

Upgrade your PC build with the ASRock Z890 PRO-A WiFi Motherboard, engineered to deliver exceptional stability and performance for the latest Intel Core Ultra Processors (Series 2) using the LGA1851 socket. Ideal for demanding gamers, content creators, and power users, this motherboard features a robust 16+1+1+1+1 power phase design with Dr.MOS and durable 1000uF capacitors to ensure reliable power delivery and thermal efficiency even under heavy workloads. Experience next-generation multitasking and responsiveness with support for up to four dual-channel DDR5 DIMMs overclocked to an impressive 9066+ MHz, backed by ASRock's Memory OC Shield to minimise electromagnetic interference. The board is fully equipped for modern expansion and ultrafast storage, offering a reinforced PCIe 5.0 x16 slot to safely house heavy graphics cards, alongside one Blazing M.2 PCIe Gen5x4 slot and three Hyper M.2 PCIe Gen4 slots for rapid data transfers. Comprehensive connectivity options streamline your workflow and online gaming sessions, highlighted by a versatile 40Gbps Thunderbolt 4 Type-C port, front and rear USB 3.2 Gen2x2 Type-C headers, Realtek 2.5G LAN, and integrated 802.11axe Wi-Fi 6E with Bluetooth. Finished with builder-friendly features like an easy BIOS Flashback button, an Auto Driver Installer, and Polychrome RGB integration to seamlessly synchronise your system colours, this ASRock motherboard provides a rock-solid, future ready foundation for your next high-performance rig.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
Z890 Pro-A WiFi
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Optimised for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4/USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3)
- 1 Thunderbolt™ 4/USB4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (2 Rear, 4 Front),
8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Overview
- Hi-Density Power Connector
2 x 8 pin 12V Power Connectors
- Supports Intel® Core™™ Ultra Processors (LGA1851)
- 16+1+1 VRM Design
Dr.MOS for VCore+GT
Durable Caps with 1000uF Capacitance
- 1 x Blazing M.2 Socket (PCIe Gen5 x4)
- PCIe Gen5 x16 Slot
SMT Technology
Reinforced Steel Slot
- Premium Audio
Realtek ALC897 7.1 CH HD Audio Codec
- Memory OC Shield
- 4 x DIMMs DDRS
Dual Channel
- 4 x SATA3 6Gbps
- 3 x Hyper M.2 Sockets (PCIe Gen4 x4)
- Aluminium VRM Heatsinks
- 1 x Chassis Fan Connector
Smart Fan Speed Control
- Aluminium M.2 Heatsink/M.2 Bottom Heatsink
- 2 x CPU Fan Connectors
Smart Fan Speed Control
- 1 x AIO Pump Connector
Smart Fan Speed Control
- Chipset Heatsink
- 4 x Chassis Fan Connectors
Smart Fan Speed Control
- 802.11axe Wi-Fi БЕ + Bluetooth
- HDMI & DisplayPort Ports
- USB 3.2 Gen2x2 Type-C Port
- Thunderbolt™ 4/USB4 Type-C Port
- BIOS Flashback Button
- Realtek 2.5Gbps LAN
- 2 x Addressable LED Headers
- Front USB 3.2 Gen2x2 Type-C
- 1 x Addressable LED Header
- 1 x RGB LED Header
Performance Gains from Intel® 200S Boost
ASRock Z890 motherboards now support Intel® 200S Boost through a simple BIOS update. Users can effectively "upgrade" their existing Intel® Core Ultra processors and enjoy a significant performance boost.
Visit the ASRock official website to download the latest BIOS and experience the performance upgrade brought by Intel® 200S Boost.
For more details on Intel® 200S Boost, please visit the official Intel® website:https://game.intel.com/us/stories/200s-boost-overclocking-profile/
Performance
Optimised VRM Design
Durable Capacitor
Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
- Higher Capacitance: Greater charge storage for better support under high loads.
- Lower Ripple: Reduced power output fluctuations, improving quality.
- More Stable Output Current: Stable power supply, minimising voltage impacts.
- Better Performance & System Stability: Increased reliability and consistent performance.
VRM Design
16+1+1+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
- 16 VCORE Phase + 1 VCCGT Phase + 1 VCCSA Phase
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
- 8+8-Pin Hi-Density Power Connector
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
High Speed M.2 Solution
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Extreme Memory Overclocking
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realise that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
Memory OC Shield
ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimising the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.
Cooling
Intelligent Cooling Design
Aluminium Heatsink
The first thing that catches the eye is the optimised Aluminium Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
1. CPU Fan Connector
2. AIO Pump Fan Connector
3. Chassis Fan Connector
Fan-Tastic Tuning
ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualised UI interface, meeting their system's cooling performance and noise reduction requirements.
Enhanced M.2 Cooling
M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximise performance while maintaining system stability.
Connectivity
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Built-In Bluetooth
Connect wireless peripherals and accessories with ease. From keyboards and mice to headsets, controllers, speakers, and smartphones, built-in Bluetooth helps reduce cable clutter and makes daily wireless pairing more convenient.
Thunderbolt™ 4 Type-C (USB4 Ready)
Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
- Mobilephone
- Pad
- NB
- Camera
- Portable Storage Devices
- Power Bank
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Stylish Design
Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 metres.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 metres.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customisation, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customisation flexibility.
DIY Friendly
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
EZ Setting
Auto Driver Installer
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear.
Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
- Step1 : Launch Auto Driver Installer (ADI)
- Step2 : Select drivers and software
- Step3 : One-click install → Done
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
One-Click to AI Agents – ASRock Claw Quickset
ASRock Claw Quickset is a Windows desktop utility that simplifies the deployment of OpenClaw and local AI models. It automates installation, configuration, and environment setup, allowing users to start using AI with minimal technical knowledge.
Backed by a 3 year ASRock warranty.
