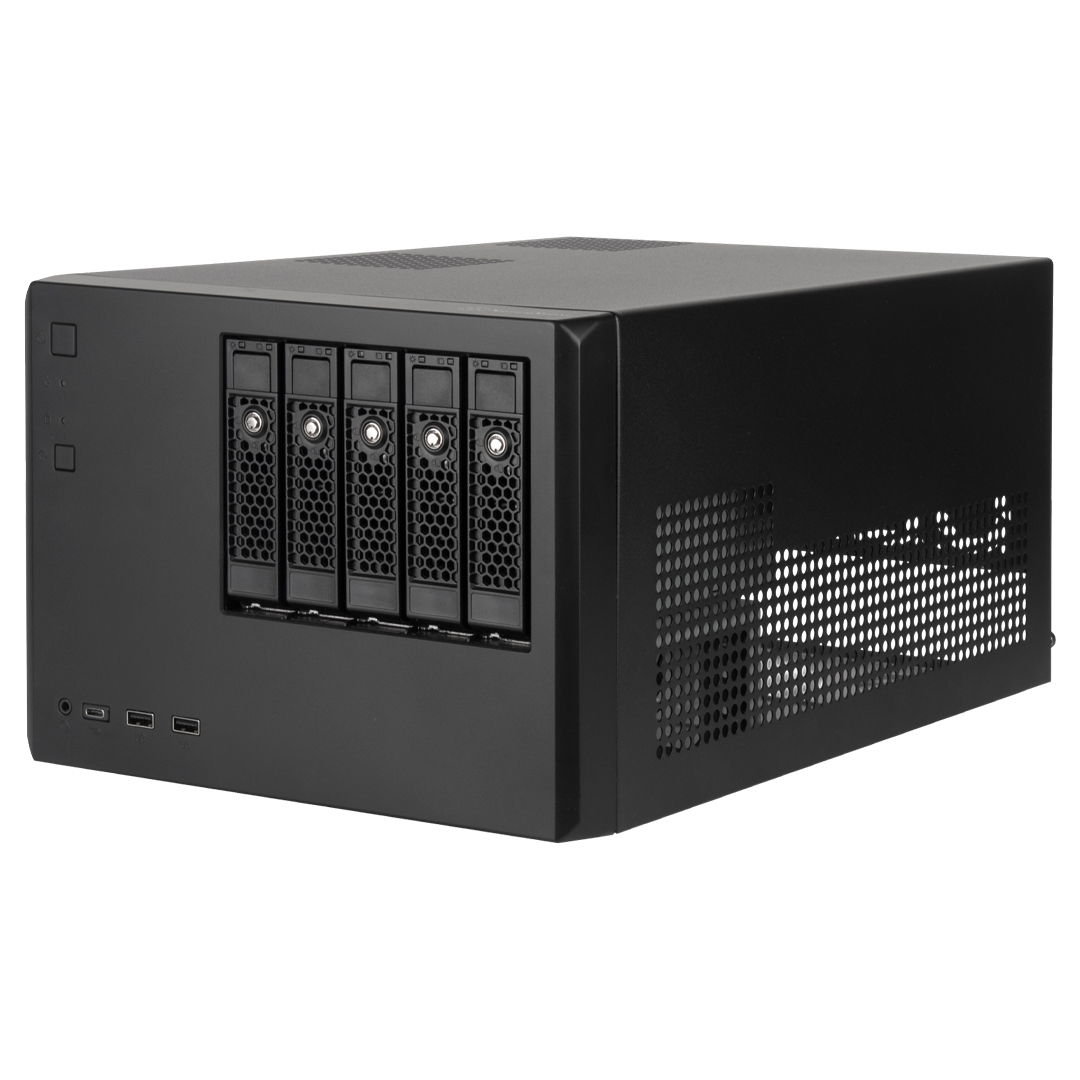

SilverStone CS351 5-Bay Hot-Swappable NAS Chassis

The SilverStone CS351 5-Bay Hot-Swappable NAS Chassis delivers robust storage solutions for demanding NAS environments. Featuring five hot-swap drive bays supporting up to five 3.5 inch or 2.5 inch SAS/SATA drives with dual LED status indicators for real-time monitoring while the anti-theft locks on each drive tray enhance security for sensitive data. The chassis accommodates Micro-ATX, Mini-DTX, Mini-ITX motherboards, 368mm expansion cards, and ATX PSUs, while support for various cooling configurations ensure optimal thermal management.

Features

---

5-Bay SAS-12G / SATA-6G Hot-Swappable High Performance NAS Chassis

• Hot-swap drive trays support up to five 3.5" or 2.5" SAS-12G / SATA-6G drives with two LED indicators for displaying drive status (With Mini-SAS HD (SFF8643) ~ SATA 7 pin cable, paired with 12 Gbit/s SAS HD card, can achieve 12 Gbit/s of high performance speed. (i.e SilverStone CPS05 & ECS05))
• Drive tray features anti-theft lock design to keep confidential information secured
• Supports 8 x 2.5" hard drive and up to 7 x 3.5" hard drives (The amount of 2.5” hard drives installed will affect the length of the expansion cards that can be supported.)
• Accommodates Micro-ATX motherboard and ATX PSUs.
• Supports up to 368mm (14.5") expansion cards (The amount of 2.5” hard drives installed will affect the length of the expansion cards that can be supported.)
• Front I/O includes USB Type-C x 1, USB 3.0 x 2, combo audio x 1
• Ample space for CPU cooling (82mm in height)

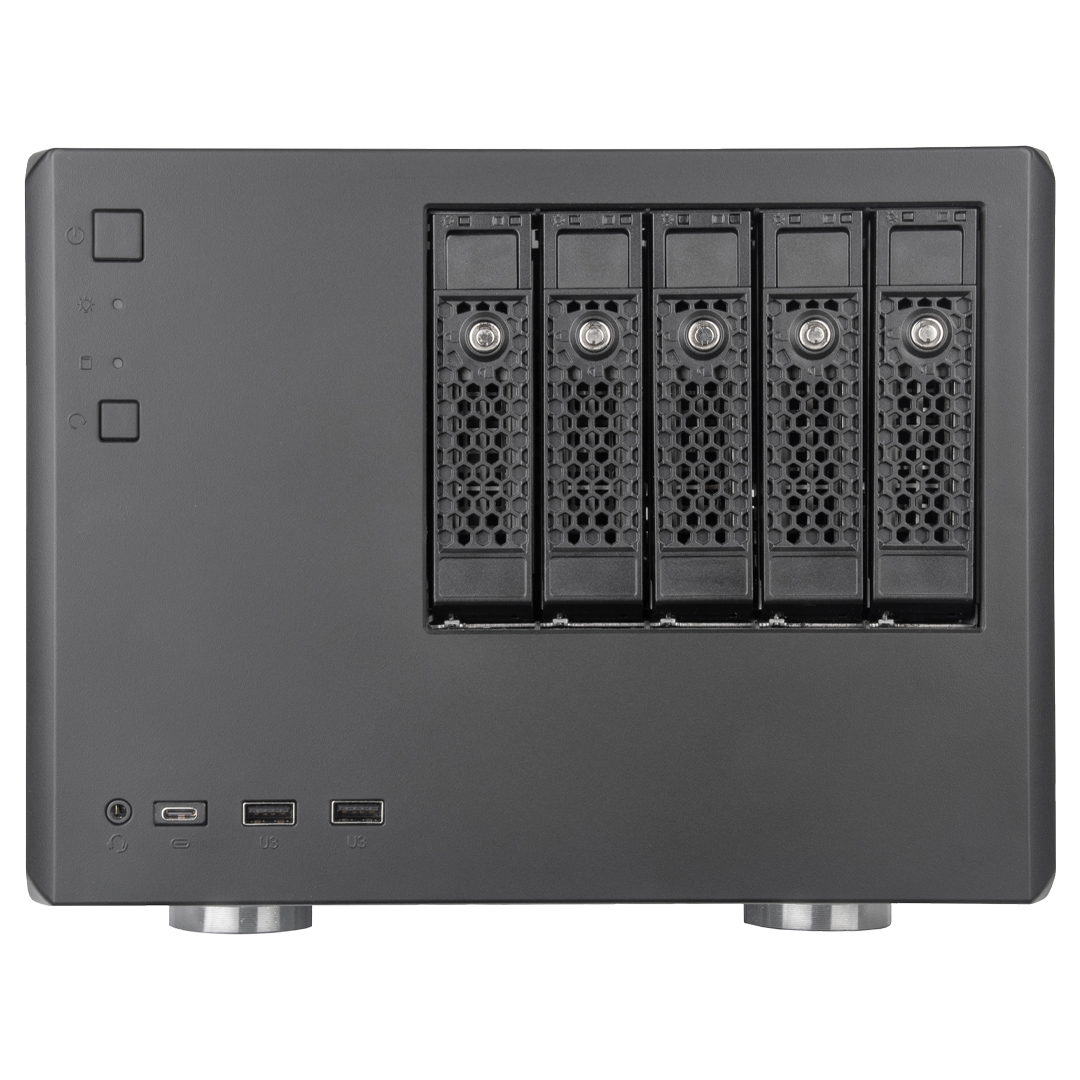

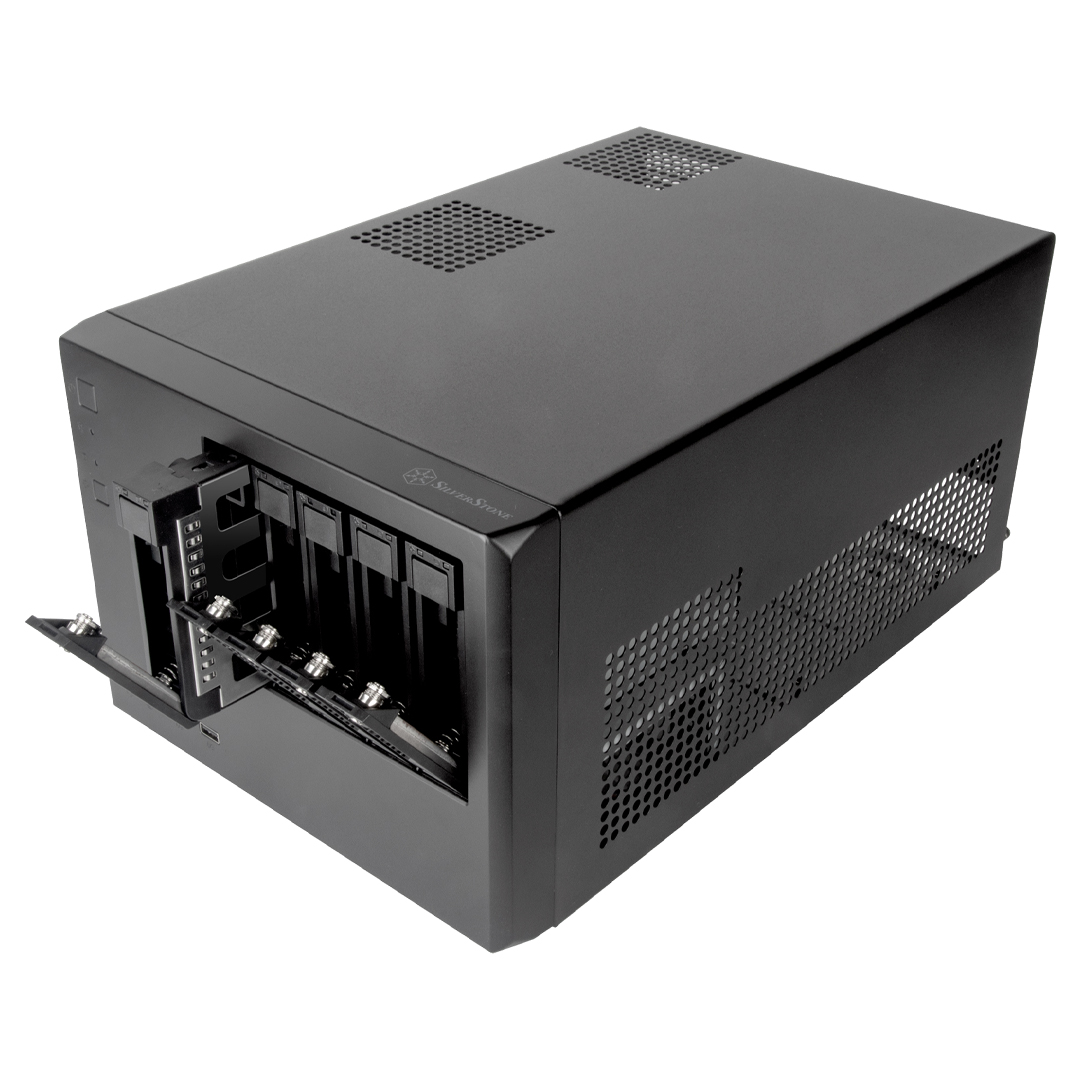

Hot-Swap Drive Trays

Support up to five 3.5” or 2.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive status.

Confidential Information Security

In an era where data is gold, individual locks are included with each drive bay to deter theft or unwanted removal of drives, offering users an extra peace of mind.

Prodigious Accommodation

CS351 offers users a wide array of hardware options that includes support for 3.5” or 2.5” drives in SATA or SAS format, high-end graphics cards, and RAID cards.

Dimensions
