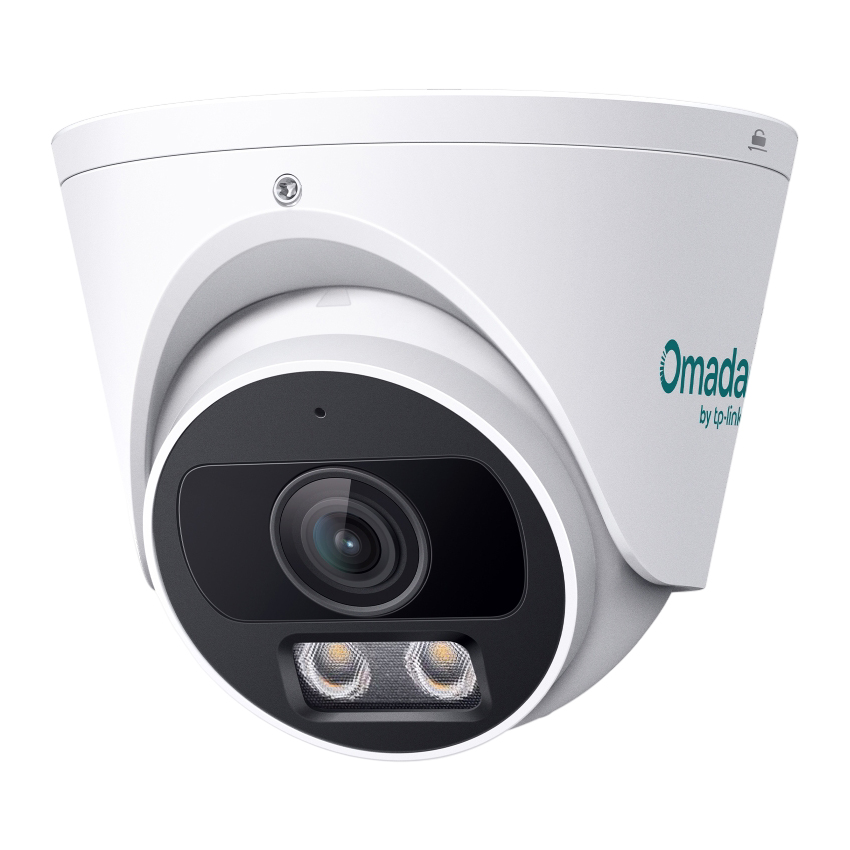

TP-Link Omada 5MP Turret PoE Security Camera

TL-OMADA-5MP-TURRET | TP-Link
$129
ETA: 19/08/26 This item is expected to arrive into our warehouse around 19/08/26.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The TP-Link Omada 5MP Turret PoE Security Camera captures clear 5MP video with 24 hour full colour surveillance, smart person, vehicle and pet detection, plus built-in event detection for reliable monitoring. Featuring an IP67 and IK08-rated metal housing, H.265+ compression, a built-in microphone, smart IR and colour night vision switching, and PoE support, the Omada 5MP Turret PoE Security Camera is built for dependable indoor and outdoor security.

Features

Omada 5MP Turret PoE Security Camera

  • 5MP Super High Definition and 24h Full-Colour
  • Person/Vehicle/Pet Detection
  • Event Detection
  • Smart IR & Colour Night Vision Switch
  • Smart Video Enhancement Technology
  • Built-in Microphone
  • Easy Installation with PoE
  • IP67 Weatherproof and IK08 Vandal Proof
  • H.265+ Compression Technology

Build Features

TP-Link Omada 5MP Turret PoE Security Camera Feature 1

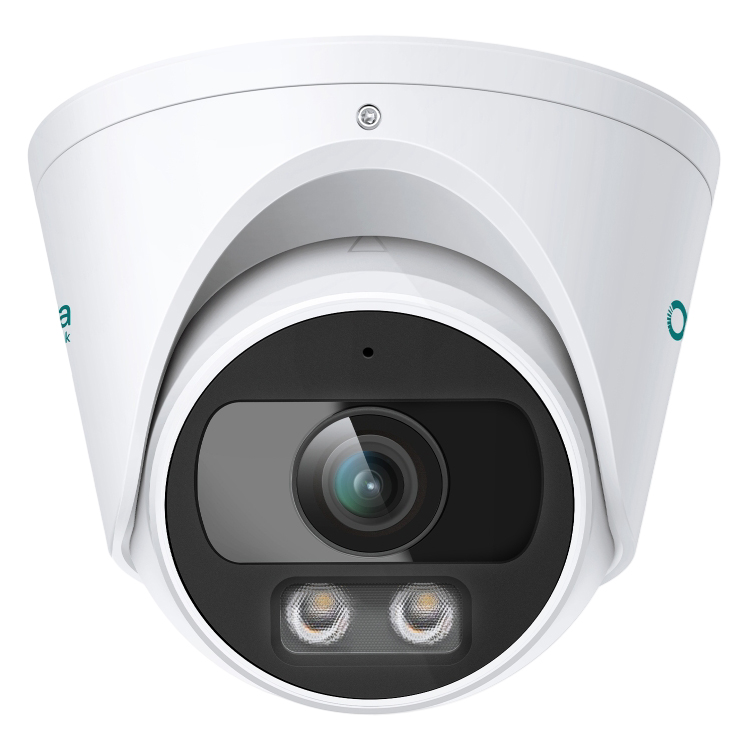

Front View

TP-Link Omada 5MP Turret PoE Security Camera Feature 2

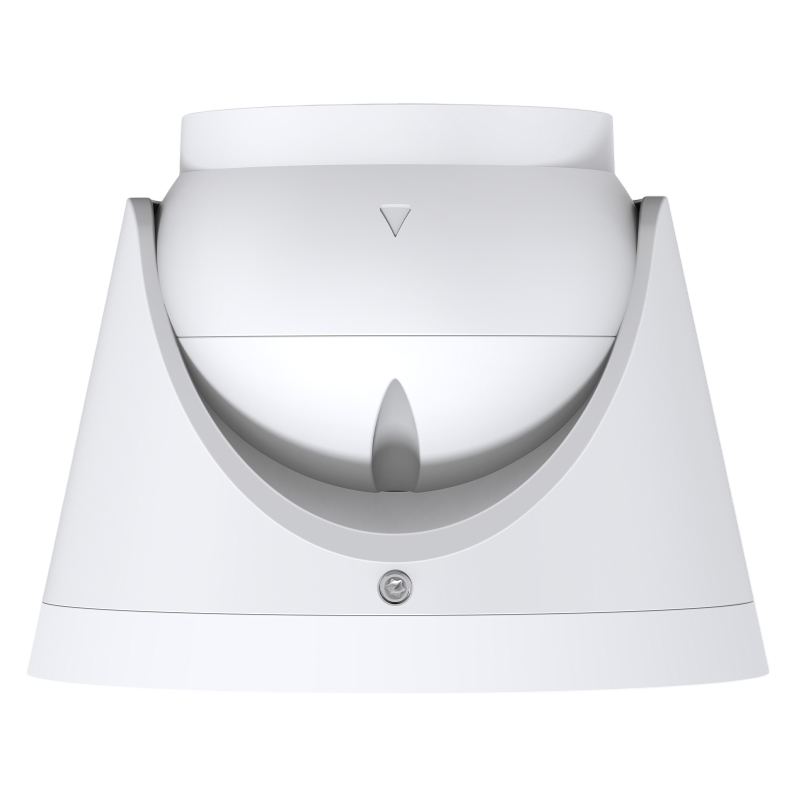

SIde View

Specifications

General Data

Model Number TL-OMADA-5MP-TURRET
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

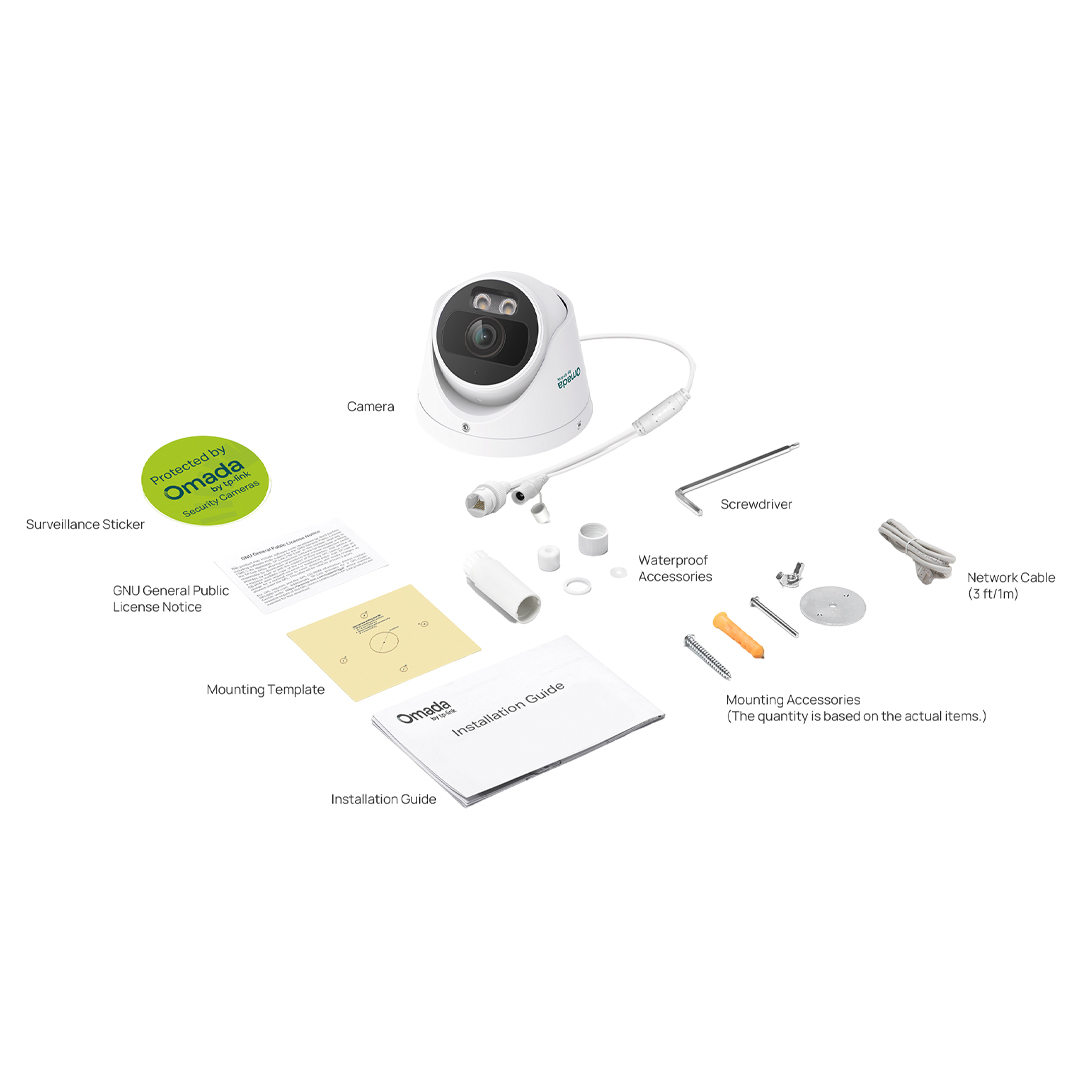

What's Included Omada Camera
Quick Start Guide
Waterproof Accessories
Mounting Accessories
Network Cable
Surveillance Sticker
Mounting Templates
Installation Guide
Material Metal
Net Weight 0.45 kg
Power Supply DC: 12V DC ±5%, Max. 7.4W, 5.5 mm Coaxial Power Plug
Recommended Power Supply: T120100-2C1 (for EU Regions)

PoE: IEEE 802.3af/at, Max. 8.7W
ErP Information Power Consumption in Networked Standby when All Wired Network Ports Are Connected and All Wireless Network Ports Are Activated: 2.2W
Protection IP67 Weatherproof, IK08 Vandal Proof
Product Dimensions (L x W x H) 112 × 112 × 87 mm (4.4 × 4.4 × 3.4 in)
Certifications CE, FCC, BSMI, VCCI, KC, NTRA, IP67, IK08

Camera

Image Sensor 1/2.65" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Auto

Lens

Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
Field of View (FOV) 4 mm:
Horizontal FOV: 92°
Vertical FOV: 48°
Diagonal FOV: 110°
Lens Mount M12*P 0.5
DORI Distance 4 mm
Detect: 262 ft (80 m)
Observe: 108 ft (33 m)
Recognise: 52 ft (16 m)
Identify: 26 ft (8 m)
Manual Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotation: 0° to 360°

Illuminator

Illuminator On/Off Control Auto / Always On / Always Off
Integrated Infrared-White LED Quantity: 2
IR Range: 98 ft (30 m)
White LED Range: 98 ft (30 m)
IR Wavelength: 850 nm

Video

Maximum Resolution 2880 x 1620
Main Stream 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720)
60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720)
Sub Stream 50Hz: 25fps (848x480, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: 30fps (848x480, 704x576, 640x480, 640x360, 352x288, 320x240)
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6144 Kbps
Sub Stream: 64 Kbps to 512 Kbps


Image Settings Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Image Enhancement BLC / 3D DNR / SmartIR
Wide Dynamic Range 120dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
OSD Setting Yes

Audio

Audio Input Yes (Built-in Microphone)
Audio Compression Yes
Audio Sampling Rate 8KHz, 16KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw, G.711 ulaw)

Network

Protocol TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF Yes
API Open Network Video Interface (Profile S/T)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client Web UI
Omada Guard APP
Omada Cloud-Based Controller (Guard)
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection
HTTPS Encryption
IP/MAC Restriction
Digest Authentication
802.1X Authentication

Alarm and Event Management

Event Motion Detection (People Detection, Vehicle Detection, Pet Detection)
Intrusion Detection
Line-Crossing Detection
Video Tampering Detection
Alarm Linkage Sending Email
Upload to FTP
Message Push

Interfaces

Network Interface 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Power DC Power Port
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Backed by a 3 year TP-Link warranty.
