TP-Link Omada 8MP Turret PoE Security Camera

TL-OMADA-8MP-TURRET | TP-Link
$179
ETA: 19/08/26 This item is expected to arrive into our warehouse around 19/08/26.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Omada 8MP Turret PoE Security Camera delivers detailed Ultra HD surveillance with full colour night vision, smart human, vehicle and pet detection, plus red and blue warning lights and a built-in siren for active deterrence. Featuring an all-metal IP67 and IK08-rated housing, H.265+ compression, two-way audio, flexible local storage and PoE support, the Omada 8MP Turret PoE Security Camera provides dependable security for a wide range of indoor and outdoor installations.

Features

Omada 8MP Turret PoE Security Camera

  • 4K (8MP) Ultra HD and Full-Colour Night Vision
  • Red & Blue Flashing Lights and Siren
  • Secure Remote Control via App
  • Human/Vehicle/Pet Detection
  • Flexible Local Storage
  • Smart IR & Colour Night Vision Switch
  • IP67 Weatherproof and IK08 Vandal Proof
  • All-Metal Housing
  • H.265+ Compression Technology

Build Features

TP-Link Omada 8MP Turret PoE Security Camera Feature 1

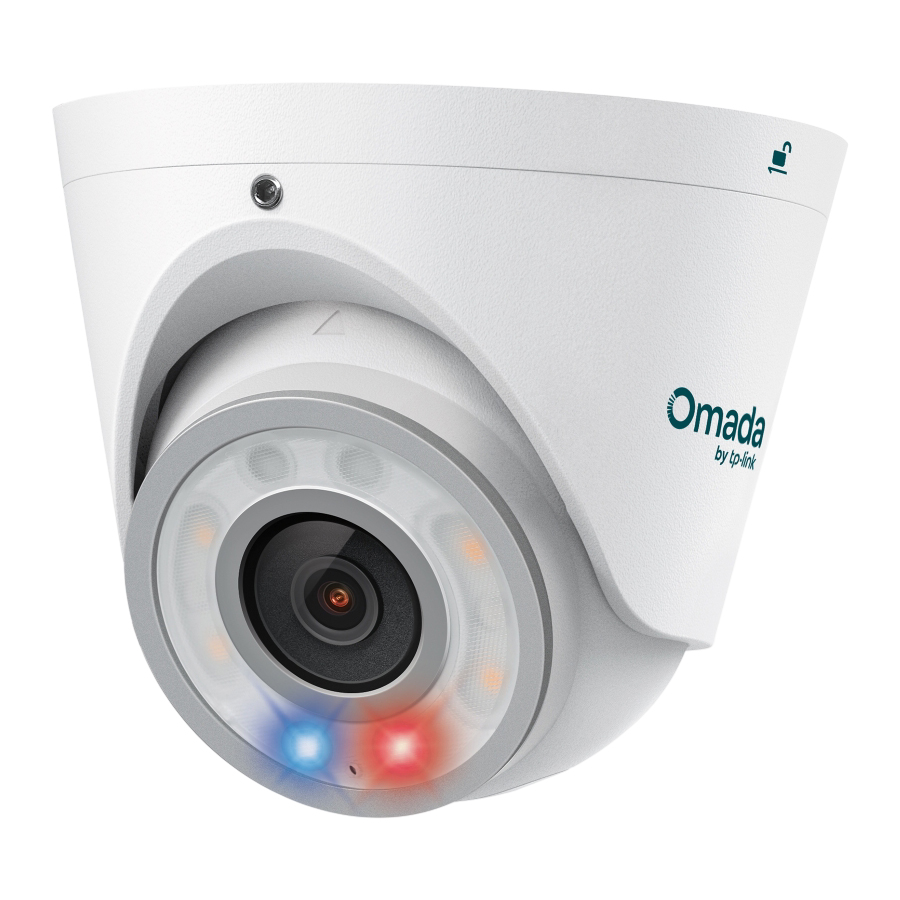

Front View

TP-Link Omada 8MP Turret PoE Security Camera Feature 2

Top View

*The microSD card and pole mounting kits are not included in the package.

TP-Link Omada 8MP Turret PoE Security Camera Feature 3

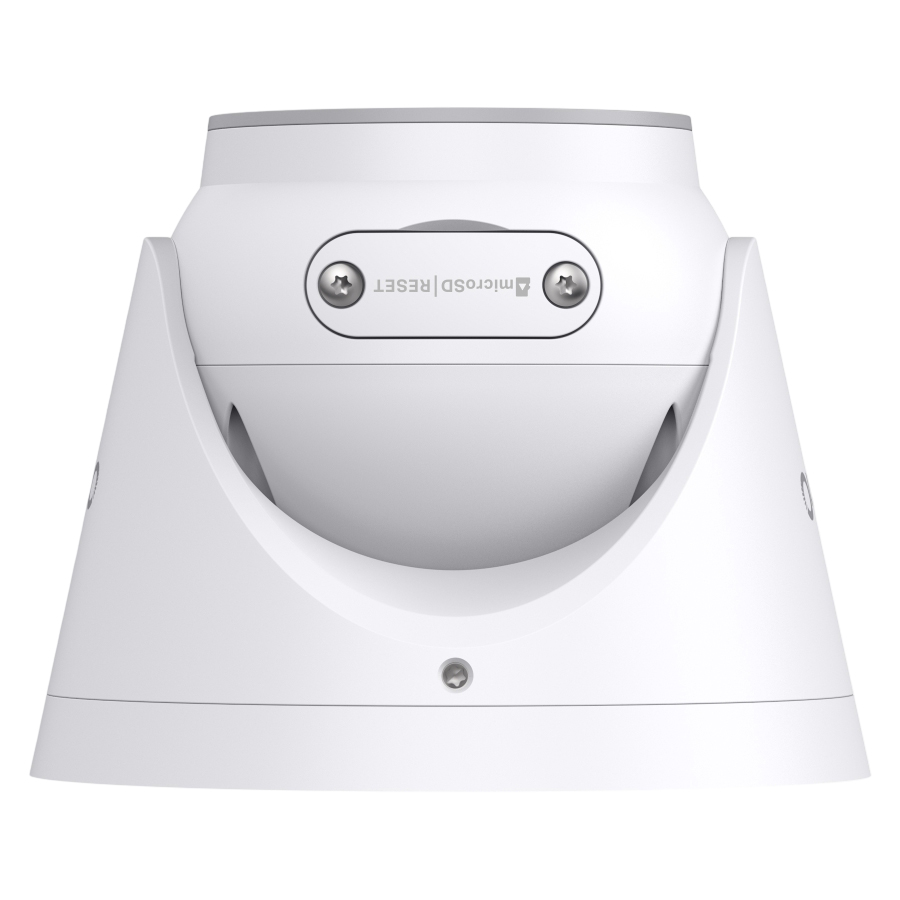

Back View

*The microSD card is not included in the package.

Specifications

General Data

Model Number TL-OMADA-8MP-TURRET
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

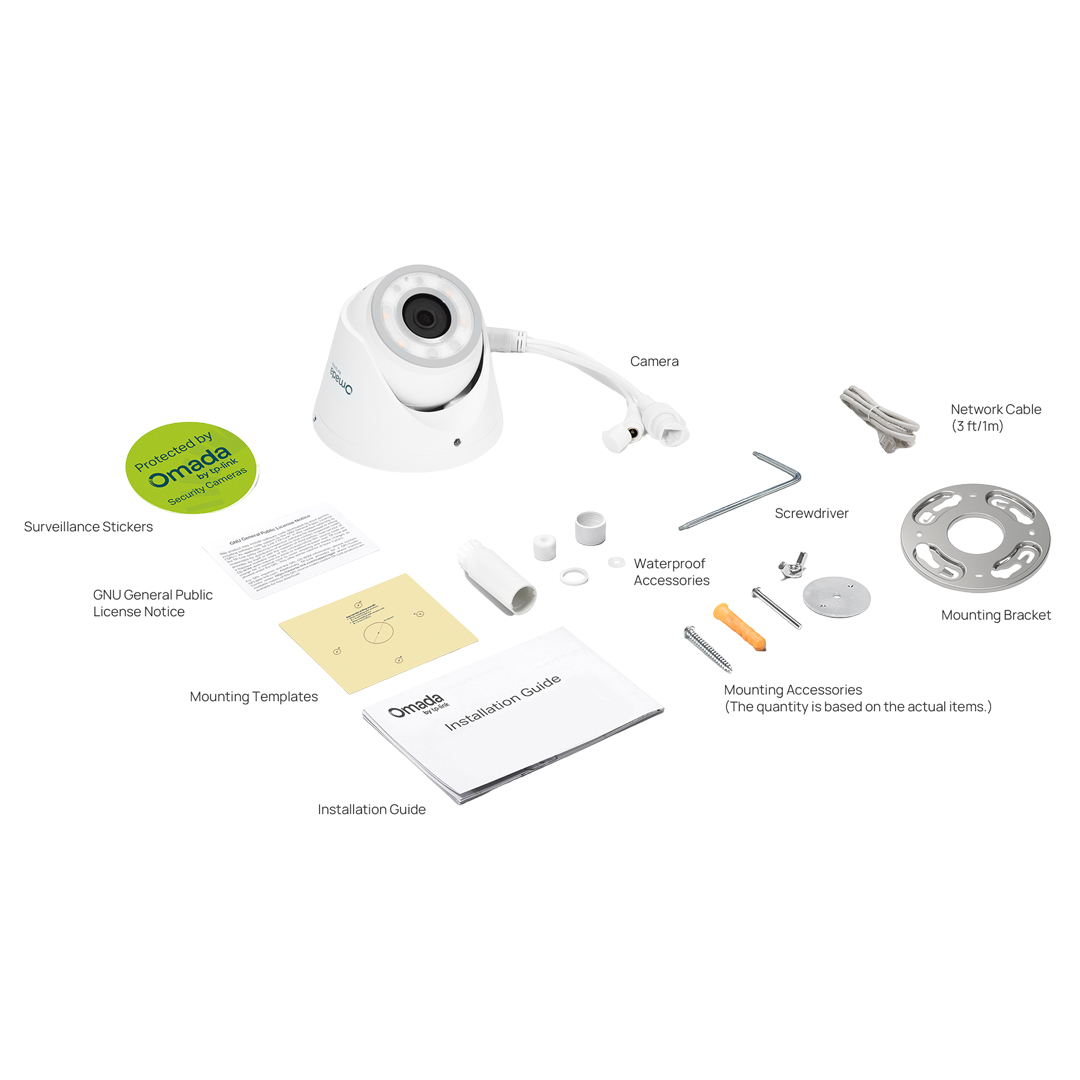

What's Included Omada Network Camera
Waterproof Cable Attachments
Network Cable (3 ft / 1 m)
Mounting Template
Mounting Accessories
Screwdriver
GNU General Public License Notice
Installation Guide
Surveillance Sticker
Material Metal
Net Weight 0.5 kg
Power Supply DC: 12V DC ±5%, Max. 12W, 5.5 mm Coaxial Power Plug
Recommended Power Supply: T120100-2C1 (for EU Regions)

PoE: IEEE 802.3af/at, Max. 12.5W
ErP Information Power Consumption in Networked Standby when All Wired Network Ports Are Connected and All Wireless Network Ports Are Activated: 2.7W
Protection IP67 Weatherproof
IK08 Vandal Proof
Product Dimensions (L x W x H) 112 x 112 x 88 mm (4.4 x 4.4 x 3.5 in)
Certifications CE, NTRA, FCC, IP67, IK08, VCCI, BSMI, ONVIF

Camera

Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Auto

Lens

Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
Field of View (FOV) Horizontal: 88.0°
Vertical: 46.0°
Diagonal: 105.4°
Lens Mount M12
DORI Distance Detection: 351 ft (107 m)
Observation: 144 ft (44 m)
Recognition: 69 ft (21 m)
Identification: 36 ft (11 m)
Manual Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotation: 0° to 360°

Illuminator

IR LED 4 LEDs
Range: 98 ft (30 m)
IR Wavelength: 850 nm
White LED 4 LEDs
Range: 98 ft (30 m)
Illuminator On/Off Control Auto / Always On / Always Off

Video

Maximum Resolution 3840 x 2160
Main Stream 50Hz: Up to 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080)
60Hz: Up to 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080)
Image Rotation at 90°/270°: Up to 20fps
120dB WDR Enabled: Up to 20fps
Sub Stream 50Hz: Up to 25fps (840x480, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: Up to 24fps (840x480, 704x576, 640x480, 640x360, 352x288, 320x240)
Image Rotation at 90°/270°: Up to 20fps
120dB WDR Enabled: Up to 20fps
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+, H.265, H.264+, H.264
Sub Stream: H.265, H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 8192 Kbps
Sub Stream: 64 Kbps to 1024 Kbps


Image Settings Mirror
Rotation
Contrast
Brightness
Saturation
Sharpness
Exposure
White Balance
Image Enhancement BLC / 3D DNR / SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
OSD Setting Yes

Audio

Audio Communication Two-Way Audio
Audio Input Yes (Built-in Microphone)
Audio Output Yes (Built-in Speaker)
Audio Compression Yes
Audio Sampling Rate 8KHz, 16KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw, G.711 ulaw)

Network

Protocols TCP/IP, UDP, ICMP, ARP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF Yes
API Open Network Video Interface (Profile G/S/T)
Simultaneous Live View 3 Main Streams & 10 Sub-Streams
Client Web UI
Omada Guard App
Omada Cloud-Based Controller (Guard)
Web Browser Google Chrome® 57 and Above
Firefox® 52 and Above
Safari® 11 and Above
Microsoft® Edge 91 and Above
Cloud Yes
Security Password Protection
HTTPS Encryption
IP/MAC Restriction
Digest Authentication
802.1X Authentication

Alarm and Event Management

Events Motion Detection (Human Detection, Vehicle Detection, Pet Detection)
Line Crossing Detection
Intrusion Detection
Camera Tampering
Alarm Linkage Memory Card Video Recording
Upload to FTP Server
Push Notifications
Active Defence – Sound Alarm
Active Defence – Light Alarm
Email Alarm

Interfaces

Network Interface 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Reset Button Yes
Power DC Power Port
On-board Storage Built-in Memory Card Slot, Supports MicroSD Card up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 16.4 ft (5 m) Radius of the Camera
Built-in Speaker Yes
Backed by a 3 year TP-Link warranty.
