The ARCTIC BioniX P14 A-RGB fan is a high performance 140mm PWM fan designed to deliver strong cooling performance with vibrant A-RGB lighting and a streamlined cable free modular connection system. Easy-to-use bridge modules allow BioniX fans to connect directly together, combining fan-to-fan power and A-RGB connections through a thin bridge for reduced cable clutter and cleaner builds, while the reversible modules make installation simple and flexible. Designed for high static pressure and airflow comparable to the P14 Pro, the fan is optimised for liquid cooling and radiator applications, operating from 400 to 2500 RPM and delivering up to 110 CFM airflow with 5.4 mmH2O static pressure. A Fluid Dynamic Bearing with an extended shaft provides smooth, quiet and vibration-free operation, while the integrated SOTA microcontroller helps reduce motor noise, balance load fluctuations and protect against inrush currents and reverse polarity. The 16 LED A-RGB array and refreshed frame design with edge light slits provide vibrant illumination from multiple angles, with SignalRGB compatibility for customised lighting effects and fan-curve settings. The BioniX P14 A-RGB uses a 4-pin PWM connector and 3-pin 5V A-RGB connector.
Features
BioniX P14 A-RGB - 140 mm PWM Fan with Daisy Chain
Seamless Connectivity. Zero Clutter.
Snap the fans together with easy-to-use bridge modules for a cable-free connection.
Vibrant Lighting. Vivid A-RGB.
Illuminate your system from every angle with Arctic's premium 16-LED array and new frame design featuring edge light slits.
Pro-Tier Performance. Zero Compromise.
Experience powerful cooling and high static pressure. The perfect choice for your radiators.
Cable-Free Modular Assembly

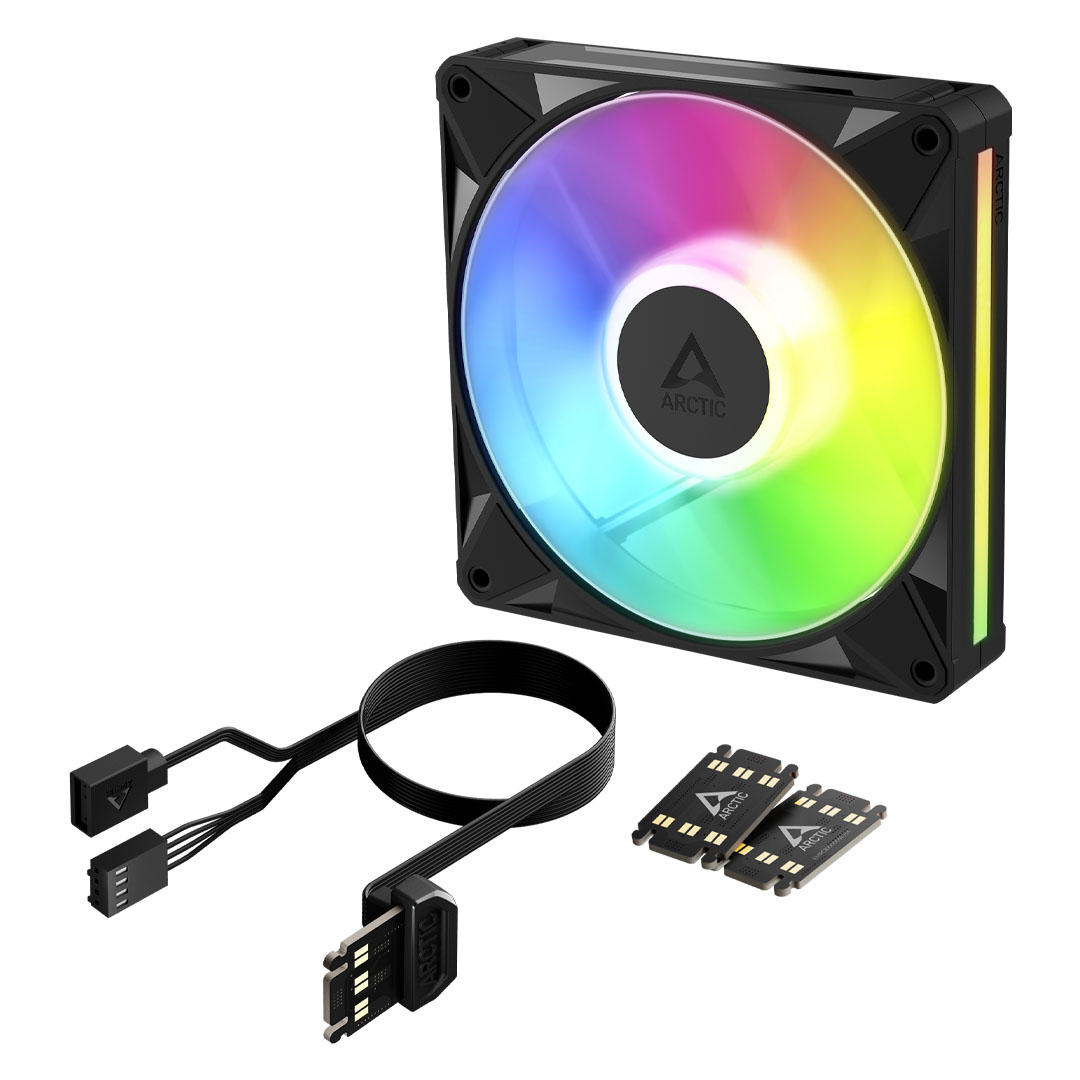

Connect-and-Cool with the Bridge Module
Eliminate cable clutter by unifying fan-to-fan power and A-RGB with just a thin, elegant card that connects BioniX fans together.
Reversible Modules for Hassle-Free Building
Plug it in whichever way you hold the reversible modules, removing the guesswork from your installation.
Perfect Alignment, Every Time
Simply follow the arrows to lock your fans into place for a secure, uniform look that stays perfectly aligned.
Multi-Array Connectivity
Exclusive to the 3-Pack, the Bridge Cable allows separate arrays of BioniX fans to connect across different zones while reducing clutter compared to traditional daisy-chaining.
Illuminate Your Build from Every Angle
The BioniX floods your interior with vibrant light, powered by 16 LEDs and a refreshed fan frame. With unique dual-sided accents, you get a smoother glow that flows with every rotation.
- 16x Premium A-RGB LEDs - For Ultra-Smooth Glow Effects

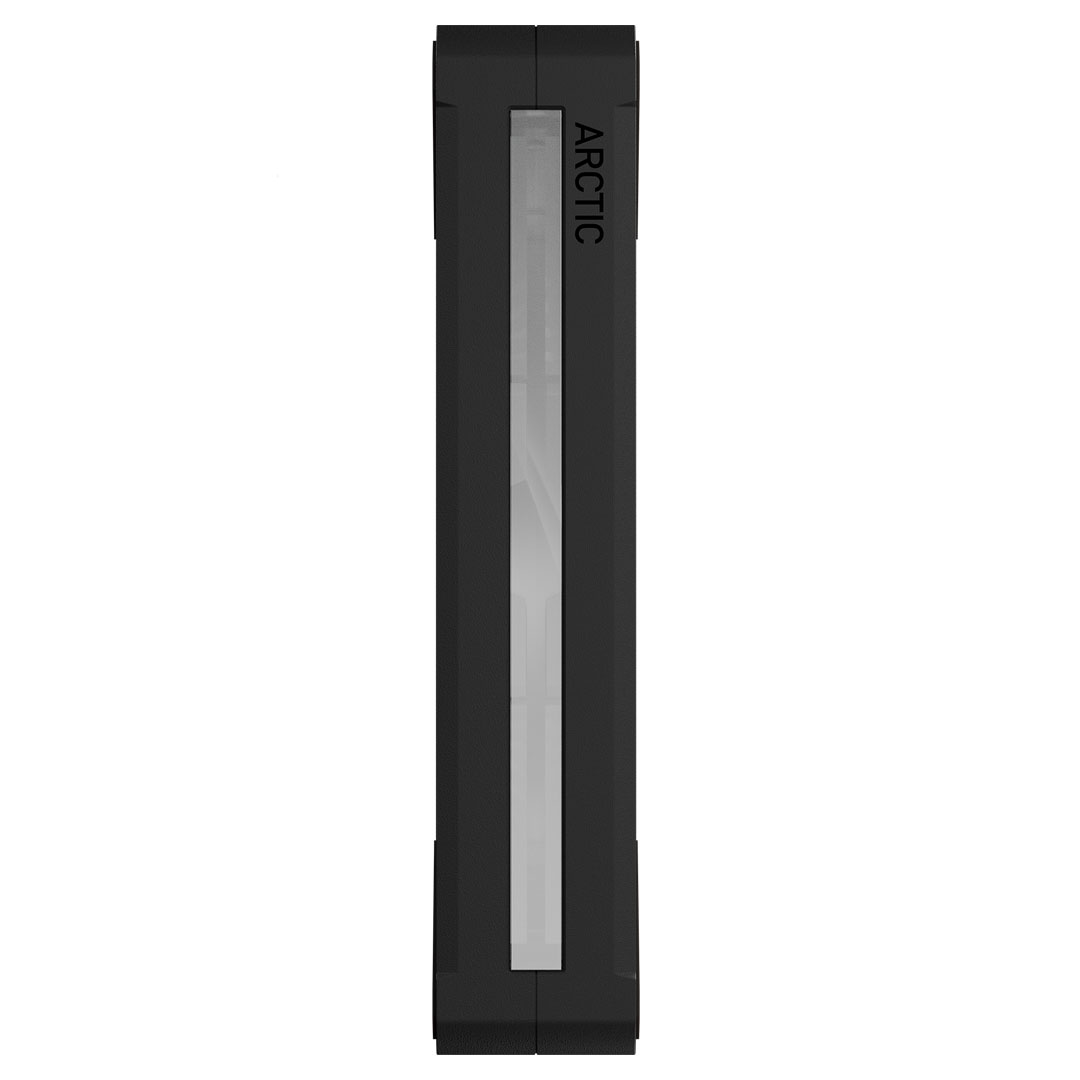

- Translucent Side Panel - For Enhanced Aesthetics
Unmatched Engineering, Inside and Out
Delivering high static pressure and airflow comparable to the P14 Pro, the BioniX P14 A-RGB is optimised for liquid cooling while eliminating cable clutter with its unique bridge design.
- Fan Speed 450–2500 rpm
- Bearing Fluid Dynamic Bearing
- Static Pressure 5.4 mm H2O
- Airflow 110 cfm | 186 m³/h
Test: AMD Validation Tool -Thermal Characteristic Tool - Boost Mode Test - Ambient Temperature: 24 ℃.
Smooth Fluid Dynamic Bearings
Fluid dynamic bearings with an extended shaft ensure quiet, vibration-free operation by optimising pressure distribution.
SOTA Microcontroller
Reduces motor noise, balances load fluctuations, and provides essential protection against inrush currents and reverse polarity.
Optimised Gap Dimensions
Precision gap dimensions enable higher static pressure and peak airflow efficiency.
Compatible with SignalRGB
Simplify your setup by syncing your fans and A-RGB lighting across all your devices in one place.
Sync Your Fans with Ease
Manage your lighting easily with integrated profiles for BioniX P14 A-RGB and other ARCTIC products.
Limitless Creative Control
Use SignalRGB to access complex A-RGB effects and custom settings for a fully personalised PC build.
Smarter Fan Behaviour
Achieve the perfect balance of cooling power and silence with customisable fan-curve settings.
Backed by a 6 year Arctic warranty.
