The Arctic BioniX P12 A-RGB fan is a high-performance 120mm PWM fan designed for efficient PC cooling, combining high static pressure with vibrant A-RGB lighting and a cable free modular connection system. Easy-to-use bridge modules allow multiple BioniX fans to connect directly together, unifying fan power and A-RGB connections while reducing cable clutter and maintaining clean, consistent alignment. Optimised for liquid cooling and radiator applications, the fan operates from 450 to 3000 RPM, delivering up to 76 CFM airflow and 6.7 mmH2O static pressure, with a Fluid Dynamic Bearing providing smooth, quiet and vibration-free operation. A premium 16 LED A-RGB array and illuminated frame accents create vibrant lighting from multiple angles, while SignalRGB compatibility enables customised lighting effects and fan control. The BioniX P12 A-RGB uses a 4-pin PWM connector for fan control and a 3-pin 5V A-RGB connector for lighting.
Features
BioniX P12 A-RGB - 120 mm PWM Fan with Daisy Chain
Seamless Connectivity. Zero Clutter.
Snap the fans together with easy-to-use bridge modules for a cable-free connection.
Vibrant Lighting. Vivid A-RGB.
Illuminate your system from every angle with Arctic's premium 16-LED array and new frame design featuring edge light slits.
Pro-Tier Performance. Zero Compromise.
Experience powerful cooling and high static pressure. The perfect choice for your radiators.

Cable-Free Modular Assembly

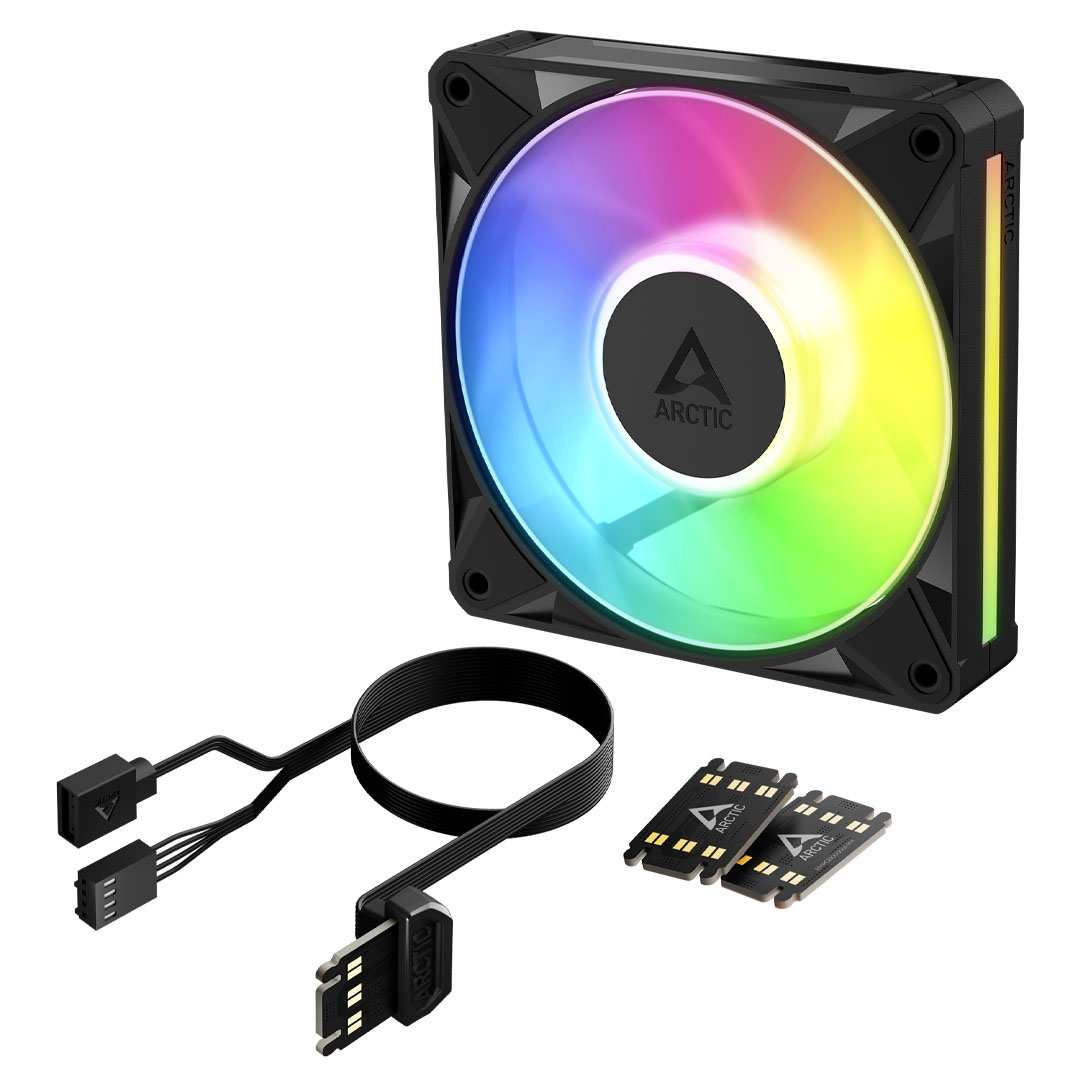

Connect-and-Cool with the Bridge Module
Eliminate cable clutter by unifying fan-to-fan power and A-RGB with just a thin, elegant card that connects BioniX fans together.

Reversible Modules for Hassle-Free Building
Plug it in whichever way you hold the reversible modules, removing the guesswork from your installation.

Perfect Alignment, Every Time
Simply follow the arrows to lock your fans into place for a secure, uniform look that stays perfectly aligned.

Multi-Array Connectivity
Exclusive to the 3-Pack, the Bridge Cable allows separate arrays of BioniX fans to connect across different zones while reducing clutter compared to traditional daisy-chaining.

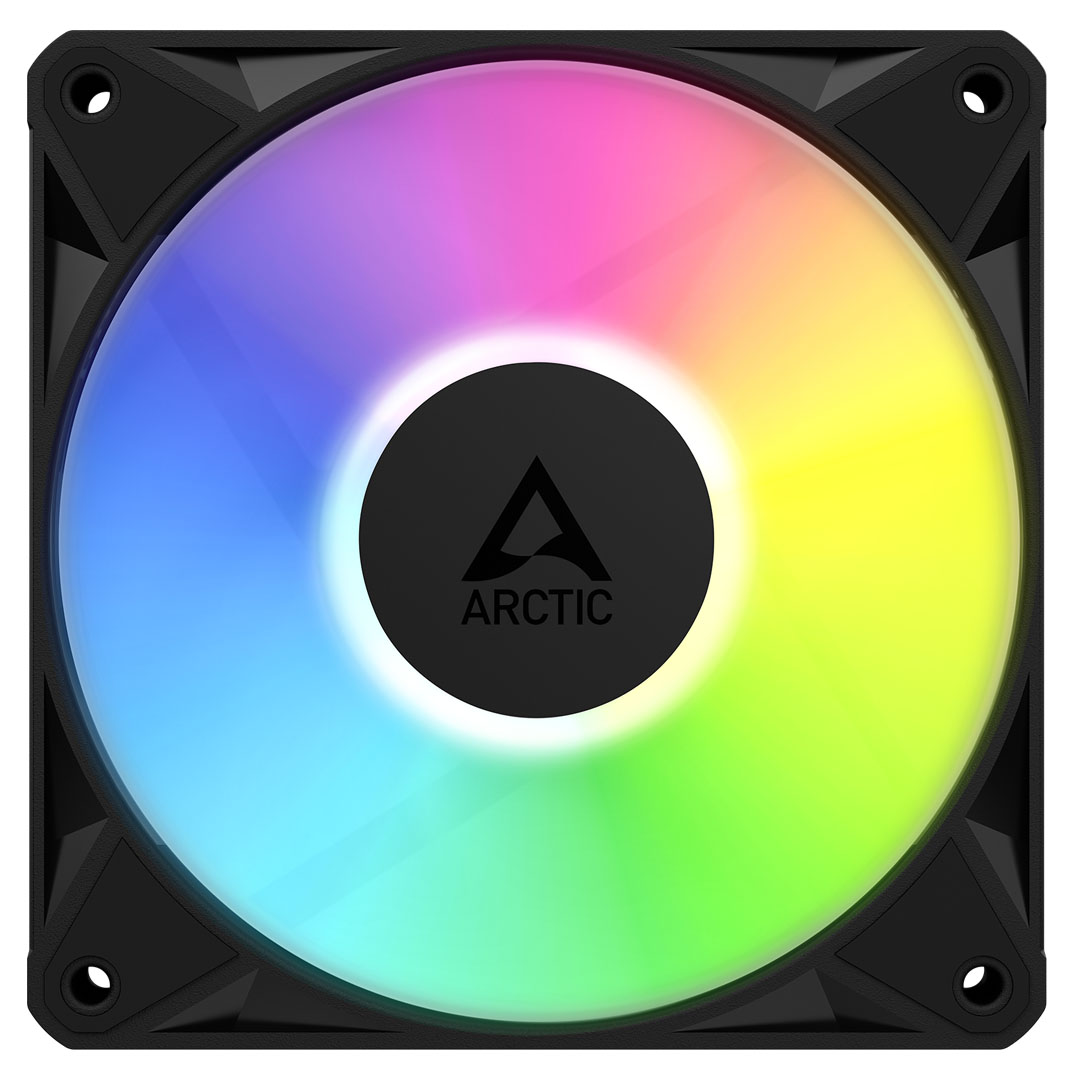

Illuminate Your Build from Every Angle
The BioniX floods your interior with vibrant light, powered by 16 LEDs and a refreshed fan frame. With unique dual-sided accents, you get a smoother glow that flows with every rotation.
- 16x Premium A-RGB LEDs - For Ultra-Smooth Glow Effects

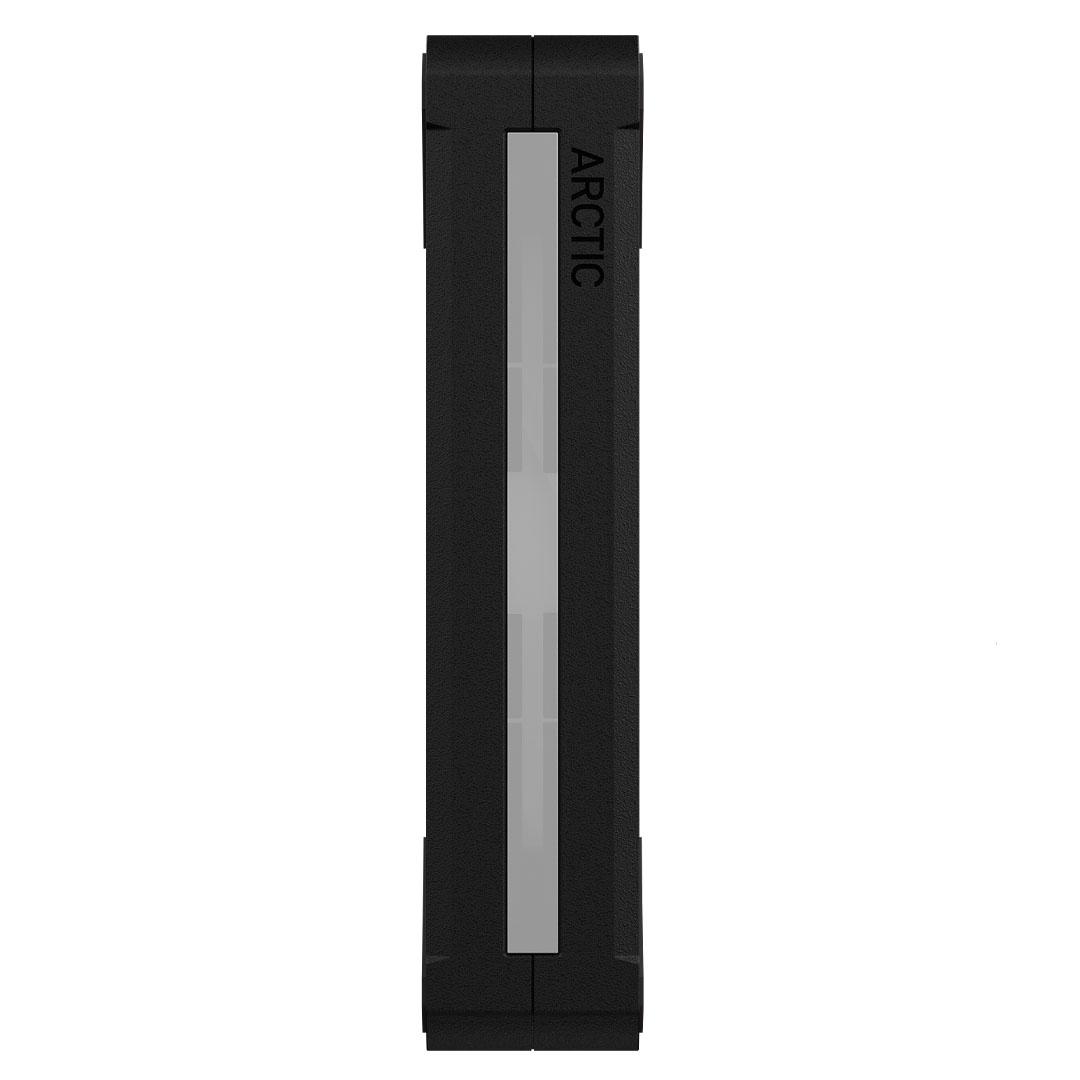

- Translucent Side Panel - For Enhanced Aesthetics
Unmatched Engineering, Inside and Out
Delivering high static pressure and airflow comparable to the P12 Pro, the BioniX P12 A-RGB is optimised for liquid cooling while eliminating cable clutter with its unique bridge design.
- Fan Speed 450–3000 rpm
- Bearing Fluid Dynamic Bearing
- Static Pressure 6.7 mm H2O
- Airflow76 cfm | 129 m³/h
Test: AMD Validation Tool -Thermal Characteristic Tool - Boost Mode Test - Ambient Temperature: 24 C.

Smooth Fluid Dynamic Bearings
Fluid dynamic bearings with an extended shaft ensure quiet, vibration-free operation by optimising pressure distribution.

SOTA Microcontroller
Reduces motor noise, balances load fluctuations, and provides essential protection against inrush currents and reverse polarity.

Optimised Gap Dimensions
Precision gap dimensions enable higher static pressure and peak airflow efficiency.
Compatible with SignalRGB
Simplify your setup by syncing your fans and A-RGB lighting across all your devices in one place.
Sync Your Fans with Ease
Manage your lighting easily with integrated profiles for BioniX P12 A-RGB and other ARCTIC products.
Limitless Creative Control
Use SignalRGB to access complex A-RGB effects and custom settings for a fully personalised PC build.
Smarter Fan Behaviour
Achieve the perfect balance of cooling power and silence with customisable fan-curve settings.
Backed by a 6 year Arctic warranty.
