Ubiquiti UniFi 5G Max Modem

U5G-MAX | Ubiquiti
$819
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi 5G Max Modem delivers high speed 5G connectivity with peak download speeds up to 3.4Gbps, providing reliable primary or failover internet for UniFi deployments. Featuring dual Nano SIM and eSIM support, a 2.5GbE RJ45 port, PoE power, a 1.3 inch touchscreen and flexible desktop, wall or window mounting options, the UniFi 5G Max Modem enables fast deployment and seamless network integration.



Features

Ubiquiti UniFi 5G Max Modem Feature 1

UniFi 5G Max

A high-performance 5G (3.4 Gbps) modem for any UniFi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover. Certified with AT&T, T-Mobile (T-Mobile Home Internet SIMs aren't supported. Data-only plan required.) (Verizon (Verizon is not supported at this time. Direct SIM/eSIM activation is expected in a future update.) coming soon).

Ubiquiti UniFi 5G Max Modem Feature 2

Deployment

Build Features

Ubiquiti UniFi 5G Max Modem Feature 3

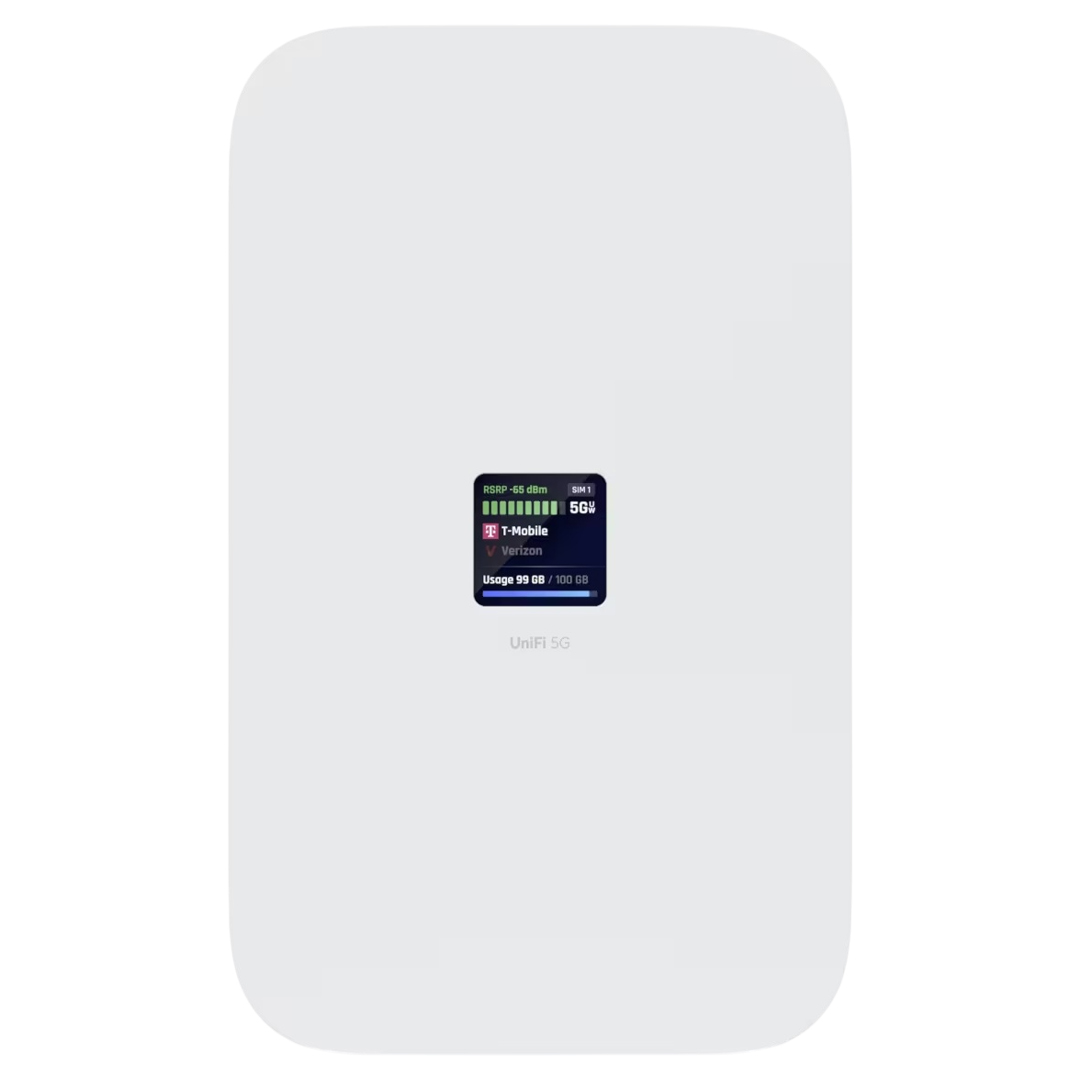

Front View

Ubiquiti UniFi 5G Max Modem Feature 4

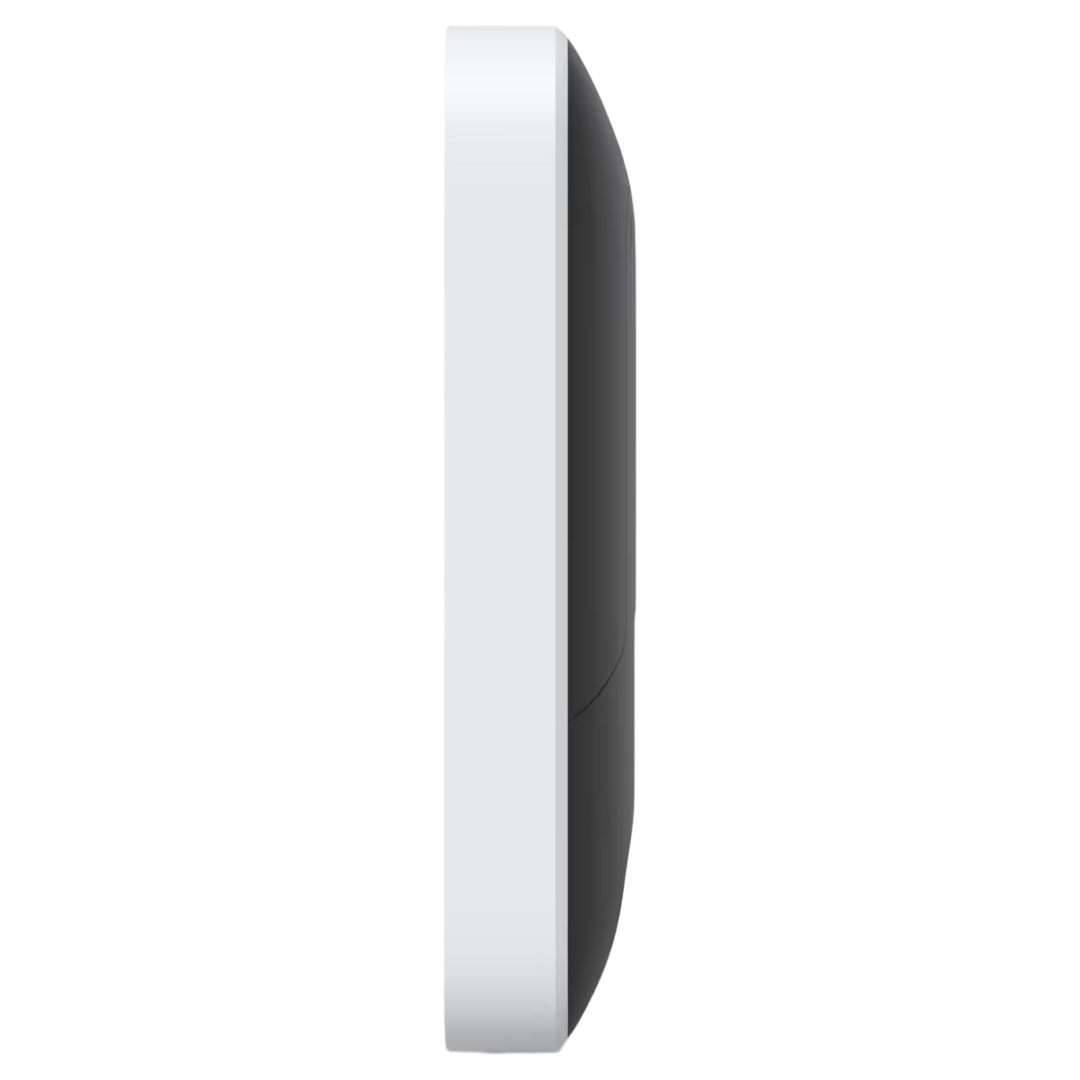

Side View

Ubiquiti UniFi 5G Max Modem Feature 5

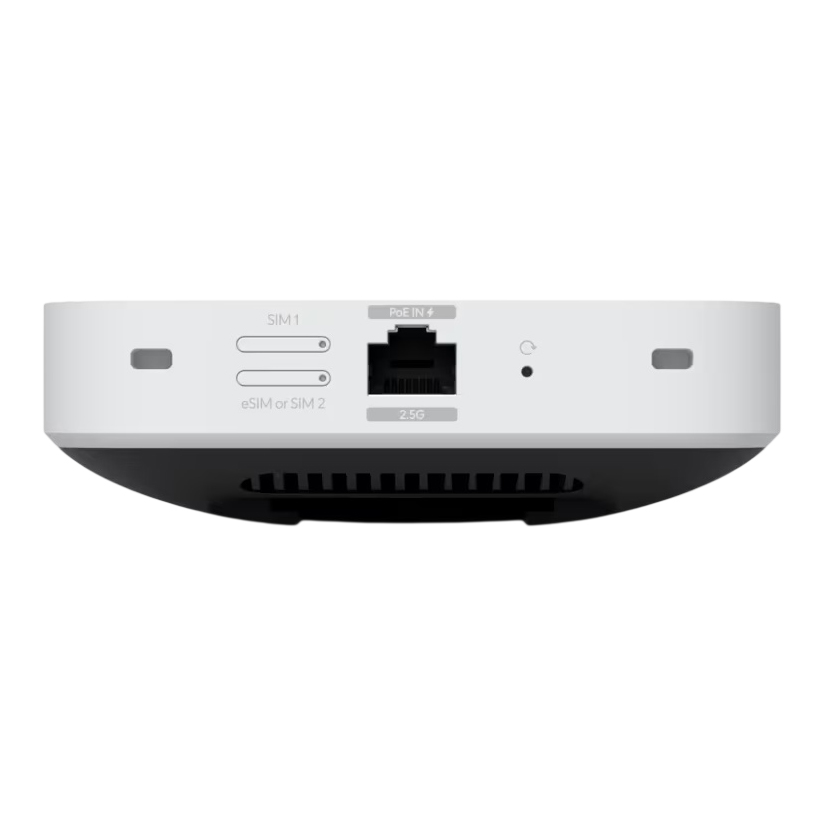

Bottom View

Note. Nano-SIM 2 cannot be used when an eSIM is active.

Specifications

General Data

Model Number U5G-MAX
Dimensions 180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
Networking Interface (1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM (1) Nano SIM
(1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active.)
PoE Interface (1) PoE input

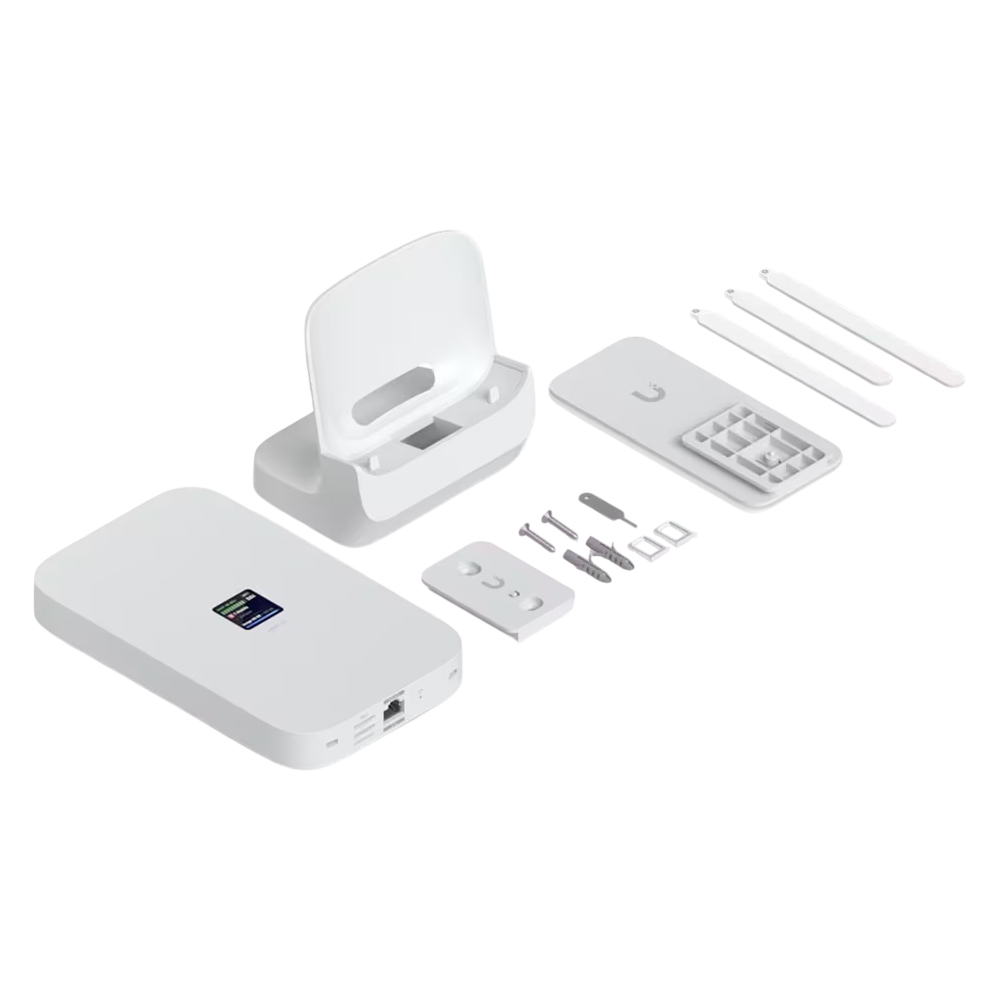

Mounting Desktop stand, wall, window mount (Included)
Tamper Resistance IK04

Mechanical

Weight Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz)
Wall mount: 7.6 g (0.3 oz)
Window mount: 20 g (0.7 oz)
Enclosure Material Polycarbonate, aluminium alloy
Mount Material Polycarbonate, silicone rubber

Hardware

Management Ethernet
5G NR Category: 5G NR
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm
4G LTE Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm
3G UMTS Frequency Bands: B1, B2, B4, B5, B8, B19
Peak Data Speed 5G NSA: Downlink 3.4 Gbps, Uplink 560 Mbps (Speed depends on network coverage and performance at the device location)
5G SA: Downlink 1.8 Gbps, Uplink 650 Mbps
4G LTE: Downlink 1.6 Gbps, Uplink 210 Mbps
Antennas Type: (4) Embedded cellular antennas
Max. Power Consumption 14.5W
Power Method PoE
Display 1.3" touchscreen
Buttons (1) Factory reset
Ambient Operating Temperature 0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile

Software

Application Requirements UniFi Network: Version 10.0.162 and later (An alternative internet connection (e.g.. standard ISP or WAN) is required to update UniFi consoles and Cloud Gateways before U5G-Max adoption.)
Backed by a 1 year Ubiquiti warranty.
