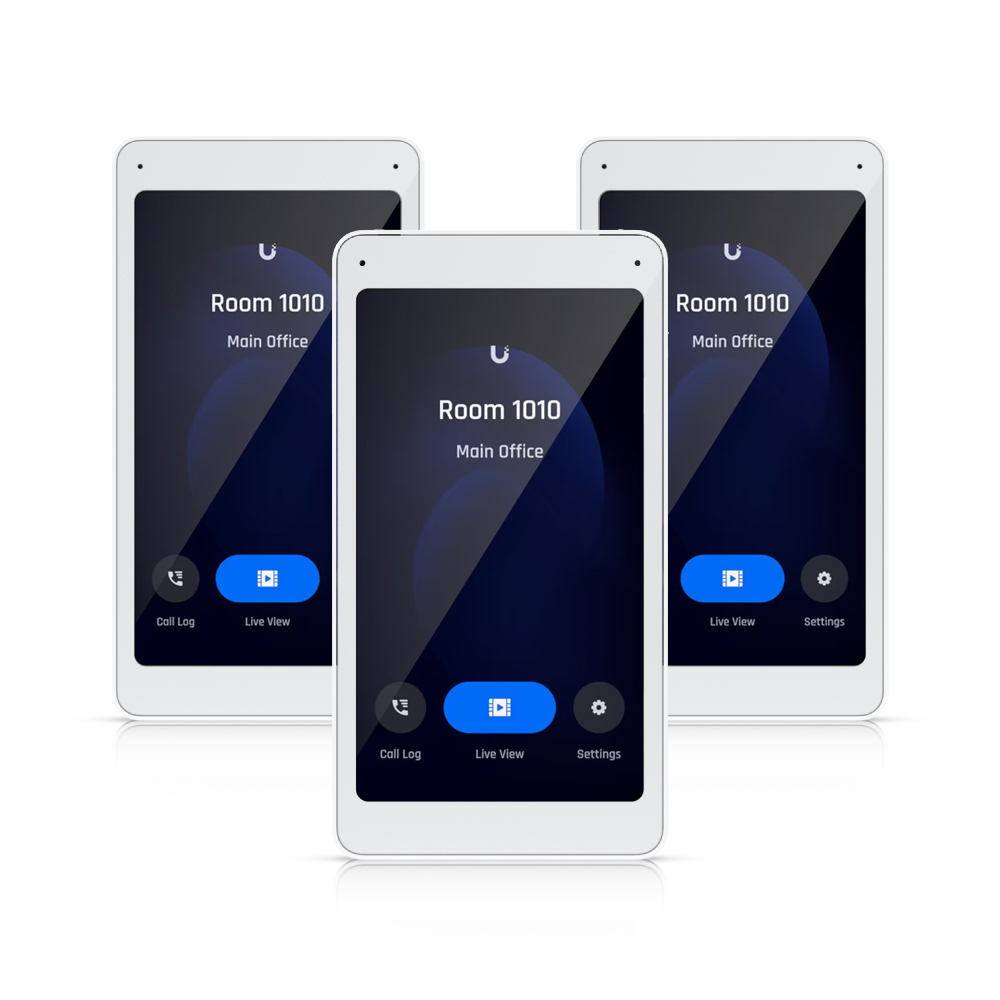

The Ubiquiti UniFi Intercom Viewer with 3 Devices (UA-INTERCOM-VIEWER-3) features three 5-inch touchscreen displays that integrate with the UniFi Intercom and Reader Pro for seamless visitor screening and remote access control for environments that require a multi-access set-up. It supports two-way audio communication, instant live video feed, and is powered via Power over Ethernet (PoE) for easy installation. This device is designed to be wall mounted and is suitable for both residential and commercial environments.
Features
Intercom Viewer
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Compatibility: UA-Intercom, UA-G3-Pro, UA-G2-Pro
Deployment
Build Features
Front View
Back View
Side View
Specifications
General Data
| Model Number |
UA-INTERCOM-VIEWER-3 |
| Dimensions |
135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Mobile Unlock |
Yes |
| NDAA Compliant |
Yes |
| UL 294 Level |
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I |
| Warranty |
1 Year |
Mechanical
| Weight per Device |
168 g (5.9 oz) |
| Enclosure Material |
Glass, polycarbonate |
| Mount Material |
Aluminium alloy |
| Mounting |
Wall (Included)
Gang box mount (Optional) |
Hardware
| Indoor and Outdoor Use |
Indoor only |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Networking Interface |
(1) 10/100 Mbps RJ45 port |
| Connectivity |
Ethernet |
| Power Method |
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption |
5 W |
| Supported Voltage Range |
44—57 V DC |
| Display |
127 mm (5") diagonal |
| Touch Screen Technology |
Capacitive multi-touch |
| Display Luminance |
300 nits (Typical) |
| Screen Orientation |
Portrait |
| Resolution |
1280 x 720 px |
| Microphone |
Yes |
| Speaker |
Yes |
| Buttons |
(1) Factory-reset |
| PoE Cabling Requirements |
Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. |
| UL 294 Statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade |
Grade assignment: I |
| Certifications |
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number, And Issue Date And/Or Revision Level |
UA-Intercom-Viewer, V01 |
Software
| Management Application |
Access |
Backed by a 1 year Ubiquiti warranty.
