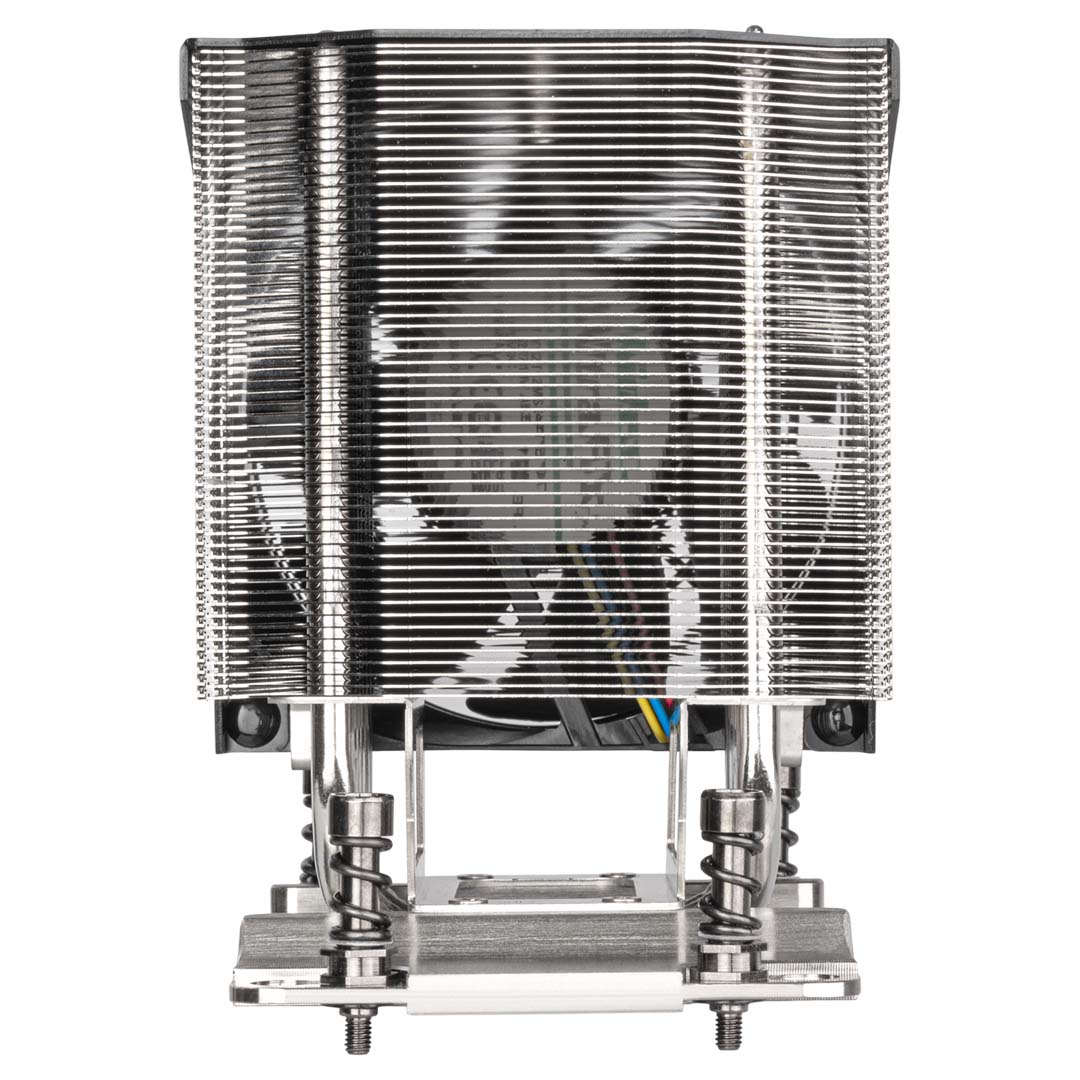

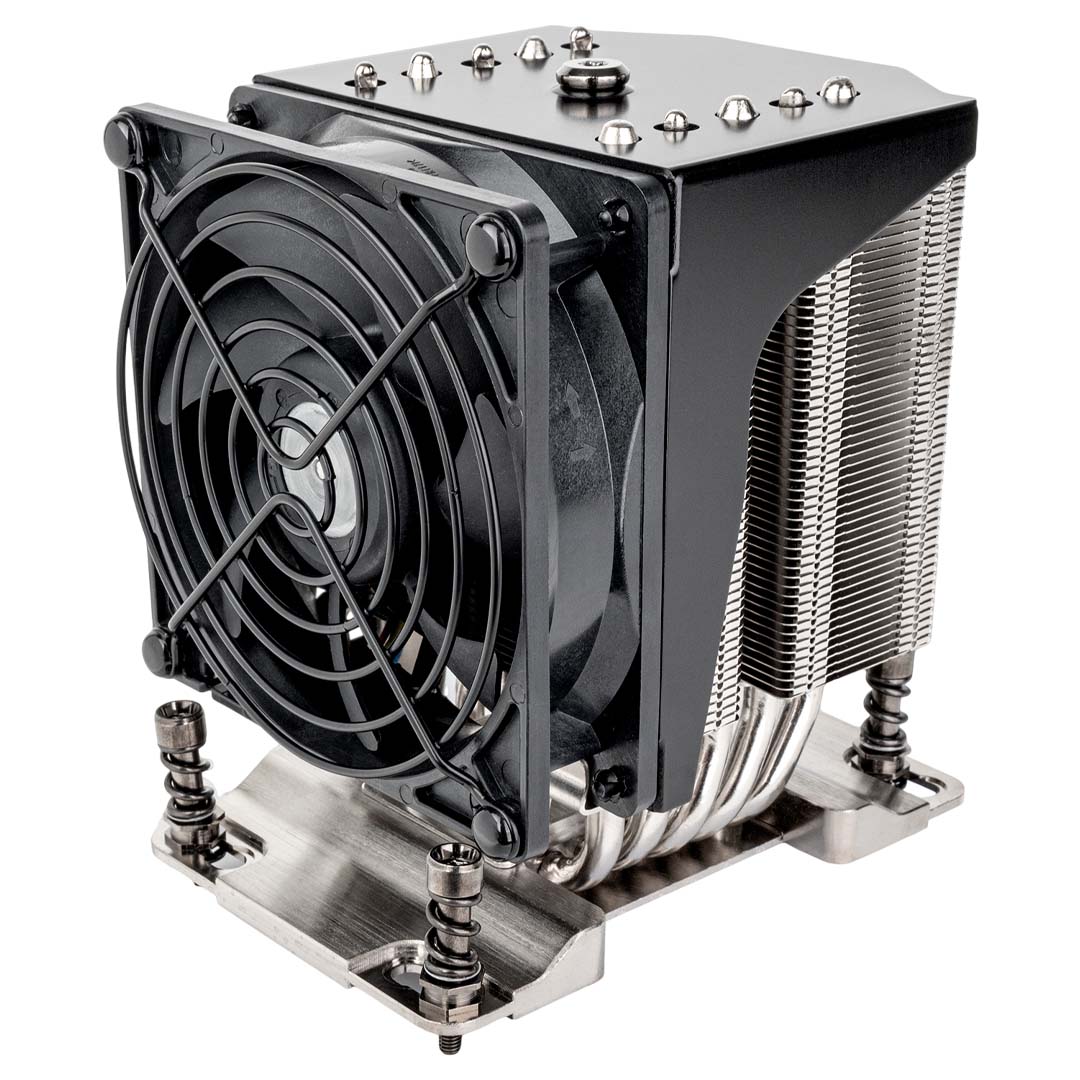

The SilverStone XE04-SP3B 4U CPU cooler is designed for 4U servers and workstations, featuring five 6mm copper heat pipes, aluminium fins, and support for AMD SP6, SP3, and TR4 socket processors. A 92mm PWM dual ball bearing fan provides airflow up to 54 CFM for reliable cooling performance in demanding professional systems.
Features
4U Form Factor Server/Workstation Small Form Factor CPU Cooler for AMD SP6/SP3/TR4 Sockets

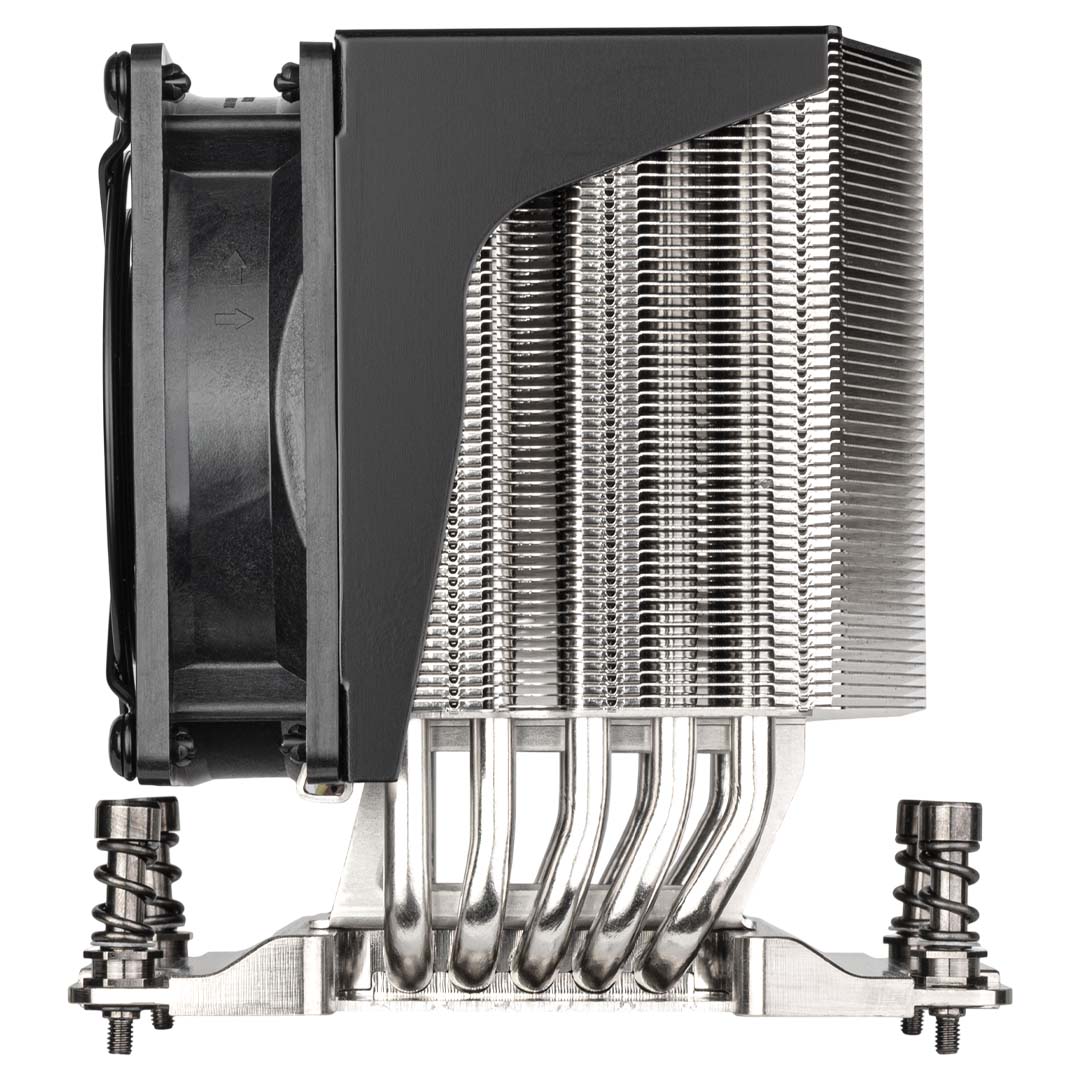

- Five Ø6mm heat-pipe with aluminium fins for excellent heat conducting efficiency

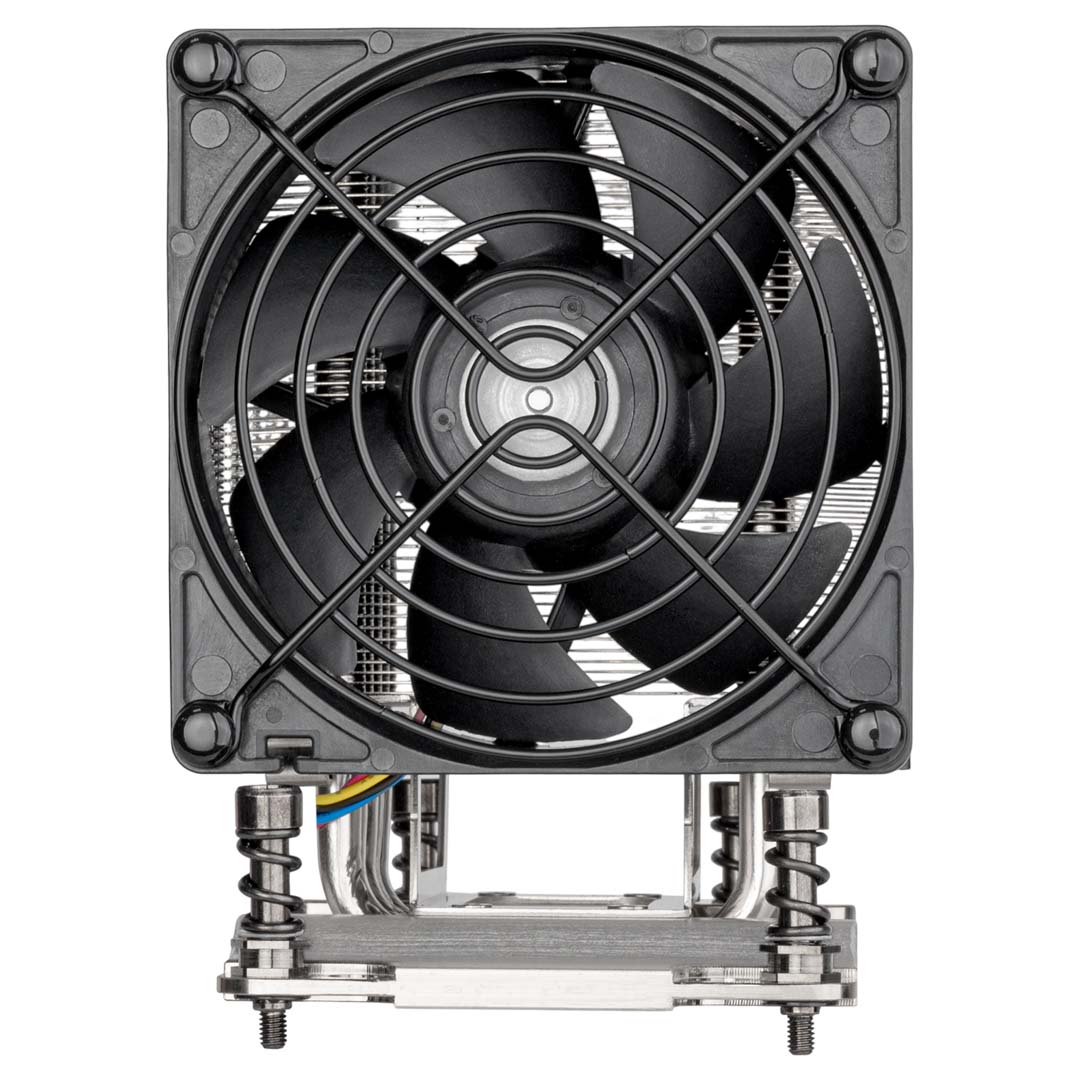

- 92mm PWM dual ball bearing fan
- Compatible with AMD SP6/SP3/TR4 sockets
Dimensions
* To use on CPUs with TDP greater than 250W, a case with efficient airflow is required.
Specifications
General Data
| Model No. |
SST-XE04-SP3B |
| Colour |
Black+Black |
| Material |
Copper heat pipes with aluminium fins |
| Application |
AMD Socket SP6/SP3/TR4 |
| CPU TDP |
250W* |
| Dimension |
93mm (W) x 126mm (H) x 119mm (D)
3.66" (W) x 4.96" (H) x 4.69" (D) |
| Net Weight |
750g |
Fan
| Dimension |
92mm (W) x 25mm (H) x 92mm (D)
3.62" (W) x 0.98" (H) x 3.62" (D) |
| Speed |
1300 ~ 3800 RPM |
| Noise Level |
38 dBA at Full Speed |
| Rated Current |
0.385A |
| Max Airflow |
54 CFM |
| Max Air Pressure |
6.8mmH2O |
| Connector |
4 pin PWM |
| Bearing |
Dual ball bearing |
| MTTF |
100,000 hours |
Backed by a 1 year SilverStone warranty.
