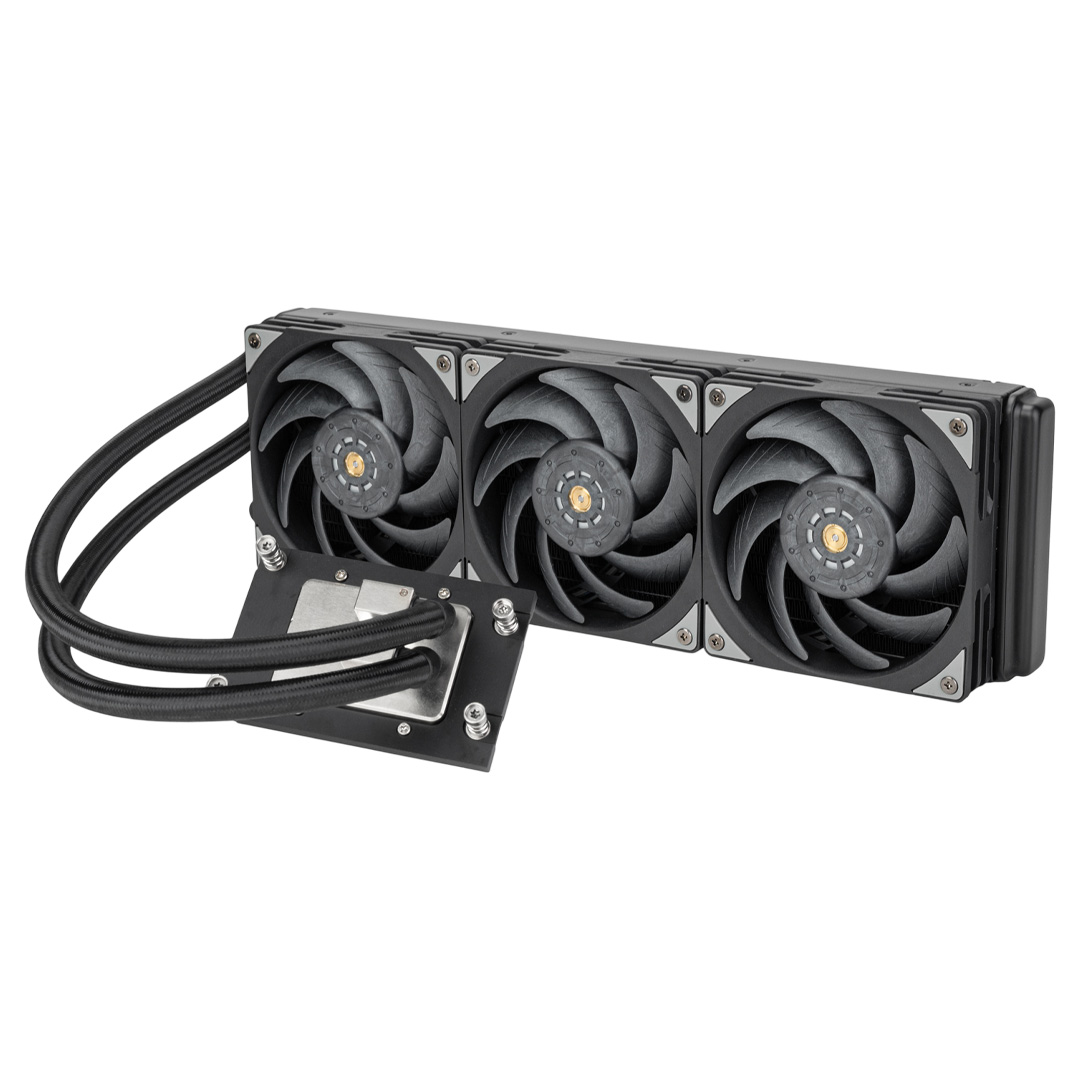

The SilverStone XE360-TR5 V2 360mm AIO Liquid CPU Cooler is purpose built for AMD Socket sTR5/SP6 platforms, featuring a nickel-plated copper water block with a large micro-channel base for efficient cooling of Ryzen Threadripper processors. The radiator includes an integrated three phase, six pole motor assisting in lower noise and three 120mm FHL120 industrial fans with liquid crystal polymer blades provide strong airflow, reliable cooling performance, and PWM fan speeds ranging from 800 to 3,000 RPM.
Features
High Performance Triple 120mm All-in-One Liquid Cooler for AMD Socket sTR5/SP6
- Nickel plated copper water block with large-sized micro-channel copper base plate
- Water pump integrated within the radiator
- Includes 3 x FHL120 120mm high-performance industrial fans with Liquid Crystal Polymer (LCP) blades
- Aluminium alloy cavity pump strengthens the overall structure
- Three phase, six pole motor design
Designed Specifically for AMD sTR5/SP6 Socket
Optimum Cooling Guaranteed!
The water block is constructed with nickel-plated copper, incorporated with a copper base active cooling surface to ensure full coverage of process cores on Zen 4-based Ryzen Threadripper 9000 series CPUs.
Unique Pump Placement
A three phase, six pole motor integrated within the radiator to reduce the pumps overall output noise level.

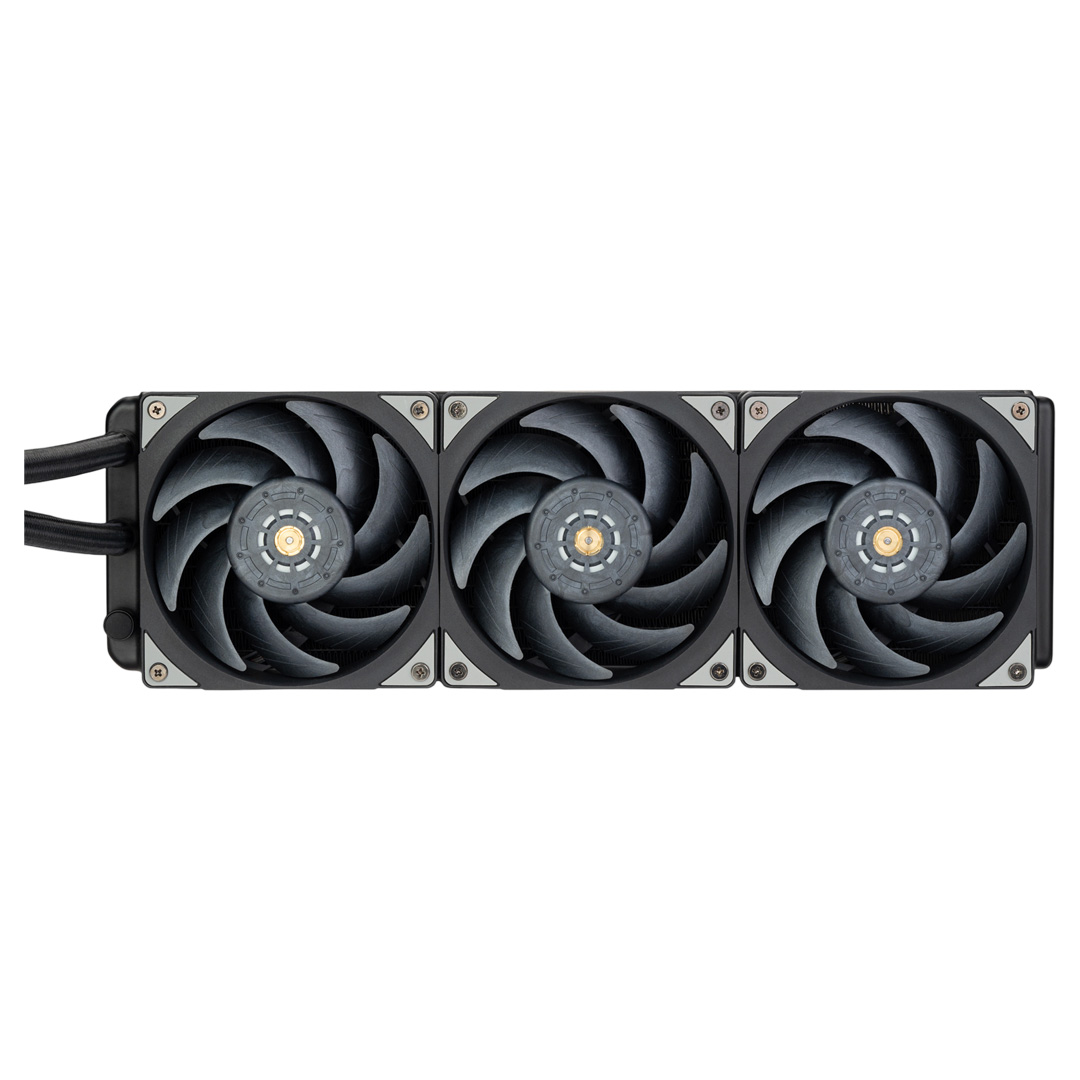

High-Performance FHL120 Industrial Fans
Equipped with three SilverStone FHL120 120mm industrial-grade radiator fans featuring Liquid Crystal Polymer (LCP) blades, delivering stable high-speed performance, strong airflow, and long-term durability under continuous operation.
Tailored Performance on Demand
Wide 800 ~ 3,000 speed range via PWM control function.
Specifications
General Data
| Model No. |
XE360-TR5-V2 |
| Application |
AMD Socket sTR5/SP6 |
| Remark |
* Please confirm that the header that supplies power to the PUMP has a stable 12V voltage. It’s recommended to disable the PWM/DC mode of this header from the motherboard BIOS, or to set it to full speed |

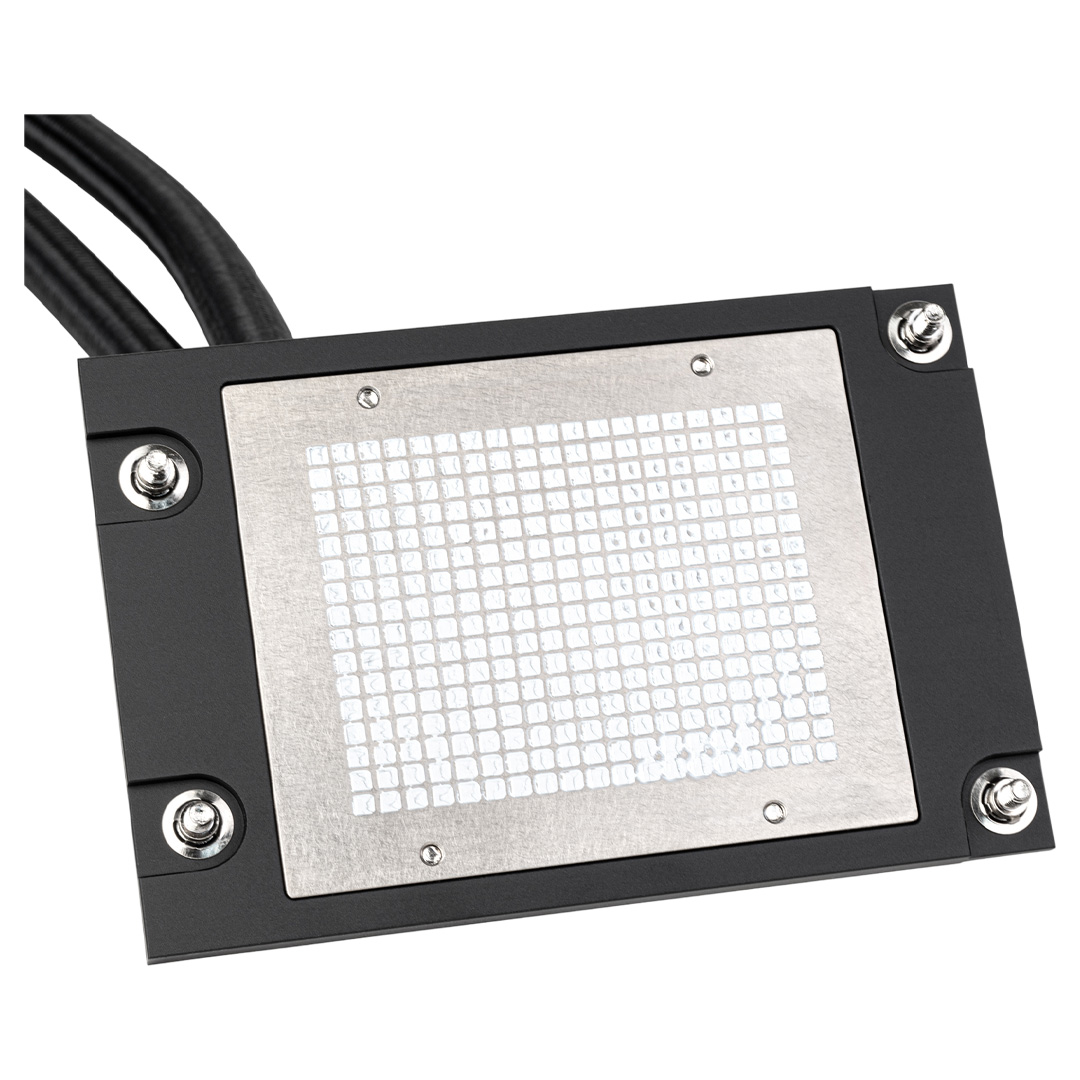

Water Block
| Dimension |
79mm (W) x 25mm (H) x 119mm (D)
3.11" (W) x 0.98" (H) x 4.69" (D) |
| Material |
Copper base with aluminium body |
Pump
| Motor Speed |
4,000 ±10% RPM |
| Rated Voltage |
12V |
| Rated Current |
0.38A |
| Connectors |
3 pin |

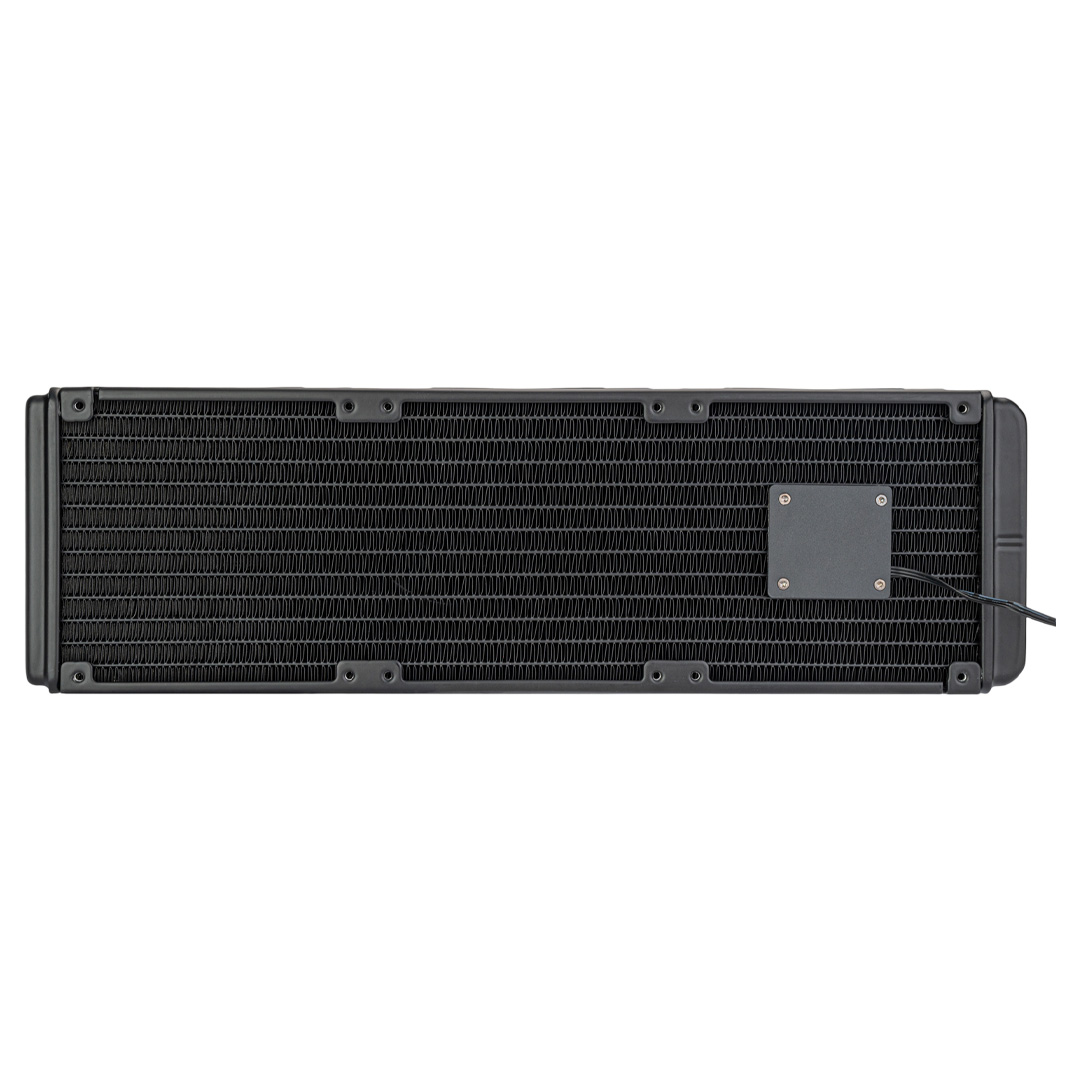

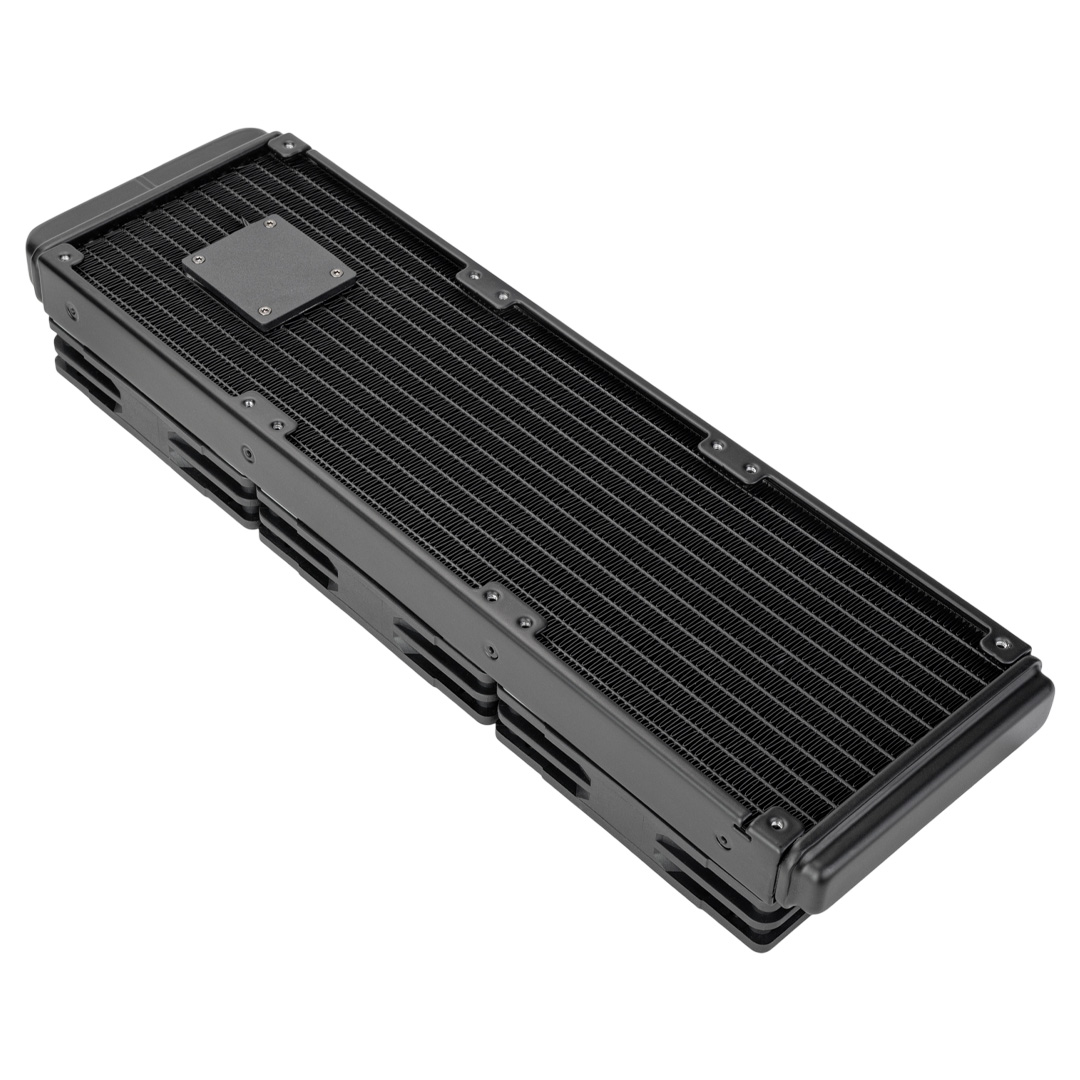

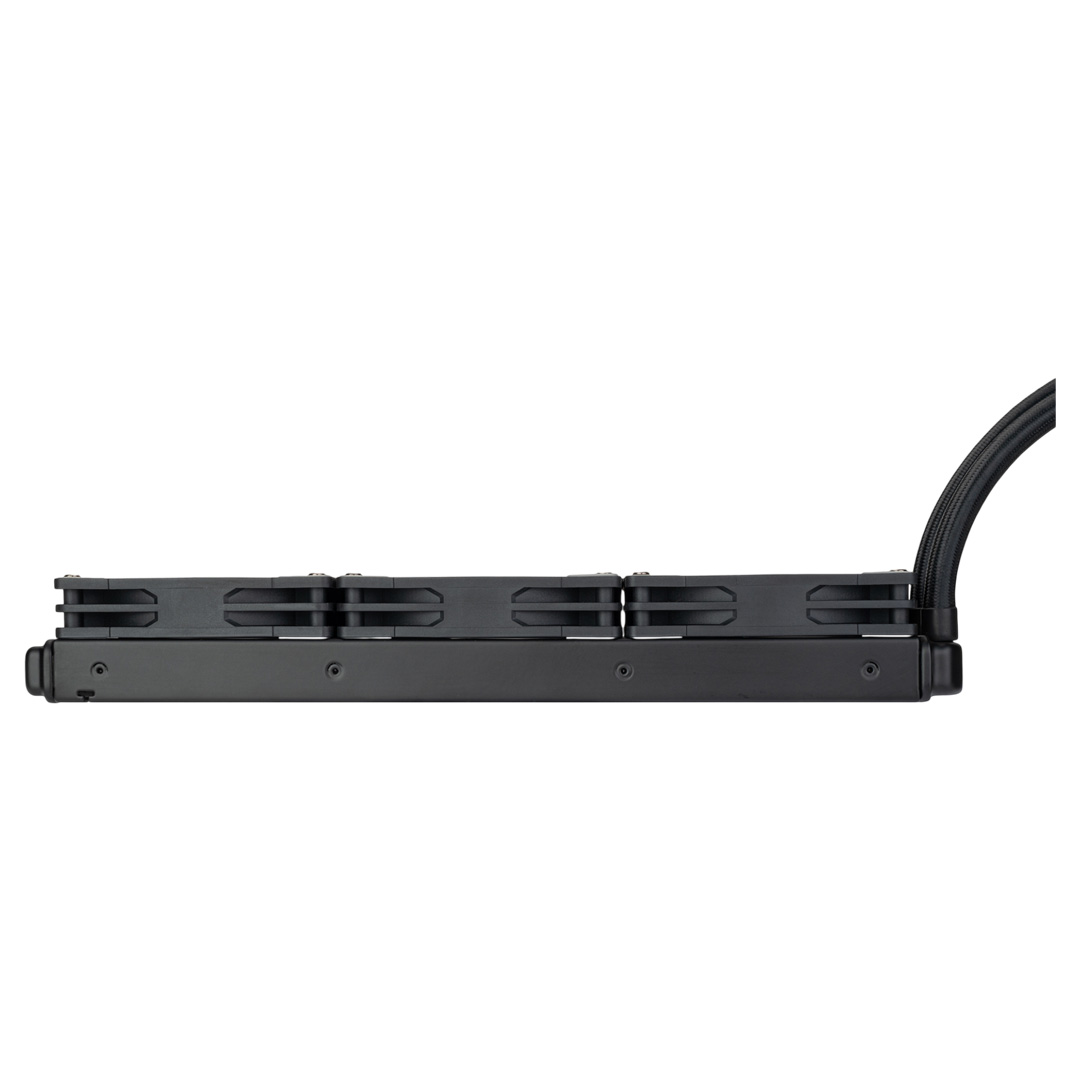

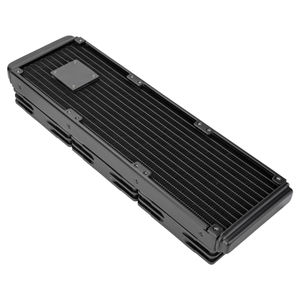

Radiator
| Dimension |
120mm (W) x 28mm (H) x 394mm (D)
4.72" (W) x 1.1" (H) x 15.5" (D) |
| Material |
Aluminium |
Tube
| Length |
460mm |
| Material |
Rubber |
Fan
| Dimension |
120mm (W) x 26mm (H) x 120mm (D) |
| Speed |
800 ~ 3,000 RPM |
| Noise Level |
39.6 dBA |
| Rated Voltage |
12V |
| Max Airflow |
95.1 CFM |
| Max Air Pressure |
5.2mmH2O |
| Connector |
4 pin PWM |
Backed by a 3 year SilverStone warranty.
