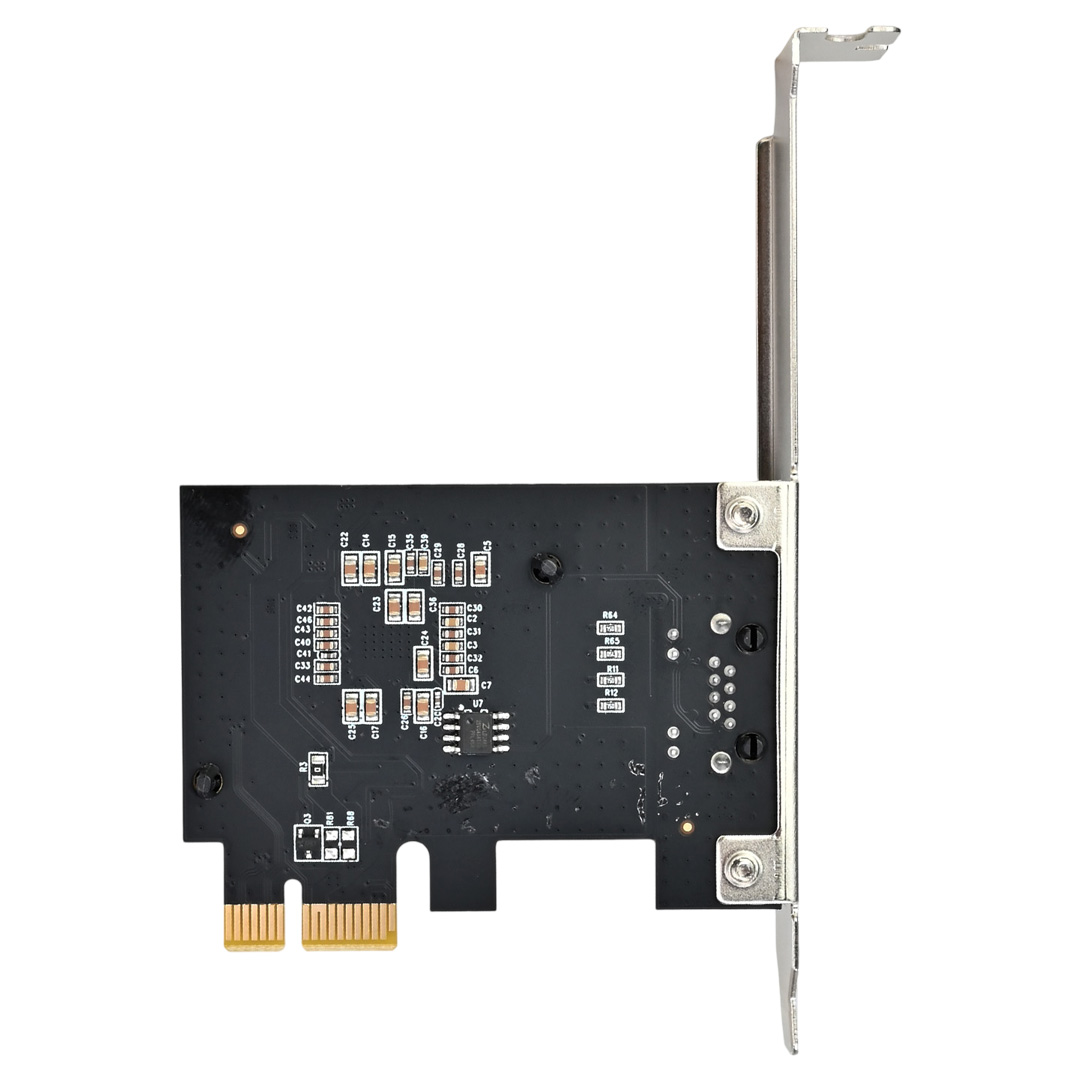

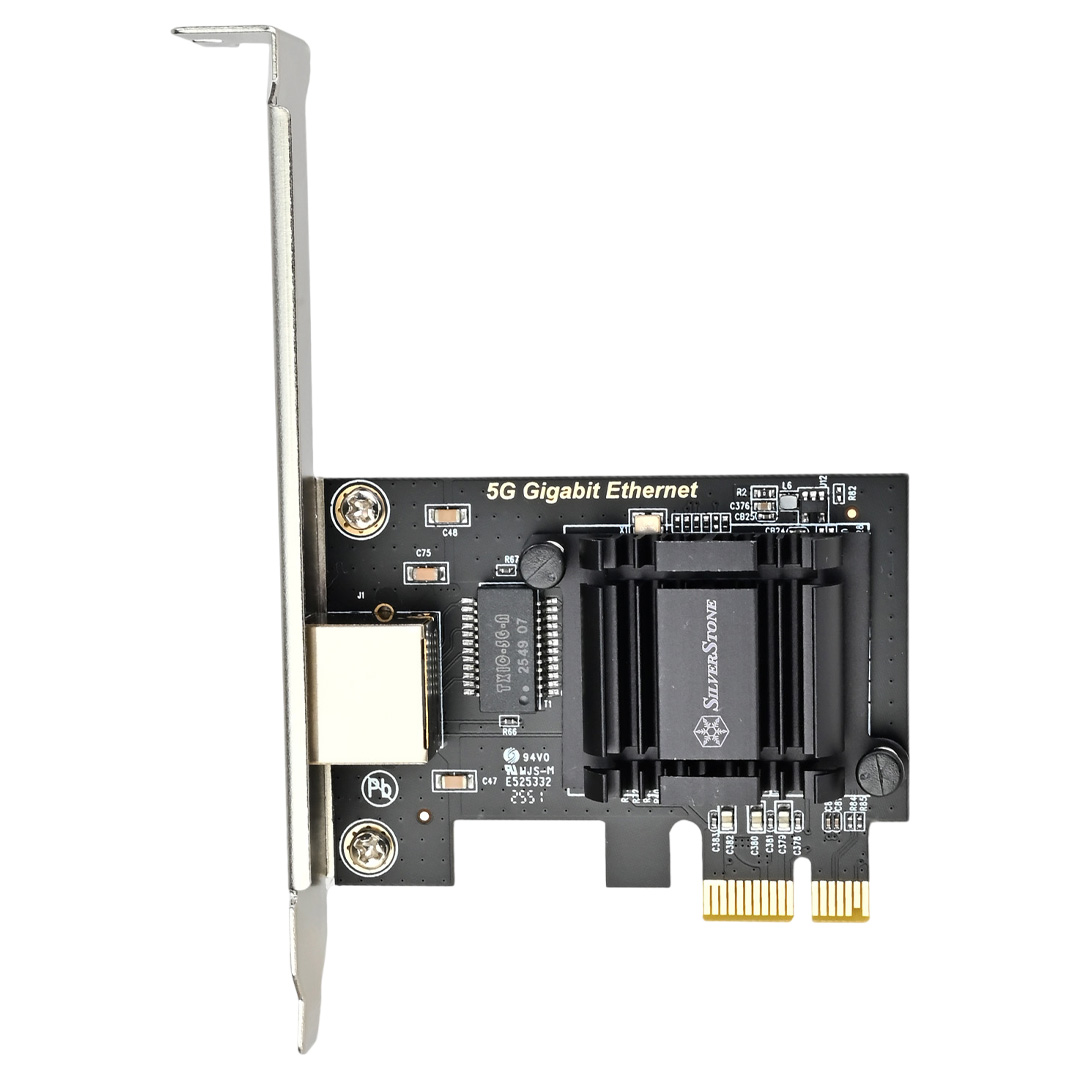

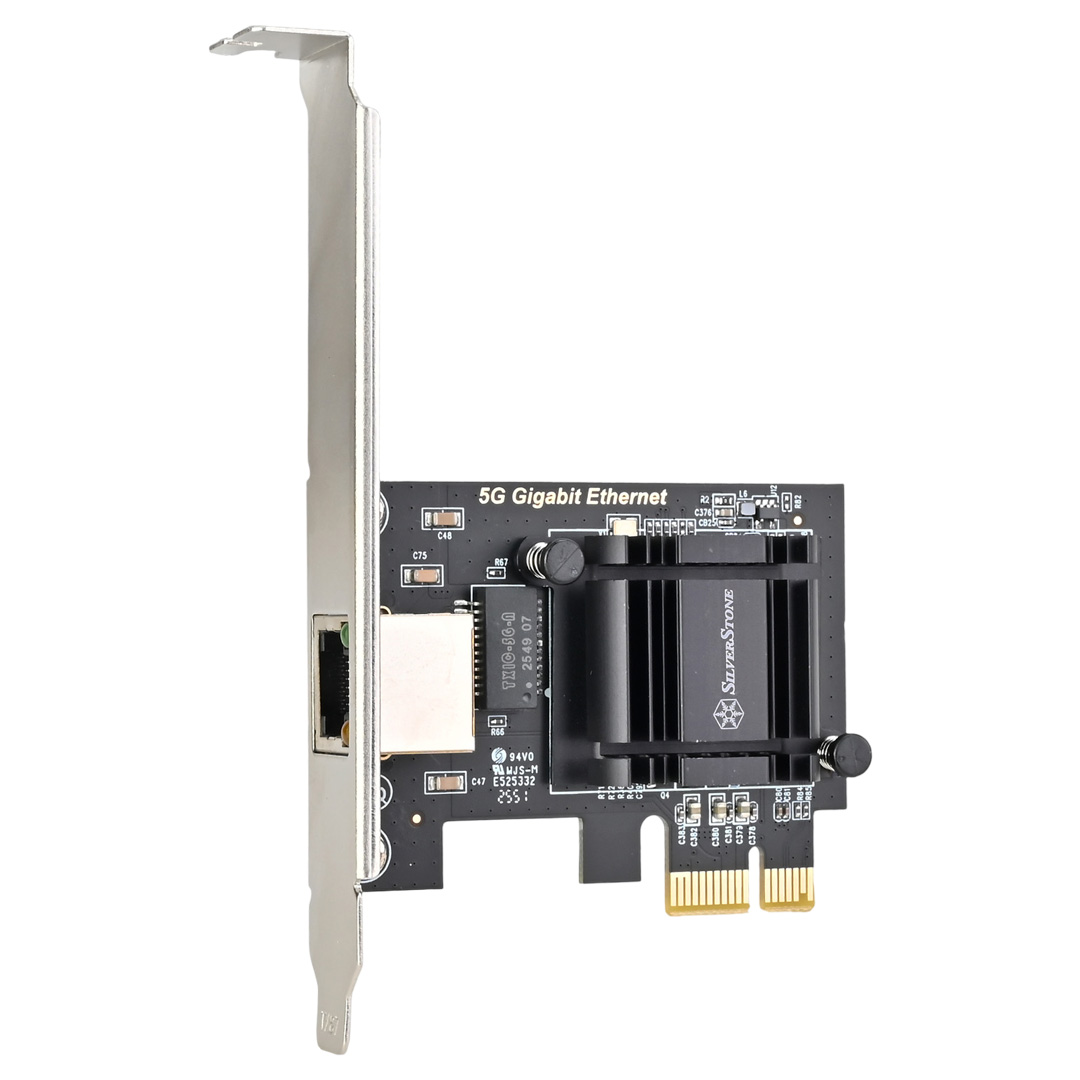

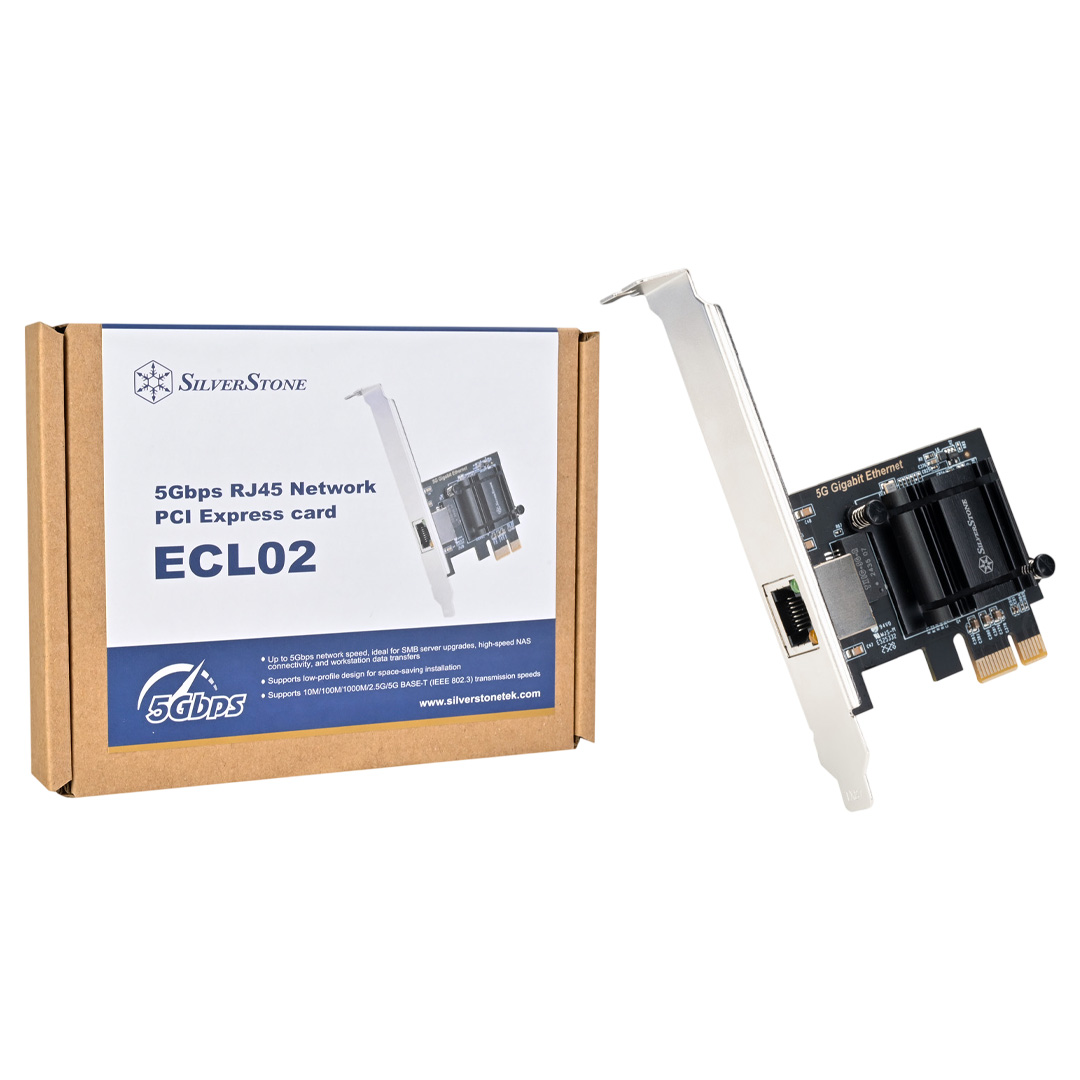

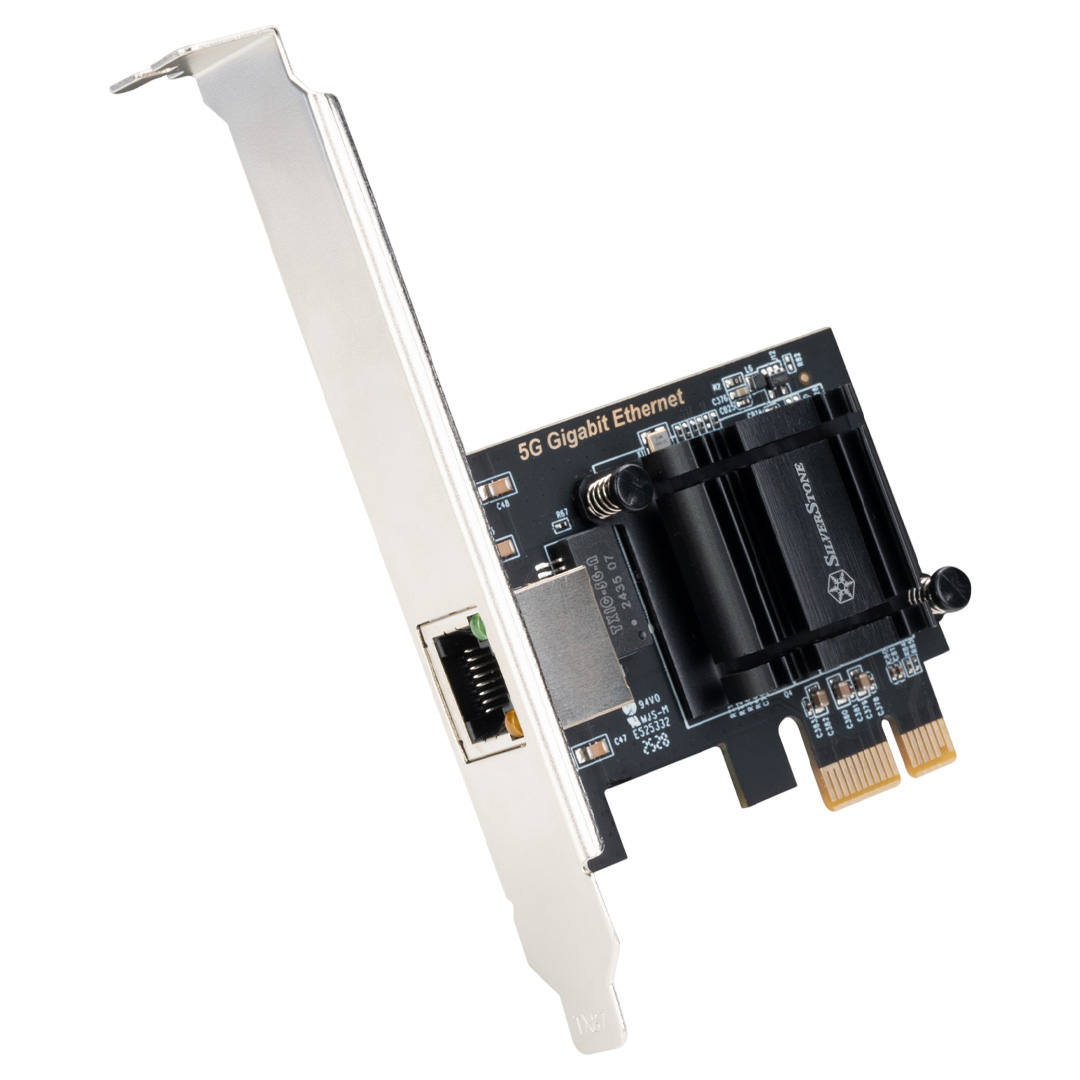

Silvertone ECL02 5Gbps RJ45 Network PCI Express Card

The SilverStone ECL02 5Gbps RJ45 Network PCI Express Card upgrades system connectivity with high-speed Ethernet support up to 5Gbps, making it ideal for NAS environments, workstation transfers, and small business server applications. Featuring a Realtek RTL8126 controller, low-profile and standard bracket support, Wake-On-LAN, and PXE boot for flexible network integration.

Features

---

5Gbps RJ45 Network PCI Express Card

• Up to 5Gbps network speed, ideal for SMB server upgrades, high-speed NAS connectivity, and workstation data transfers
• Supports low-profile design for space-saving installation
• Supports 10M/100M/1000M/2.5G/5G BASE-T (IEEE 802.3) transmission speeds
• Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
• Supports Wake-On-LAN and RealWoW! remote wake functionality
• Supports PXE boot, allowing operating systems to be downloaded and executed from network servers
• Supports Extended Next Page capability (XNP) auto-negotiation
• Supports Realtek “Dragon feature” bandwidth management software
• Supports crossover detection and auto-correction
• Supports power down, no-link power saving, and PHY disable modes

5Gbps High-Speed Network Connectivity

Supports up to 5Gbps network speed, providing a significant bandwidth upgrade over traditional Gigabit connections. Ideal for NAS, high-speed data transfers, workstations, and small business servers, delivering smoother and more efficient network performance.

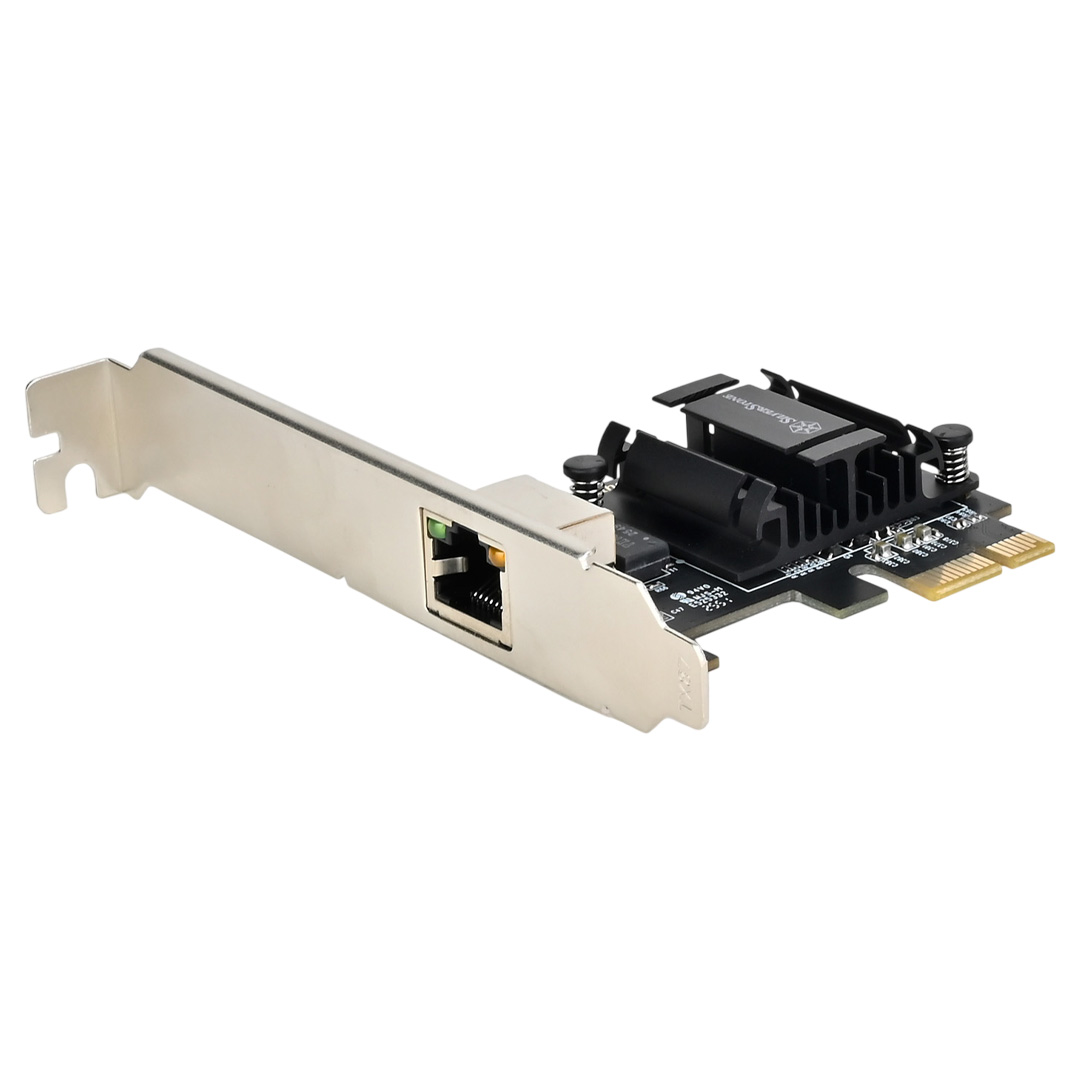

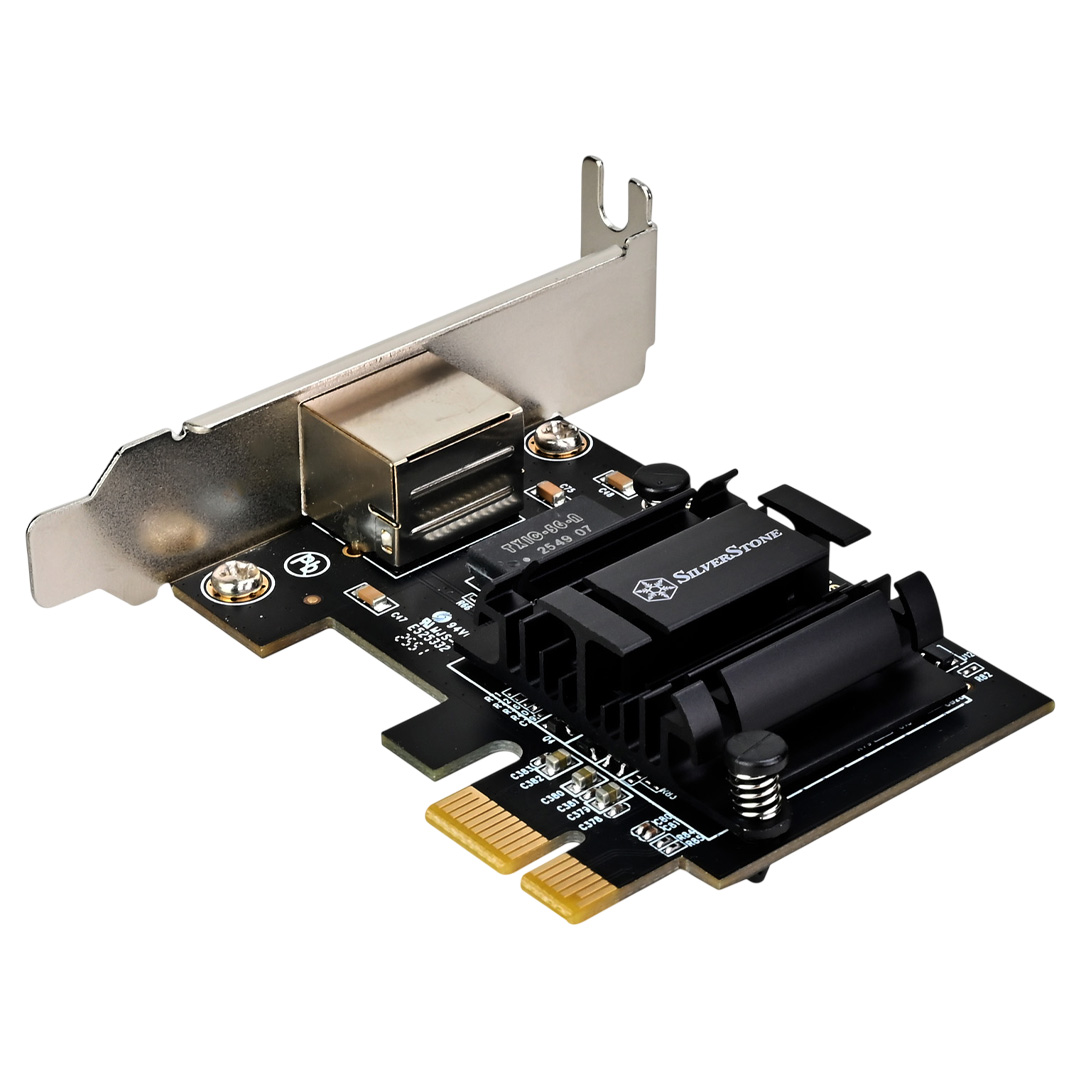

Supports Low Profile and Standard Brackets

Provides flexible installation options to meet different chassis and system configuration requirements.

Comprehensive Networking Standards & Remote Management Support

Supports multiple IEEE standards including 802.3, 802.3u, 802.3ab, 802.3az, and 802.3bz for stable multi-speed Ethernet connectivity. Also supports Wake-on-LAN, PXE boot, and RealWoW! remote wake functions for convenient system deployment and remote management.
