The ASUS ROG Strix Platinum ATX 3.1 1200W Power Supply is expertly engineered to deliver next level efficiency and rock solid reliability for the most demanding modern components. Featuring an innovative GaN MOSFET that increases power conversion efficiency by up to 30 percent, it works in tandem with a patented GPU-First Intelligent Voltage Stabiliser that ensures enhanced voltage stability for the extreme power draws from high-end graphics cards under heavy loads. A standout addition is the patented ROG Equaliser PCIe power cable, a robust 12V-2x6 PCIe power cable that boosts current capacity to 17A per wire, actively reducing thermal stress and keeping connector temperatures safely below the 105 degrees Celcius material limit. Earning both 80 PLUS Platinum and Cybenetics Platinum certifications alongside a whisper quiet Lambda A noise rating, this heavy duty unit guarantees exceptional acoustic and thermal performance. Complete with flexible, tin-plated, embossed cables for pristine internal routing, this PSU is a foundation capable of fuelling complex high-bandwidth connectivity setups and next generation GPUs with absolute ease.
Features
ROG Strix 1200W Platinum (ROG Equaliser)
Superior Stability. Next-Level Efficiency.
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabiliser to maintain a steady and reliable flow of power to the graphics card.
The ROG Strix 1200W Platinum further includes the ROG Equaliser, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
- GaN MOSFET: Improved power efficiency, lower energy waste.
- Patented GPU-First Intelligent Voltage Stabiliser: Enhanced voltage stability for unwavering performance.
- Patented ROG Equaliser PCIe Power Cable: Engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.
- 80 PLUS Platinum
- Cybenetics Platinum
- Cybenetics Lambda A
- ATX 3.1 Compatible
- PCIe 5.1® Compatible
- GeForce RTX™ 50 and Radeon™ RX 9000 Ready
- 10 Year Warranty
GaN MOSFET
The ROG Strix Platinum PSU boasts an innovative GaN MOSFET that increases power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of a GaN MOSFET allows for a more organised internal layout. This optimised design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
Patented GPU-First Intelligent Voltage Stabiliser (IVS)
Activate the GPU-First voltage sensing by connecting the GPU-First IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. With this advanced technology, you can experience smooth and consistent gameplay. If you prefer conventional CPU-focused voltage sensing, simply disconnect the purple connector.
Disclaimer: The GPU-First Intelligent Voltage Stabiliser is designed exclusively for 16-pin PCIe power cables. This feature is not available for 8-pin PCIe power cables.
ROG Equaliser
The ROG Equaliser is a soft embossed 12V-2x6 PCIe cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.
Reduced Cable Temperature
In demanding 600W scenarios, uneven current distribution can cause hot spots in conventional 12V-2x6 cables over long periods of use.
ROG Equaliser helps balance power delivery to reduce thermal stress and maintain stable temperatures. Even under extreme conditions, it keeps cable and connector temperatures within the 105°C material limit for safer, more reliable operation.
- Test conditions : Ambient temperature: 55°C / Total Power: 600W
- The middle 4 wires of the +12V cable disconnected to the graphics card 16pin
Enlarge Wire Load Capacity
Standard 12V-2x6 cables are rated for 9.2A per wire, while ROG Equaliser cables boost current capacity to 17A per wire. This is designed to improve the handling of short-term current peaks that may be produced by high-end graphics cards during extreme overclocking or when otherwise drawing a high amount of wattage from the power supply.
This enhanced design improves durability under 600W continuous loads for a significantly longer lifespan than conventional cables, industry-leading reliability, and stable power delivery.
*Recommended for use under a total power limit of 600W.
Balanced Power Delivery
ROG Equaliser ensures balanced current delivery from PSU to ROG Equaliser, lowering graphics card connector temperatures and maintaining stable thermal performance below the 105°C material limit.
Under an extreme test scenario, ASUS removed the middle 4 wires from the +12V cable to simulate potential current imbalance conditions that may occur with a standard 12V-2x6 PCIe cable. Even under these conditions, the ROG Equaliser maintained a temperature of approximately 87.8°C. In contrast, a standard 12V-2x6 PCIe cable reached around 146°C—far exceeding safe operating limits.
*Testing method: This extreme test removes the four middle wires of the +12V 16-pin PCIe power cable to evaluate cable temperature performance under maximum current load.
Efficiency & Noise Certification
80 PLUS and Cybenetics Platinum Efficiency - Lambda A Noise Certification
The ROG Strix 1200W Platinum achieves 80 PLUS Platinum and Cybenetics Platinum certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability. This model also earned a coveted Cybenetics Lambda A certification by emitting less than 25 dB of noise on average.
Cooling
ROG Heatsinks
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Dual-Ball Fan Bearings
Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, lasting up to twice as long as sleeve bearings and even exceeding fluid dynamic bearings. This helps ensure long-lasting, reliable cooling with minimal noise for the ROG Strix Platinum series.
Premium Copper Pins
Upgraded copper PCIe® connectors feature advanced thermal conductivity to help ensure cool operation and efficient power delivery. This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
- 29% Cooler - Connectors with Superior Copper Pins

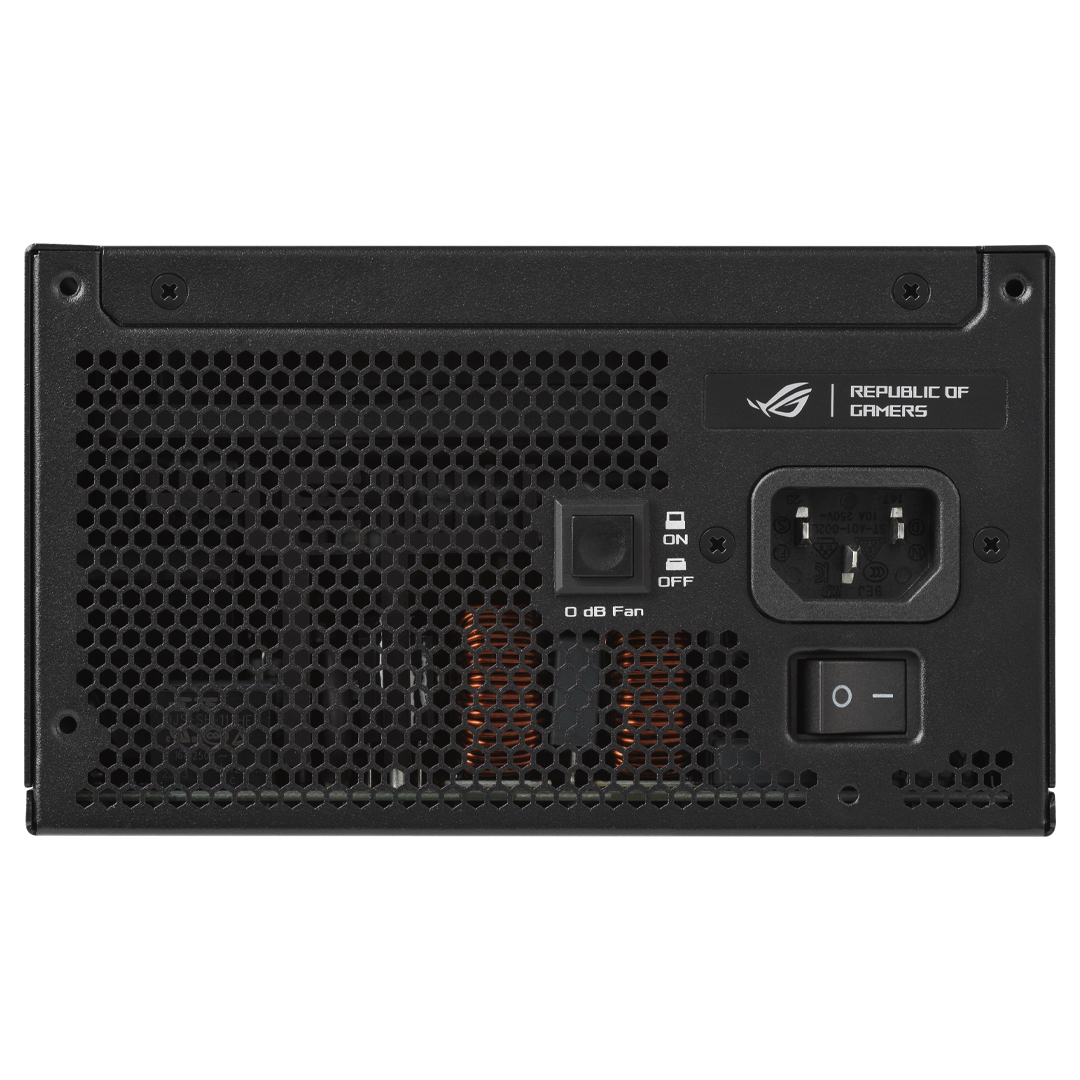

0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
*In 0dB mode (button pressed), the fan continues to spin when transitioning from high to low loads, ensuring safe temperatures are reached before stopping.
Premium Embossed Cables
Made from a pliable premium material, these embossed cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.
Tin-Plated Oxygen-Free Copper Cable
- Ultra-high conductivity
- Long lifespan
- Long-term stability
- High ductility and bendability
- Low resistance and low heat generation
These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
DIY-Friendly
CPU Power Connector
Engineered with a distinct clip between the 4+4 pin connectors and a unique colour scheme, this CPU power cable simplifies identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.
Cosmetic Customisation
Customise your own PSU with included stickers that complement the PSU's aesthetic. Choose your preferred colour scheme for a personalised touch.
Protection
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP: Over-Current Protection
- OTP: Over-Temperature Protection
- OVP: Over-Voltage Protection
- OPP: Over-Power Protection
- SCP: Short Circuit Protection
- UVP: Under-Voltage Protection
Backed by a 10 year ASUS warranty.
