The Kingston Fury Renegade Pro 256GB (8x32GB) 6400MHz CL32 Registered ECC DDR5 is engineered for high-performance workstations, delivering massive capacity, exceptional speed, and enterprise-grade reliability. Featuring a 6000MHz frequency, low-latency 32-38-38 timings at 1.35V, ECC Registered architecture, and support for AMD EXPO and Intel XMP 3.0 profiles, this 256GB eight-module kit is built to accelerate demanding workloads such as AI development, 3D rendering, content creation, and professional data processing.
Features
Kingston FURY Renegade Pro DDR5 RDIMM Memory
256GB (32GB 2Rx8 4G x 80-Bit x 8 pcs.) - PC5-6400 CL32 Registered EC8 288-Pin DIMM
Kingston FURY™ Renegade Pro DDR5 RDIMM memory combines gamer-level performance with server-class memory. Next-gen workstations and high-end desktop platforms need DDR5 Registered DIMMs, and Kingston FURY Renegade Pro is there to provide creators, engineers, and data scientists with super-fast memory typically associated with gaming. Certified by Intel XMP® 3.0 or AMD EXPO™, modules are available up to 32GB, with kits of 4 or 8 up to 128GB and 256GB respectively. Available with a graphene label at speeds up to 6400MT/s or an aluminium heat spreader starting at 7200MT/s.
With over three decades of building reliable, high quality memory modules for the world’s largest data centres, Kingston features a line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineers, and data science professionals with high performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs.
DDR5 Registered DIMMs support ECC, capable of detecting and correcting bit errors. This is in addition to On-Die ECC, featured on all DDR5 DRAM components, which perform single bit error detection and correction to mitigate system lockups and data corruption.
Unleash pro‑grade power with Kingston FURY Renegade Pro DDR5 RDIMM built for maximum speed, rock solid stability, and next level efficiency. Choose your performance mode with precision‑tuned built‑in profiles and build your ideal setup with single modules up to 32GB, kits of 4 up to 128GB, or kits of 8 up to 256GB. Available with a graphene label at speeds up to 6400MT/s or with an aluminium heat spreader starting at 7200MT/s.

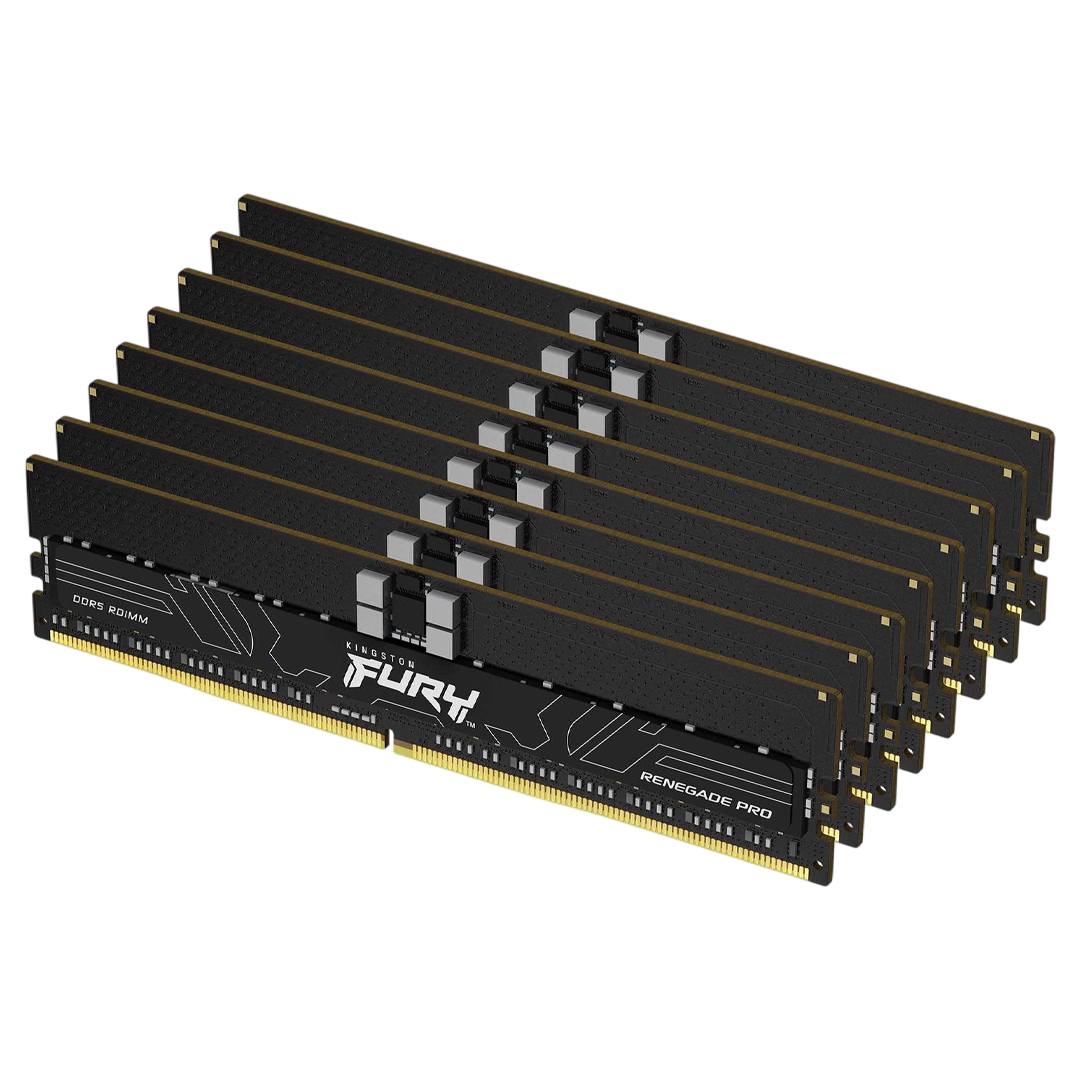

Kingston FURY KF564R32RBE2K8-256 is a kit of eight 4G x 80-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, ECC memory module, based on twenty 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 256GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical; VDDQ = 1.1V Typical; VPP = 1.8V Typical; VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
- Overclocking with ECC
- Increased efficiency
- Intel® XMP 3.0 Certified
- AMD EXPO™ certified
- Sleek aluminium heat spreaders featured on 7200MT/s+ speeds
Overclocking with ECC
Maintain data integrity while pushing the limits of DDR5 performance.
Increased Efficiency
With double the banks and burst lengths, keep up with the demands of the latest programmes and applications with improved efficiency and lower latencies.
Intel® XMP 3.0 Certified
Select one of the built-in Intel XMP 3.0 profiles in the BIOS to maximise memory performance with advanced pre-optimised timings, speeds, and voltage.
AMD EXPO™ Certified
AMD EXPO (Extended Profiles for Overclocking) Certified modules include AMD EXPO and Intel XMP 3.0 profiles, enabling compatibility with the platform of your choice by selecting the corresponding profile in the BIOS.
Sleek Aluminium Heat Spreaders Featured on 7200MT/s+ Speeds
Maximise cooling with high performance heat spreaders across all modules starting at 7200MT/s and above.
Factory Timing Parameters
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
- EXPO Profile #1: DDR5-6000 CL32-38-38 @1.35V
- XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #2: DDR5-6000 CL32-38-38 @1.35V
Backed by a limited lifetime Kingston warranty.
