Ubiquiti UniFi USL-Motion Motion Sensor

USL-MOTION | Ubiquiti
$89
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi USL-Motion Motion Sensor provides reliable indoor motion detection with horizontal and vertical PIR sensors, making it an ideal addition to a UniFi Protect security system. Featuring pet immunity, SuperLink wireless connectivity with up to 2km line-of-sight range, and up to 6 years of battery life.

Features

Ubiquiti UniFi USL-Motion Motion Sensor Feature 1

Motion Sensor

Ubiquiti UniFi USL-Motion Motion Sensor Feature 2

Deployment

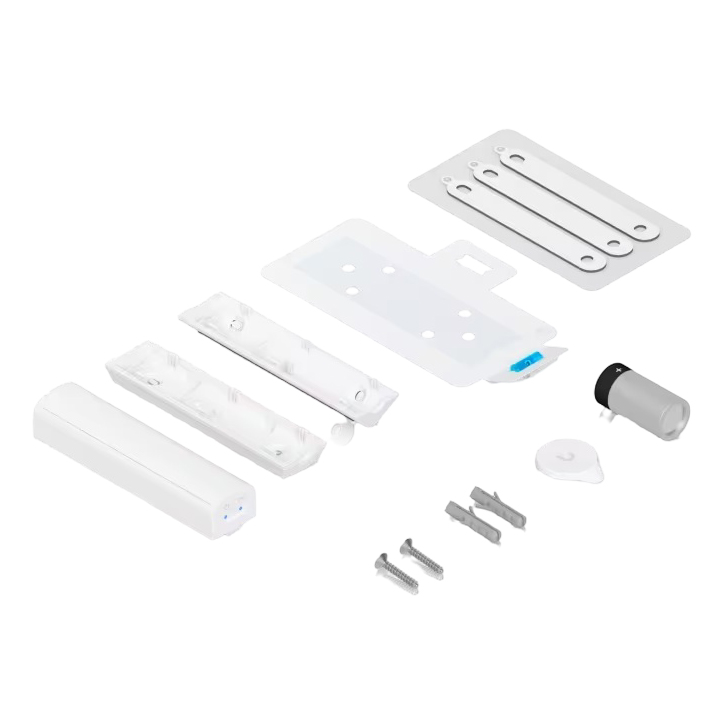

Build Features

Ubiquiti UniFi USL-Motion Motion Sensor Feature 3

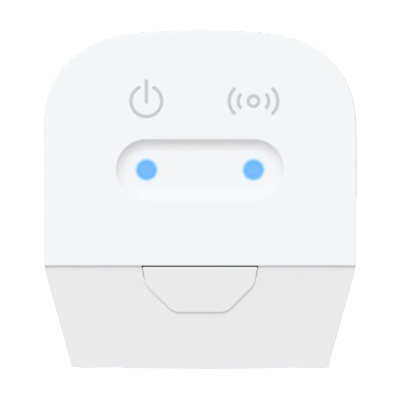

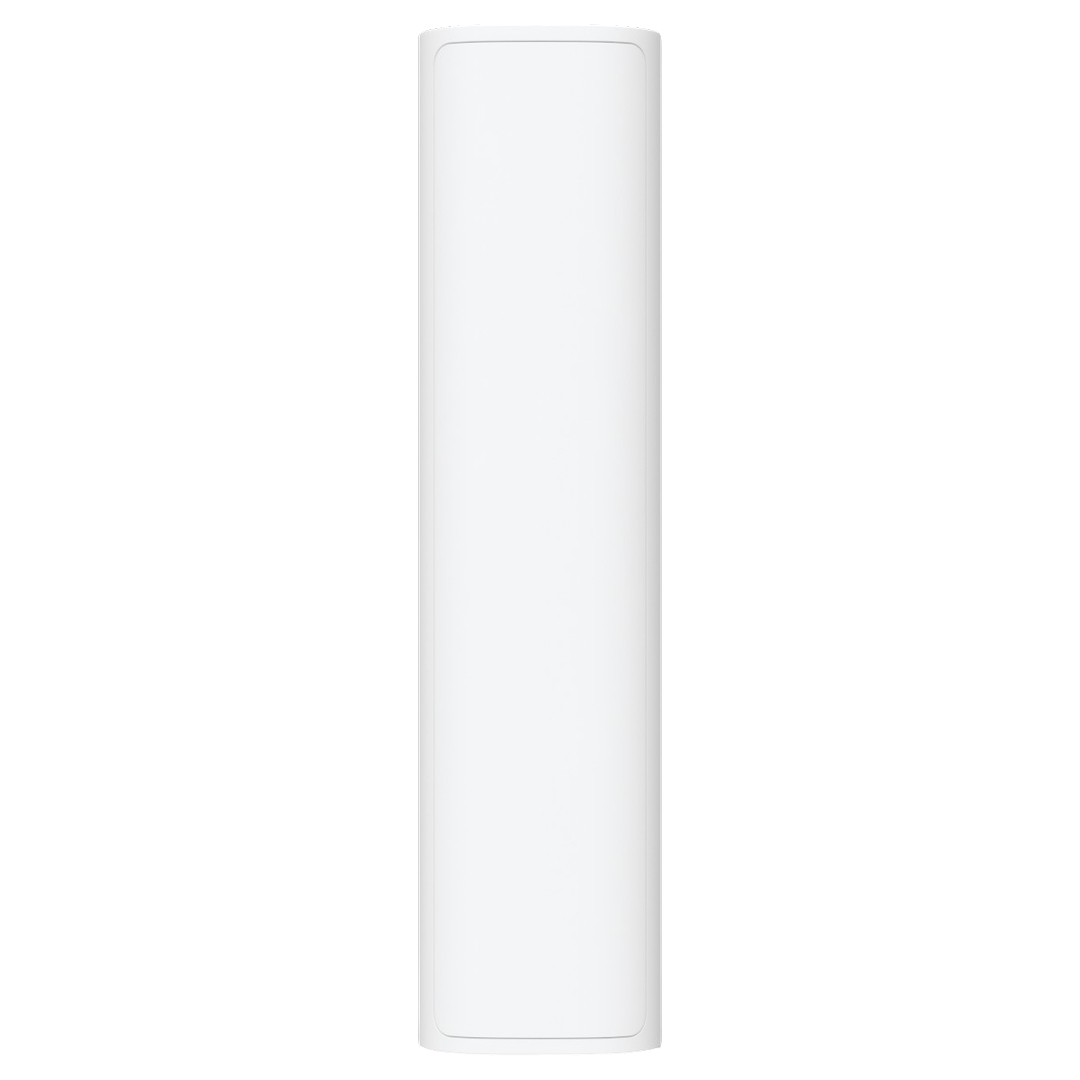

Front View

Ubiquiti UniFi USL-Motion Motion Sensor Feature 4

Side View

Ubiquiti UniFi USL-Motion Motion Sensor Feature 5

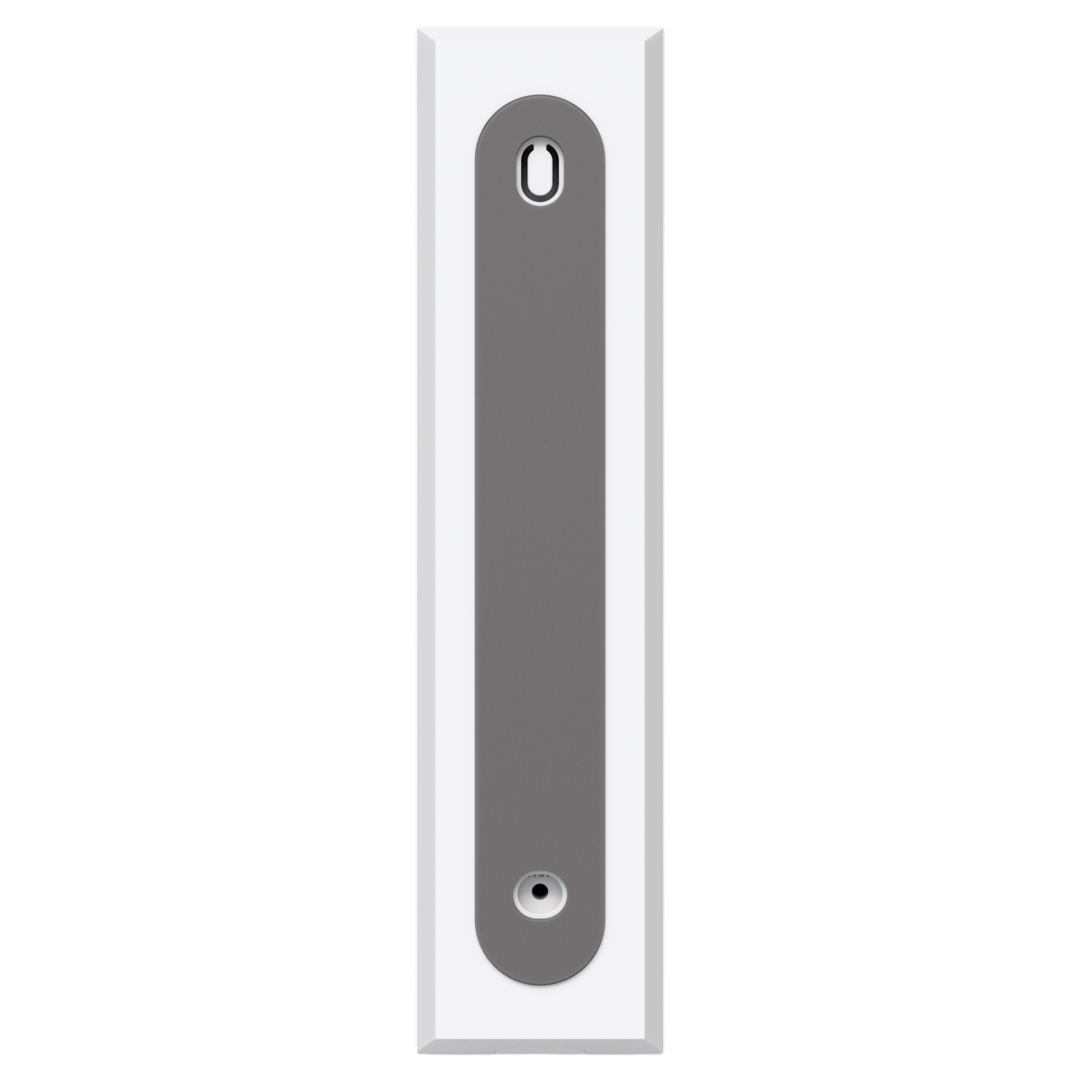

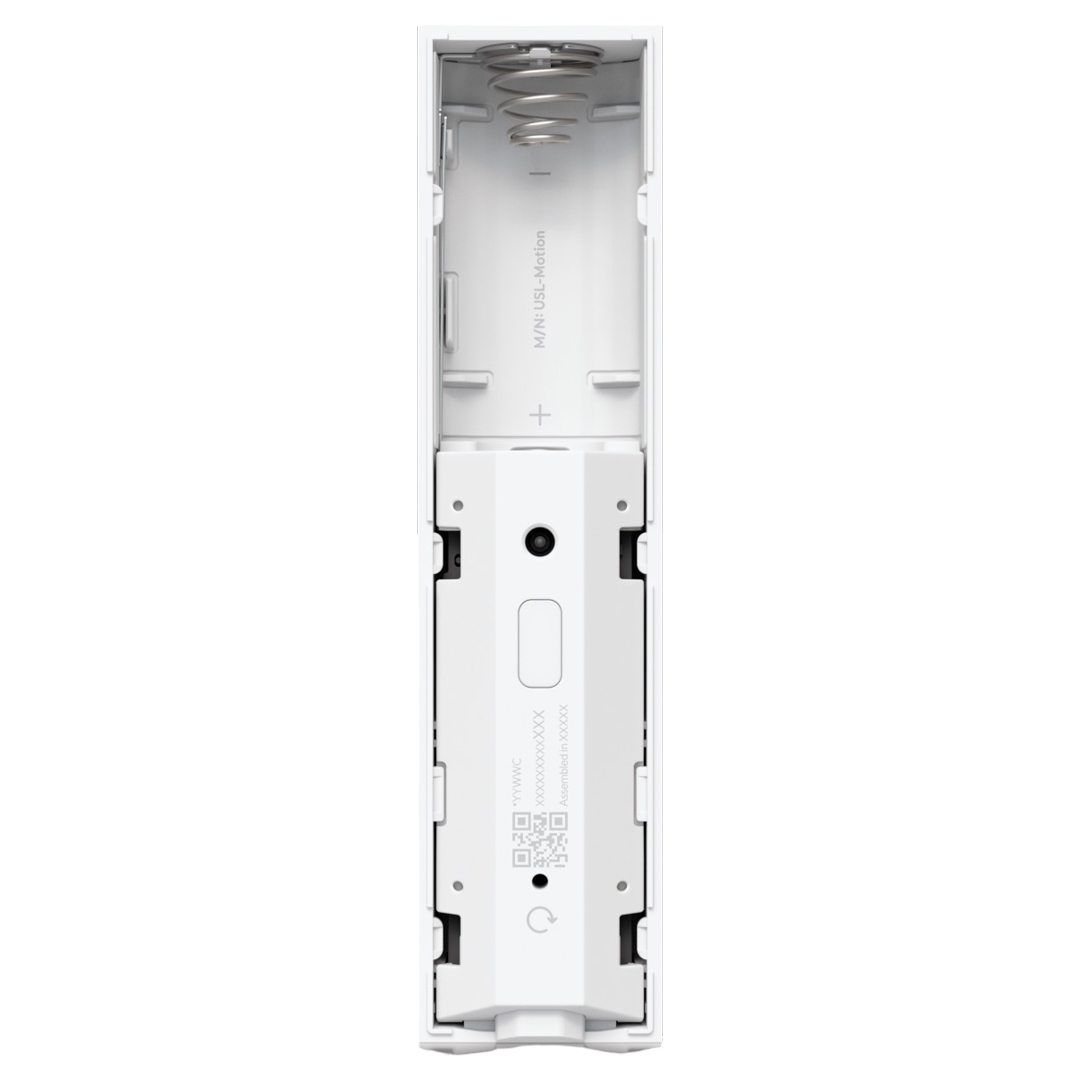

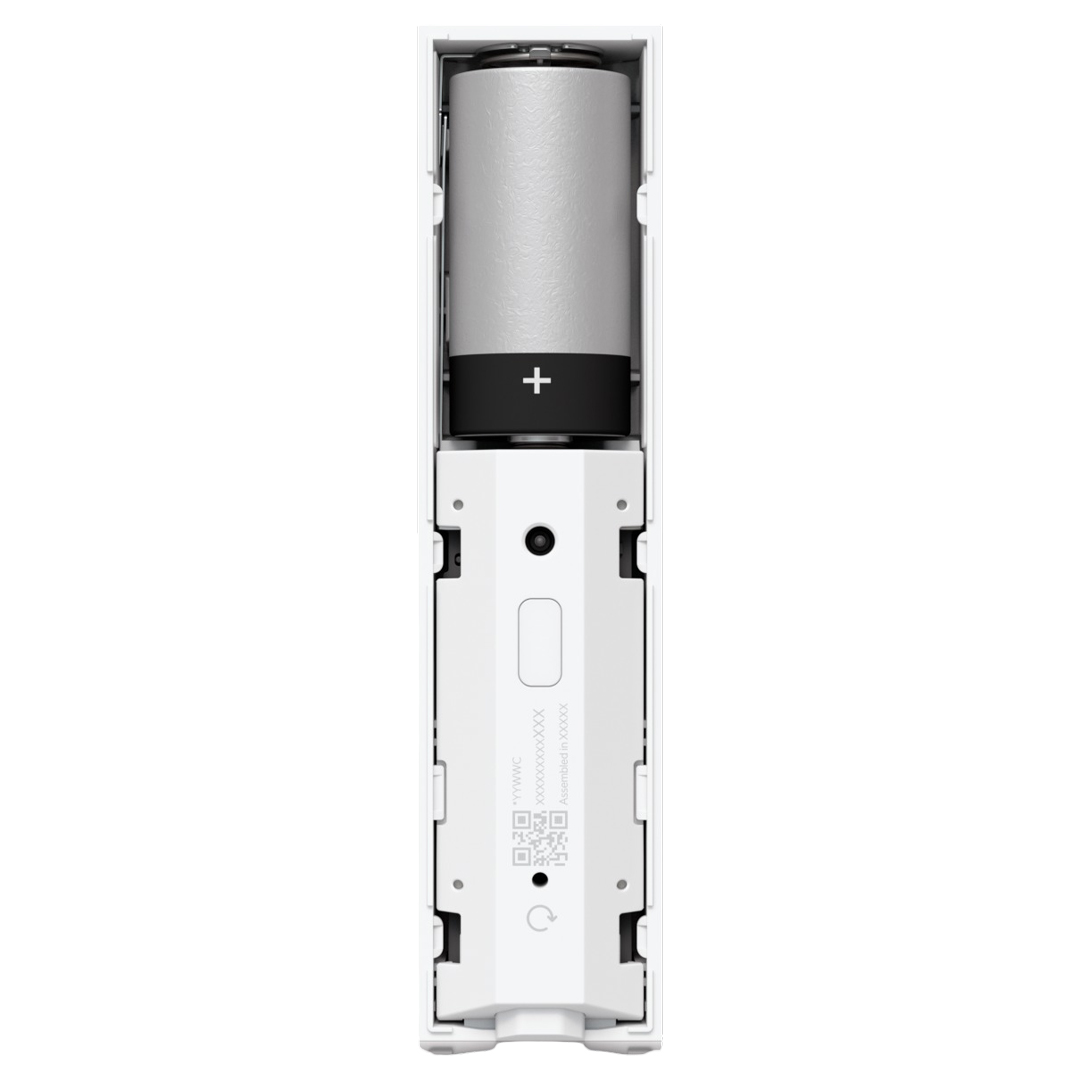

Back View

Ubiquiti UniFi USL-Motion Motion Sensor Feature 6

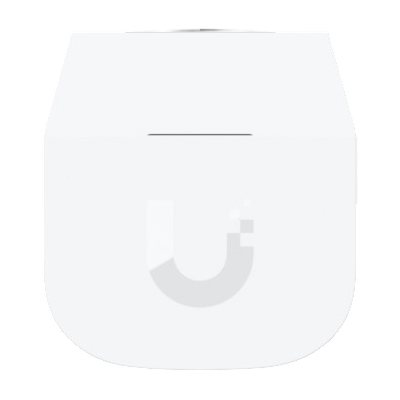

Bottom View

Specifications

General Data

Model Number USL-MOTION
Dimensions Device with wall mount:
93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97")
Device with corner mount:
93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1")
Mounting Adhesive and screw mount
UniFi Application Suite Protect

Performance

Connectivity SuperLink (Proprietary)
Operating Frequency US: 915.6–927.6 MHz
EU: 865.1–869.5 MHz
Antenna Gain SuperLink: 1 dBi
Max. TX Power SuperLink: 14 dBm
Max. Range SuperLink: 2 km (1.2 mi) (Line of Sight (LOS))
Sensor Features Horizontal PIR Sensor: Detection range up to 1.5 m (4.9 ft)
Vertical PIR Sensor: Detection range up to 6 m (19.7 ft) with pet immunity

Hardware

Max. Power Consumption 22.6mW
Supported Voltage Range 3V
Power Method Lithium battery CR123A
Battery Life Up to 6 years
Weight 45 g (1.6 oz)
Enclosure Material Polycarbonate, high-density polyethylene (HDPE)
Mount Material Polycarbonate
Buttons (1) Factory reset
(1) Function button
(1) Tamper switch
LEDs (1) Status: R/B/W
(1) Signal: B/R
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
NDAA Compliant Yes

Software

Application Requirements Web Application: UniFi Protect
Mobile App: UniFi Protect iOS™ and Android™
Backed by a 1 year Ubiquiti warranty.
