The Cruxtec HDMI 8K with Ethernet Cable 3m features a durable black design engineered to deliver a massive 48Gbps bandwidth. It supports ultra high definition 8K resolution at 60Hz and 4K at 120Hz, alongside Dynamic HDR and VRR for a premium plug and play home entertainment or gaming connection.
Features

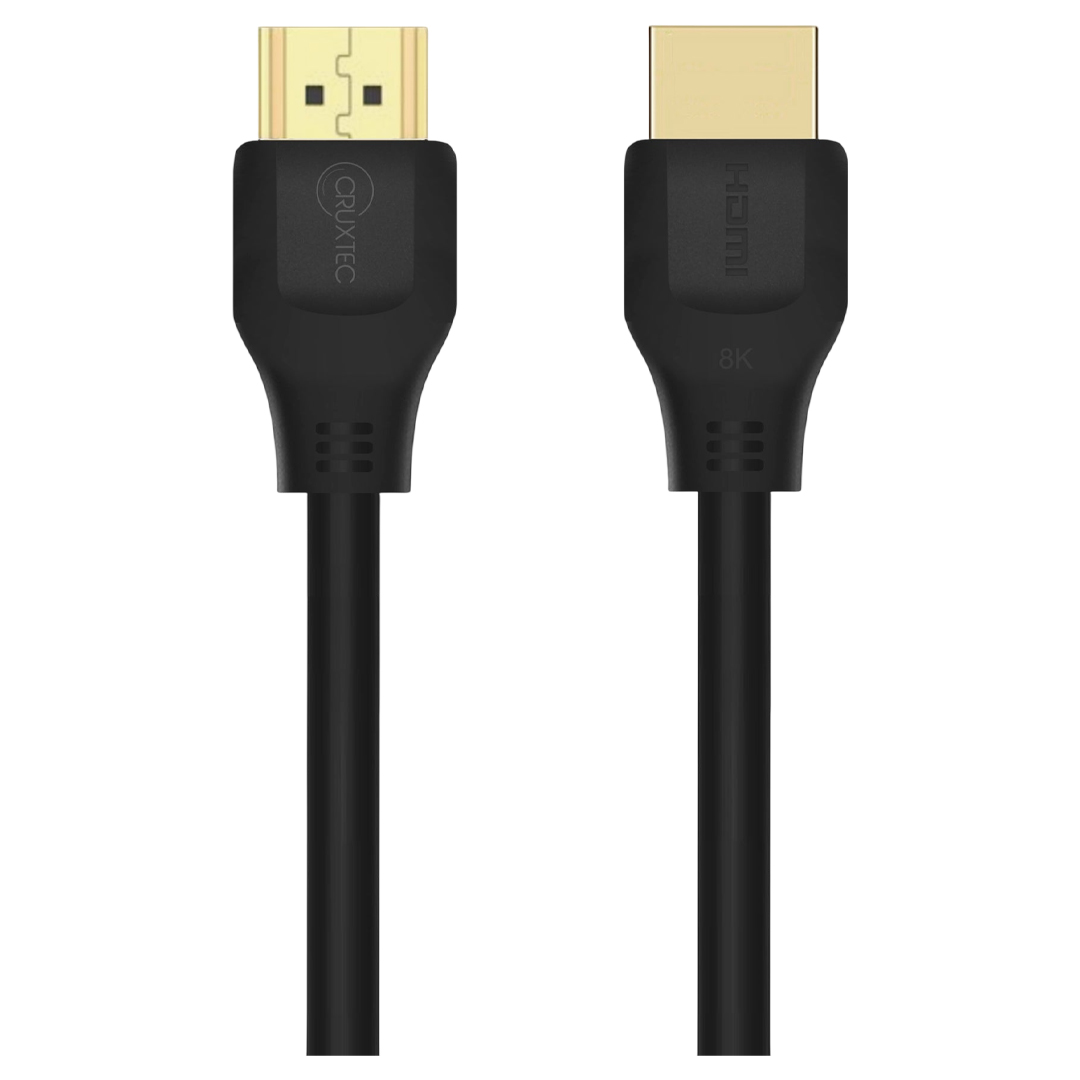

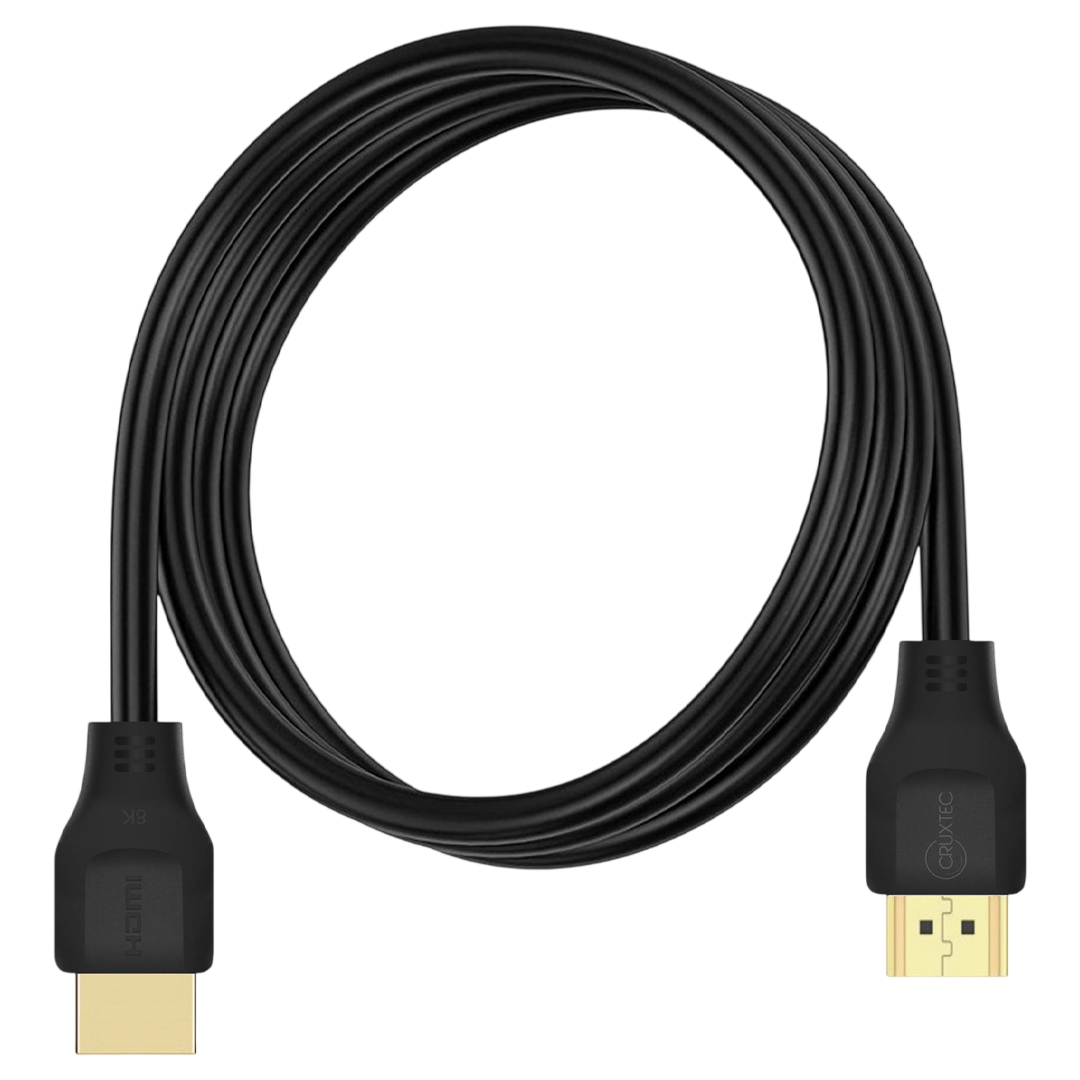

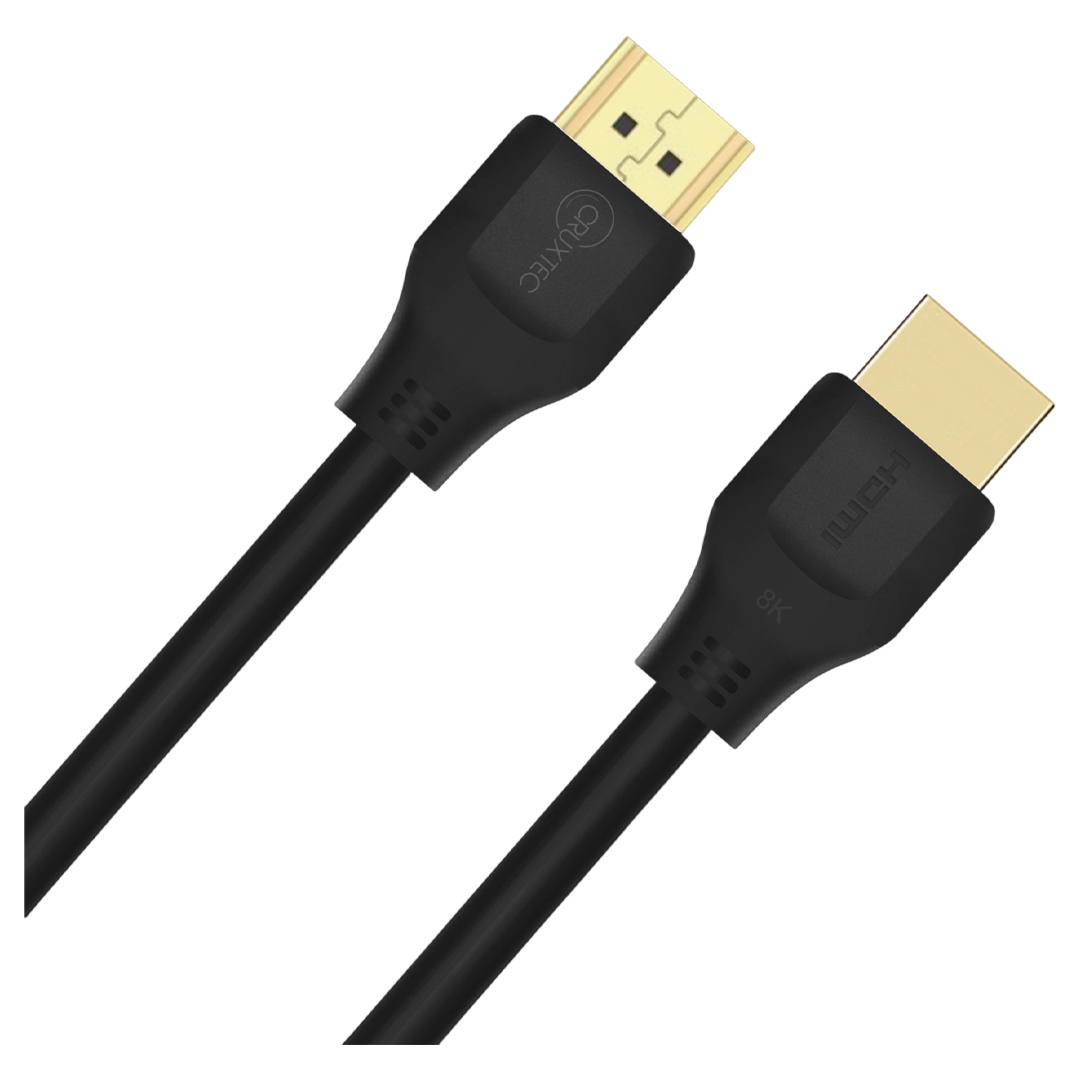

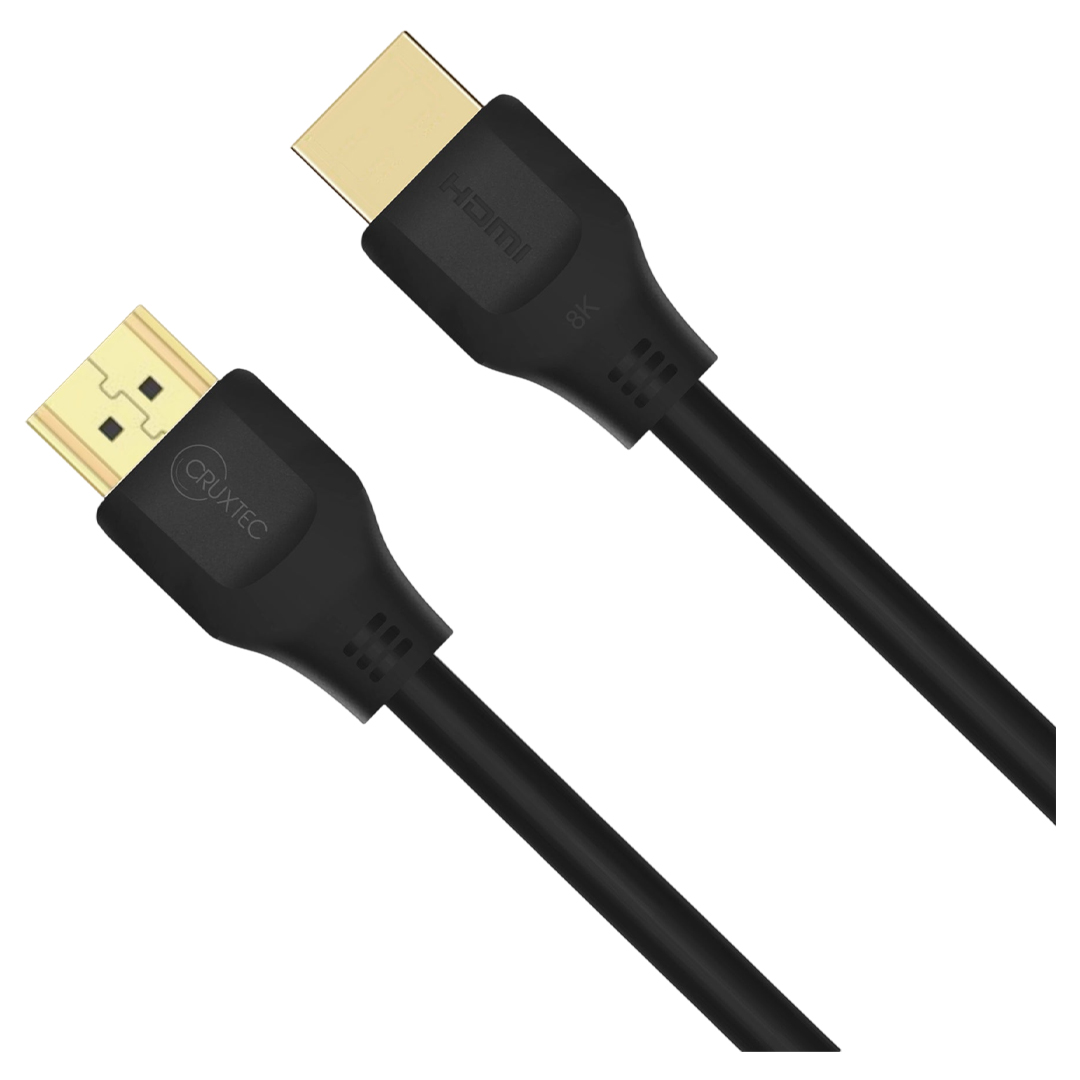

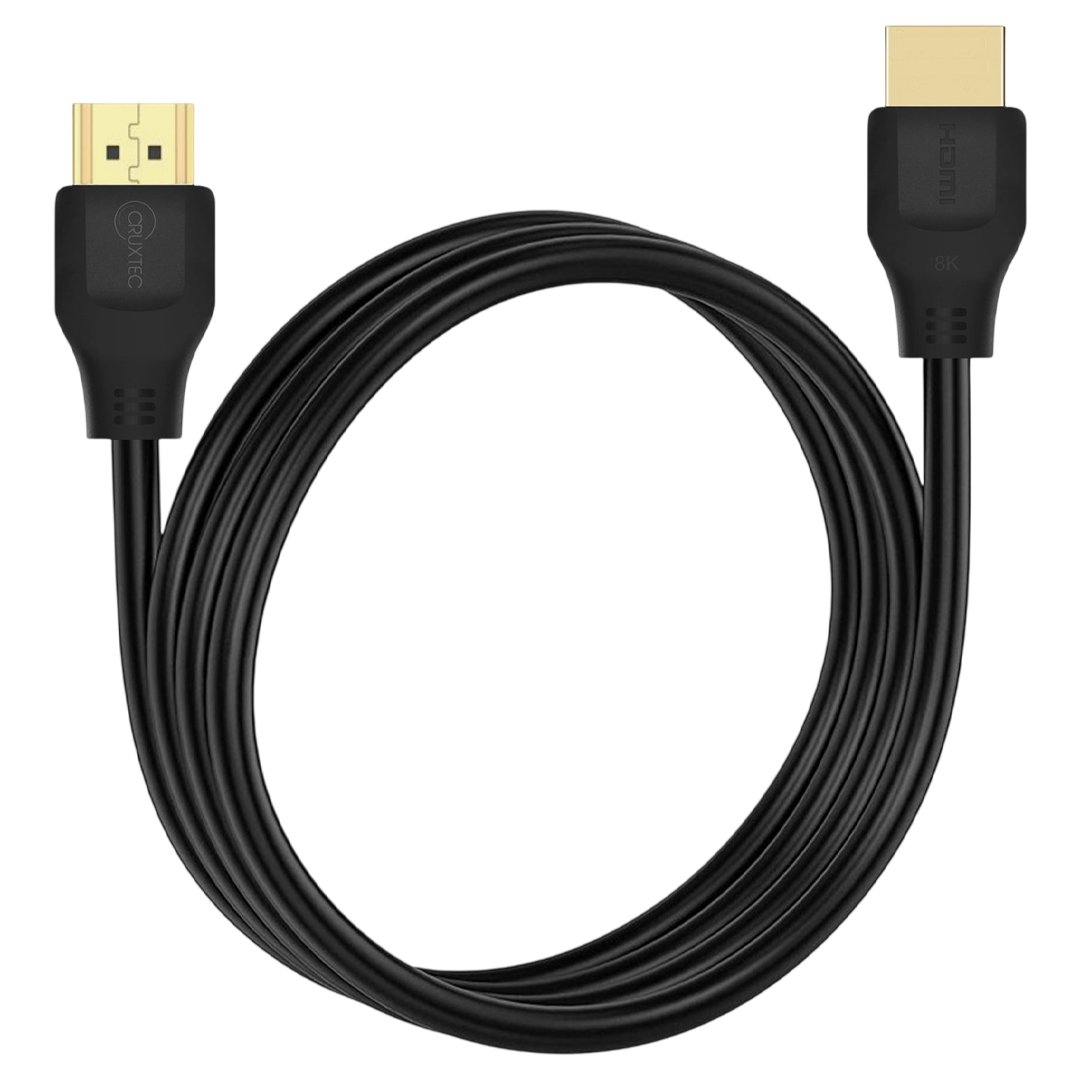

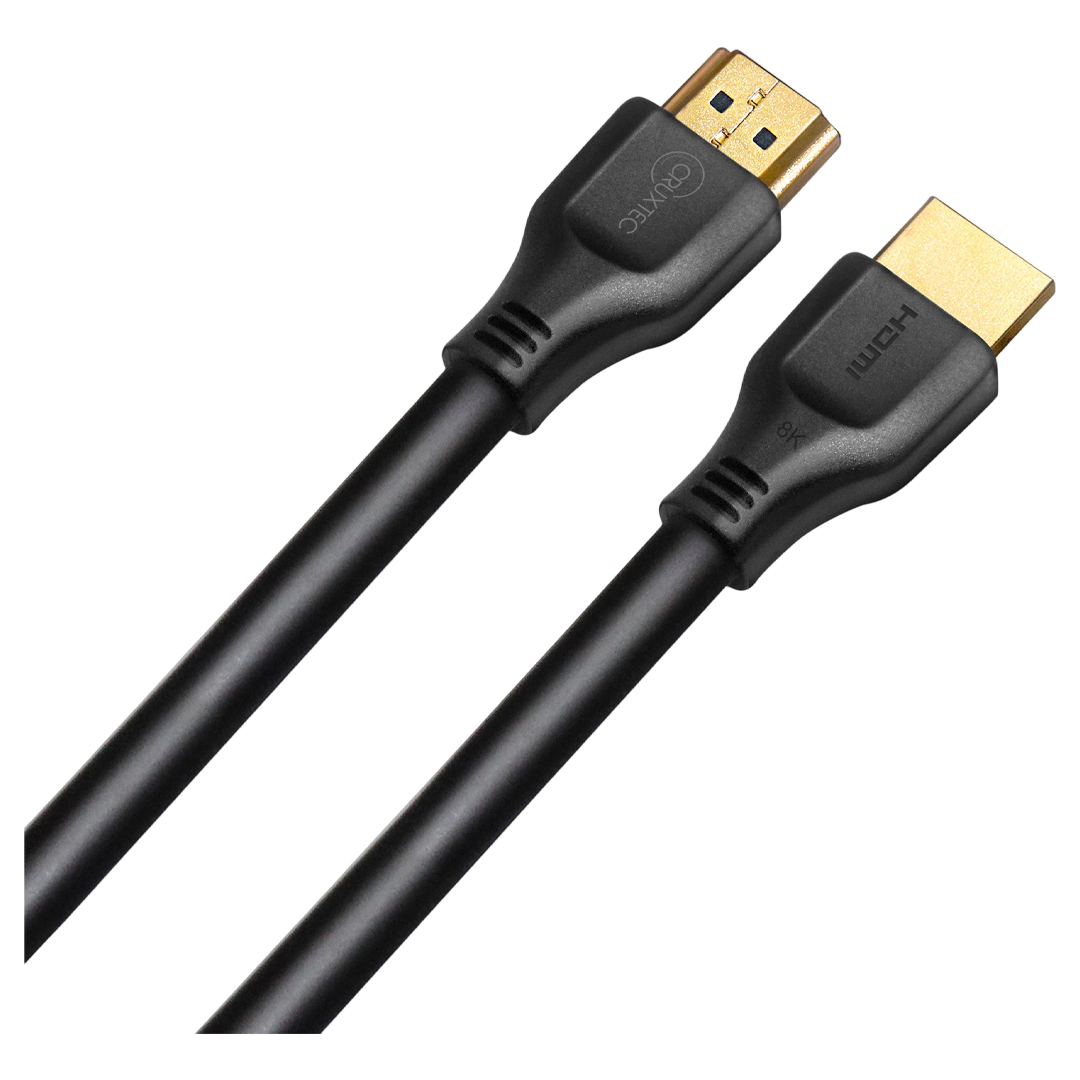

Cruxtec HDMI 8K with Ethernet Cable 48Gbps (Black 3m)
The Cruxtec HDMI 8K with Ethernet cable transmits HDMI video and audio to HDMI-enabled devices such as TVs, monitors and projectors. It supports resolutions up to 8K@60Hz and 4K@120Hz, with 48Gbps bandwidth, Dynamic HDR, VRR and Ethernet compatibility.
- One-piece moulded connector design
- Gold-plated connectors
- HDMI 8K 48Gbps bandwidth
- Dual-layer shielding
- Supports Dynamic HDR and VRR
8K HDMI Performance
HDMI 8K 48Gbps bandwidth supports up to 8K@60Hz or 4K@120Hz for high-resolution video and audio.
- 48Gbps bandwidth
- 8K@60Hz/4K@120Hz
- Dynamic HDR and VRR support
HDMI Type A Connection
HDMI Type A male-to-male connectors transmit video and audio to HDMI-enabled TVs, monitors and projectors.
- HDMI Type A male to male
- Ethernet compatible
- For TVs, monitors and projectors
6.0mm Cable Structure
30AWG bare copper conductor, 6.0mm OD and black PVC sheath provide a practical cable build for 1m to 3m lengths.
- 30AWG conductor
- 6.0mm cable diameter
- Black PVC sheath
Dual-Layer Shielding
Aluminium-magnesium braid with 85% coverage and foil shielding help maintain stable HDMI signal transmission.
- Dual-layer shielding
- Aluminium-magnesium braid
- Gold-plated connectors
Specifications
| Model Number |
CRUXTEC-HL21-03-BK |
| Pin Plating |
Gold |
| HDMI Version |
HDMI 8K |
| Bandwidth |
48Gbps |
| Maximum Resolution |
8K@60Hz / 4K@120Hz |
| Connectors |
HDMI Type A Male to Male |
| Cable Length |
3m |
| Colour |
Black |
| Cable Diameter (OD) |
6.0mm |
| Sheath |
PVC |
| Conductor Type |
30AWG solid bare copper conductor |
| Shield Type |
Dual-layer shielding |
| Cable Structure |
(1/0.254(30AWG)x1P+D+AL+HM)x5C + 1/0.254(30AWG)x4C + F + ADB |
| Braid |
Aluminium-magnesium braid, 85% coverage (16/9/0.12AL) |
| Connector Spec |
One-piece moulded connector |
| Warranty |
1-Year Warranty |
Backed by a 1 year Cruxtec warranty
