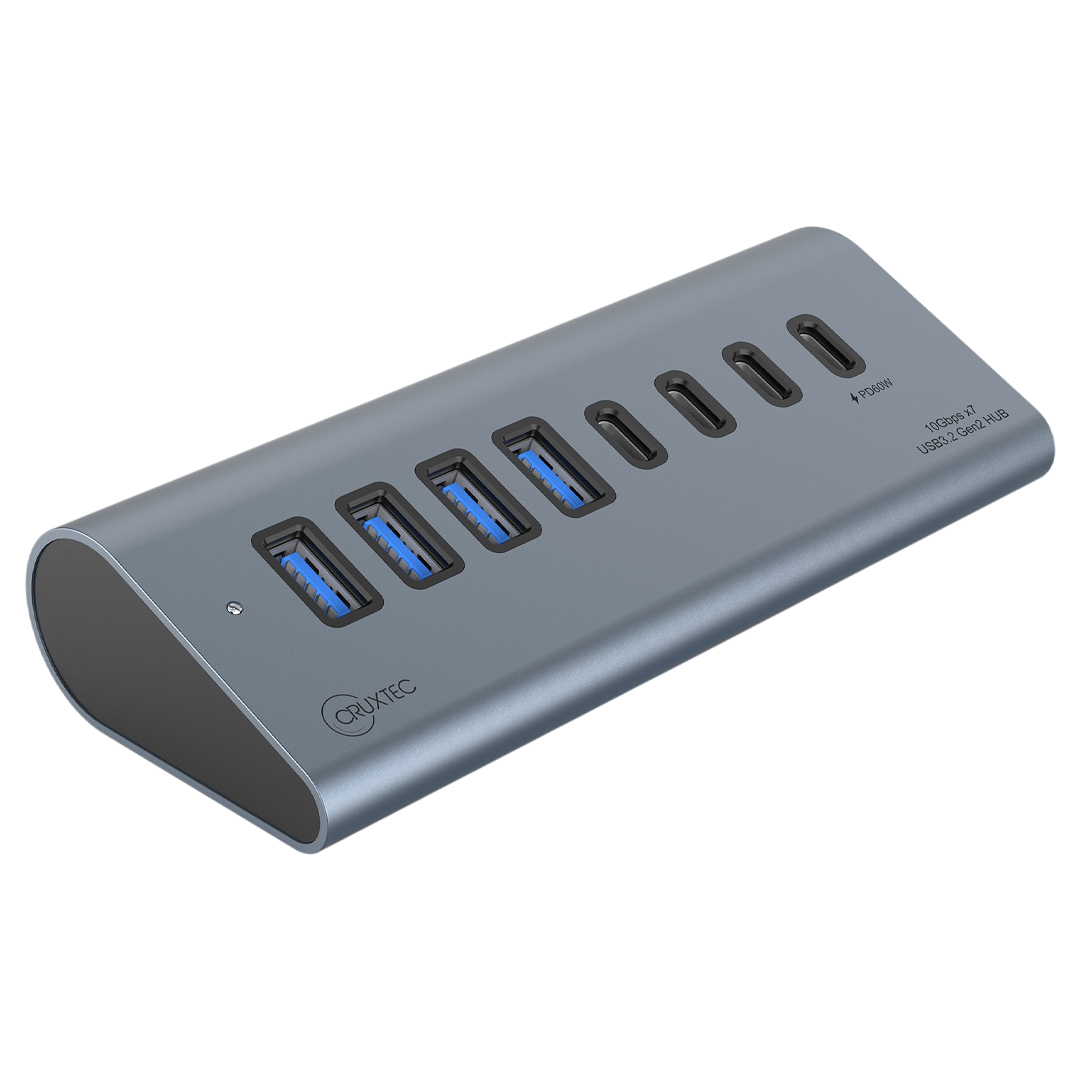

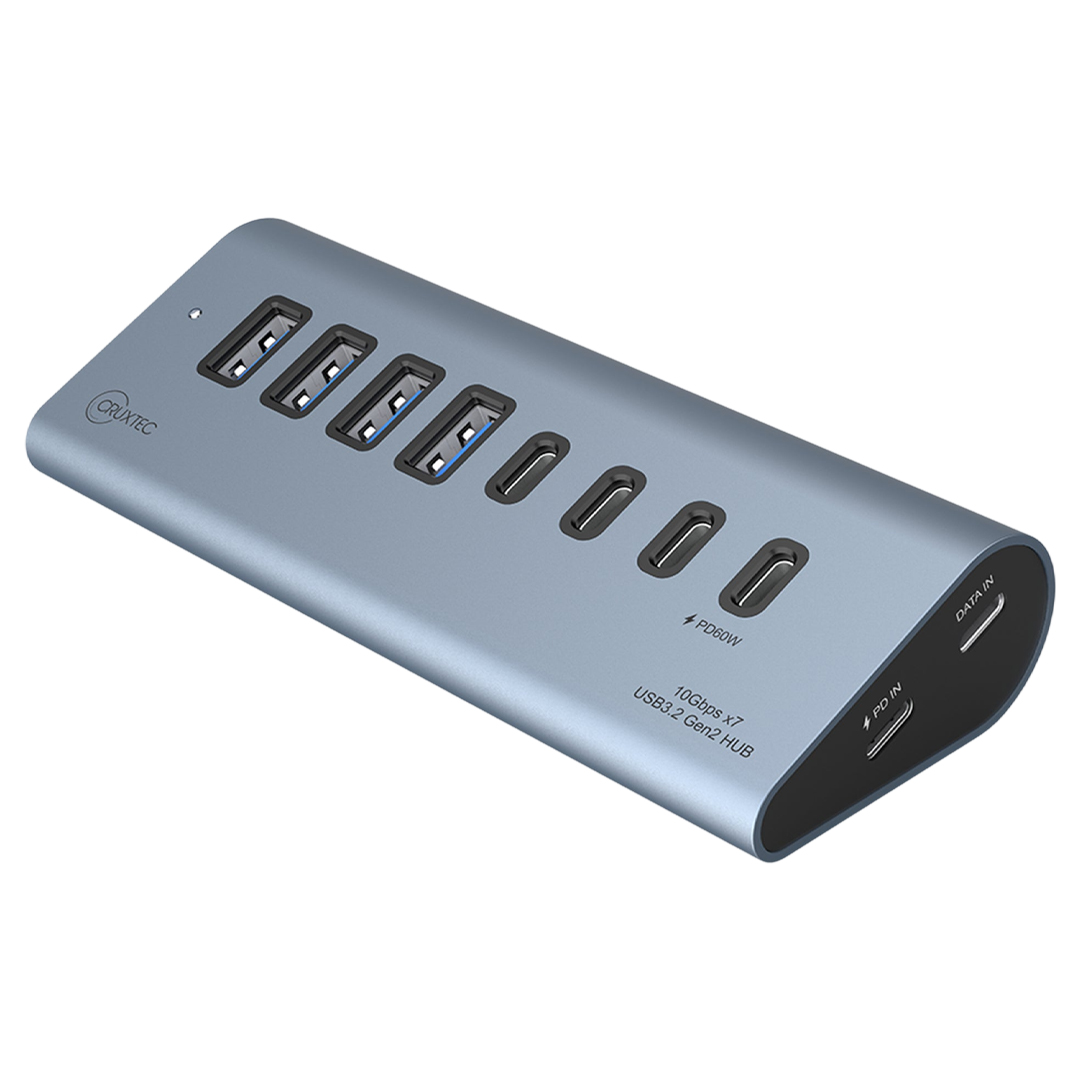

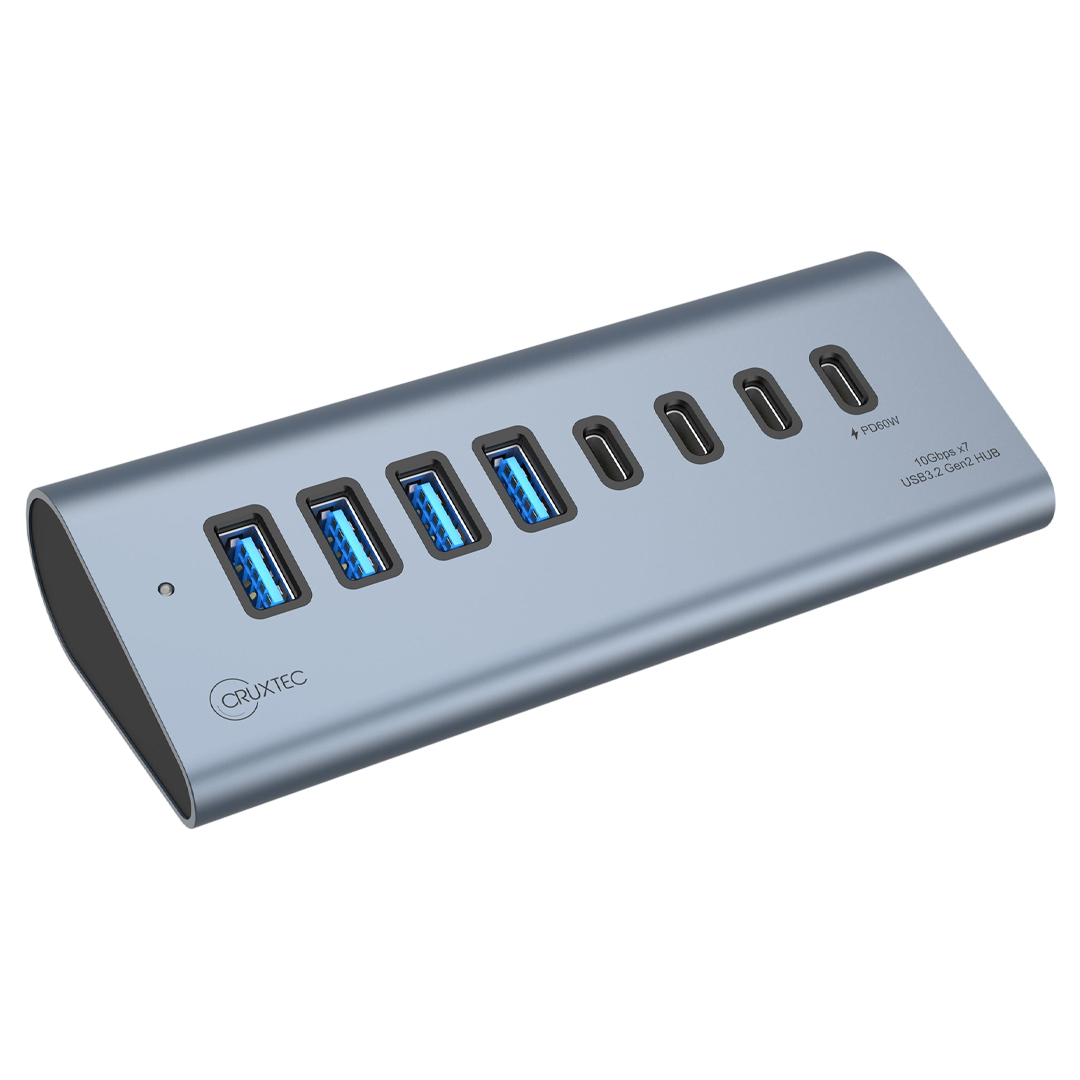

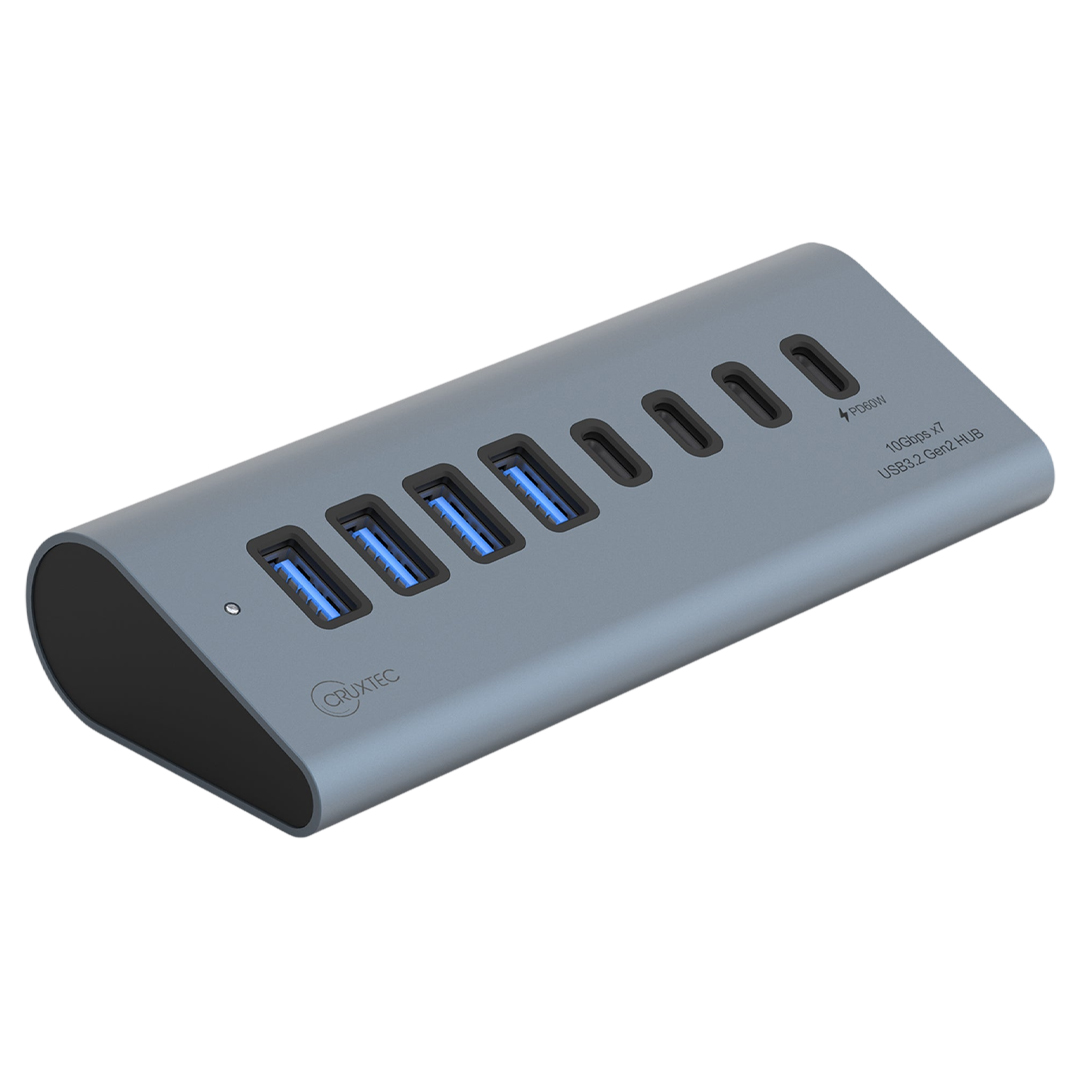

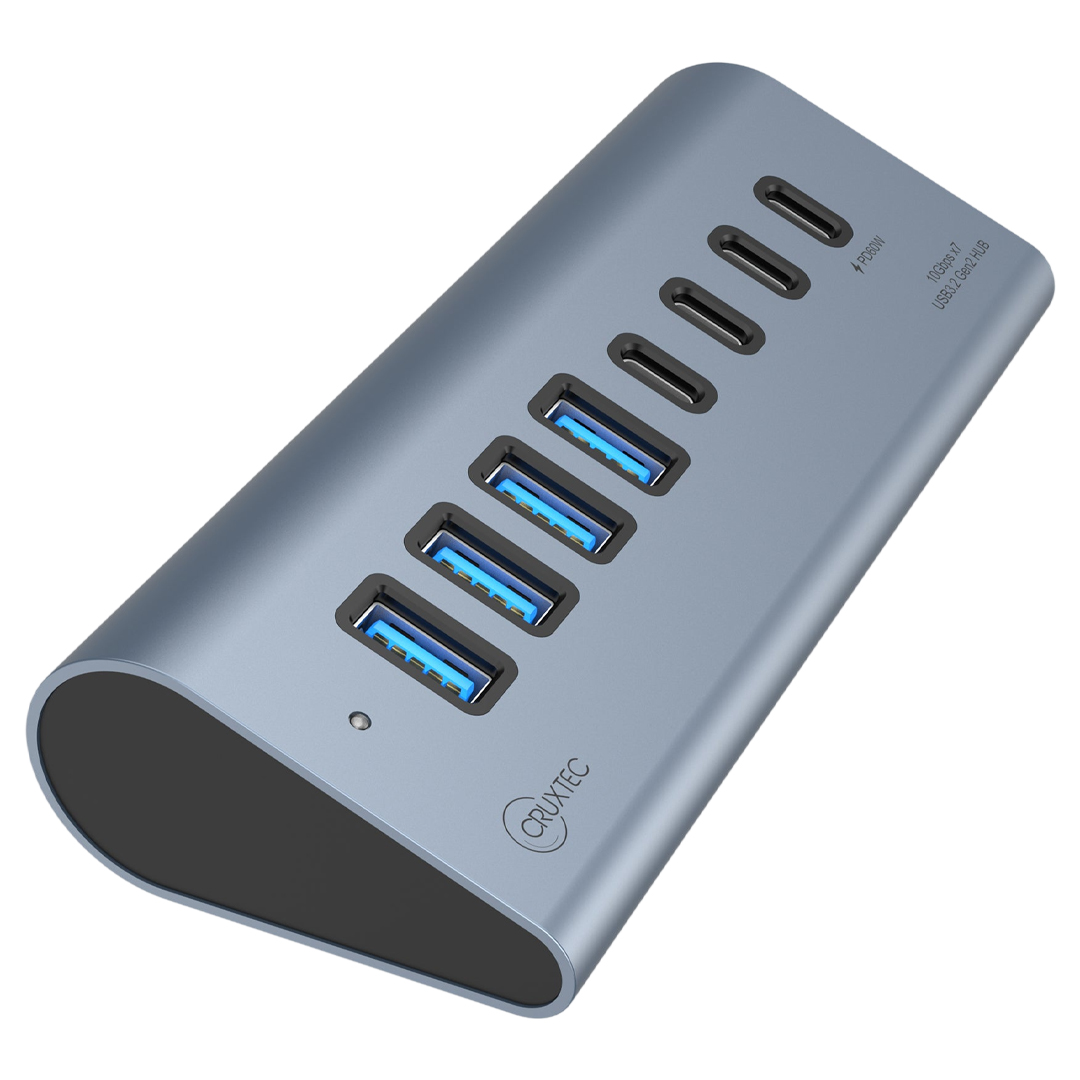

The Cruxtec AC3-4U3C1P-SG USB 3.2 Gen 2 7 Port Hub with PD 60W features a premium space grey aluminium alloy design equipped with 4 USB A and 3 USB C high speed ports. It supports blazing fast 10Gbps data transfer speeds and 60W power delivery charging for seamless plug and play desktop connectivity.
Features
Cruxtec USB 3.2 Gen 2 7-Port Hub with PD 60W Output (Space Grey)
The Cruxtec USB 3.2 Gen 2 7-Port Hub expands one host connection into four USB-A 10Gbps data ports, three USB-C 10Gbps data ports and a dedicated USB-C PD 60W output port. It is designed for desktop USB expansion where fast peripheral access and tidy charging support are both needed.
- Seven 10Gbps USB data ports: four USB-A and three USB-C
- Dedicated USB-C PD output up to 60W with suitable PD input
- Separate DATA IN and PD IN USB-C ports
- Aluminium + ABS space grey housing
- Included USB-C / USB-A to USB-C 1m host cable
- Blue power indicator and compact 24-degree angled desktop body
Seven 10Gbps Data Ports
Expand one host connection into four USB-A and three USB-C data ports, each specified for USB 3.2 Gen 2 10Gbps transfer.
- 4 x USB-A 10Gbps
- 3 x USB-C 10Gbps
- USB 3.2 Gen 2 hub layout
USB-C PD 60W Output
A dedicated USB-C PD output can provide up to 60W when used with a suitable PD charger connected to the PD input.
- PD input port on side panel
- Up to 60W PD output
- Best experience with 85W + PD input
Aluminium Desktop Design
Aluminium and ABS construction in space grey gives the hub a compact desktop form with a clear port layout.
- Aluminium + ABS housing
- Space grey finish
- Blue power indicator
Compact Angled Body
The 132 x 55 x 27mm body uses a 24-degree angled profile for easier desktop access to USB data and PD ports.
- 132 x 55 x 27mm
- 24-degree angled profile

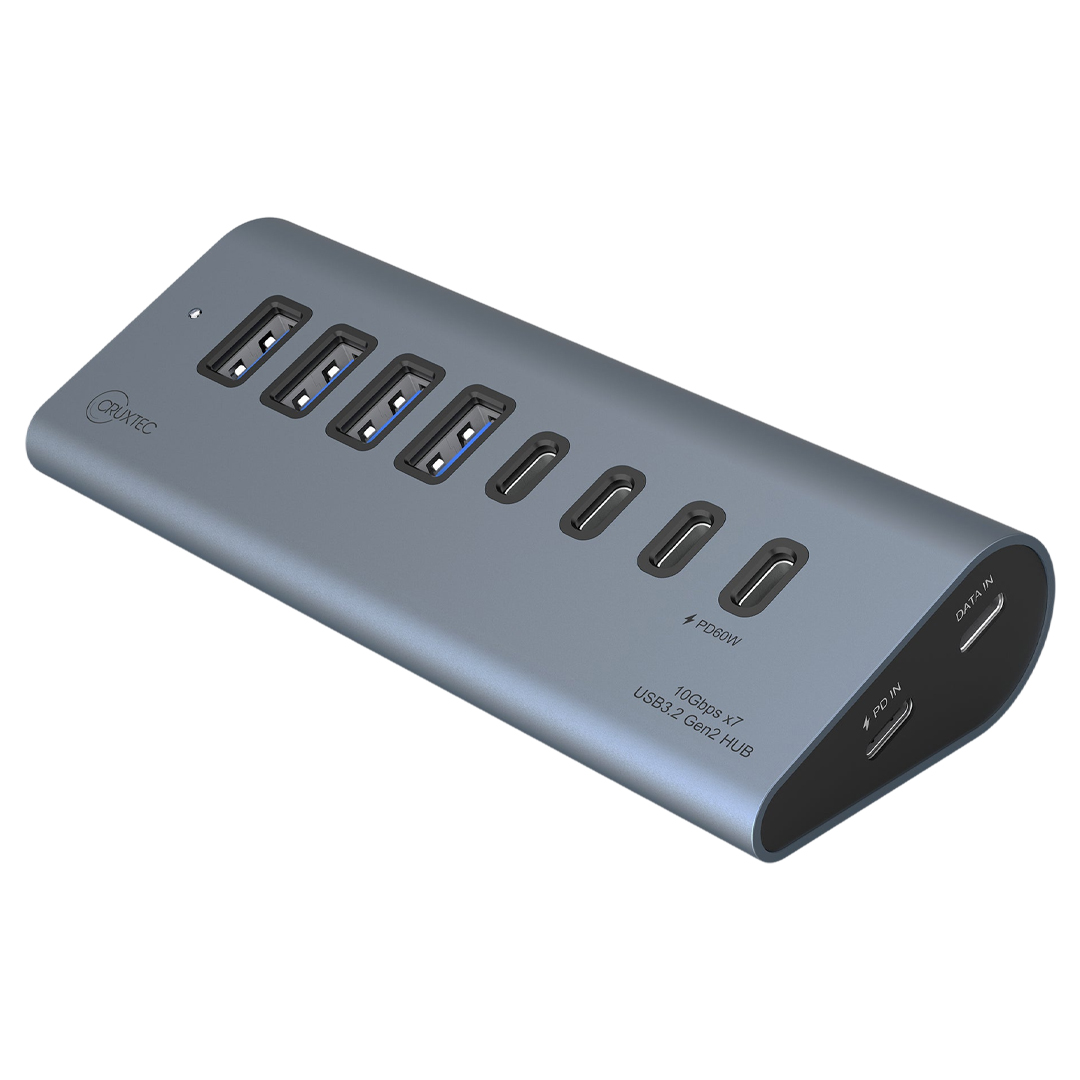

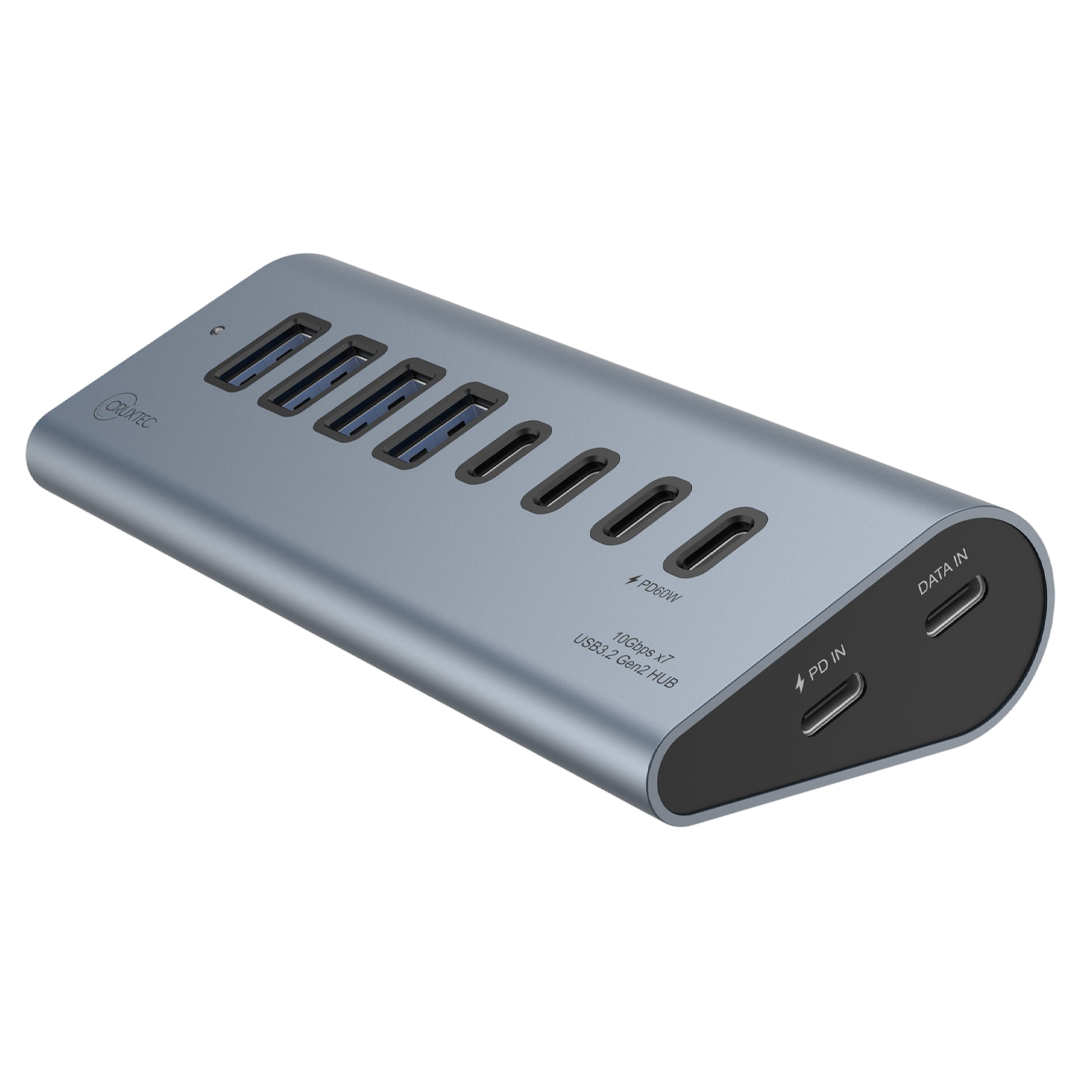

- Front DATA IN and PD IN ports
Specifications
| Model Number |
CRUXTEC-AC3-4U3C1P-SG |
| Product Type |
USB 3.2 Gen 2 Hub |
| Host Data Input |
USB-C female port |
| Host Data Interface |
USB 3.2 Gen 2 / 10Gbps |
| PD Input |
USB-C PD input port |
| USB-A Data Ports |
4 x USB-A 10Gbps |
| USB-C Data Ports |
3 x USB-C 10Gbps |
| USB-C PD Output |
1 x USB-C PD 60W (20V/3A) |
| PD Input Recommendation |
85W or higher PD charger for best experience |
| USB-A Output Current |
Standard current output, 0.9A |
| USB-C Data Output Current |
Standard current output, 0.9A |
| Included Cable |
USB-C / USB-A to USB-C 1m 10Gbps host cable |
| Cable Jacket |
Black PVC |
| Cable Shielding |
Aluminium foil |
| Indicator |
Blue LED |
| Material |
Aluminium + ABS |
| Colour |
Space Grey |
| Chipset |
Genesys Logic |
| Dimensions |
132 x 55 x 27mm |
| Body Angle |
24 degrees |
| Operating System Support |
Windows, macOS, Linux and other compatible USB host systems |
| Warranty |
1-Year Warranty |
Backed by a 1 year Cruxtec warranty.
