The Kingston 64GB (1x 96GB) 6400MHz CL52 Registered ECC DDR5 ram module is built for enterprise servers and professional workstations, delivering reliable high capacity performance with 52-52-52 timings and on-die ECC. It provides the stability, data integrity, and efficiency required for demanding virtualisation, database and workstation workloads.
Features
64GB DDR5 6400MT/s ECC Registered DIMM
64GB 2Rx4 8G x 80-Bit - PC5-6400 CL52 Registered EC8 288-Pin DIMM
DDR5 6400MT/s ECC Registered DIMM CL52 x80 2RX4 1.1V 288-pin 16Gbit Hynix A.

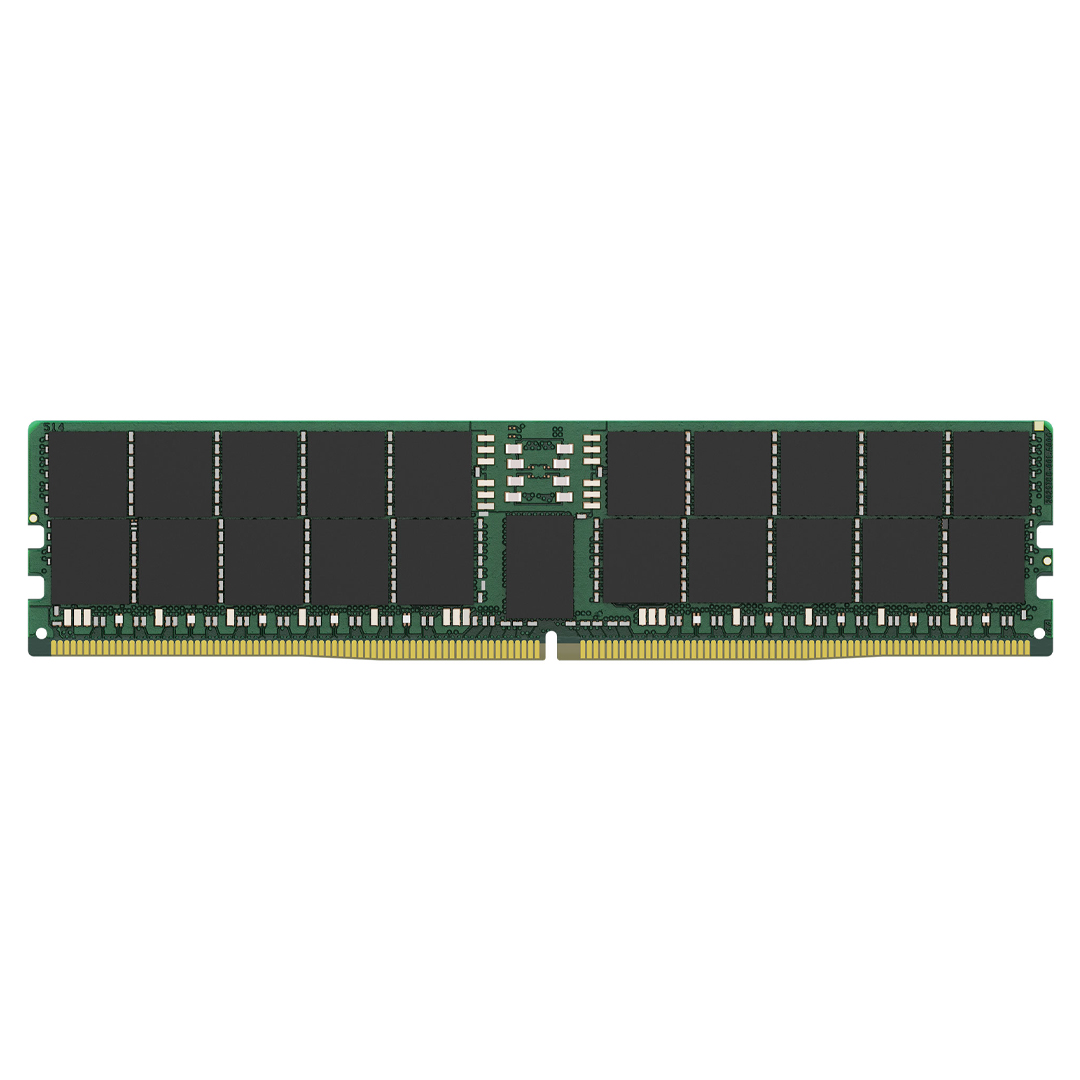

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
General Data
| Model Number |
KSM64R52BD4-64HA |
| Capacity |
64GB |
| Chip Organisation |
x4 |
| Ranking |
2R |
| DRAM Density |
16Gbit |
| DRAM Manufacturer |
Hynix |
| Die Revision |
A |
| Component Control |
Full Lock |
| Power Supply |
VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V |
| PCB |
Height 1.23” (31.25mm) |
| CL(IDD) |
52 cycles |
| Row Cycle Time (tRCmin) |
48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) |
295ns(min.) |
| Row Active Time (tRASmin) |
32ns(min.) |
| Row Precharge Time (tRPmin) |
16ns(min.) |
| UL Rating |
94 V - 0 |
| Operating Temperature |
0° C to + 95° C |
| Storage Temperature |
-55° C to +100° C |
Module Assembly
Backed by a limited lifetime Kingston warranty.
