The Ubiquiti UniFi 10G Adaptor delivers up to 90W of PoE+++ power while providing up to a high-speed 10GbE network connection, making it ideal for powering demanding devices without relying on PoE switch power budgets. Featuring integrated surge, peak pulse, and overcurrent protection, it offers reliable performance with flexible wall, DIN rail, or floating mounting options for professional network deployments.
Features
10G PoE+++ Adaptor (90W)
An adaptor that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
- Delivers up to 90W of PoE+++
- Surge, peak pulse, and overcurrent protection

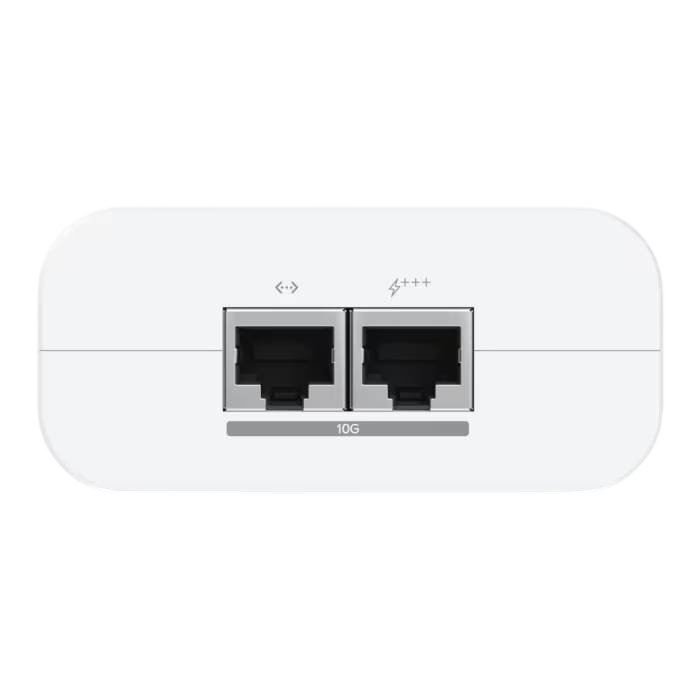

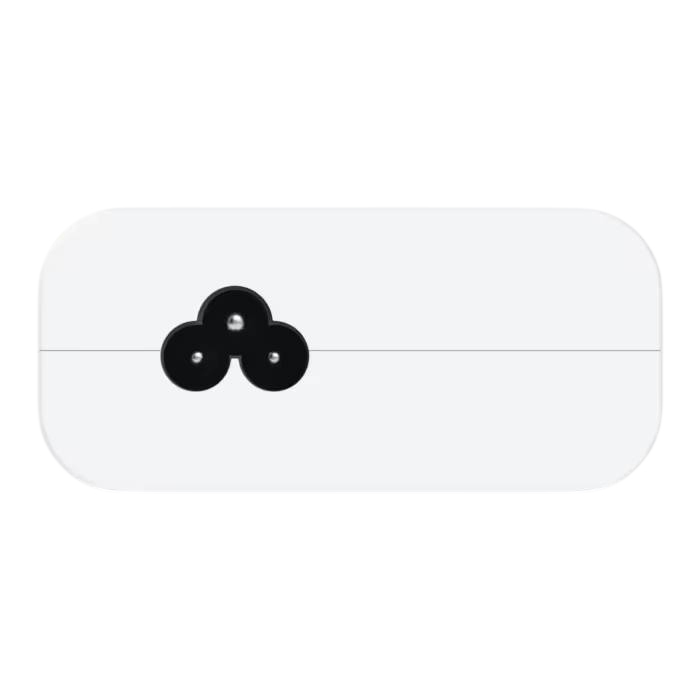

- Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
- LED indicator for status monitoring

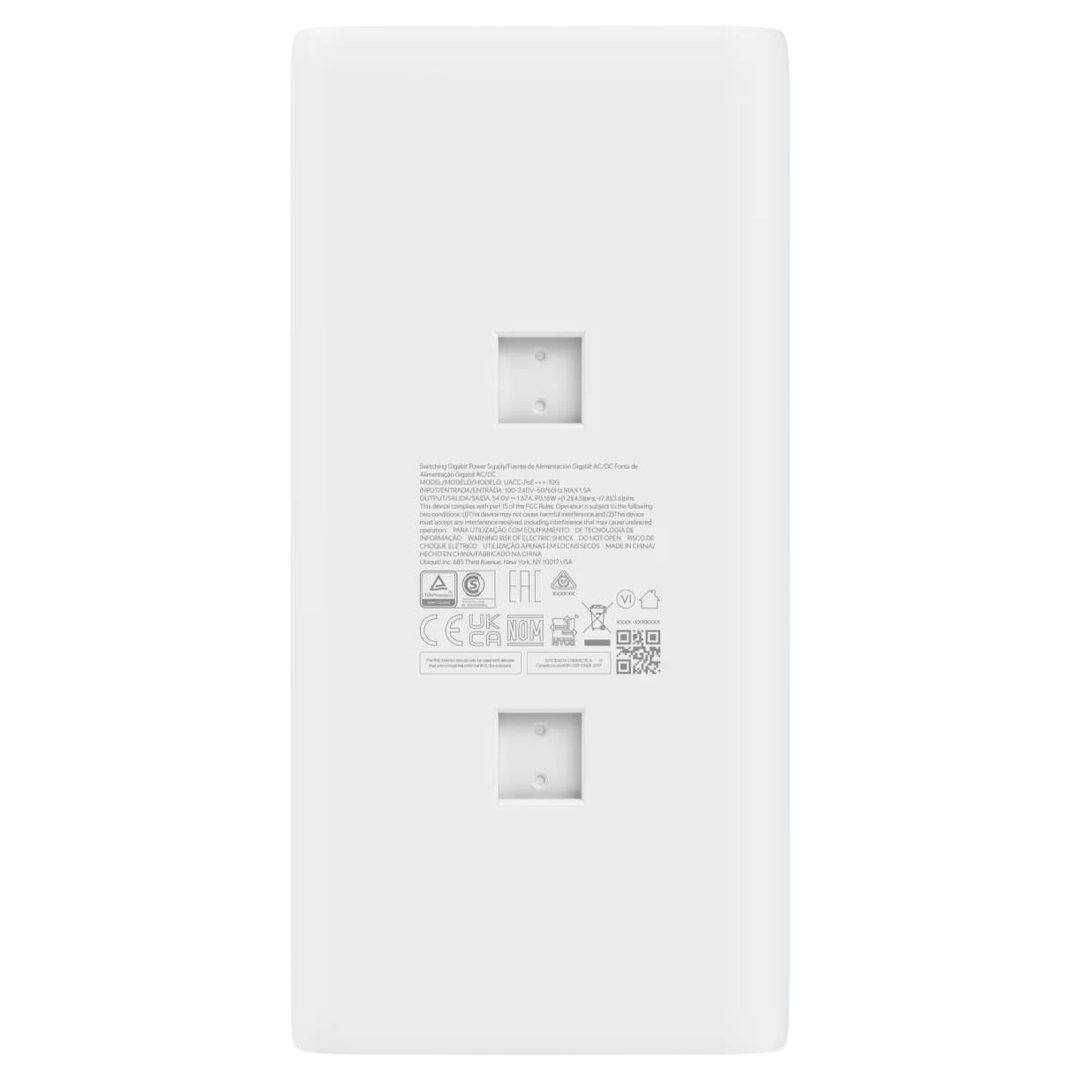

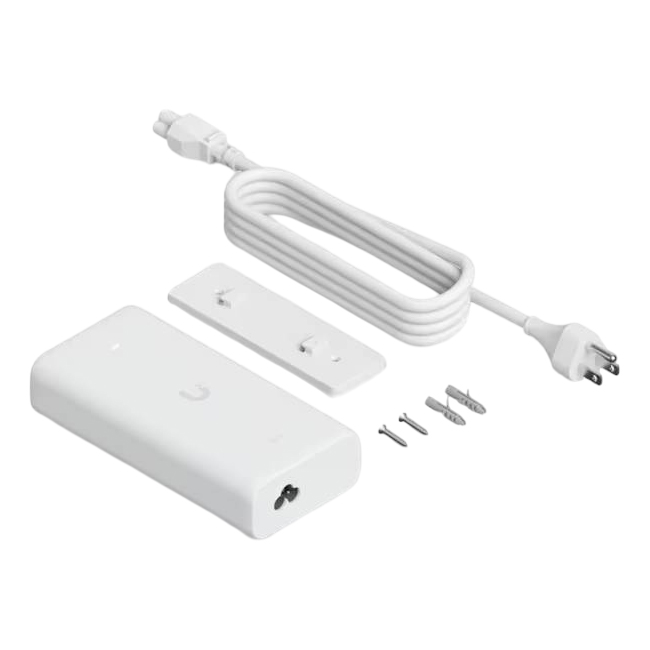

- Supports wall mount, DIN rail and floating mount (DIN rail and floating mount sold separately)
Specifications
| Model Number |
UACC-PoE+++-10G |
| Dimensions |
164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7") |
| Weight |
372 g (13.1 oz) |
| Power Cable |
Included |
| Output Voltage |
54V DC @ 1.67A |
| Rated Voltage |
100–240V AC at 50/60Hz |
| Gigabit LAN Port |
Yes (Up to 10 GbE on runs up to 80M) |
| 4-Pair Powering |
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection |
11V data, 60V power |
| Data In / PoE |
RJ45 shielded socket |
| Input Current |
1.5A Max. |
| Inrush Current |
<120A peak @ 230V AC |
| Efficiency |
>88% |
| Switching Frequency |
65 kHz |
| Output Ripple |
1% Max. |
| Line Regulation |
≤ 2% |
| Load Regulation |
≤ 5% |
| Max. PoE+ Wattage per Port by PSE |
90W |
| Max. Surge Discharge |
1500A (8/20 μs) power |
| Peak Pulse Current |
36A (10/1000 μs) data |
| Response Time |
<1 ns |
| Shunt Capacitance |
<5 pF data |
| Surge Protection |
Difference and common mode |
| Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| Compatibility |
USW-Flex-2.5G-8-PoE (196W), UP-AlarmHub-Kit |
Backed by a 1 year Ubiquiti warranty.
