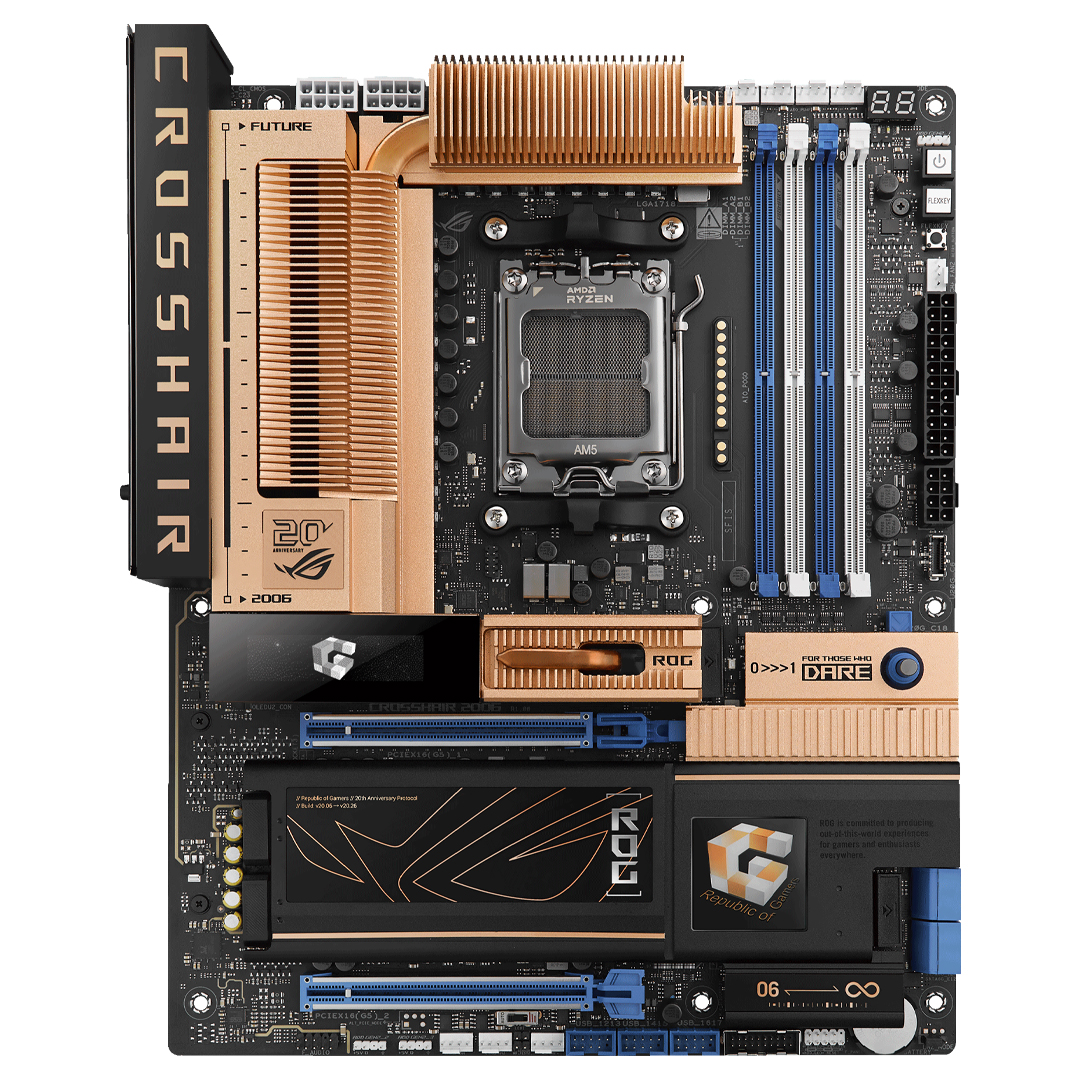

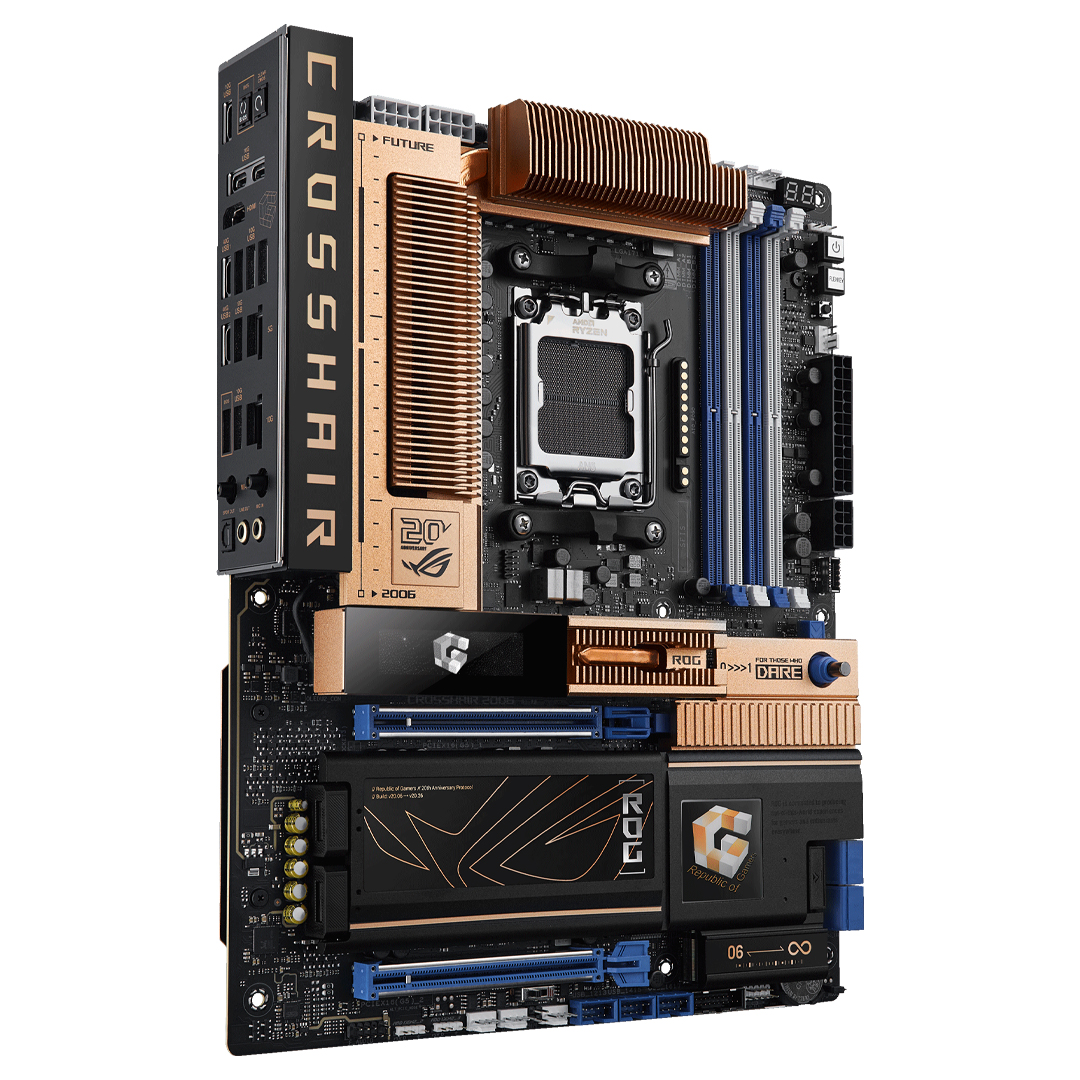

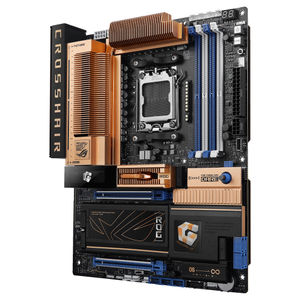

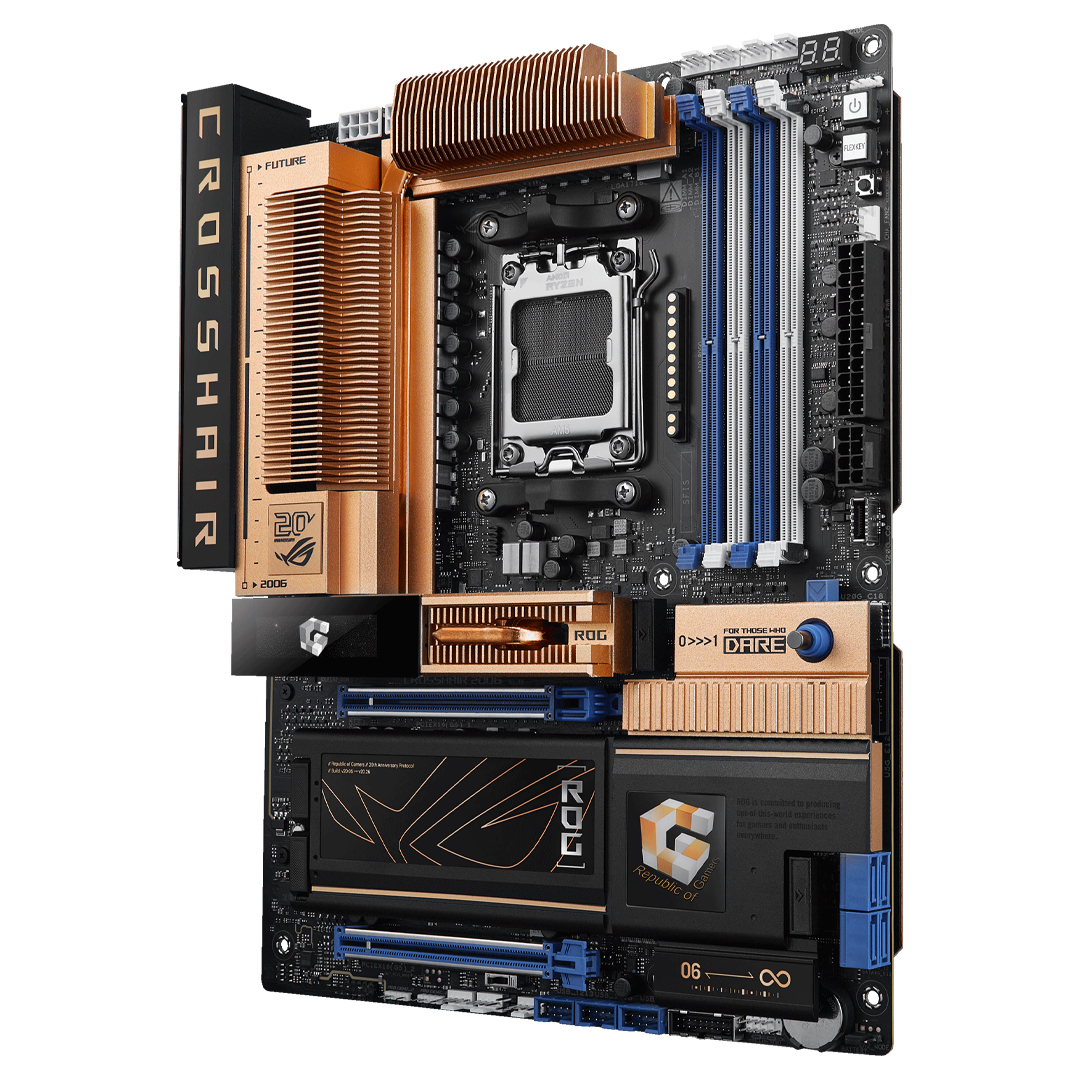

The ASUS ROG Crosshair 2006 X870E WIFI7 DDR5 Motherboard is a powerhouse designed for AMD Ryzen 9000, 8000 and 7000 Series desktop processors, offering exceptional performance and reliability for gaming, content creation, and multitasking. With a 20th anniversary ROG motherboard retro copper design, 2-inch OLED display, DDR5 memory support, PCIe 5.0 slots, and five M.2 slots, it delivers a striking visual flair and lightning-fast data speeds. Featuring integrated WiFi 7 and Realtek 10G and 5G ethernet ports, robust power delivery, and enhanced durability in a ATX form factor, the ASUS ROG Crosshair 2006 WiFi Motherboard is the perfect solution for building a high-performance, future-ready PC.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper colour design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Extreme Power & Performance
- Dual Procool II Power Connectors
- 20(110A) + 2(110A) + 2(80A) Power Stages
- Expansion Slots
2 x PCIe 5.0 x16 Slots
- AMD AM5 Socket
For AMD Ryzen™ 9000 &0 & 7000 Series Desktop Processors
- DDR5, 4 X DIMM
Max. 256GB
Dual Channel
- 5 x M.2 Slots
1 x M.2 22110 (PCIe 5.0 x4)
1 x M.2 2280 (PCIe 5.0 x4)
2 x M.2 2280 (PCIe 4.0 x4)
1 x M.2 2230 (PCIe 5.0 x2
Comprehensive Cooling
- Integrated I/O Cover & VRM Heatsinks
- Heatsinks for Five M.2 Slots
Five M.2 Slots with backplates and thermal pads
- Multiple 4-Pin PWM Fan Headers
Total Gaming Immersion
- SupremeFX 7.1 ALC4082 Audio Codec
ESS® ES9219 QUAD DAC
120 dB SNR stereo playback output
110 dB SNR recording input
Gold-plated audio jacks
- Dolby Atmos
- 3 x 3-Pin Addressable Gen 2 RGB Headers

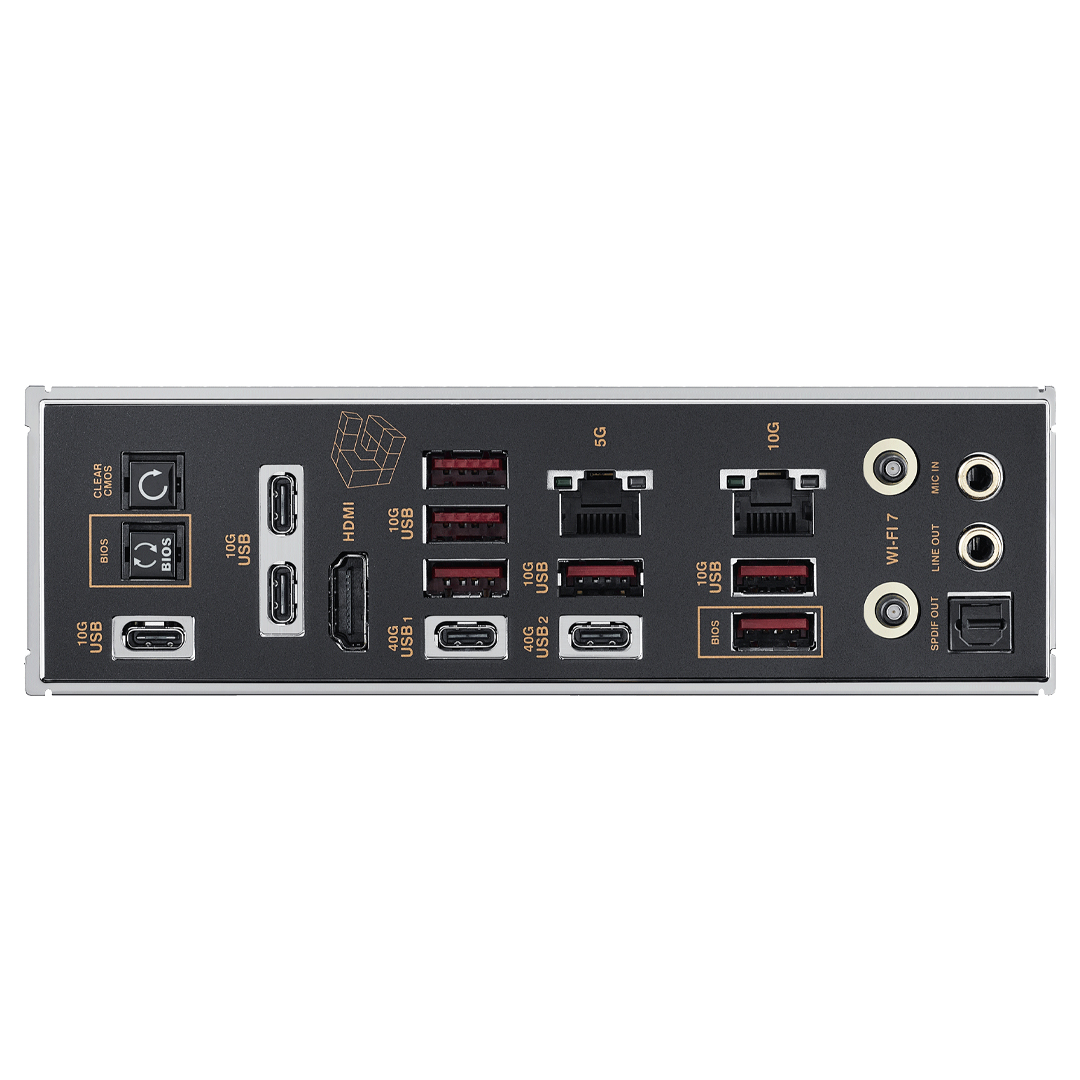

Full Connectivity
- 9 x USB 10Gbps Ports (6 x Type-A + 3 x USB Type-C®)
- BIOS FlashBack™ Button
- Clear CMOS Button
- 1 X HDMI™ Port
- 2 X USB4 ® (40Gps) Ports
- Realtek 5G Ethernet Port
- Realtek 10G Ethernet Port
- Wi-Fi 7
- Optical S/PDIF Out
- 2 x Gold-Plated Audio Jacks
- 1 x USB 20Gbps
USB Type-C® Front Panel Connector Supports QC4+
- 1 x USB 20Gbps
USB Type-C® Front Panel Connector
- 4 x Sata 6Gb/S
Legacy, Redefined
Retro-Inspired Design
A predominantly copper aesthetic with touches of blue and white pays tribute to the very first ROG motherboard.
2-Inch OLED Display
With two 20th anniversary exclusive animations.
ASUS AIO Q-Connector
The ASUS AIO Q-Connector's cableless link between the motherboard and the AIO cooler eliminates the need for pump, fan, and LCD cables.
Personalisation
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customisable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalise the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
- Default Animation
- 20th Anniversary Exclusive
- Hardware Monitor
- BIOS Update
- Customisation Content
Performance
Overclocking
Dynamic OC Switcher
Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Example:
If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
In its simplest form, you can maximise base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Examples:
Base Clock
- For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads.
- At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35A.
- Then the BCLK drops down to 102, and stays in that Level 2 range up until 55A.
- From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.
EDC
- By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.
- During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60.
- As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.
- Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.
PPT
- In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used.
- Until the CPU reaches 70°, it can run at full performance, so 350W is set to give plenty of overhead.
- At that point, the power limit reduces to 220W, to let the CPU start reducing heat.
- If it is still under sustained load and keeps getting hotter, then a more stringent 165W PPT is set at 85°.
Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair 2006 features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
Separate CPU BCLK from other domains for unfettered overclocking
PBO Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Memory
Server-Grade DRAM Enhancement
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair 2006 (Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.).
Server-Grade PCB Design
Ultra Low-Etch Process
A server-grade ultra low-etch process provides a specialised PCB treatment that improves material uniformity and layer flatness. This enhances the grounding structure to deliver more consistent signal integrity, leading to a stable environment for high-speed DDR5 tuning and more headroom for overclocking.
PCB Back Drilling
This special signal routing design helps optimise data integrity and system performance by limiting interference, noise, and crosstalk between the connection layers of a high-performance PCB.
Eight-Layer Design
Built on a server-grade eight-layer blueprint, the motherboard's core is engineered for precision. High-speed bus signals for PCIe 5.0 and DDR5 are clean and stable via controlled impedance and dedicated power/ground layers, while the stiffer structure enhances durability. The result is quieter signal behaviour and steadier performance under pressure.
Two-Ounce Copper Power Planes
With two-ounce copper power planes, current flows with less resistance and heat spreads more evenly. VRM temperatures are easier to control during sustained loads, unlocking more headroom for performance and overclocking. Thicker copper means steadier power delivery, faster heat dissipation, and long-term reliability you can count on.
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the ROG Crosshair 2006 is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
*Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialised hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customisability for memory optimisation.
DIMM Fit Pro gives advanced PC builders more extensive customisability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritise stability or performance, offering a more flexible and granular approach to memory optimisation.
NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimised signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
- Frequency up to 400 MT/s higher
- Slot retention force enhanced by 57%
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
ROG Ultimate Power Solution
20+2+2 Power Stages
The VRM features 20+2+2 power stages, each rated to handle up to 110 amps
- 20 VCORE (110A)
- 2 SoC (110A)
- 2 MISC (80A)
8 + 8-Pin ProCool II Power Connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Cooling
VRM Heatsink Array
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.
High-Conductivity Thermal Pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
M.2 Heatsinks and Backplates
Large aluminium heatsinks provide extensive surface area to cool mounted M.2 drives, and three onboard M.2 slots have dedicated backplates for additional heat dissipation.
Chipset Heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
Connectivity
WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6 (Specifications vary by model.), thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM (WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.). Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
- 320 MHz
- 6GHz bands
- 4096 QAM'
- Up to 4.8X ultra-fast WiFi speeds
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Disclaimer: The availability of WiFi 7 varies according to regional regulations.
Wireless Signal Reception Improvement
Versus previous-generation antenna.
- Up to +6% 6GHz
- Up to +18% 5/2.4 GHz
5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard 5Gb Ethernet Ethernet.
10Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 10G Ethernet.
PCIE 5.0
Fully embracing the new standard, the ROG Crosshair 2006 offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
PCIe® Lane Optimisation
Gaming & Streaming
Fully utilises native PCIe 5.0 lanes supported by AMD Ryzen™ 9000 & 7000 CPUs, delivering optimised bandwidth for maximum gaming performance.
Advanced Creation & AI
Cater to professional creators and demanding AI workloads, including dual GPU support for intensive AI and rendering tasks.
Five Onboard M.2 Slots
The ROG Crosshair 2006 features five onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.
Expansion Slots
Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release button.
USB Ports
Two USB4® Type-C® Ports
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
Two USB 20Gbps Type-C® Front-Panel Connectors
Supercharge your build with a high-end ROG chassis featuring lightning-fast dual front USB-C ports. Each connector delivers up to 20Gbps transfer speeds for compatible motherboards, and one of them supports Quick Charge 4+ for up to 60 watts of rapid device charging.
*Requires a PCIe® power cable to be connected to the nearby 8-pin power header.
Gaming Audio
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching-114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Audio Line Shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
Capacitors
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
ALC4082 Codec
Instead of the conventional high-definition audio (HDA) interface, the ALC4082 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
ESS® ES9219 QUAD DAC
The ESS® ES9219 QUAD DAC integrated QUAD DAC amplifier is capable of providing -114 dB total harmonic distortion (THD+N) for standard audio devices, and it can ramp up to 2Vrms on supported audiophile hardware. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
Switching MOSFETS
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
Low Latency
With the LC3 codec and LE Audio, latency is reduced by up to 70% versus legacy Bluetooth. Gamers can enjoy near real-time sound effects, footsteps, and voice cues, plus clearer, more stable in-game communication.
Immersive Spatial Sound
SMONO (Spatial Mono) is a 3D spatial audio technology that works over Bluetooth LE Audio. By dynamically tracking the position of sounds in-game, it provides realistic directional cues — helping gamers locate enemies, footsteps, or environmental sounds more accurately. This creates a deeper sense of immersion and improves situational awareness in fast-paced games.
EZ PC DIY
ASUS AIO Q-Connector
The ASUS AIO Q-Connector's cableless link between the motherboard and the AIO cooler eliminates the need for pump, fan, and LCD cables, enabling smoother installation and an unprecedented level of visual cleanliness.
PCIe® Slot Q-Release
A durable metal button unlocks the first PCIe slot's security latch with a single press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
M.2 Q-Release
All four M.2 slots feature a convenient switch (Switch may be a lever or button, depending on motherboard model.) to quickly remove the heatsink, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide
This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
New M.2 Q-Latch
The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Q-CODE
The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
BIOS FlashBack™ & Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.
Every step counts, and as part of ROG's commitment to creating a more sustainable future, ROG has begun to utilise post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Backed by a 3 year ASUS warranty.
