Ubiquiti UniFi Cloud Gateway Industrial

UCG-INDUSTRIAL | Ubiquiti
$1299
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Cloud Gateway Industrial delivers a high performance networking solution engineered for challenging and high density environments. This fanless, silent powerhouse functions as an all in one security gateway and application server, capable of running the entire UniFi software suite including Network and Protect. It features ultra fast 10G SFP+, 10 GbE RJ45 and 2.5 GbE RJ45 ports, running alongside 5 Gbps threat management throughput. Equipped with an integrated WiFi 7 access point and an extensive 270W PoE budget supporting high power PoE+++ devices, this robust system easily manages over 500 simultaneous users.

Features

Ubiquiti UniFi Cloud Gateway Industrial Feature 1

Cloud Gateway Industrial

Ubiquiti UniFi Cloud Gateway Industrial Feature 2

Deployment

Build Features

Ubiquiti UniFi Cloud Gateway Industrial Feature 3

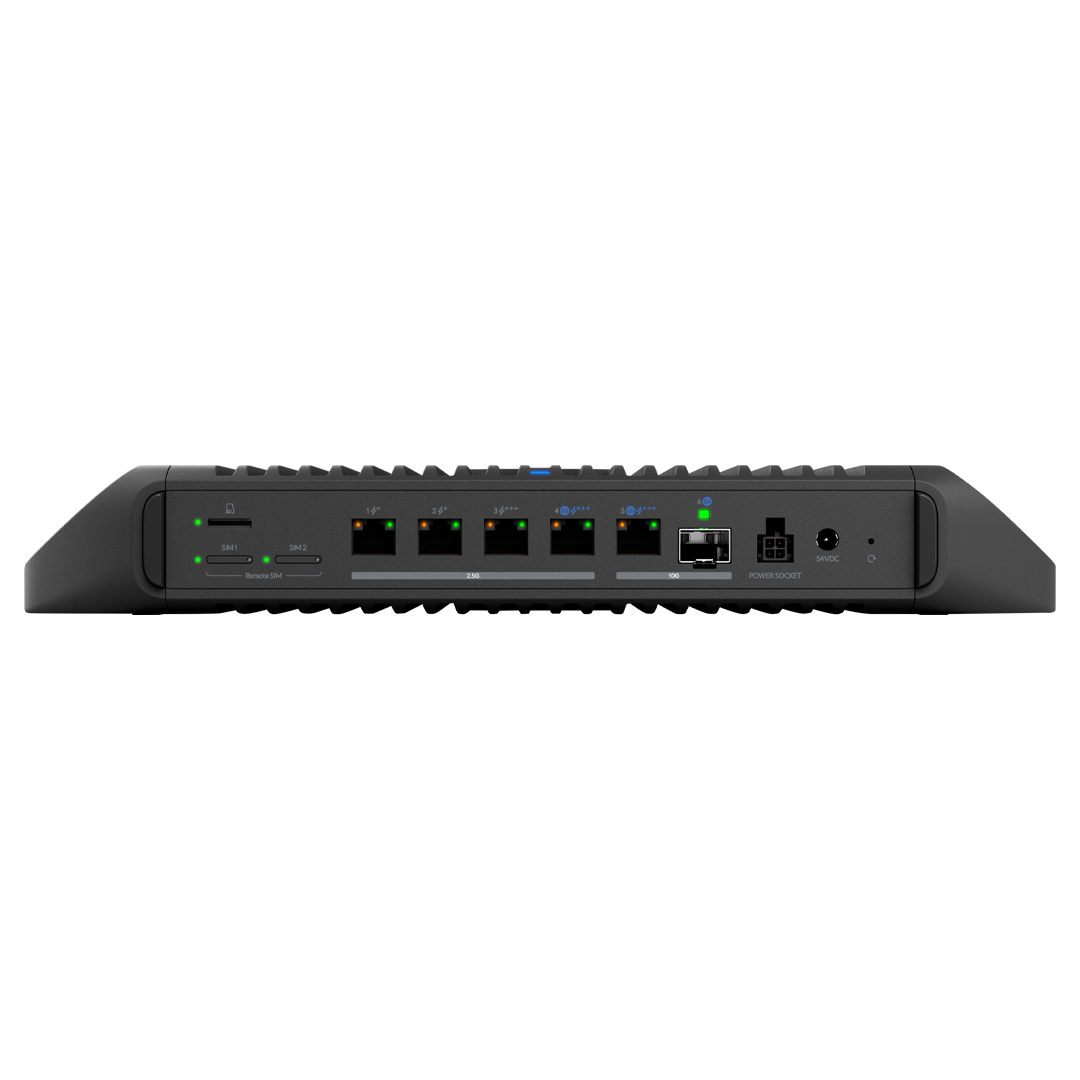

Front View

Ubiquiti UniFi Cloud Gateway Industrial Feature 4

Top View

Ubiquiti UniFi Cloud Gateway Industrial Feature 5

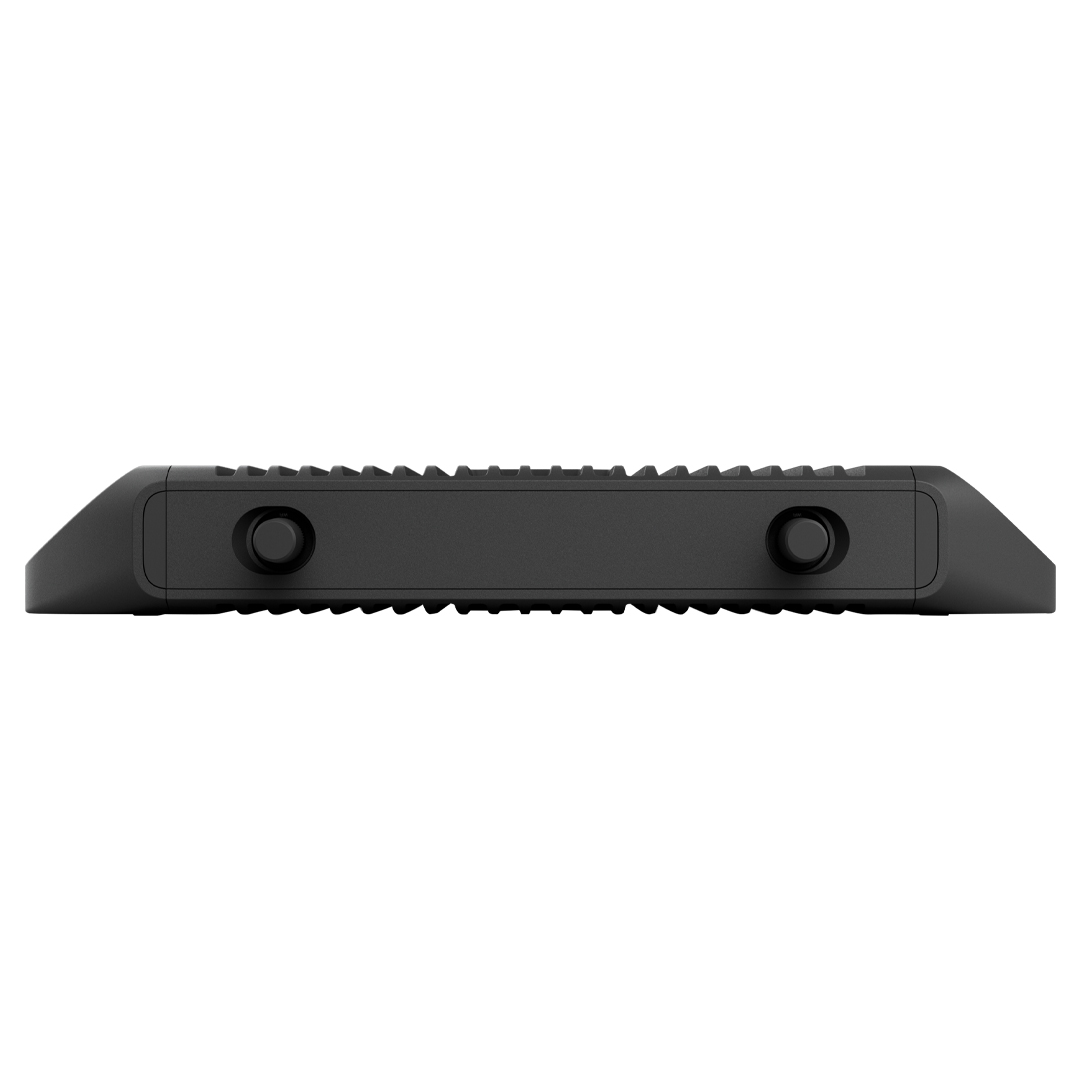

Bottom View

Specifications

General Data

Model Number UCG-INDUSTRIAL
Dimensions Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7"")
Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9"")
UniFi Application Suite Network: Yes (Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN.)
Protect: Yes (AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management.)
Access: Yes (Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms.)
Talk: Yes (Plug-and-play VoIP system with advanced call routing and automations for seamless communication.)
Connect: Yes (Manage digital signage, EV chargers, and Lutron lighting systems with ease.)
Managed UniFi Devices 50+
Managed Cameras (15) HD
(8) 2K
(5) 4K
Managed Access Hubs 50 (Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits.)
Simultaneous Users Connected 500+
Max. WAN Port Count 5
Default WAN Ports (1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45
Port Layout 2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+); (2.5G/1G/100M)
10 GbE RJ45: 1 (PoE+++); (10G/5G/2.5G/1G/100M)
10G SFP+: 1; (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Wall-mounted
Compact desktop (Table stand included)
Rack mount (Accessory sold separately)
Coverage Area 115 m² (1,250 ft²)

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-Based Traffic Segmentation Yes

VPN & SD-WAN

Licence-Free SD-WAN Yes
Site-to-Site VPN Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing Yes
Dynamic Routing OSPF: Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 4,000
Virtual Network Override Yes

Integrated WiFi

WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Throughput 5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO 5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain 5 GHz: Stub antenna: 5 dBi; Terminal (Omni) antenna: 6 dBi
2.4 GHz: Stub antenna: 3 dBi; Terminal (Omni) antenna: 6 dBi
Max. TX Power 5 GHz: 26 dBm
2.4 GHz: 23 dBm
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

NVR Storage Pre-installed 128 GB microSD for NVR
Expansion Slot MicroSD Card (128 GB pre-installed microSD)
PoE Budget DC input: 270W
ATX power: 75W
Max. PoE Wattage per Port by PSE PoE+: 30W
PoE+++: 90W
Voltage Range PoE Mode 50-57V
Max. Power Consumption 28W (Excluding PoE output)
Power Method (1) DC Input (350W PSU)
(1) ATX power (48V)
Power Supply 54V DC, 350W (Adaptor included)
ATX power (48V)
Supported Voltage Range 100–240V AC
Heat Dissipation 95 BTU/hr (Excluding PoE output)
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 3 GB
Weight Device: 2.4 kg (5.3 lb)
Table stand: 321 g (11.3 oz)
Enclosure Material Device: Polycarbonate, aluminium alloy
Table stand: Polycarbonate, galvanised steel, silicone rubber
Management Ethernet
Bluetooth
LEDs Ethernet: Yes
SFP+: Yes
System: Yes
MicroSD: Yes
SIM: Yes
Button (1) Factory reset
(2) Handle release buttons
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC

Software

Application Requirements Mobile App
UniFi iOS™: Version 10.32.0 and later
UniFi Android™: Version 10.35.0 and later
Backed by a 1 year Ubiquiti warranty.
