Ubiquiti UniFi Dream Router 5G Max

UDR-5G-MAX | Ubiquiti
$1029
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Dream Router 5G Max supports high performance networking with up to WiFi 7 connectivity, failover capabilities, 10G SFP+ and 2.5GbE connectivity, advanced security tools, UniFi application features, and support for over 300 connected users, all in a compact desktop form factor solution for modern networks.

Features

Dream Router 5G Max

Ubiquiti UniFi Dream Router 5G Max Feature 1

Deployment

Build Features

Ubiquiti UniFi Dream Router 5G Max Feature 2

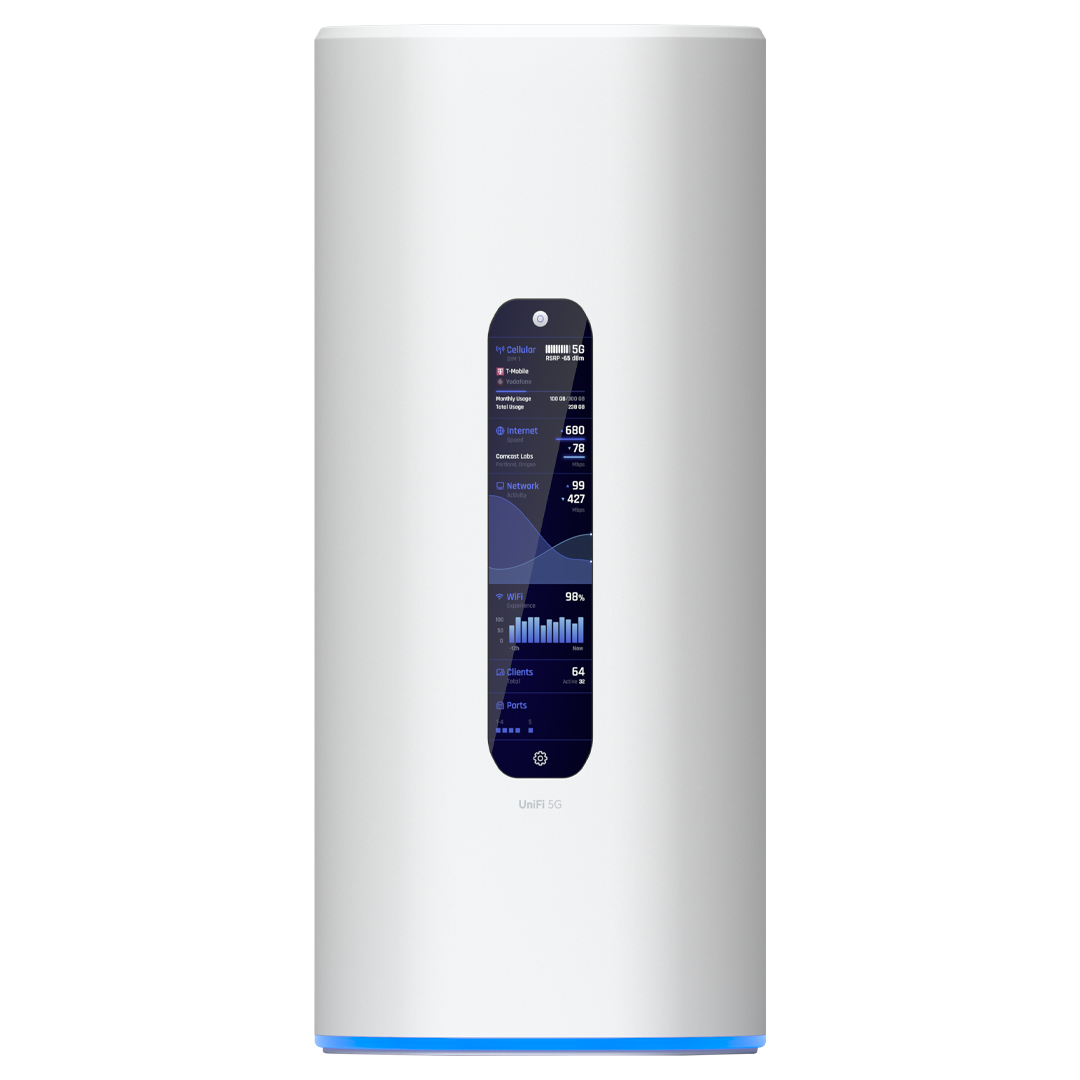

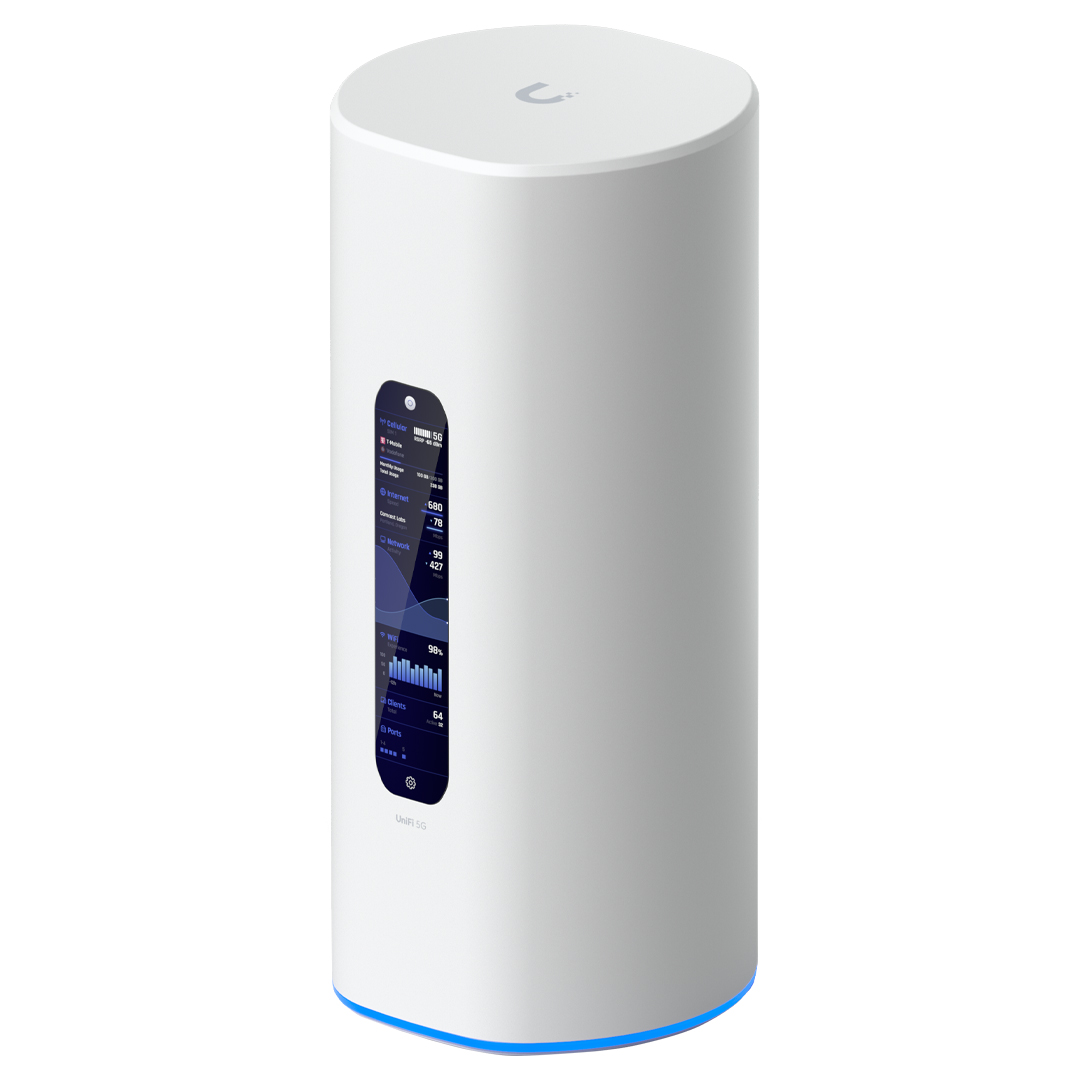

Front View

Ubiquiti UniFi Dream Router 5G Max Feature 3

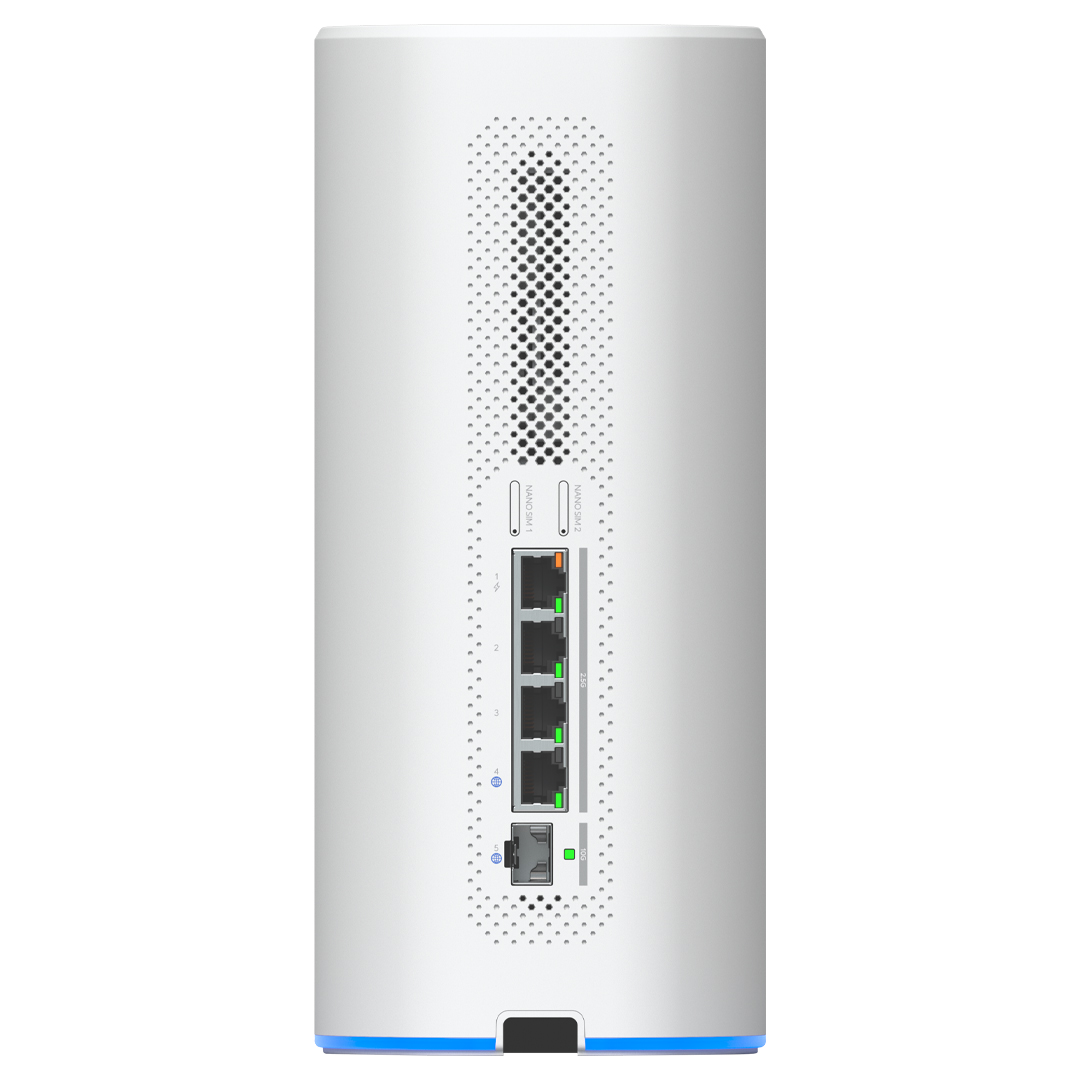

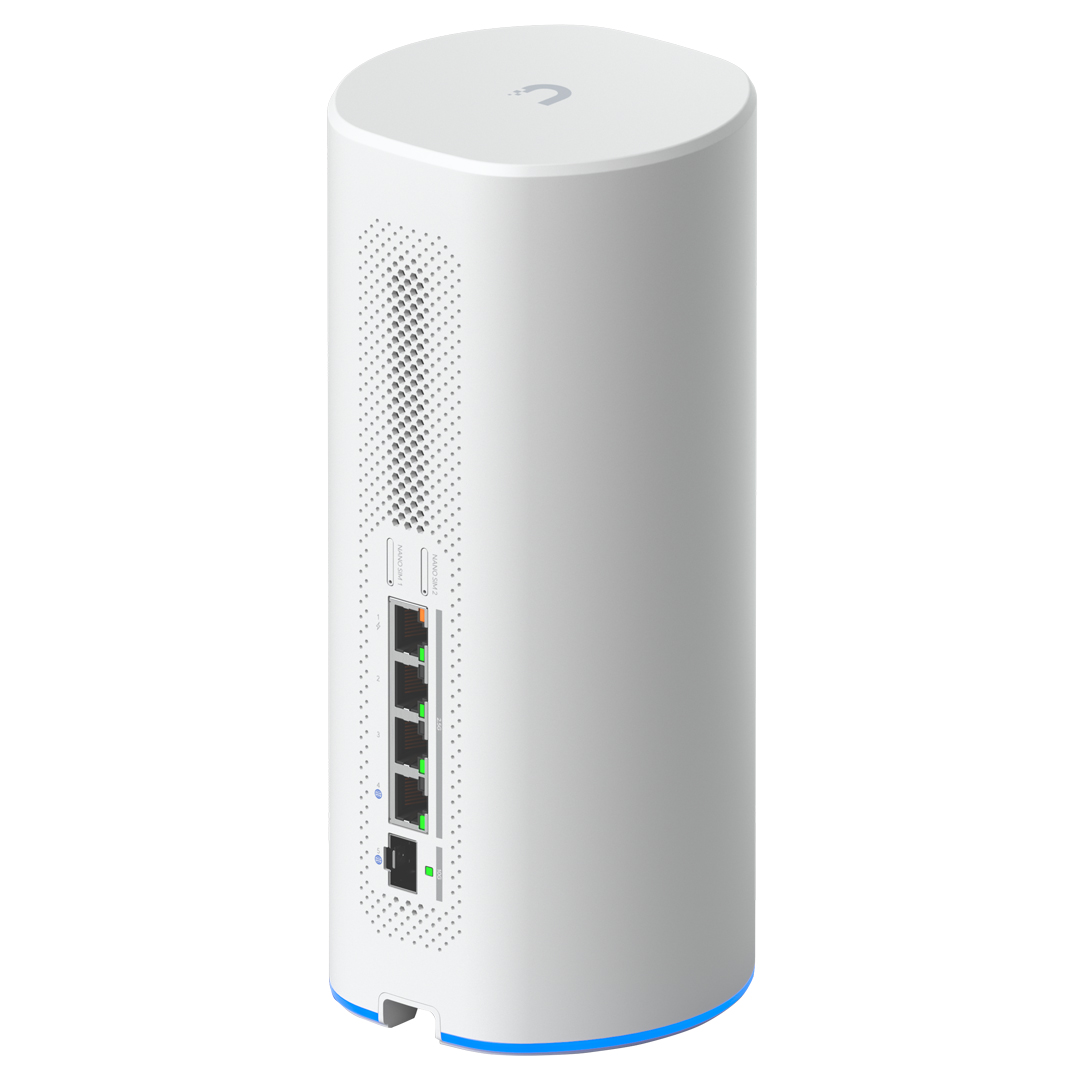

Back View

Ubiquiti UniFi Dream Router 5G Max Feature 4

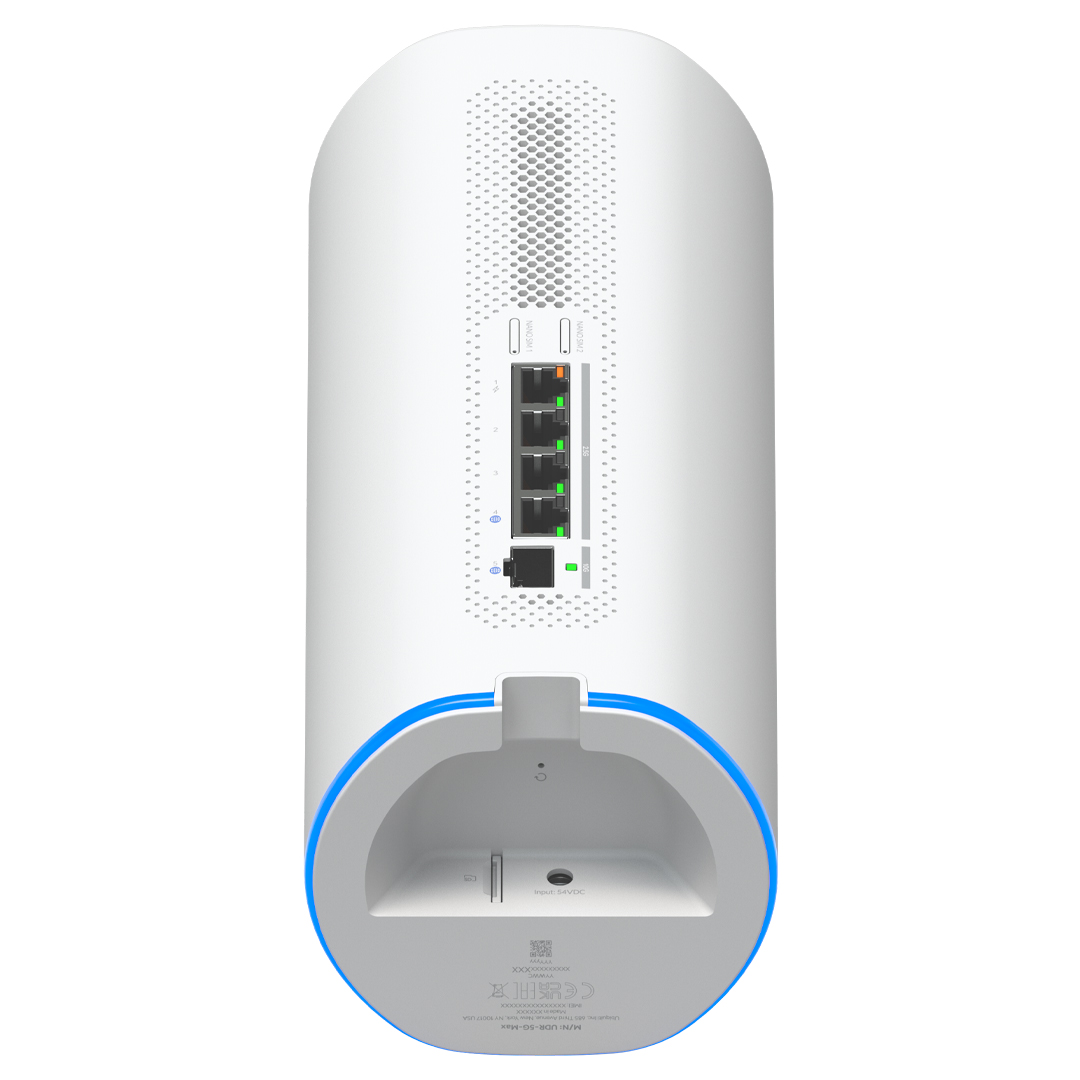

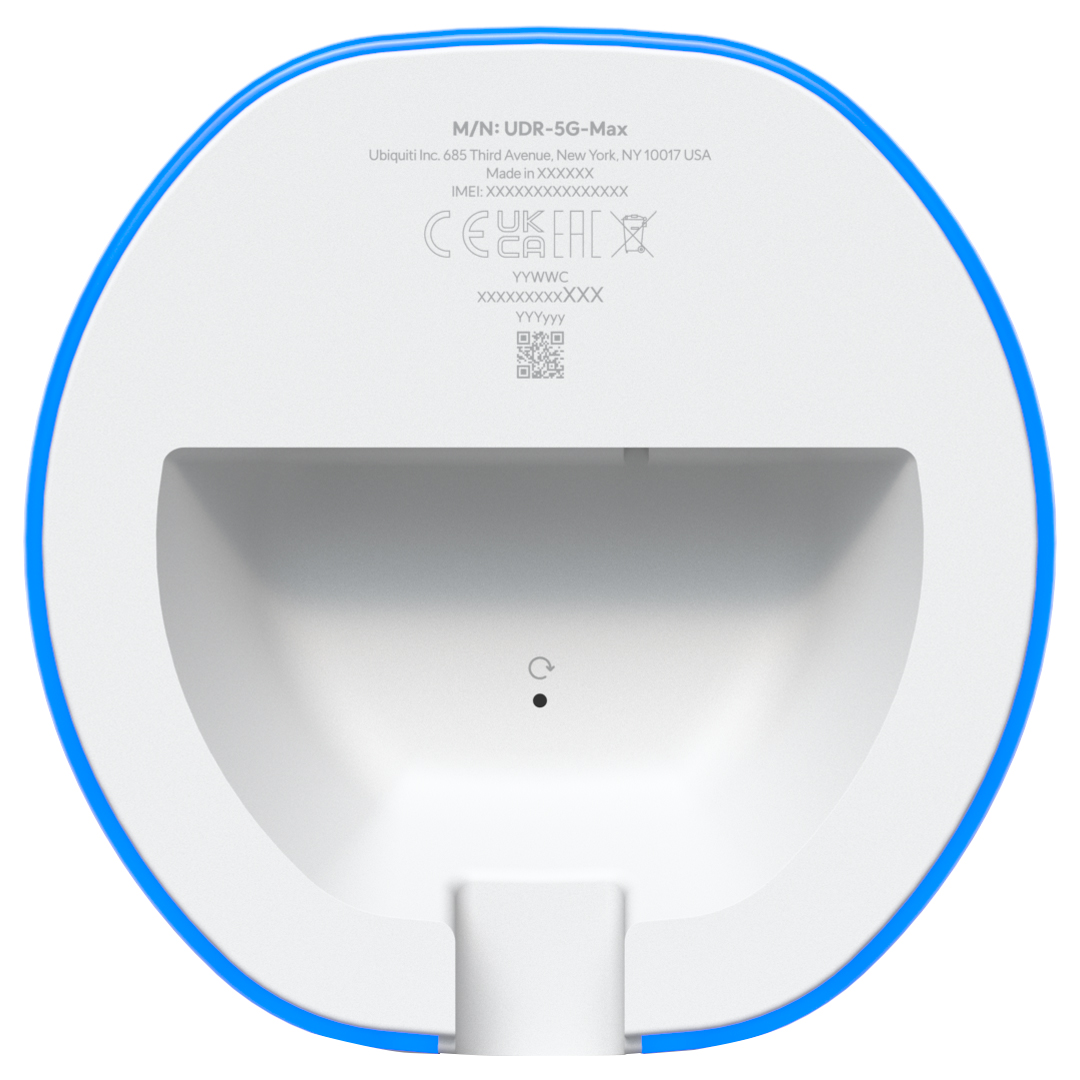

Bottom View

*64 GB pre-installed microSD.

Specifications

General Data

Model Number UDR-5G-MAX
Dimensions 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
UniFi Application Suite Network: Yes (Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN.)
Protect: Yes (AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management.)
Access: Yes (Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms.)
Talk: Yes (Plug-and-play VoIP system with advanced call routing and automations for seamless communication.)
Connect: Yes (Manage digital signage, EV chargers, and Lutron lighting systems with ease.)
Managed UniFi Devices 30+
Managed Cameras (5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected 300+
Max. WAN Port Count 4
Default WAN Ports (1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout 2.5 GbE RJ45: 4 (1 PoE); (2.5G/1G/100M)
10G SFP+: 1; (10G/1G)
IDS/IPS Throughput 2.3 Gbps
Form Factor Desktop
Coverage Area 160 m² (1,750 ft²)

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 20,000+ with CyberSecure

VPN & SD-WAN

Licence-Free SD-WAN Yes
Site-to-Site VPN Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client OpenVPN: Yes
WireGuard: Yes
Site-to-Site VPN Single Tunnel Throughput Site Magic: 20
VPN Client Single Tunnel Throughput WireGuard: 8
OpenVPN: 8

Networking

Multi-WAN Load Balancing Yes
Dynamic Routing OSPF: Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 2,000
Virtual Network Override Yes

Integrated WiFi

WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput 6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain 6 GHz: 8 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power 6 GHz: 22 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs 4 per Radio
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Cellular

5G NR Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm
4G LTE Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm
3G UMTS Frequency Bands: B1, B2, B4, B5, B8, B19
Peak Data Speed 5G NSA: Downlink 3.4 Gbps; Uplink 560 Mbps (Speed depends on network coverage and performance at the device location)
5G SA: Downlink 1.8 Gbps; Uplink 650 Mbps
4G LTE: Downlink 1.6 Gbps; Uplink 210 Mbps
Antenna Gain 617-960 MHz: 3 dBi
1710-2700 MHz: 7 dBi
3300-5000 MHz: 8 dBi
5150~5925 MHz: 8 dBi
SIM (2) Nano SIM
(1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active)

Hardware

NVR Storage Pre-installed 64 GB microSD for NVR
Expansion Slot MicroSD Card (64 GB pre-installed microSD)
PoE Budget 15.4W
Max. PoE Wattage per Port by PSE PoE
15.4W
Voltage Range PoE Mode 44–57V
Max. Power Consumption 34.5W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54V DC/1.1A
(Adaptor included)
Supported Voltage Range 100–240V AC
Heat Dissipation 115 BTU/hr (Excluding PoE output)
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight 1.4 kg (3.1 lb)
Enclosure Material Polycarbonate
LCM Display 4.7" touchscreen
Management Ethernet
Bluetooth
LEDs Ethernet: Yes
SFP+: Yes
System: Yes
Button (1) Factory reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®

Software

Application Requirements Mobile App
UniFi iOS™: Version 10.33.0 and later
UniFi Android™: Version 10.36.1 and later
Backed by a 1 year Ubiquiti warranty.
