The Noctua NF-A12x25 G2 PWM chromax.black 120mm Fan delivers next-generation quiet cooling performance with an advanced aerodynamic design, and PWM control for efficient airflow in both PC cases and water-cooling radiators. Featuring a sleek all-black chromax.black finish, premium SSO2 bearing, and speeds up to 1,800 RPM, the NF-A12x25 G2 provides exceptional cooling, low noise operation, and long-term reliability.
VIDEO
Features

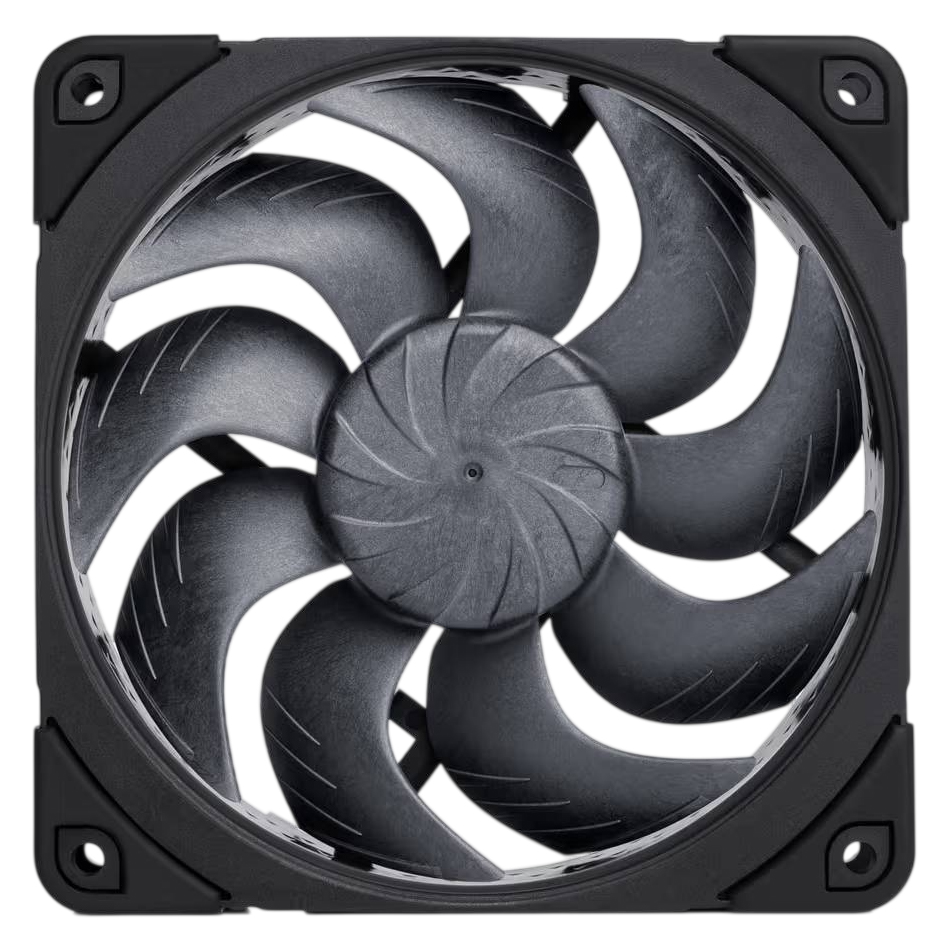

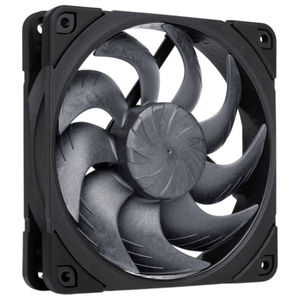

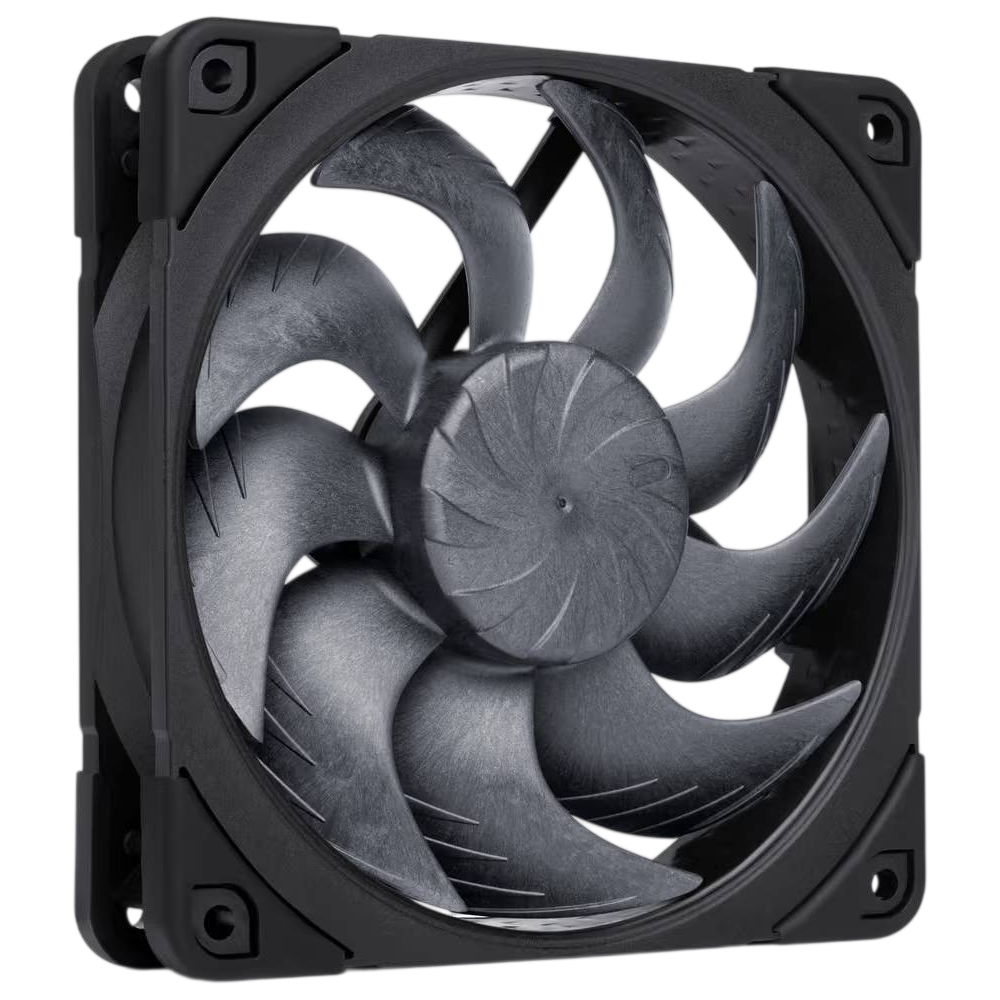

NF-A12x25 G2 PWM chromax.black
Next-Gen Black 120mm Fan
State-of-the-art quiet cooling performance for PC cases and water cooling radiators in a sleek all-black design: The chromax.black version of the award-winning NF-A12x25 G2 120mm fan.
Succeeding the iconic NF-A12x25, the NF-A12x25 G2 has quickly established itself as a new benchmark for premium quality quiet 120x25mm fans. Its advanced aerodynamic engineering featuring a novel Progressive Bend impeller design with a Centrifugal Turbulator hub, winglets, and a record tight tip clearance of only 0.5mm enables the G2 model to provide a significant boost in performance-to-noise efficiency over its renowned predecessor: Whether it’s in low-impedance, airflow-orientated applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on water cooling radiators, where its etaPERF™ motor with SupraTorque™ allows leveraging extra torque headroom, the NF-A12x25 G2 is a proven winner.
The chromax.black edition combines the NF-A12x25 G2’s Sterrox® liquid-crystal polymer impeller, comprehensive feature set and breakthrough quiet cooling proficiency with an attractive black design, which can be customised with coloured anti-vibration pads that are available separately.
Topped off with Noctua’s trusted premium-grade SSO2 bearing, an MTTF rating of more than 150,000 hours and a 6-year manufacturer’s warranty, the NF-A12x25 G2 PWM chromax.black is the perfect choice for users who are looking for cutting-edge quality, quietness and performance in an all-black style.
Next-gen 12cm design: For unprecedented quiet cooling performance
State-of-the-art engineering: Progressive Bend impeller, Sterrox® LCP material & ultra tight tip clearance
chromax.black edition: All-black design, customisable with optional anti-vibration pads
Award-Winning NF-A12x25 G2 Design
Providing a significant performance boost over the renowned first-generation NF-A12x25, the NF-A12x25 G2 has become a new favourite among quiet cooling enthusiasts. With rave reviews and dozens of awards from hardware media around the world, the G2 model is a proven premium choice for the highest demands.

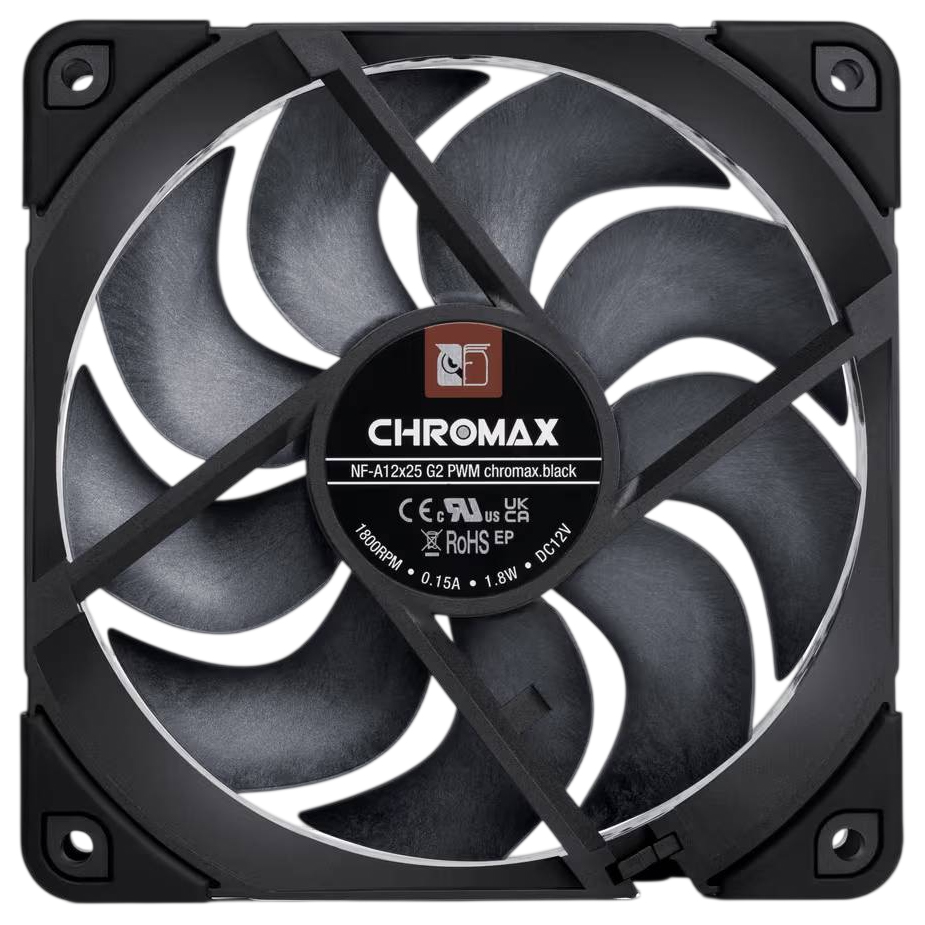

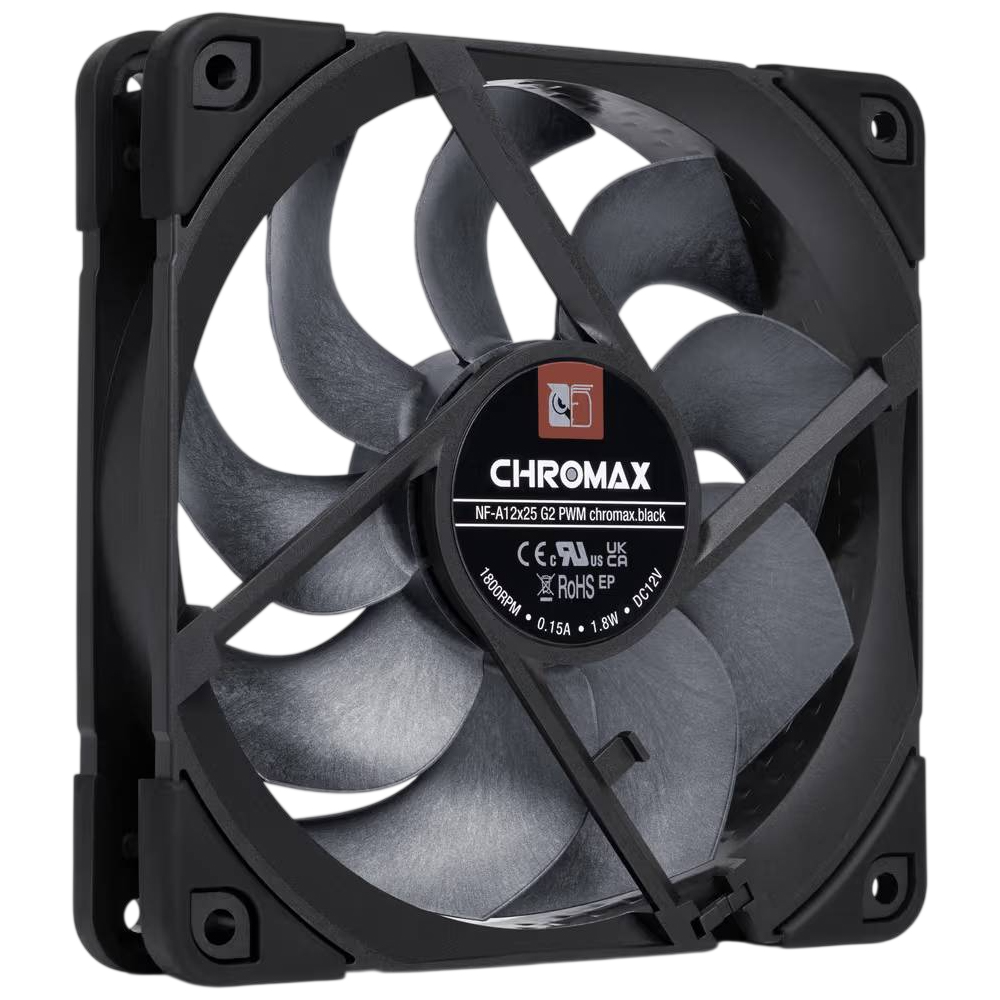

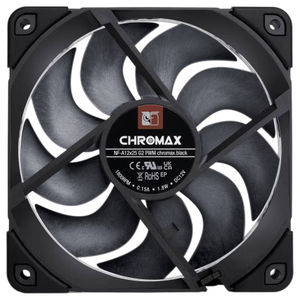

chromax.black Edition
From the impeller and fan frame to the anti-vibration pads, anti-vibration gasket, anti-vibration mounts, screws and cables, the chromax.black edition is black from head to toe, making it easy to integrate into all-black PC builds and various other environments.
Colour-Customisable with Optional Accessories
The chromax.black edition can be colour-customised by replacing the four black NA-AVP1 anti-vibration pads on the inlet side with other colours that are available separately (e.g. white, grey, brown or red). For additional customisation, Noctua’s chromax line also comprises cables and anti-vibration mounts in various colours.
Highly Optimised P/Q Curve for All Applications
The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.
Excellent On-Application Acoustics
While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A12x25 G2 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.
Progressive-Bend Impeller
The NF-A12x25 G2 features a unique Progressive-Bend impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.

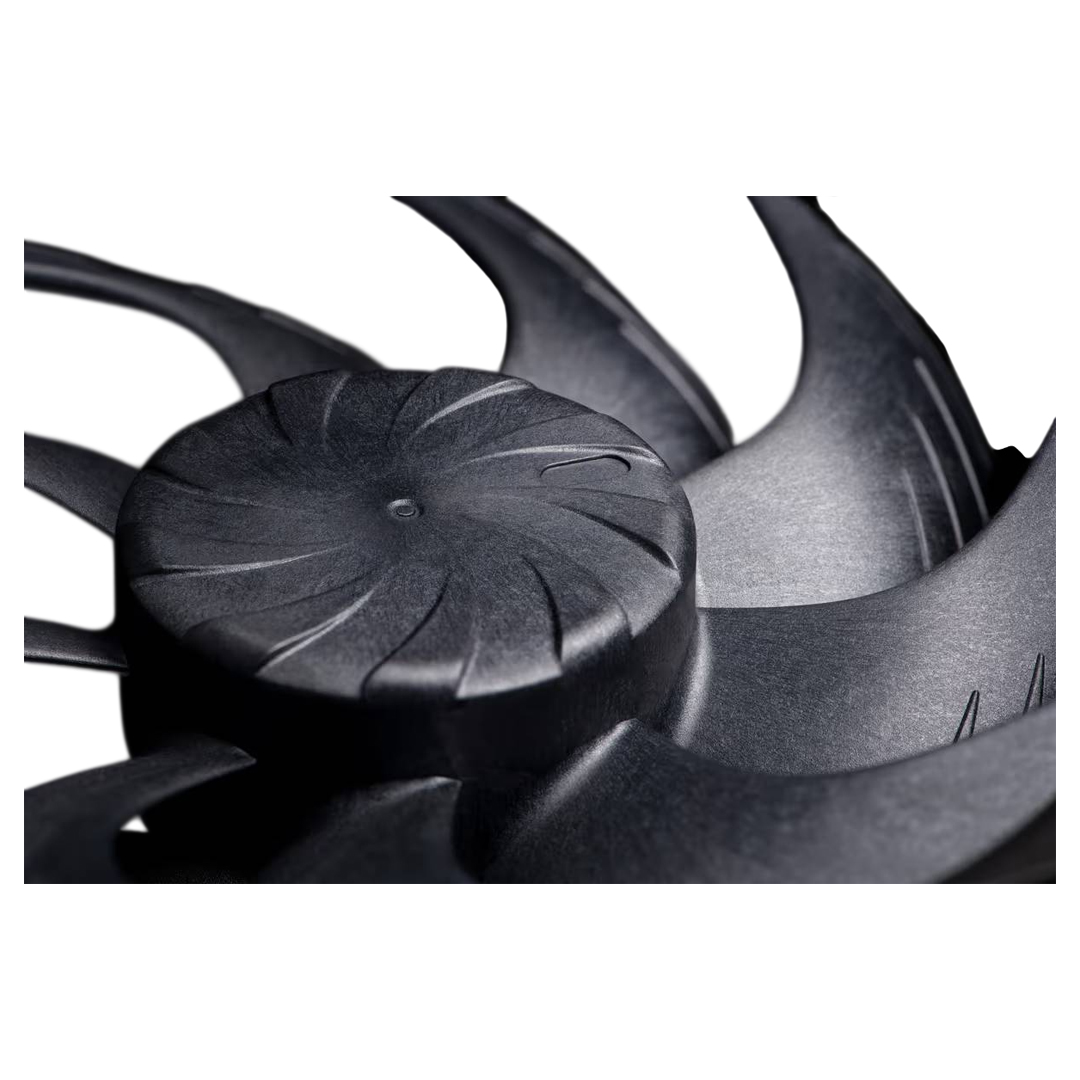

Centrifugal Turbulator Hub
Acting as a turbulator, the new Centrifugal Turbulator hub design improves flow attachment in the hub region. At the same time, its centrifugal driving motion pushes air outwards from the hub area where efficiency is low due to the slow rotational speed towards the outer, high-efficiency zones of the blades, thereby increasing overall efficiency by optimising fluid distribution across the impeller area.
Flow Acceleration Channels
The NF-A12x25 G2 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
Winglets
Winglets can help to reduce tip vortices that are caused by the pressure differential between the suction and the pressure side of fan blades but bear the risk of reducing efficiency due to extra fluid displacement in high velocity regions. The NF-A12x25 G2’s small winglets have been carefully fine-tuned to provide consistent efficiency gains working in tandem with its Progressive Bend blade geometry, Flow Acceleration Channels and AAO frame.
Ultra-Tight Tip Clearance
The NF-A12x25 G2 has an extremely tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
Sterrox® Liquid-Crystal Polymer Compound
The NF-A12x25 G2’s impeller is made from Noctua’s novel Sterrox® liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
AAO Frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

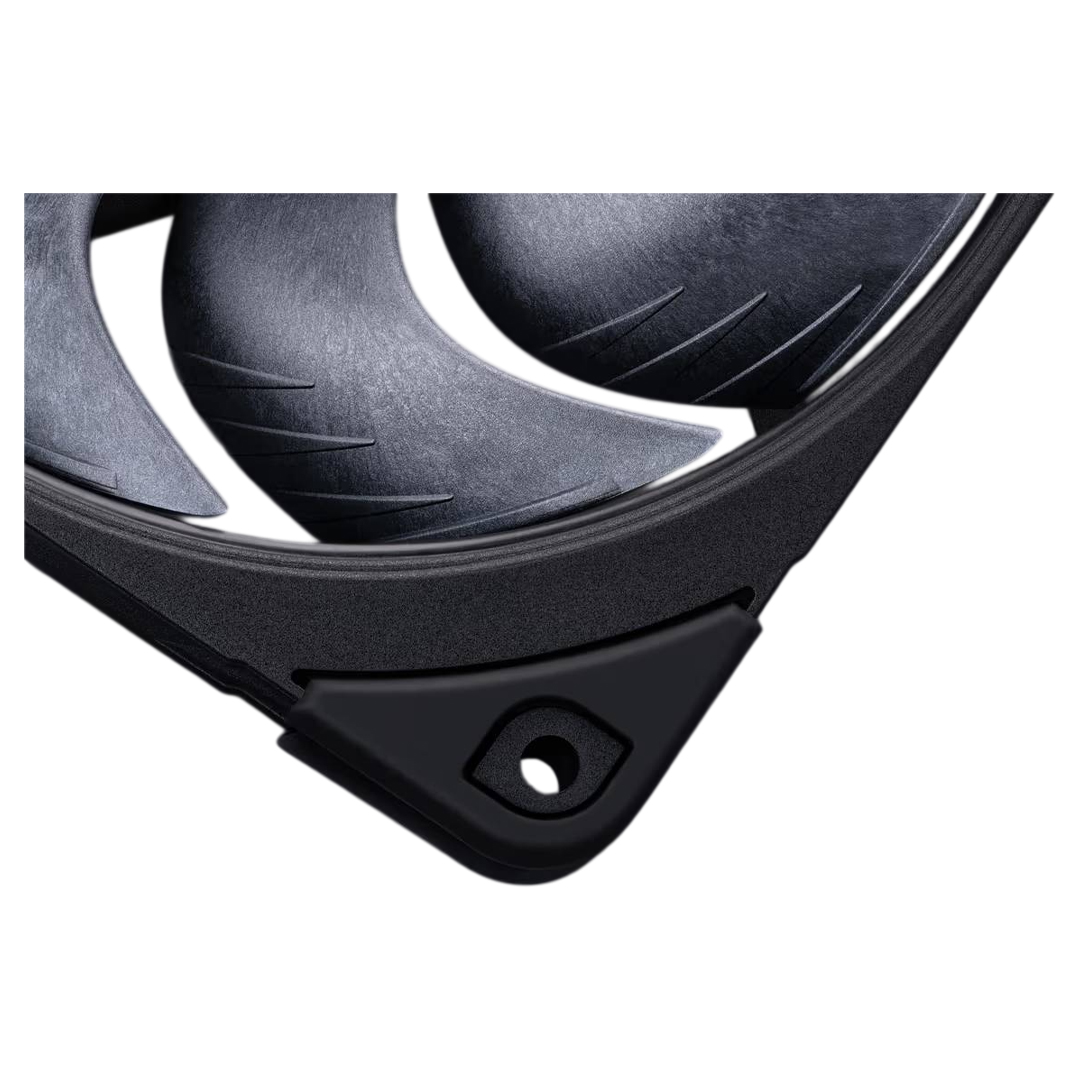

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.
Anti-Vibration Gasket for Water Cooling Radiators
The NF-A12x25 G2 includes an NA-AVG1 silicone gasket that can be used when installing the fan on water cooling radiators or other applications that benefit from a tighter seal with the fan. The gasket helps to damp minute vibrations and to reduce air loss between the fan and the radiator for optimal cooling performance.
Intake Side Spacer for Suction Applications (Available Separately)
If space allows, the NF-A12x25 G2 can be combined with the optional NA-IS1-12 inlet side spacer to reduce influx turbulences in “pull” type applications where the fan draws air through a grill, mesh filter or perforated panel. In many configurations, this reduction in turbulence can enhance airflow performance and further improve the fan’s suction acoustics.
SSO2 Bearing
The NF-A12x25 G2 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal Bearing Shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A12x25 G2 sports a CNC milled bearing shell made entirely from brass.
etaPERF™ Motor with NE-FD6 PWM IC
Noctua’s new etaPERF™ motor sets new standards in energy efficiency thanks to its extremely low electric impedance and the latest NE-FD6 drive system with its integrated, ultra-sensitive Hall effect sensor that provides super-precise commutation performance. This not only enables it to convert a minimal electric input into a maximum power-output with hardly any losses, but also works in tandem with Noctua’s proven Smooth Commutation Drive 2 technology to make the etaPERF™ motor run near-inaudible.
SupraTorque™
Most fans become slightly slower when working against back pressure such as on heatsinks and radiators, which results in reduced performance. Enabled by the new NA-FD6 driver IC, Noctua’s SupraTorque™ technology allows the fan to leverage additional torque headroom when required in order to keep its RPM speed at the desired level no matter the airflow resistance, ensuring consistent performance even in the most demanding conditions.
PWM Control with Wide Speed Range
The NF-A12x25 G2 PWM can be PWM-controlled from its maximum speed of 1800rpm all the way down to 360rpm at 20% duty cycle and full stop at 0%. This makes it possible to adjust the fan for maximum performance or near-silent operation using either automatic, temperature-based motherboard speed control or manual controllers such as the NA-FC1.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Smooth Commutation Drive 2
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
Low-Noise Adaptor
The NF-A12x25 G2 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1800 to 1500rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1500rpm or to cap the maximum speed when using automatic PWM control.

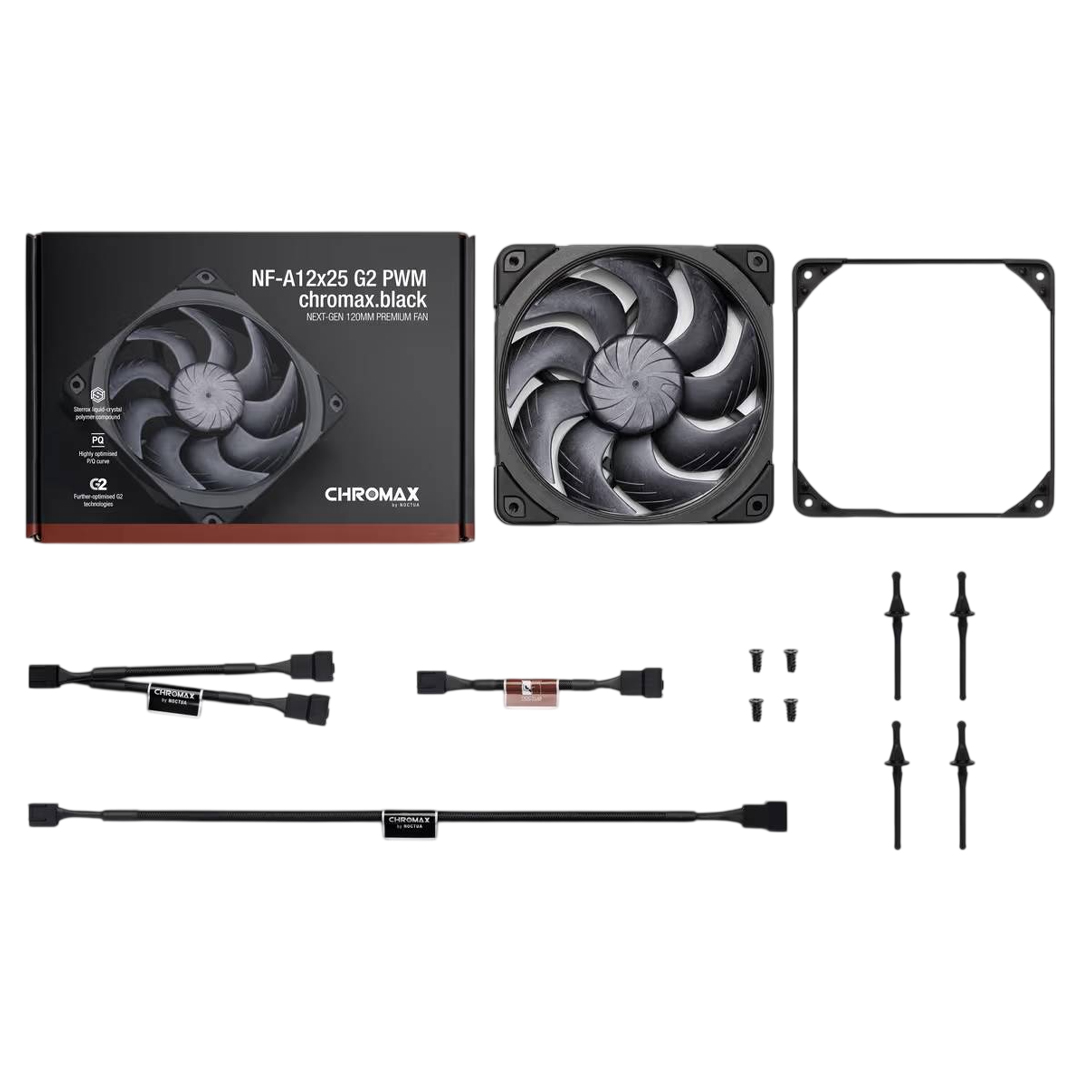

Extensive Cabling Options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin splitter cable allows the connection of a second fan to the same PWM fan header for automatic control.
Advanced Protection Features
Protected against reverse polarity, overvoltage and overcurrent (short-circuits), the fan is suitable for use in challenging electrical environments. At the same time, its ultra-low EMC emissions make it ideal for applications where electrical interference is critical. Last but not least, its locked rotor and overloading protection add extra safety in situations where the fan may be blocked mechanically.
Safety Certifications
Unlike many cheap fans, the NF-A12x25 G2 has been thoroughly tested for electrical safety, immunity and radiated emission. Carrying CE, TÜV, UKCA and UL certifications and meeting all applicable standards (EN 62368-1, EN 55035, EN 55032, UL-507), it is a safe, quality device through and through.
6-Year Manufacturer’s Warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A12x25 G2 features an MTTF rating of more than 150,000 hours and comes with a full 6-year manufacturer’s warranty.
Backed by a 6 year Noctua warranty.
