The Ubiquiti AI Multi Sensor 4 Camera delivers immense surveillance coverage through four independently adjustable 8MP sensors, combining wide-area monitoring with advanced AI-powered detection. Featuring face and licence plate recognition, 2.33x optical zoom, 360 degree infrared coverage, and intelligent detection for people, vehicles, and animals, the camera is designed for demanding security applications. An IP66 weatherproof and IK10 vandal-resistant construction, PoE++ connectivity and IR night vision up to 20 metres provide reliable performance for commercial and enterprise deployments.
Features

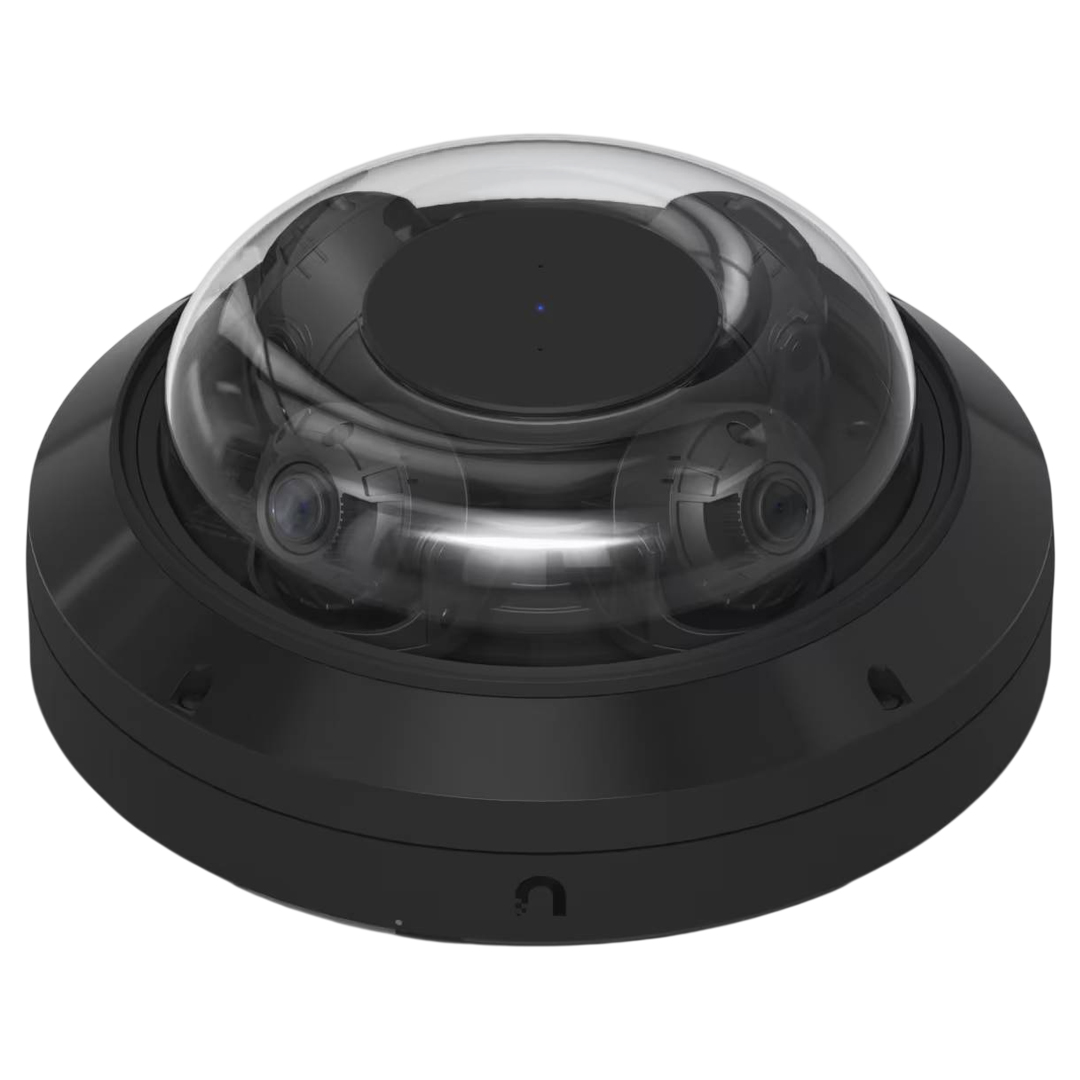

AI Multi Sensor 4
All-weather PoE++ 32MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33x optical zoom, 360° IR coverage, and four independently adjustable lenses for seamless wide-area and close-up monitoring.
Deployment

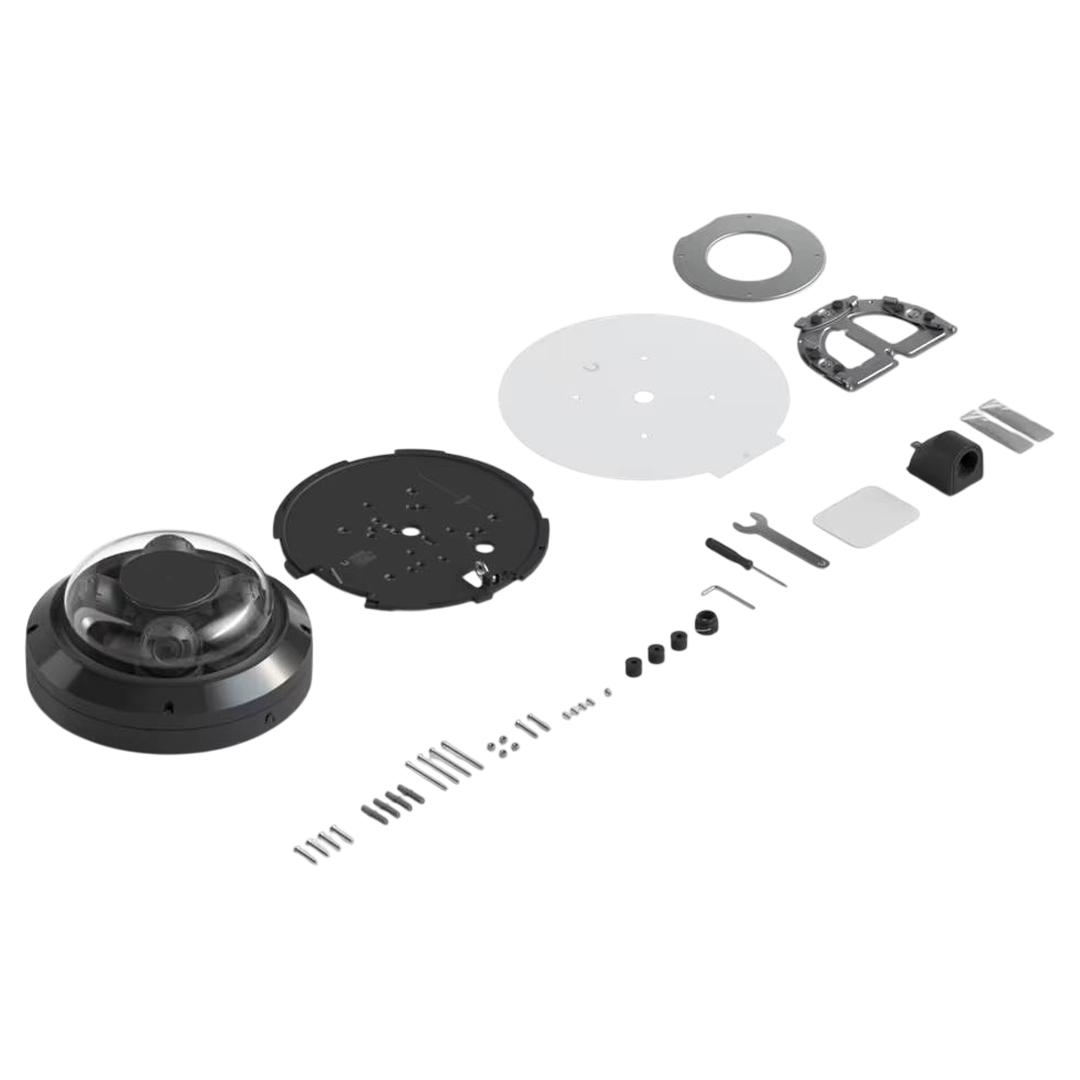

Build Features

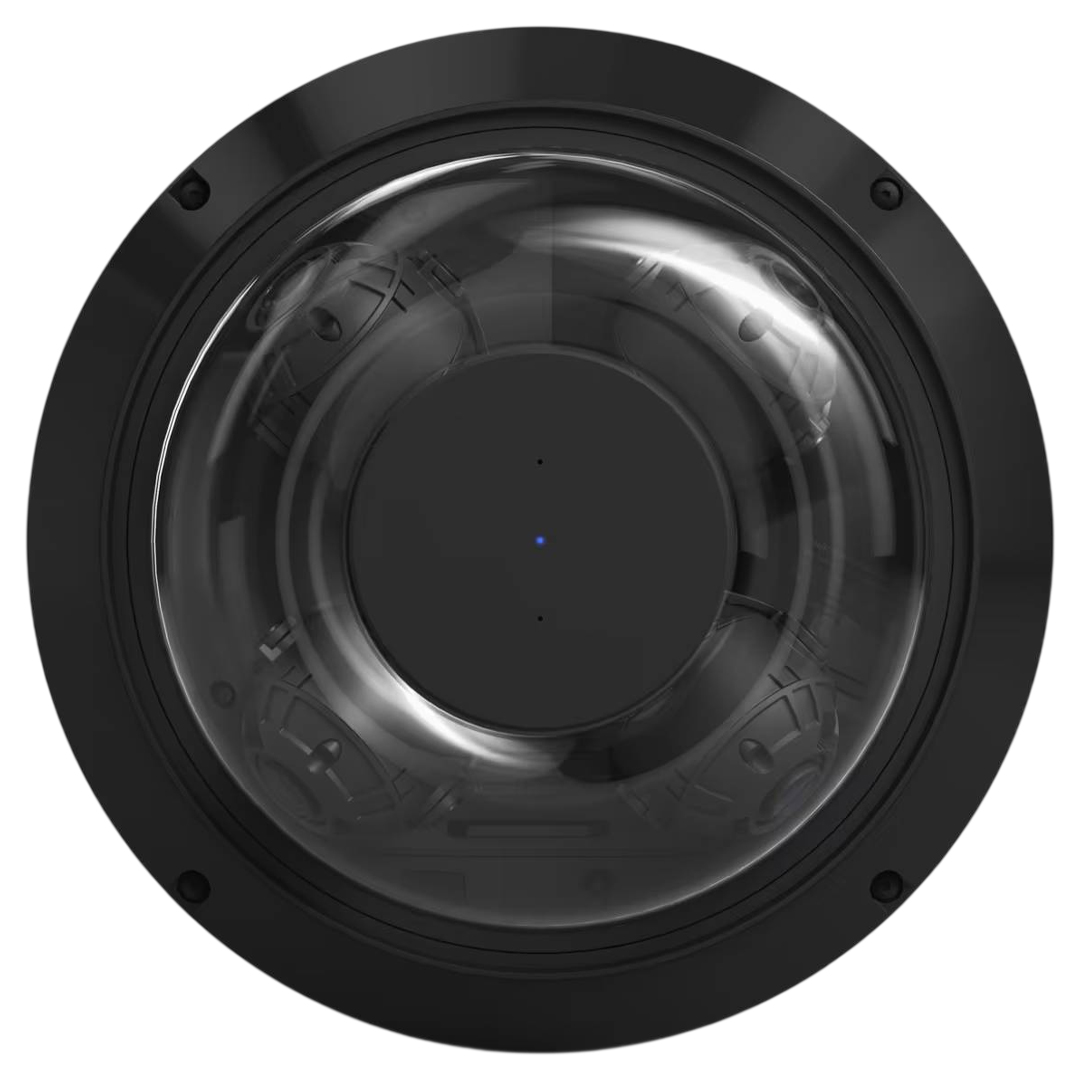

Front View
*SSD card support coming soon.

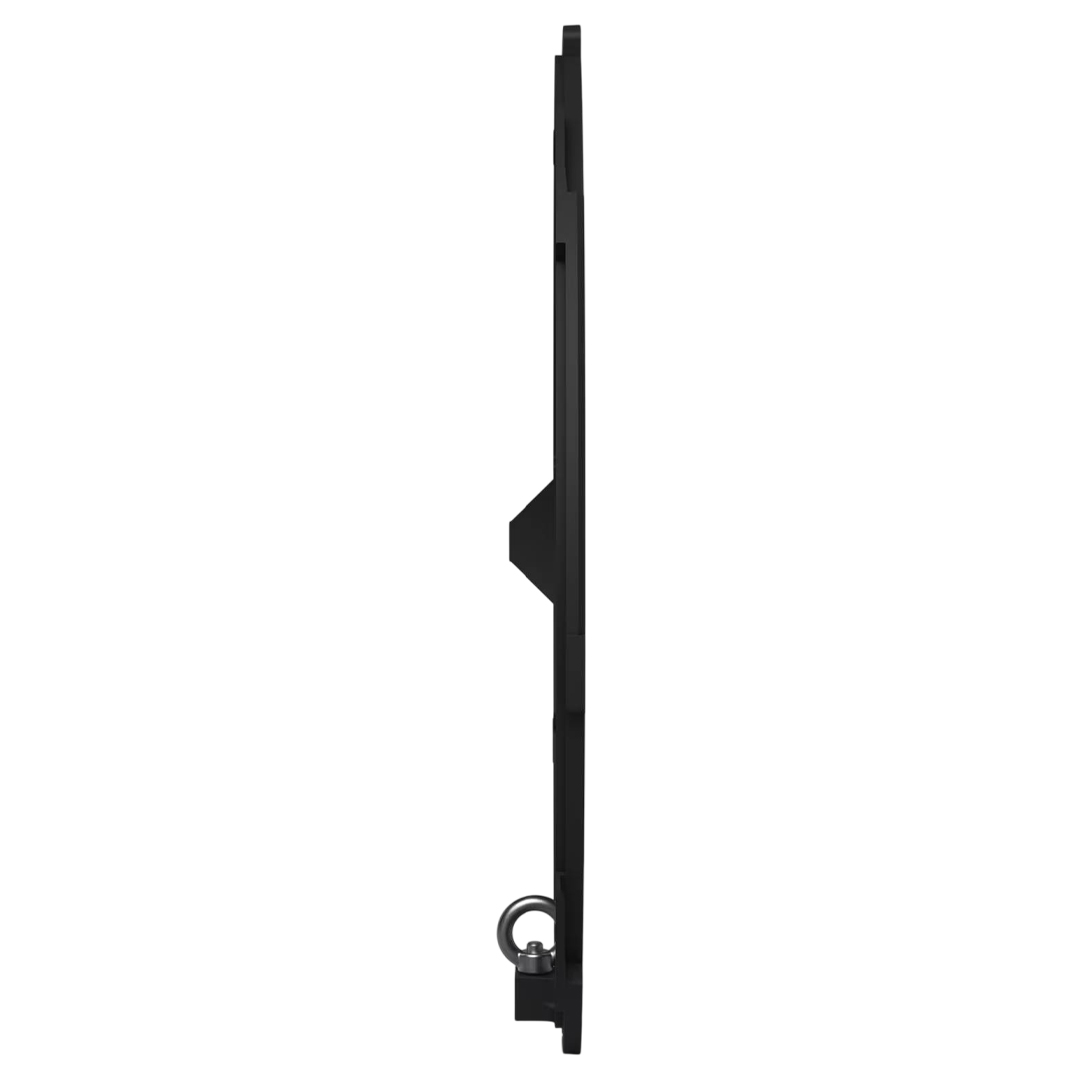

Side View

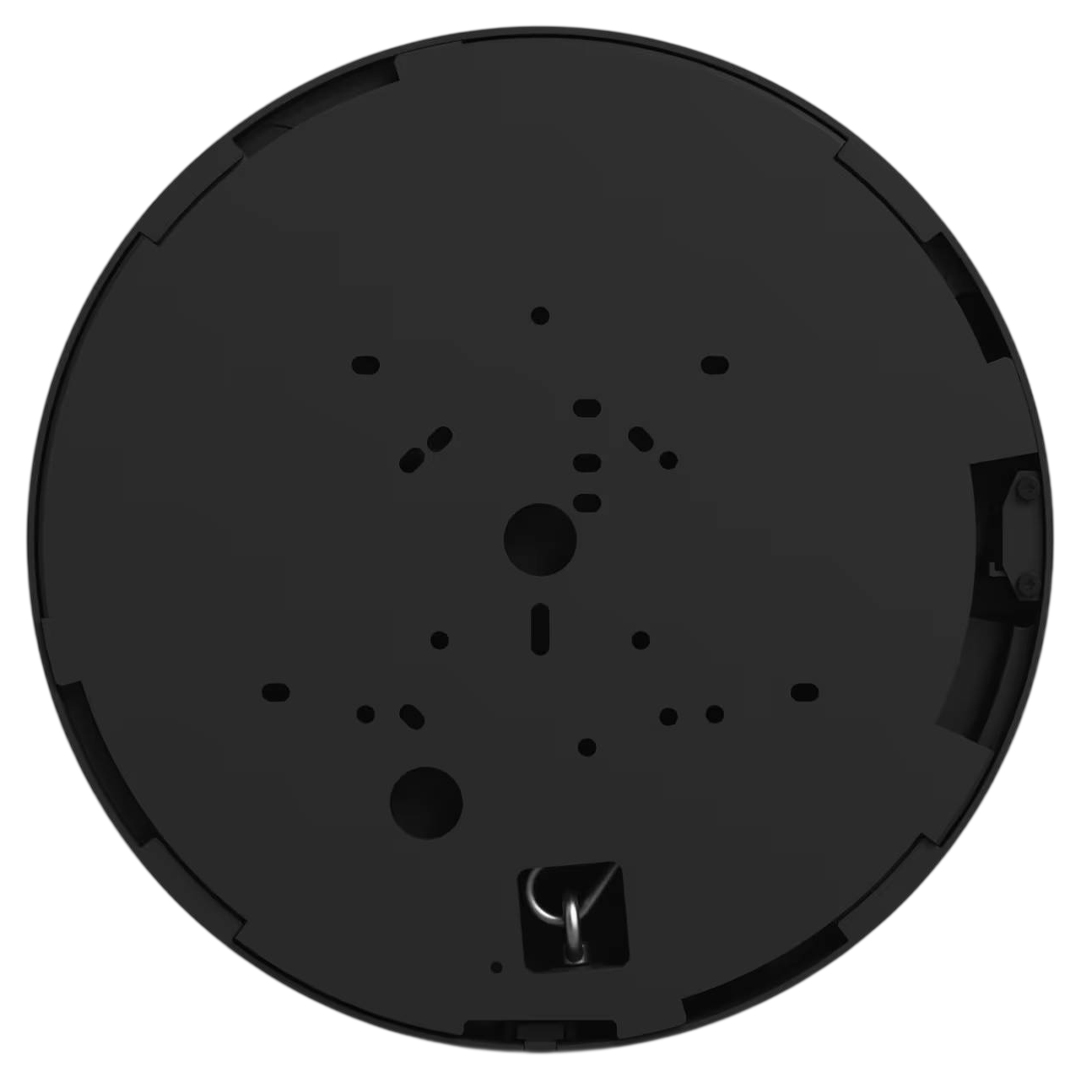

Back View
Specifications
General Data
| Model Number |
UVC-AI-MS-4-B |
| Colour |
Black |
| Dimensions |
255 x 105 mm (10.04 x 4.13") |
| IR Night Vision |
20 m (65 ft) |
| Zoom Mode |
2.33x Optical |
| Face Recognition |
Yes |
| Licence Plate Recognition |
Yes |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
32MP |
| Field of View |
Wide: H: 108.8°, V: 57.6° , D: 130.8°
Tele: H: 42.8°, V: 24.1° , D: 49.1° |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK10 |
| Mounting |
Ceiling mount (Included)
Pole, Corner, Arm, Pendant mount (Optional) |
| UniFi Application Suite |
Protect |
Performance
| Networking Interface |
GbE RJ45 port |
| Video |
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 24 FPS
Resolution: (4) 8MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/2.8" 8MP
Lens: (4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8
Night Mode: Built-in (16) IR LEDs with adaptive control |
Hardware
| Max. Power Consumption |
34.6W |
| Supported Voltage Range |
42.5–57V DC |
| Power Method |
PoE++ |
| Processor |
Dual core Arm® Cortex®-A76 based chip |
| Weight |
2.4 kg (5.3 lb) |
| Enclosure Material |
Aluminium alloy, polycarbonate |
| Mount Material |
Powder-coated aluminium alloy |
| Expansion Slot |
(2) MicroSD card
(1) M.2. 2280 SATA SSD (SSD card support coming soon) |
| Button |
(1) Factory reset |
| Ambient Operating Temperature |
-20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
