The Ubiquiti UniFi Long Range Ethernet Repeater extends Gigabit Ethernet and PoE connectivity to help deploy devices over longer distances. Featuring a weather resistant IPX5-rated enclosure, Gigabit passthrough performance, and up to 22.5W PoE output, it's ideal for expanding network installations without requiring additional power sources.
Features
UniFi Long-Range Ethernet Repeater
Extend Gigabit Ethernet and PoE
- Extends Gigabit Ethernet and PoE for long-distance deployments
- (2) Gigabit RJ45 ports with 2Gbps non-blocking throughput and 4Gbps switching capacity
- PoE/PoE+ powered with passthrough PoE output up to 22.5W
- IPX5-rated UV-stabilised enclosure designed for outdoor installations
- Operates in temperatures from -40°C to 80°C
- Integrated ESD and surge protection for improved reliability
- Low 1.5W maximum power consumption (excluding PoE output)
Gigabit Performance
Fast and Efficient Data Transmission
Featuring two Gigabit RJ45 ports, the repeater delivers up to 2Gbps non-blocking throughput and 4Gbps switching capacity, ensuring high-speed network performance without introducing unnecessary bottlenecks.
PoE Passthrough
Power and Data Over a Single Cable
Powered using standard PoE or PoE+, the repeater provides passthrough PoE output of up to 22.5W, allowing compatible devices to receive both power and data through a single Ethernet connection for simpler deployments.
Built for Outdoor Deployments
Weather-Resistant Construction
Housed in an IPX5-rated UV-stabilised polycarbonate enclosure with stainless steel mounting hardware, the repeater is engineered to withstand demanding outdoor environments while operating reliably in temperatures from -40°C to 80°C.
Advanced Protection
Designed for Harsh Environments
Integrated ESD and surge protection helps safeguard connected equipment against electrical discharge and transient voltage events, providing dependable operation in exposed installations.
Simple Installation and Status Monitoring

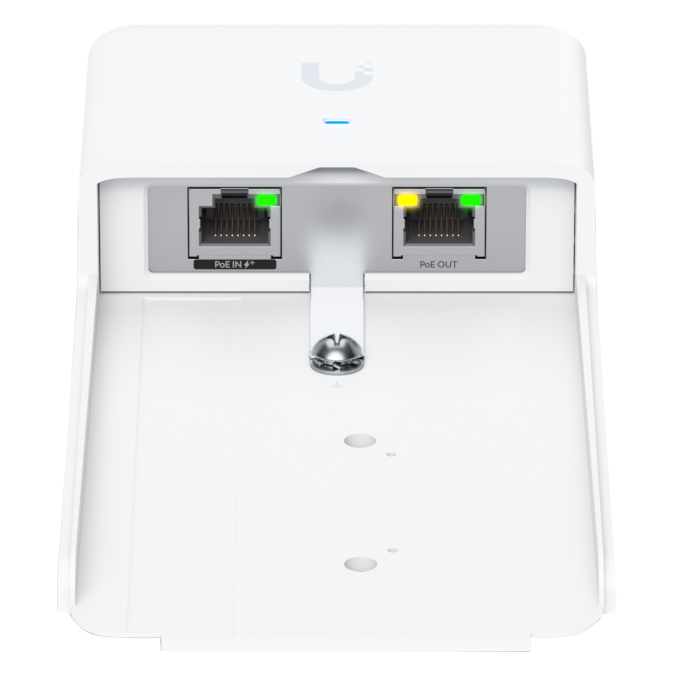

Integrated LED indicators display system power, Ethernet link speed, and PoE passthrough status, making installation, monitoring, and troubleshooting quick and straightforward.
Specifications
General Data
| Model Number |
UACC-LRE |
| Dimensions |
196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5") |
Mechanical
| Weight |
350 g (12.3 oz) |
| Enclosure Material |
UV stabilised polycarbonate |
| Mounting Material |
Stainless steel |
| Weatherproofing |
IPX5 |
Hardware
| Power Method |
PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-) |
| Max. Power Consumption |
1.5W (Excluding PoE output) |
| Networking Interface |
(2) GbE RJ45 ports |
| PoE Interface |
(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Total Non-Blocking Line Rate |
2 Gbps |
| Switching Capacity |
4 Gbps |
| Forwarding Rate |
1.488 Mpps |
| Total Available PoE |
22.5W |
| Voltage Range PoE Mode |
37–57V DC |
| ESD/EMP Protection |
Air/contact: ±30kV |
| DC Sparkover Voltage |
90V at 100V/s |
| Max. Impulse Sparkover Voltage |
700V at 1kV/μs |
| Discharge Current |
10kA+ |
| Max. MTU |
1,500 bytes |
| LEDs |
System - Blue: power ON
Ethernet - Green: 1 Gbps; Amber: 10/100 Mbps
PoE - Amber: passthrough PoE out |
| Ambient Operating Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
Backed by a 1 year Ubiquiti warranty.
